Swing Gearbox Bearing VOE14622894 Fit Volvo EC380D EC750D EC750E EC950E

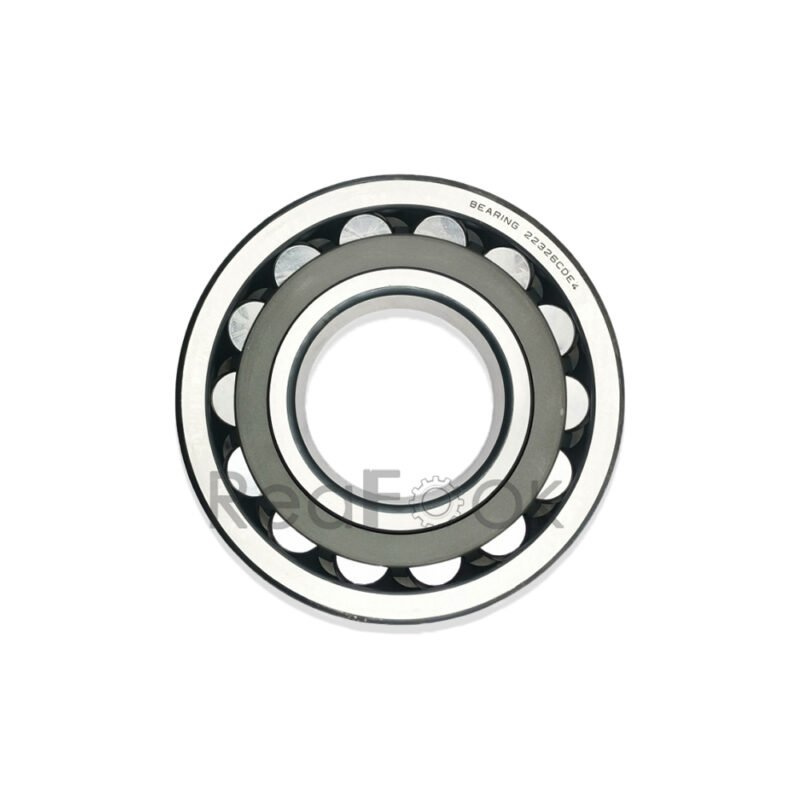

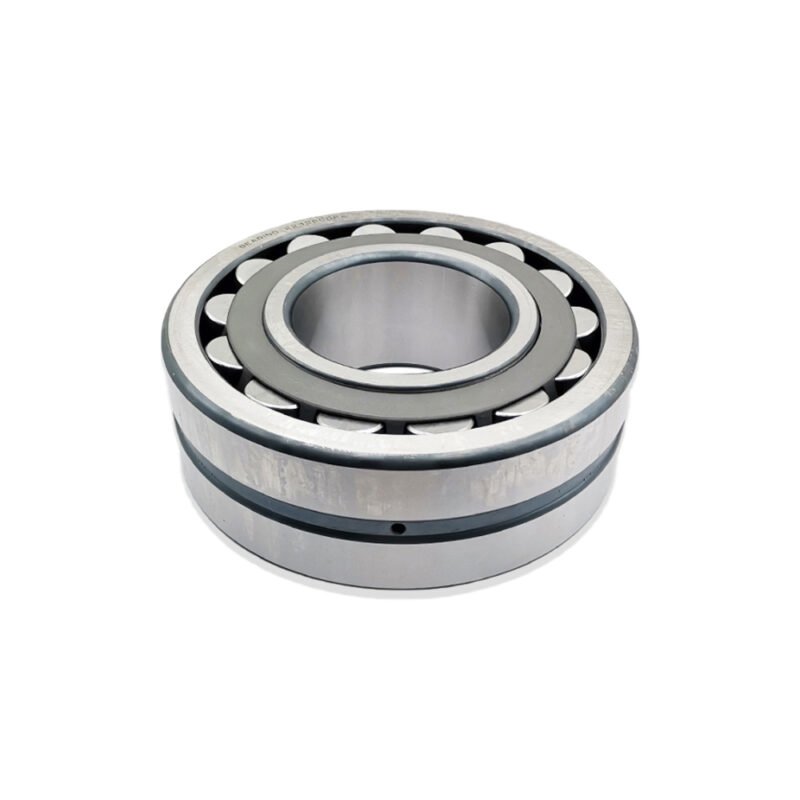

Product Name: Roller Bearing for Swing Shaft
Reference Part Number: VOE14622894
Compatible Machine: Fit Excavator Volvo EC240 240B EC290 EC330B EC330C EC360B EC360C EC380D EC700B..

Description:

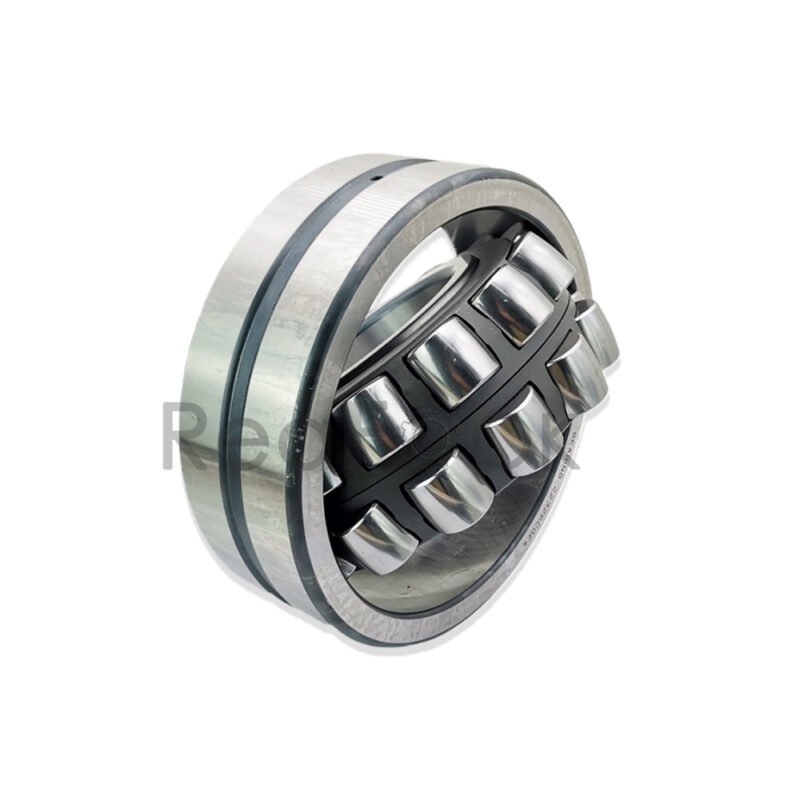

Spherical roller bearings are typically used in applications to support high radial loads and some axial loads where misalignment due to shaft deflection may be present, and accommodate misalignment through the use of a concave outer raceway and spherical shaped rollers.

Pos. Part No Qty Parts name Comments
VOE14622901 [1] Swing gearbox
VOE14680015 Swing gearbox
1 VOE14622865 [1] Shaft
2 VOE14622869 [1] Collar
3 VOE14622894 [1] Roller bearing
4 VOE14622895 [1] Plate
5 VOE14622896 [1] Collar
6 VOE14622897 [1] Case
7 VOE14622898 [1] Retaining ring
8 VOE14622899 [1] Retaining ring
9 VOE14596611 [1] Seal
10 VOE14640028 [1] Bearing
11 SA9324-21317 [4] Pin
12 VOE14622914 [1] Gear
13 VOE14622908 [1] Planet carrier
13A. VOE14622910 [4] Gear
13B. VOE14622911 [4] Bushing
13C. VOE14622912 [4] Pin
14 VOE14596618 [4] Washer
15 VOE952004 [4] Spring pin
16 VOE14622913 [1] Gear
17 VOE14596621 [1] Thrust washer
18 VOE14622902 [1] Planet carrier
18A. VOE14622904 [3] Gear
18B. VOE14622905 [3] Bushing
18C. VOE14622906 [3] Pin
18D. VOE14596625 [6] Washer
19 VOE14622907 [1] Gear
VOE14680062 Gear
20 VOE14596630 [1] Cover
VOE14633289 Cover
21 VOE995261 [16] Hex. socket screw
22 SA9415-43052 [2] Plug
23 SA9415-43012 [1] Plug
24 VOE914167 [1] Lubriing nipple
25 SA9411-92830 [2] Elbow nipple
26 VOE14529015 [1] Valve
27 VOE914472 Snap ring
28 VOE984138 [4] Hex. socket screw
VOE984139 Hex. socket screw
