Swing Reduction Gearbox Spherical Roller Bearing 05/903875 Fit Excavator JCB JS200 JS200W JS205 JS210 JS220 JS235 JZ235 JS255

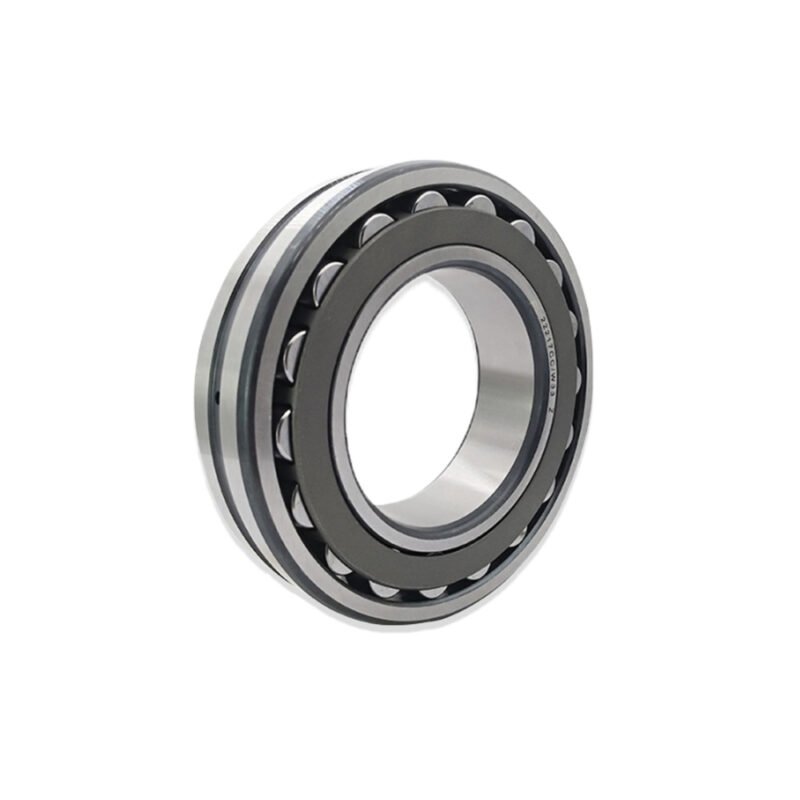

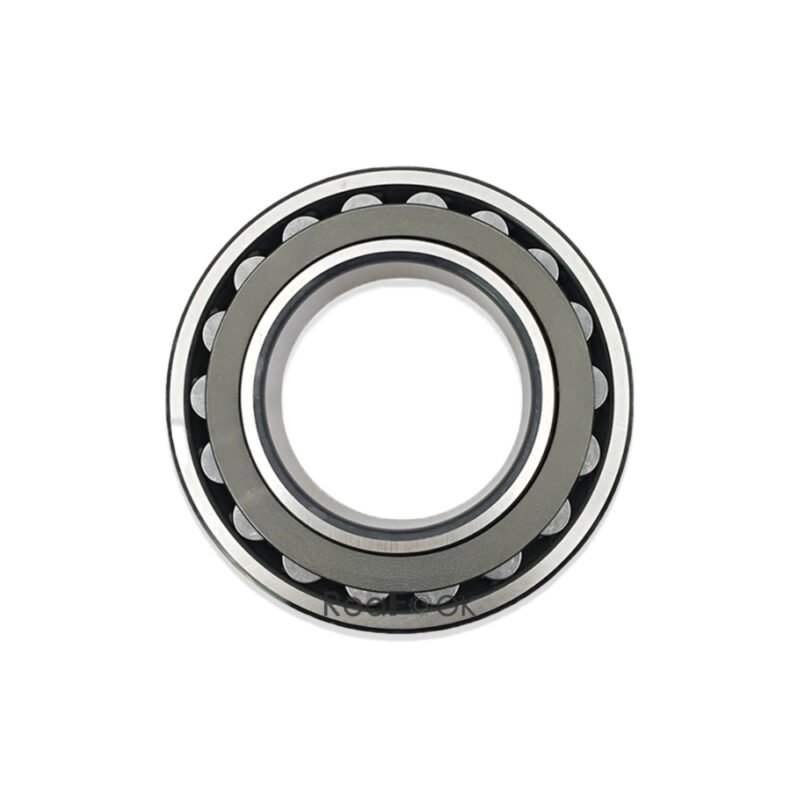

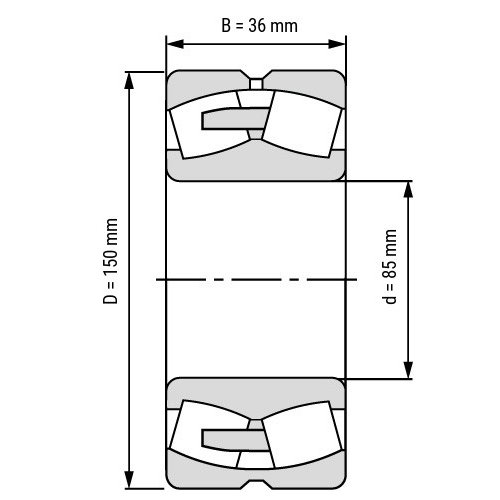

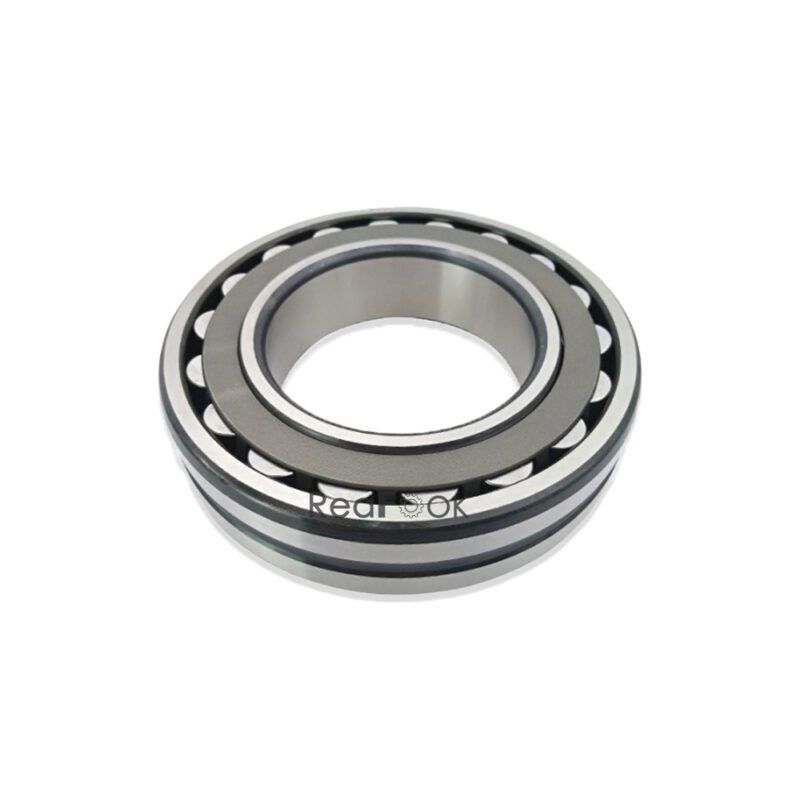

Product Name: Spherical Roller Bearing
Reference Part Number: 05/903875
Compatible Machine: Excavator JCB JS200 JS200W JS205 JS210 JS220 JS235 JZ235 JS255…

Description:
The spherical roller bearings are typically used in applications to support high radial loads and some axial loads where misalignment due to shaft deflection may be present.

Pos. Part No Qty Parts name Comments
A. JRC0007 [1] Gearbox swing
1. 05/903860 [1] Gear reduction assembly
2. 05/902010 [2] O Ring
3. 05/903862 [1] Ring Toothed
4. 05/903863 [1] Gear Sun
5. 05/903864 [1] Cover
5A. 05/903865 [1] RingToothed
6. 05/903866 [1] Gear Reduction Assembly
7. 05/903867 [1] Gear Sun
8. 05/903868 [16] Screw M16 x 120mm
10. 05/903873 [1] Gear output assembly
10-1. 05/903869 [1] Shaft pinion 14 teeth
10-2. 05/903870 [1] Spacer
10-3. 05/903871 [1] Ring
10-4. 05/903872 [1] Bearing
10-6. 05/903874 [1] Nut
10-7. 05/903875 [1] Bearing
10-8. 05/903876 [1] Seal ring 100 x 130 x12mm
10-8. 333/C7880 [1] Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1] Housing
11. See Remark’ Gauge,oil level see page E2-7-3,Swing motor
