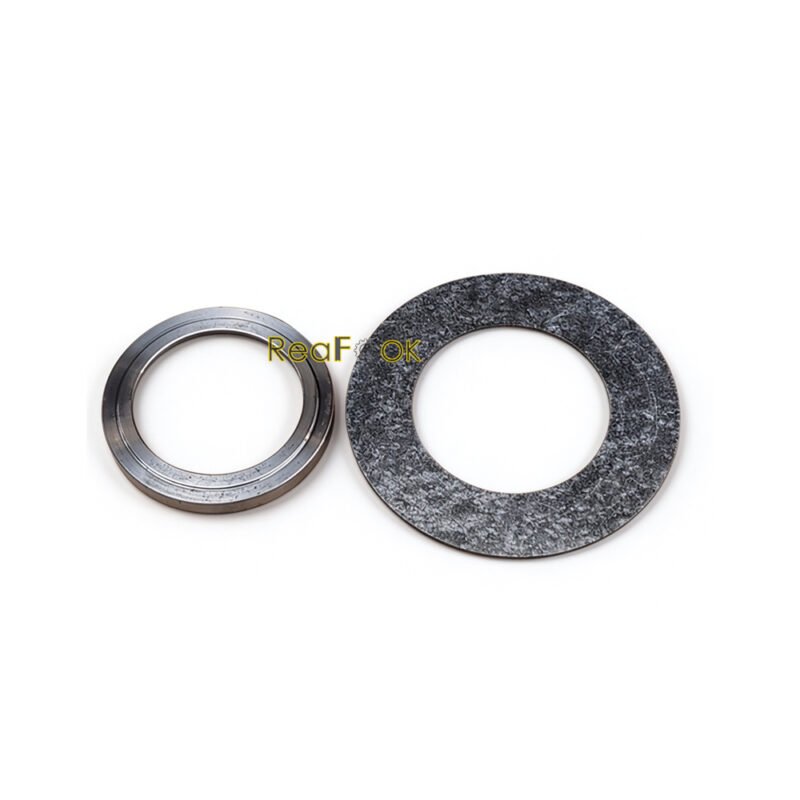

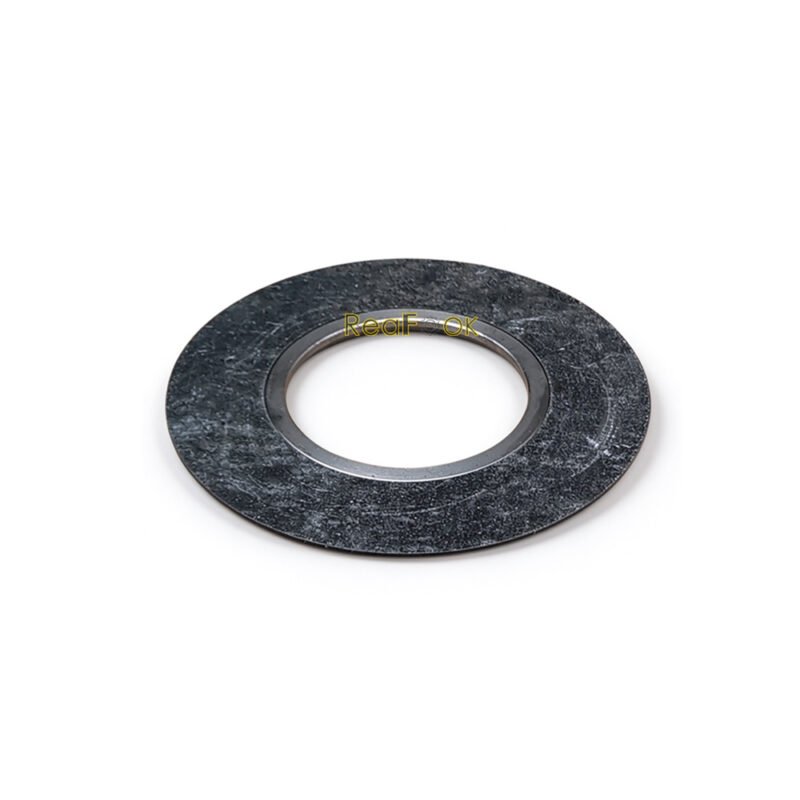

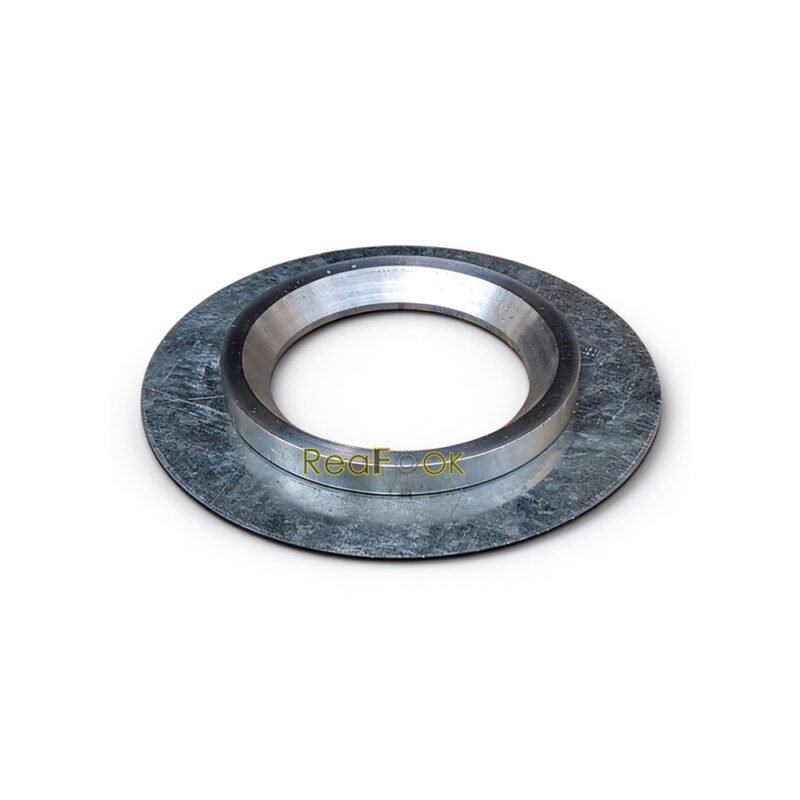

Swing Reduction Plate VOE14622895 and Collar VOE14622896 Fit Excavator Volvo EC350E EC380EHR EC380D

Product Name: Plate and Collar for Swing Shaft
Reference Part Number: VOE14622895, VOE14622896
Compatible Machine: Fit Excavator Volvo EC380D EC350E EC380EHR..

Description:
The Swing Drive Cage operates by providing structural support and containment for the swing drive assembly, enabling the conversion of hydraulic energy into rotational force, thereby effectuating the controlled swinging motion of the machine.

Pos. Part No Qty Parts name Comments
VOE14622901 [1] Swing gearbox
VOE14680015 Swing gearbox
1 VOE14622865 [1] Shaft
2 VOE14622869 [1] Collar
3 VOE14622894 [1] Roller bearing
4 VOE14622895 [1] Plate
5 VOE14622896 [1] Collar
6 VOE14622897 [1] Case
7 VOE14622898 [1] Retaining ring
8 VOE14622899 [1] Retaining ring
9 VOE14596611 [1] Seal
10 VOE14640028 [1] Bearing
11 SA9324-21317 [4] Pin
12 VOE14622914 [1] Gear
13 VOE14622908 [1] Planet carrier
13A. VOE14622910 [4] Gear
13B. VOE14622911 [4] Bushing
13C. VOE14622912 [4] Pin
14 VOE14596618 [4] Washer
15 VOE952004 [4] Spring pin
16 VOE14622913 [1] Gear
17 VOE14596621 [1] Thrust washer
18 VOE14622902 [1] Planet carrier
18A. VOE14622904 [3] Gear
18B. VOE14622905 [3] Bushing
18C. VOE14622906 [3] Pin
18D. VOE14596625 [6] Washer
19 VOE14622907 [1] Gear
VOE14680062 Gear
20 VOE14596630 [1] Cover
VOE14633289 Cover
21 VOE995261 [16] Hex. socket screw
22 SA9415-43052 [2] Plug
23 SA9415-43012 [1] Plug
24 VOE914167 [1] Lubriing nipple
25 SA9411-92830 [2] Elbow nipple
26 VOE14529015 [1] Valve
27 VOE914472 Snap ring
28 VOE984138 [4] Hex. socket screw
VOE984139 Hex. socket screw
