Final Drive Planetary Gear FUFZD-8090-06 4PCS with Sun Gear Fit Excavator Komatsu PC40MR-2 PC45MR-3 PC50MR-2 PC55MR-3
US$166.00

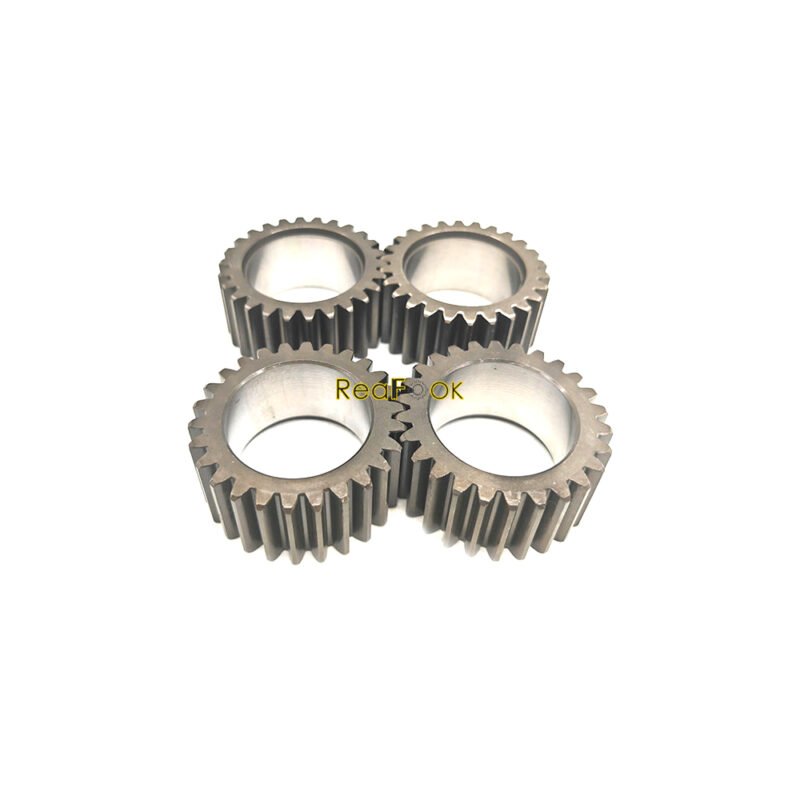

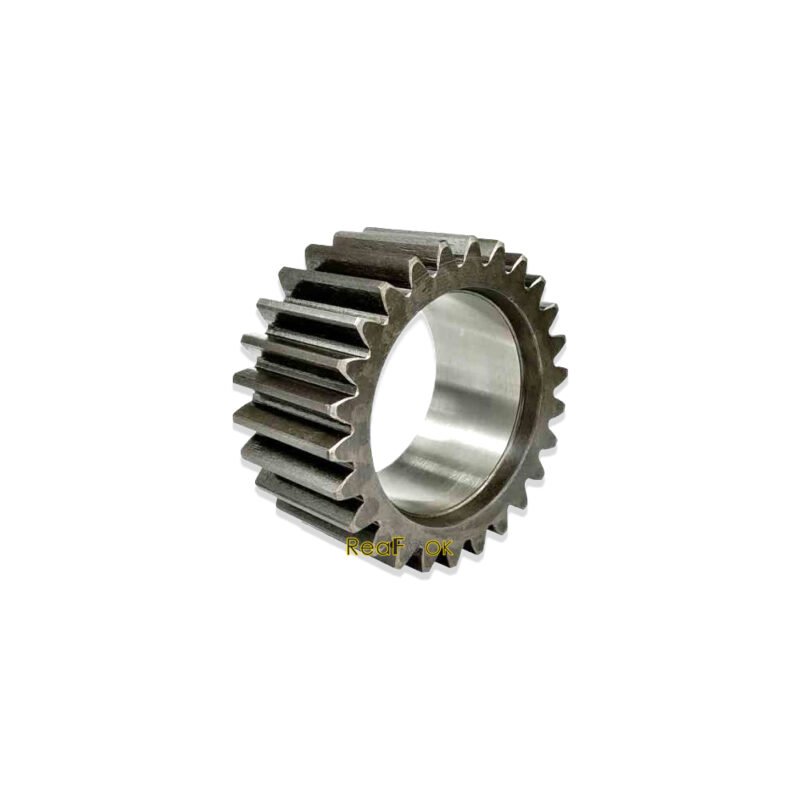

Planetary Gear FUFZD-8090-06: 26 Teeth, ID 48mm, OD72.5mm;

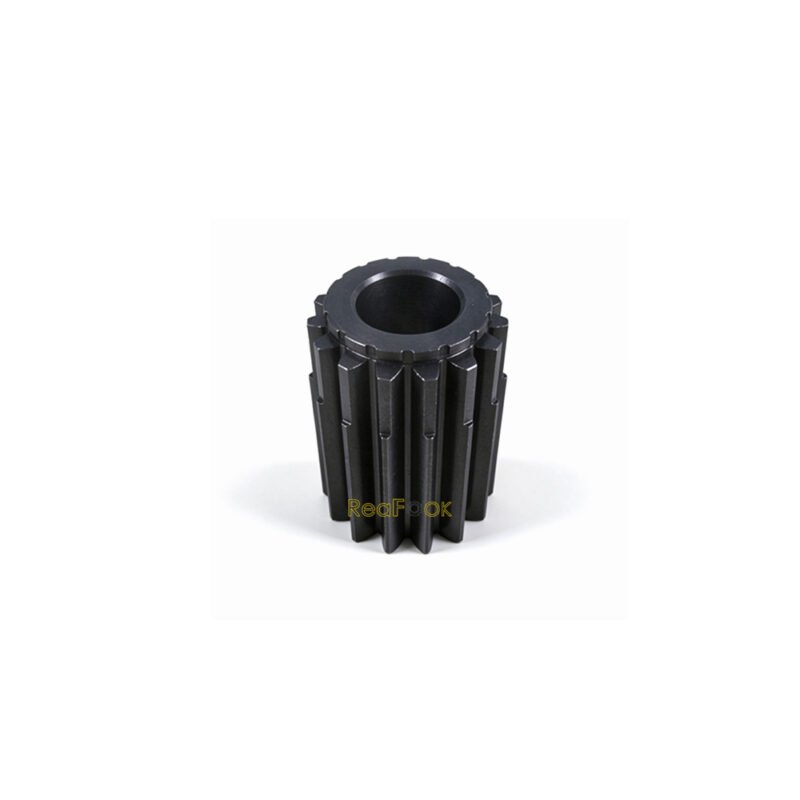

Sun Gear: 15 Teeth, ID 22mm, OD 44.8mm, H 60mm;
It is used for Final Drive Travel Reduction System;
Free Shipping and High Quality Standards!!
The unit price covers 4 pieces of planet gears and 1 piece of sun gear.
All dimensions are manually measured; minor errors are inevitable.
Product Name: Planetary Gear (4PCS) with Sun Gear; 2nd Stage
Reference Part Number: FUFZD-8090-06
Compatible Machine: Fit Excavator Komatsu PC40MR-2 PC45MR-3 PC50MR-2 PC55MR-3…
Description:
Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.
| No | Part Number | Name | Price | Qty | Options |
|---|---|---|---|---|---|
| 22M-60-21301 | MOTOR ASSY | Inquire | 1 | SN: 5001-UP | |
| FUGHB-4-8235 | • BODY ASS’Y | Inquire | 1 | SN: 5001-UP | |
| 1 | ☆ | •• BODY | Inquire | 1 | SN: 5001-UP |
| 2 | ☆ | •• BEARING | Inquire | 2 | SN: 5001-UP |
| 3 | ☆ | •• RING,SNAP | Inquire | 1 | SN: 5001-UP |
| FUGHC4B28235 | • CARRIER SUB ASS’Y | Inquire | 1 | SN: 5001-UP | |
| 4 | ☆ | •• CARRIER | Inquire | 1 | SN: 5001-UP |
| 5 | ☆ | •• GEAR | Inquire | 3 | SN: 5001-UP |
| 6 | ☆ | •• GEAR | Inquire | 1 | SN: 5001-UP |
| 7 | ☆ | •• PIN | Inquire | 3 | SN: 5001-UP |
| 8 | ☆ | •• NEEDLE | Inquire | 72 | SN: 5001-UP |
| 9 | ☆ | •• WASHER,THRUST | Inquire | 6 | SN: 5001-UP |
| 10 | ☆ | •• PIN,SPRING | Inquire | 3 | SN: 5001-UP |
| 11 | FUFZD-8322-02 | • COVER | Inquire | 1 | SN: 5001-UP |
| 12 | FUFZD-8090-06 | • GEAR | Inquire | 4 | SN: 5001-UP |
| 13 | FUFZD-8090-09 | • GEAR | Inquire | 1 | SN: 5001-UP |
| 14 | FUFZD-8090-10 | • RING | Inquire | 4 | SN: 5001-UP |
| 15 | FUFZD-8090-12 | • COLLAR,THRUST | Inquire | 1 | SN: 5001-UP |
| 16 | FUFZD-8322-13 | • RING,SNAP | Inquire | 1 | SN: 5001-UP |
| 17 | FUFZD-8090-14 | • PLATE,THRUST | Inquire | 4 | SN: 5001-UP |
| 18 | FUFZD-8090-15 | • PLATE,THRUST | Inquire | 1 | SN: 5001-UP |
| 19 | FUFZD-8322-16 | • RING,SLIDE | Inquire | 1 | SN: 5001-UP |
| 20 | FUFZD-8322-17 | • FLOATING SEAL A. | Inquire | 2 | SN: 5001-UP |
| 21 | FUFZD-8090-20 | • NEEDLE | Inquire | 136 | SN: 5001-UP |
| 22 | FUFZD-8322-23 | • RING,SNAP | Inquire | 1 | SN: 5001-UP |
| 23 | FURA-35 | • RING,SNAP | Inquire | 4 | SN: 5001-UP |
| 24 | FUFZD-8144-34 | • PLUG | Inquire | 2 | SN: 5001-UP |
| 25 | FUGPF-1-8 | • PLUG | Inquire | 1 | SN: 5001-UP |
| 26 | ☆ | • MOTOR | Inquire | 1 | SN: 5001-UP |
| 27 | ☆ | • NAME PLATE | Inquire | 1 | SN: 5001-UP |
| 28 | FUGPF-1-4 | • PLUG | Inquire | 1 | SN: 5001-UP |
| FUGHS50018325 | • KIT | Inquire | 1 | SN: 5001-UP | |
| 29 | ☆ | •• O-RING | Inquire | 1 | SN: 5001-UP |
| 30 | ☆ | •• O-RING | Inquire | 2 | SN: 5001-UP |
| 31 | ☆ | •• O-RING | Inquire | 1 | SN: 5001-UP |
| 32 | ☆ | •• O-RING | Inquire | 1 | SN: 5001-UP |
| Weight | 2.5 kg |
|---|
