Name: Final Drive Planetary Gear 6i-6493 Fit Caterpillar Excavator CAT311 311B
SKU: 6i-6493
Price: 80.00 USD
Availability: InStock

Final Drive Planetary Gear 6i-6493 Fit Caterpillar Excavator CAT311 311B

Sold: 4

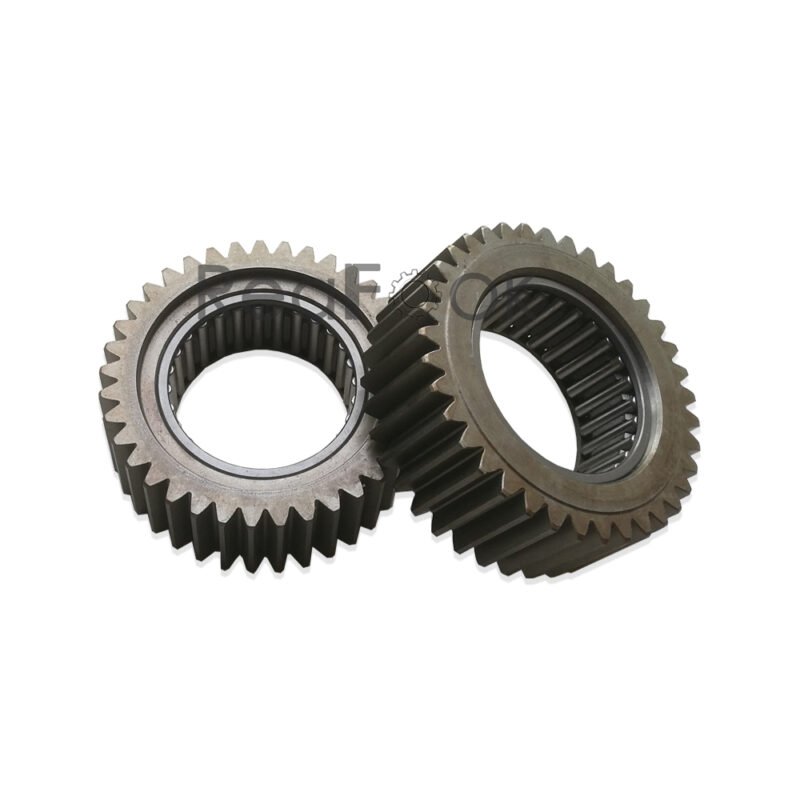

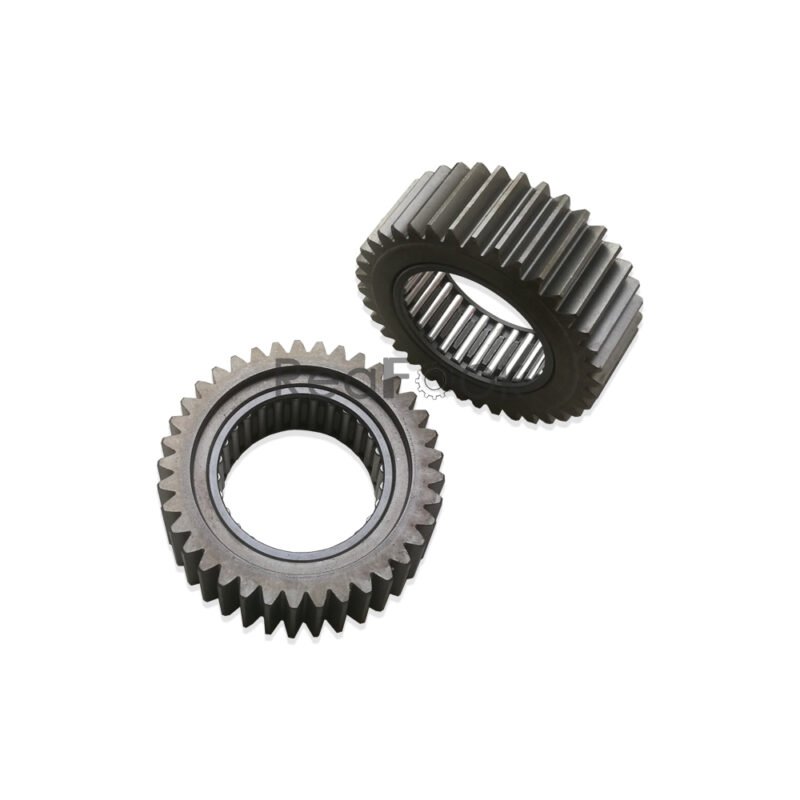

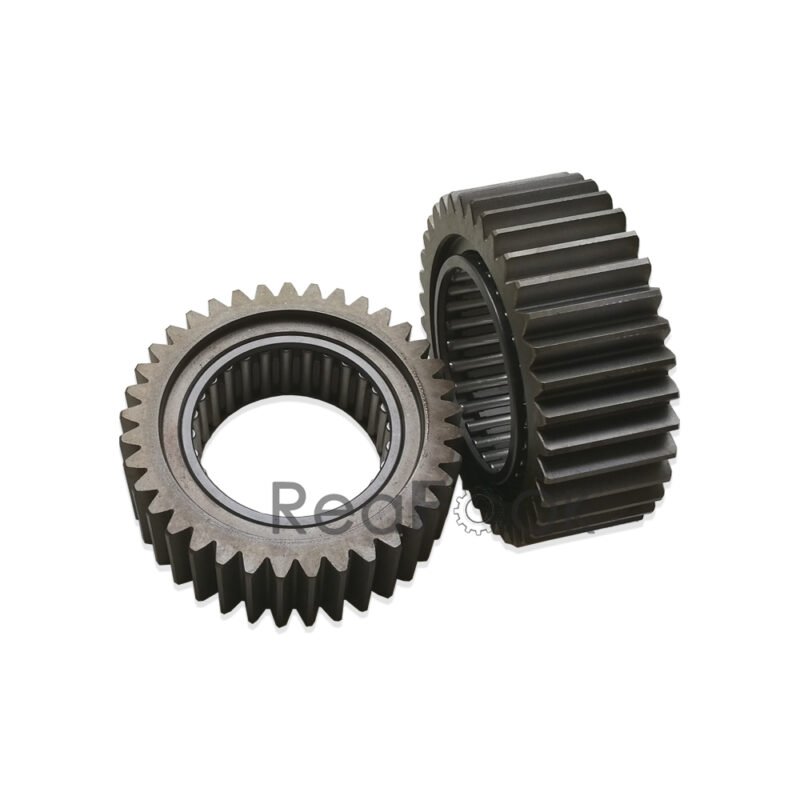

Planetary Gear 6i-6493, with Bearing 6i-6492
Gear 37 Teeth, OD 115mm, Thickness 41mm;
Used for Travel Reduction Gearbox;
Free Shipping and High Quality Standards!!

The unit price include Gear 6i-6493 and Bearing 6i-6492 each 1 piece; the minimum order quantity is 4 sets.

All dimensions are manually measured; minor errors are inevitable.

Guaranteed Safe Checkout

Product Name: Planetary Gear with Needle Roller Bearing
Reference Part Number: 6i-6493, 6i-6492
Compatible Machine: Caterpillar Excavator CAT311 311B…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

CAT311 Final Drive Reduction Diagram

Pos. Part No Qty Parts name Comments
1. 1U-8846 B GASKET MAKER (10ml)
311-A EXCAVATOR 9LJ
311 TRACK-TYPE EXCAVATOR 9LJ00001-UP (MACHINE) POWERED BY 3064 ENGINE XEBP7200 311-A 9LJ (1993)
2. 099-7048 [1] SEAL
3. 099-7049 [2] BEARING
4. 1R-5468 [4] PLUG
5. 099-7050 [1] NUT
6. 6I-6492 [4] BEARING
7. 6I-6493 [4] GEAR
8. 6I-6494 [4] RACE
9. 8T-1158 [16] BOLT (20mm LONG)
10. 099-7057 [4] SCREW
11. 095-0968 [3] PLUG
12. 6I-6497 [3] BEARING
13. 6I-6498 [3] RACE
14. 099-7064 [3] PIN
15. 6I-6511 [1] COVER
16. 6I-6512 [1] PLATE
17. 6I-6513 [3] GEAR
18. 6I-6514 [1] CARRIER
19. 6I-6515 [1] GEAR
20. 102-6452 B [1] PLATE KIT
21. 099-7059 [1] RING
22. 6I-6518 [1] GEAR
23. 6I-6519 [4] PLUG
24. 6I-6520 [1] HOUSING
25. 6I-6485 [4] PLATE
