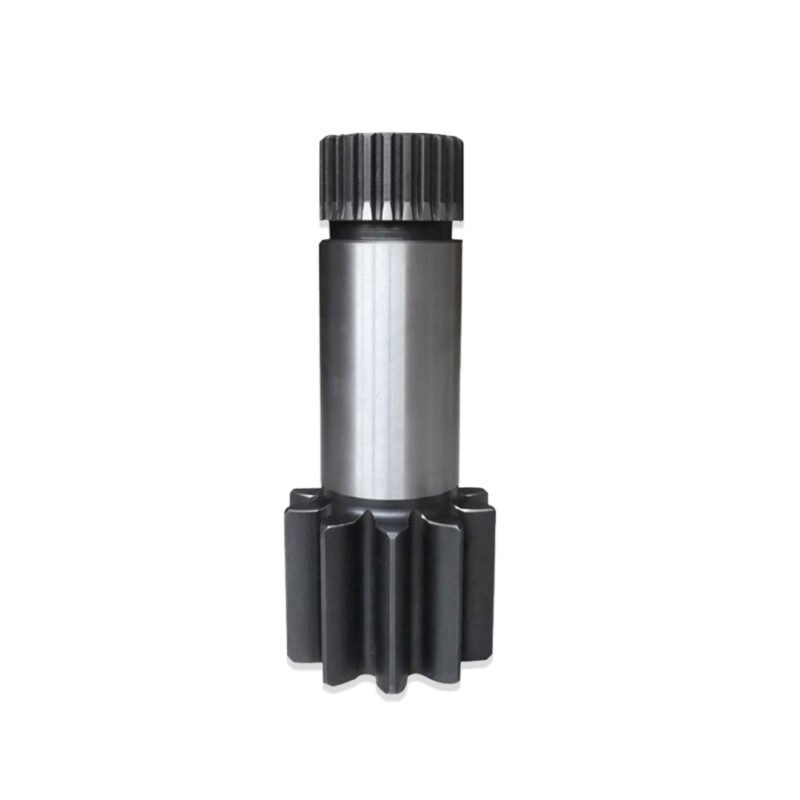

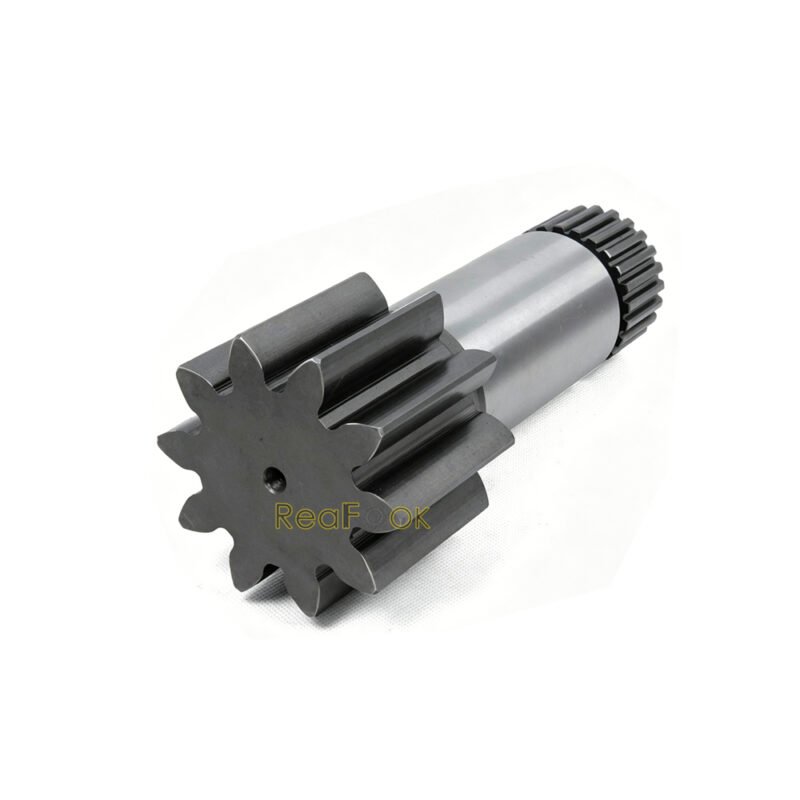

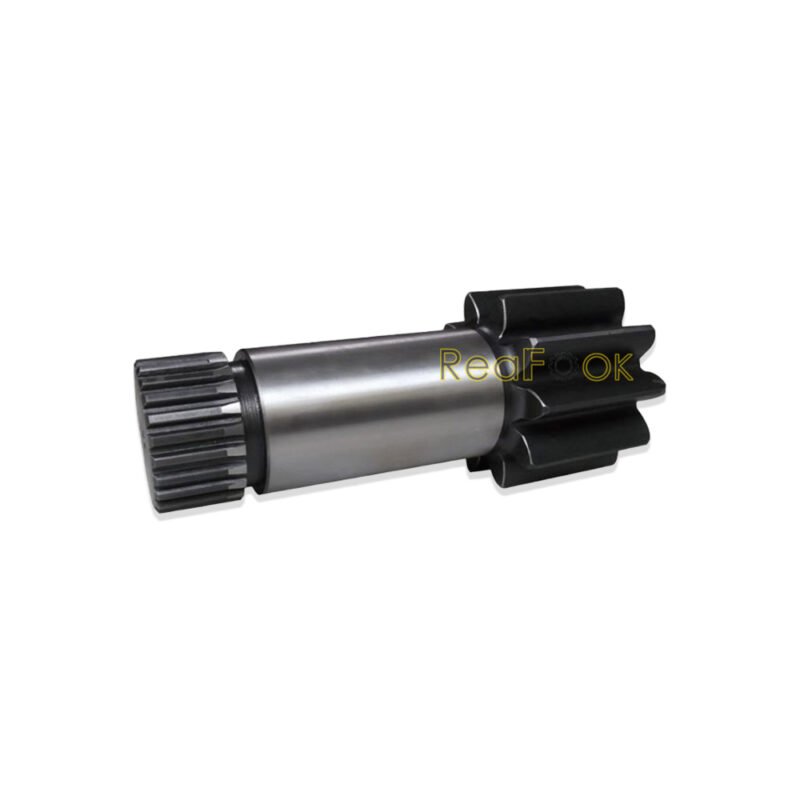

Swing Reduction Pinion Shaft YR32W00002S001 Fit Excavator Kobelco SK60-5 SK70SR SK75SR SK80CS SK80MSR-1E SK70SR-2

Product Name: Swing Pinion Shaft, Drive Shaft
Reference Part Number: YR32W00002S001
Fits and Compatible Machines: Excavator Kobelco SK60-5 SK70SR SK75SR SK80CS SK80MSR-1E SK70SR-2…

Description:
Pinion shaft is used for the swing drive group that provides gear reduction between swing motor and swing gear, and method of holding upper portion of machine stationery in respect to lower portion of machine.

Pos. Part No Qty Parts name Comments
1. YR32W00002S001 [1] SHAFT KOB PINION
2. YR32W00002S002 [1] COLLAR KOB
3. YR32W00002S003 [1] PLATE KOB
4. YR32W00002S004 [1] BEARING KOB ROLLER
5. YR32W00002S005 [1] GEAR KOB CASE
6. YR32W00002S006 [2] PLUG
7. YR32W00002S007 [1] SEAL KOB OIL
8. YR32W00002S008 [1] BEARING KOB ROLLER
9. PY32W00001S019 [2] PIN KOB
10. YR32W00002S010 [1] GEAR KOB RING
11. YR32W00002S011 [1] GEAR KOB
12. YR32W00002S012 [1] GEAR KOB
13. YR32W00002S013 [1] HOLDER KOB ASSY
14. YR32W00002S014 [6] CAPSCREW KOB SCREW CAPSCREW
15. YR32W00002S015 [1] REPAIR KIT KOB HOLDER ASSY Superseded by part number: YT32W00002R100
16. YR32W00002S016 [2] COLLAR KOB
17. 2436R354S18 [1] PLUG
18. NSS [6] NOT SOLD SEPARAT CON BEARING, NEEDLE
19. NSS [3] NOT SOLD SEPARAT CON SHAFT
20. NSS [3] NOT SOLD SEPARAT CON GEAR
21. NSS [6] NOT SOLD SEPARAT CON PLATE,THRUST
22. NSS [3] NOT SOLD SEPARAT CON PIN. SPRING
23. NSS [1] NOT SOLD SEPARAT CON HOLDER
