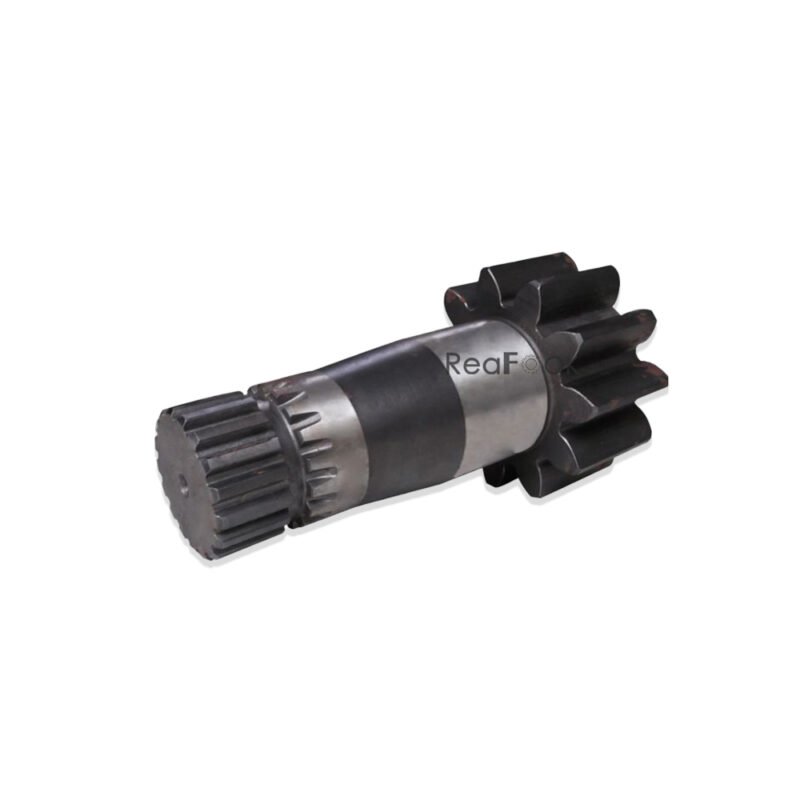

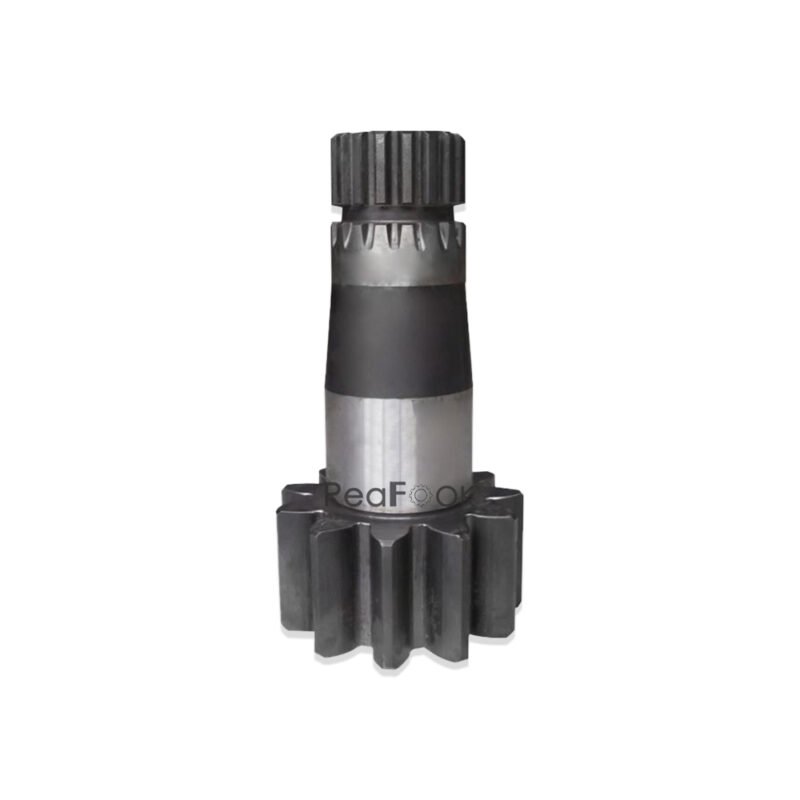

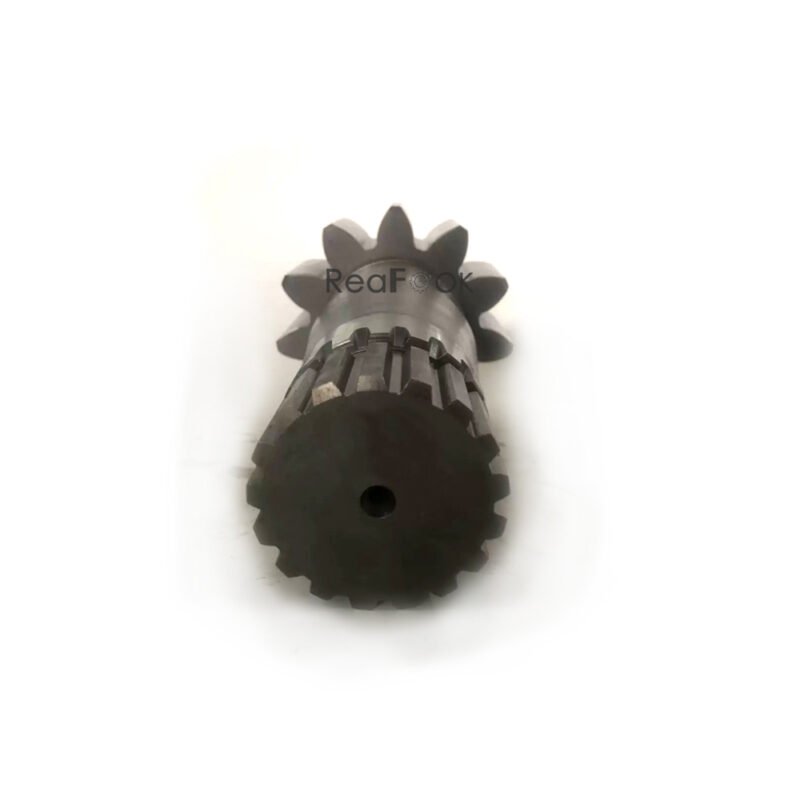

Swing Drive Shaft 203-26-61220;
Small End: 17 Splines;
Big End: 11 Teeth;
Overall Length 259mm;
It is used for Swing Motor Assembly System;
Free Shipping and High Quality Standards!!
Description:
The Swing Pinion Shaft for transmitting power from the swing motor to the swing gear which enables the rotation of the upper structure. It is used to rotate your equipment about the undercarriage by orbiting around the much larger bearing and ring gear.
Pos. Part No Qty Parts name Comments
22B-26-01000 [1] SWING MACHINERY 118 kg.
1. 22B-26-11111 [1] CASE [“22B2611112”]
2. 203-26-61110 [1] GEAR 14 kg.
3. 203-26-61120 [1] CARRIER 1.1 kg.
4. 203-26-61130 [1] CARRIER 4.1 kg.
5. 203-26-61220 [1] SHAFT 12.81 kg.
6. 203-26-61150 [1] GEAR
7. 203-26-61160 [3] GEAR
8. 203-26-61170 [1] GEAR
9. 203-26-61180 [3] GEAR
10. 201-26-62240 [3] SHAFT
11. 203-26-61250 [3] SHAFT
12. 201-26-62270 [3] BEARING
13. 203-26-61270 [3] BEARING
14. 20S-26-71160 [6] WASHER
15. 09233-12920 [6] WASHER
16. 20S-26-71250 [6] PIN
17. 20S-26-71190 [3] RING
18. 04064-05520 [1] RING
19. 203-26-61280 [1] SPACER
20. 203-26-61391 [2] SPACER
21. 203-26-61310 [1] COLLAR 0.25 kg.
22. 201-26-62330 [1] BEARING 1.71 kg.
23. 203-26-61320 [1] BEARING 2.19 kg.
24. 203-26-61340 [1] COLLAR 2.2 kg.
25. 07000-12080 [1] O-RING [“SN: 5001-UP”] analogs: [“0700002080”]
26. 07012-00145 [1] SEAL
27. 203-26-61360 [2] O-RING
28. 22B-26-11120 [1] PIPE
29. 07042-30312 [1] PLUG [“890001453”, “0704220312”]
30. 07049-01620 [2] PLUG
31. 04020-01638 [2] PIN
Weight
14 kg
