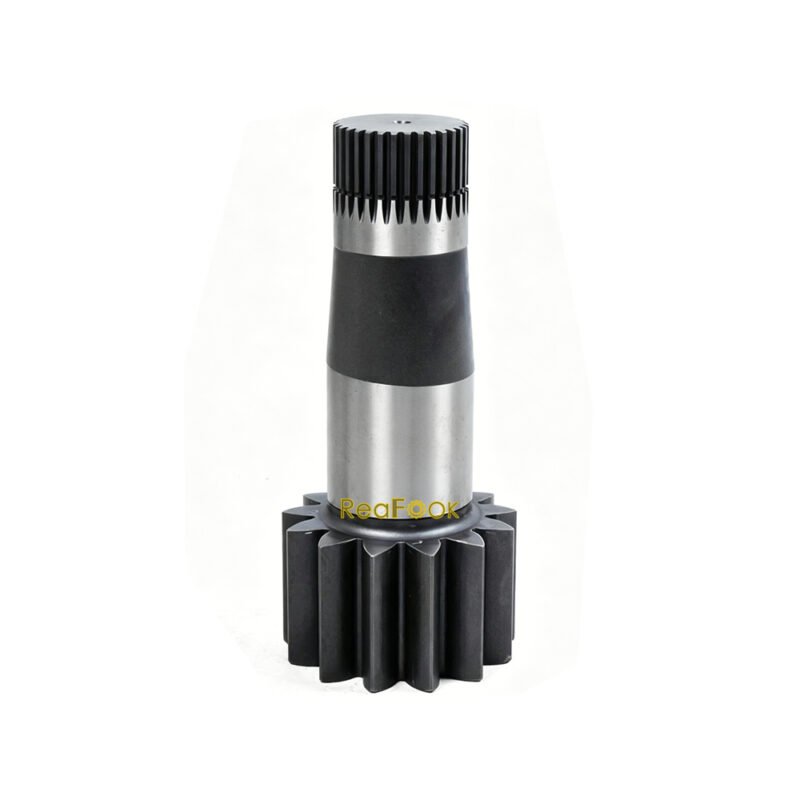

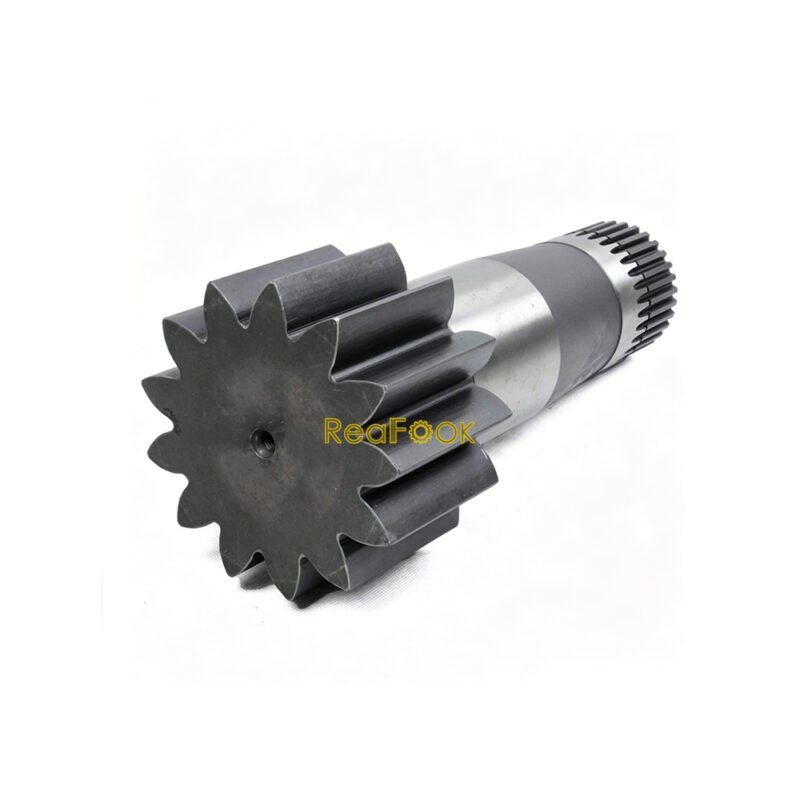

Swing Shaft 2401N436 Finger Assy Drive Shaft Fit Excavator Kobelco SK07N2 K907LC K907 MD200BLC

Product Name: Swing Shaft, FINGER ASSY
Reference Part Number: 2401N436
Fits and Compatible Machines: Excavator Kobelco SK07N2 K907LC K907 MD200BLC…

Description:
Pinion shaft is used for the swing drive group that provides gear reduction between swing motor and swing gear, and method of holding upper portion of machine stationery in respect to lower portion of machine.

Pos. Part No Qty Parts name Comments
. . 24100J10739F2 [1] HYDRAULIC MOTOR KOB
1. 2401N436 [1] FINGER ASSY. KOB
2. 2418T19344 [1] SLEEVE KOB
4. 2414J1915 [1] HOUSING HOUSING
5. R25P0047D8 [1] BEARING KOB
6. 25Z494D11 [1] BEARING KOB
7. 2413J350 [1] DIFF. SPIDER KOB
8. 2413N391F1 [1] SPIDER KOB
9. 2410P694 [4] ROLLER SHAFT KOB
10. 2401N431 [1] GEAR KOB
11. 2401P624 [1] SUN GEAR KOB
12. 2401P625 [4] PINION KOB
13. 2401P627 [4] PINION KOB
14. ZD11G09500 [1] O-RING,94.40mm ID x 100.60mm OD x 3.10mm KOB ID 94.40 ± 0.81 x OD 100mm
15. ZS23C08030 [12] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number: ZS28C08030
16. 2418R245 [1] OIL SEAL KOB
17. 2418T13612 [1] SPACER KOB
18. 2418T12561 [2] SPACER KOB
19. 2401P626 [1] SUN GEAR KOB
20. ZR16X04500 [5] RING KOB Retaining — ID 45 x OD 58 x Th 1.8mm
21. 2418T7535 [4] THRUST WASHER KOB
22. 2418T8322 [4] THRUST WASHER KOB
23. 2418T7513 [4] LOCKING PLATE KOB
24. ZS23C08014 [8] SCREW,Hex Socket Head, M8 x 14mm KOB M08x1.25x14mm
25. ZR16X08500 [1] LOCKING RING KOB
26. ZS83C20020 [2] SCREW KOB Set — M20x2.50x20mm
27. 2418T5452 [8] THRUST WASHER KOB
28. 2420T6698D3 [1] RIGID TUBE KOB
29. ZG31U12000 [1] ELBOW KOB
30. ZE82T12000 [1] PLUG KOB 3/4″ PT
31. 2418T17394 [1] SPACER KOB
32. 2441U790F1 [1] HYDRAULIC MOTOR KOB
32-1. 2436U1252F3 [1] X KOB
32- 2. 2441U785F1 [1] HYDRAULIC MOTOR KOB
32-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB
32-4. ZS23C12110 [6] SCREW,Hex Socket Head, M12 x 110mm KOB M12x1.75x110mm Superseded by part number: ZS28C12110
32-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
33. ZS23C14140 [10] SCREW,Hex Socket Head, M14 x 140mm KOB M14x2.0x140mm
34. 2418N4705 [1] RETAINER KOB
. . SERVICE KIT [1]
50. 2418T18132 [1] SPACER SPACER
51. 2414T2977 [1] COVER KOB
. . 24100J9301F5 [1] GEAR REDUCTION UNIT
