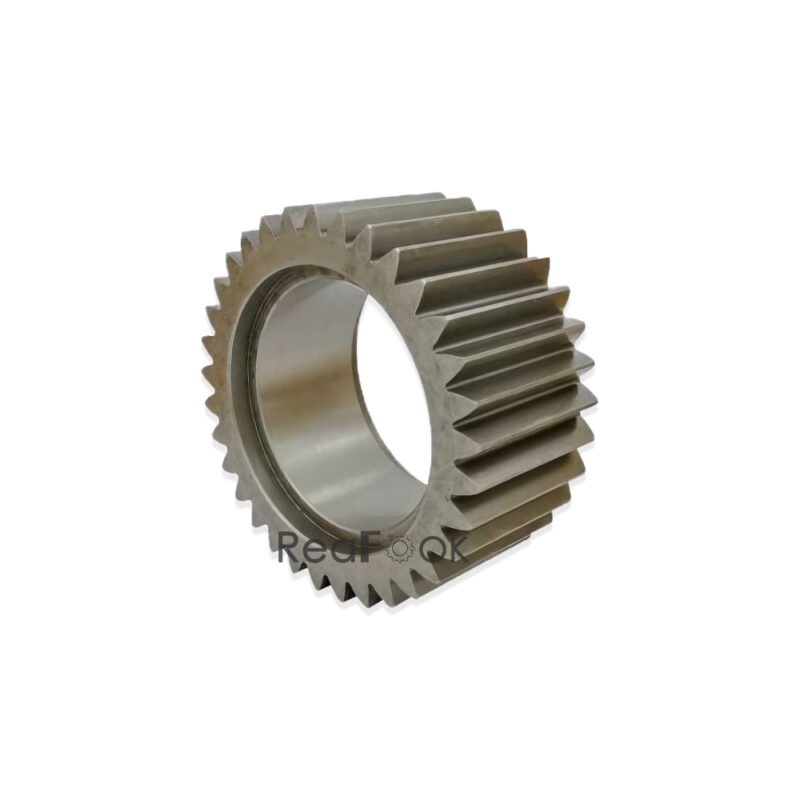

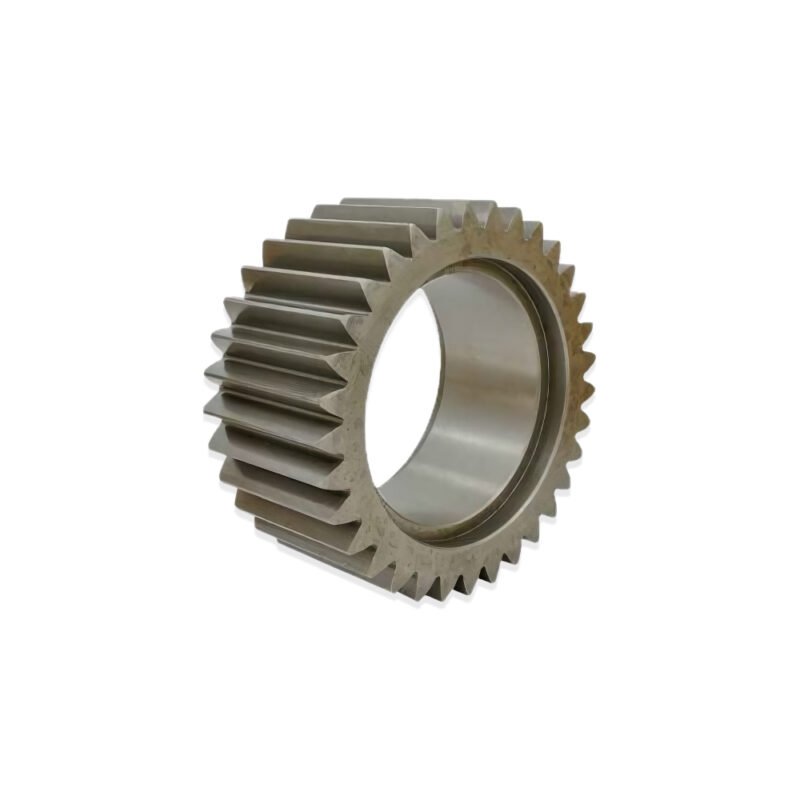

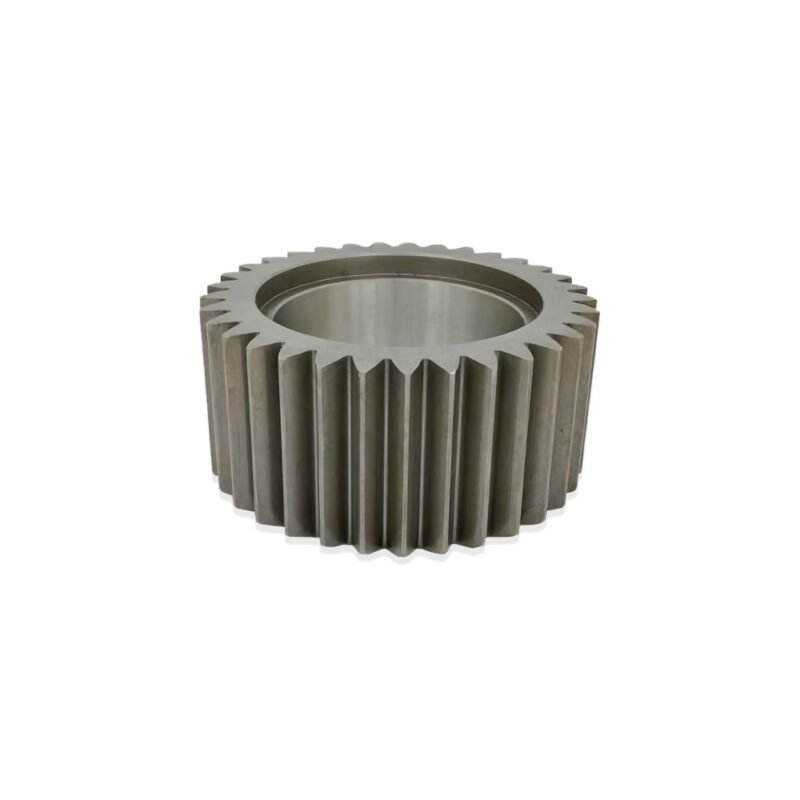

Travel Planet Gear LQ15V00007S086 Fit Excavator Kobelco SK235SR SK250LC SK250LC-6E

Product Name: Planetary Gear
Reference Part Number: LQ15V00007S086
Compatible Machine: Excavator Kobleco SK235SR SK250LC SK250LC-6E..

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

Pos. Part No Qty Parts name Comments
55. LQ15V00007S055 [1] BALL BEARING KOB
56. LQ15V00007S056 [1] BALL BEARING KOB
57. 2441U563S117 [1] PIN KOB
58. ZS23C14035 [10] SCREW,Hex Socket Head, M14 x 35mm KOB M14x2.0x35mm
59. 2441U983S121 [1] OIL SEAL KOB Superseded by part number: 24100U84S25
60. LQ15V00007S060 [3] PLATE KOB DISC
61. 2441U983S126 [2] PLATE KOB PLATE, FRICTION
62. LQ15V00007S062 [1] KIT KOB PISTON, BRAKE
63. 2441U984S42 [1] O-RING KOB
64. 2441U983S130 [1] O-RING KOB O-RING
65. 2441U792S130 [8] SPRING KOB
66. YN15V00005S128 [4] PIN KOB PIN
67. YN15V00005S139 [2] SPRING KOB
68. YN15V00005S105 [1] PLATE KOB VALVE
69. ZD12P01000 [4] O-RING KOB ID 09.80 ± 0.17 x OD 13mm
70. 2441U802S67 [1] O-RING KOB
71. NSS [1] NOT SOLD SEPARAT CON NAME PLATE
72. NSS [2] NOT SOLD SEPARAT CON RIVET
73. NSS [2] NOT SOLD SEPARAT CON PLUG
74. NSS [1] NOT SOLD SEPARAT CON PLUG
75. NSS [1] NOT SOLD SEPARAT CON PLUG
76. LQ15V00007S076 [1] SEAL KOB FLOATING
77. LQ15V00007S077 [2] BEARING KOB ANGULAR
78. LQ15V00007S078 [1] REPAIR KIT KOB HOUSING
79. NSS [1] NOT SOLD SEPARAT CON SHIM
80. LQ15V00007S080 [1] HOLDER KOB Superseded by part number: LQ15V00019S074
81. LQ15V00007S081 [8] FRICTION WASHER KOB
82. LQ15V00007S082 [8] SCREW KOB BOLT
83. LQ15V00007S083 [4] PLATE KOB THRUST
84. LQ15V00007S084 [4] RACE KOB INNER
85. LQ15V00007S085 [4] BEARING ASSY KOB NEEDLE
86. LQ15V00007S086 [4] DRIVEN GEAR KOB
87. LQ15V00007S087 [4] PLATE KOB THRUST
88. LQ15V00007S088 [4] SCREW KOB BOLT
89. LQ15V00007S089 [1] SUN GEAR KOB
90. LQ15V00007S090 [1] RING KOB SNAP
91. LQ15V00007S091 [1] HOLDER KOB
92. LQ15V00007S092 [1] PLATE KOB THRUST
93. LQ15V00007S093 [3] RACE KOB INNER
94. LQ15V00007S094 [3] BEARING KOB NEEDLE
95. LQ15V00007S095 [3] GEAR KOB GEAR
96. LQ15V00007S096 [3] PLATE KOB THRUST
97. LQ15V00007S097 [1] PLATE KOB THRUST
98. LQ15V00007S098 [3] SCREW KOB
99. LQ15V00007S099 [1] DRIVEN GEAR KOB
100. NSS [1] NOT SOLD SEPARAT CON PLATE, THRUST
101. LQ15V00007S101 [1] COVER KOB
102. LQ15V00007S102 [16] SCREW,Hex Socket Head, M10 x 16mm KOB BOLT Superseded by part number: ZS28C10016
103. LQ15V00007S103 [3] PLUG KOB
104. ZD12P02400 [3] O-RING KOB ID 23.70 ± 0.24 x OD 30mm
105. LQ15V00007S105 [4] PIN KOB
