Final Drive Planetary Gear SA7117-30240 Fit Volvo Excavator EC140 EC160B EC150 EC180B EC210 EC200B EC210B EC210D

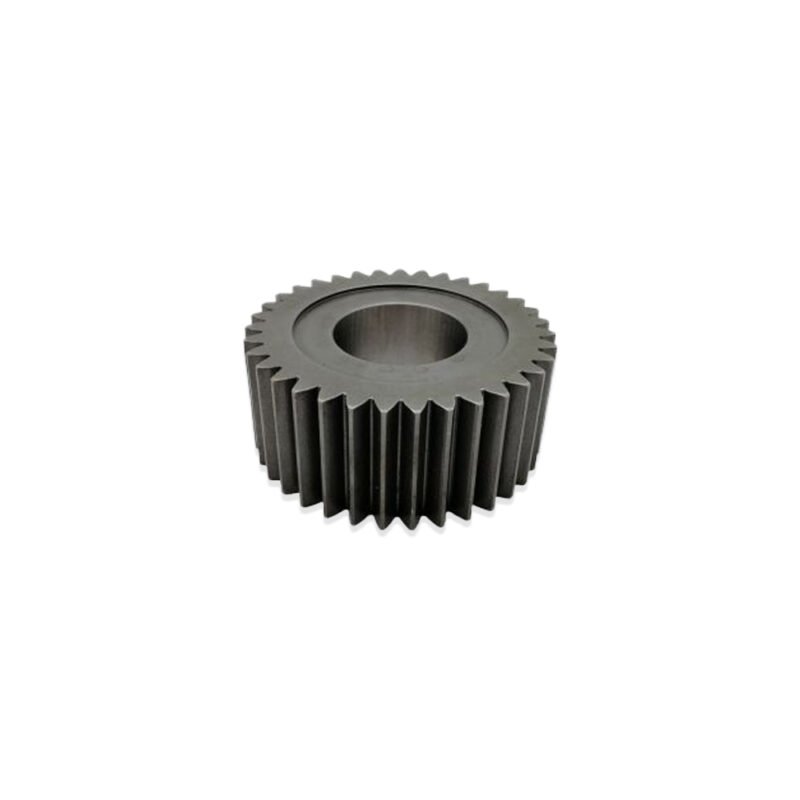

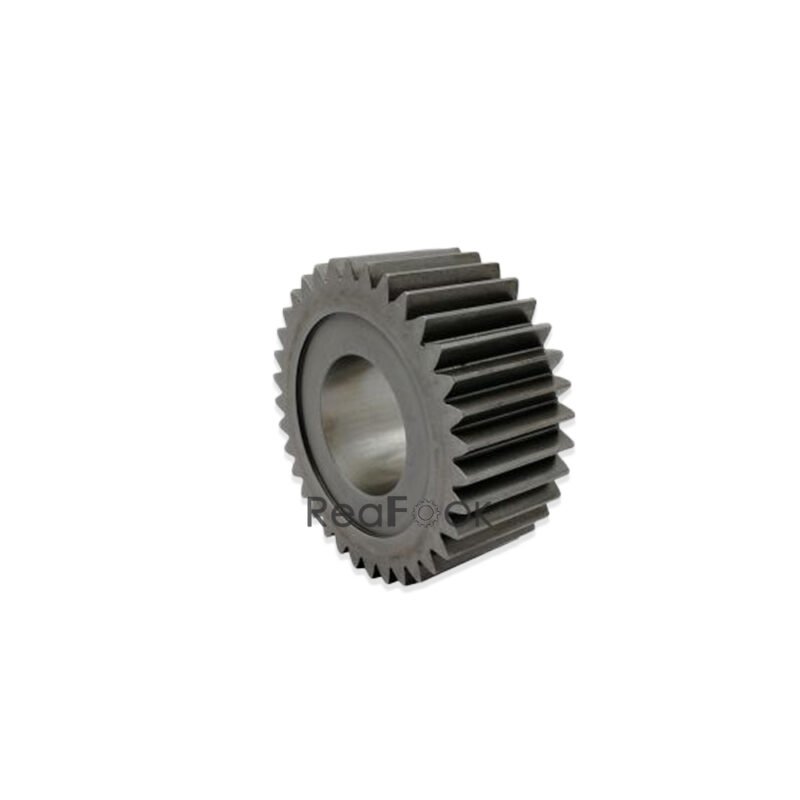

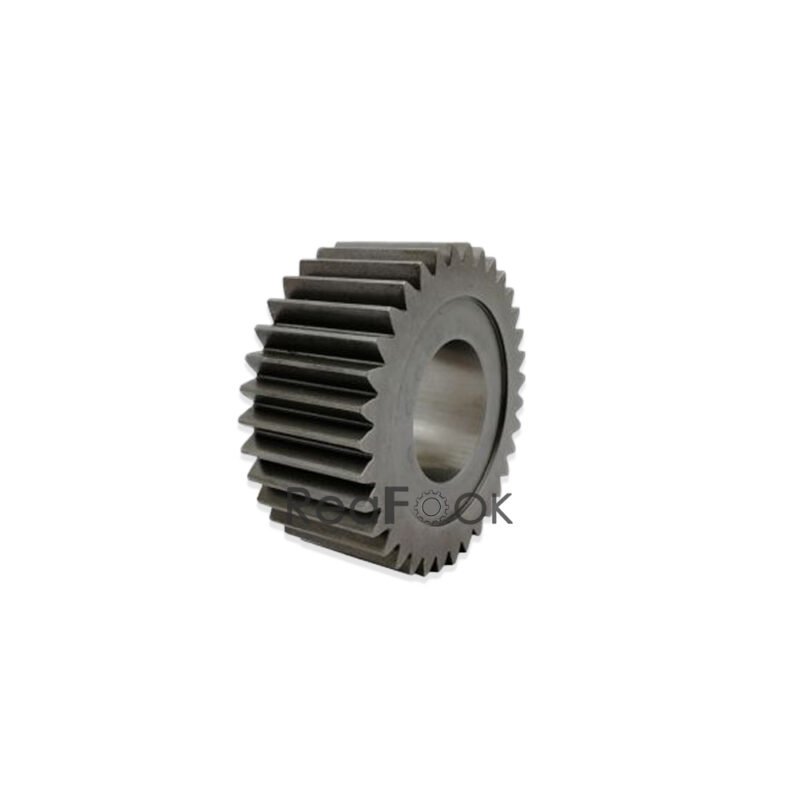

Product Name: Planetary Gear
Reference Part Number: SA7117-30240
Compatible Machine: Volvo Excavator EC140C EC160B EC160C EC160D EC150 EC180B EC200B EC210 EC210B EC210D…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

Pos. Part No Qty Parts name Comments
SA7117-30050 [1] Travel Gearbox
1. SA7117-30100 [1] Housing
2. SA7117-30110 [2] Ball bearing
3. SA7117-30120 [1] Seal
4. SA7117-30140 [1] Shim T=0.1
SA7117-30150 [1] Shim T=0.9

SA7117-30160 [1] Shim T=1.0
SA7117-30170 [1] Shim T=1.2
5. SA7117-30130 [1] Retainer
6. SA9011-11206 [12] Bolt
7. SA9324-21212 [2] Pin
8. SA7117-30190 [1] Ring gear
9. SA7117-30180 [1] Flexible coupling
10. SA7117-30200 [1] Carrier No 2
11. SA7117-30210 [1] Planet carrier
12. SA7117-30240 [4] Planetary Gear
13. SA7117-30230 [8] Needle bearing
14. SA7117-30220 [8] Thrust washer
15. SA7117-30250 [4] Pin
16. SA9325-06012 [4] Spring pin
17.SA7117-30260 [1] Thrust ring
18. SA7117-30270 [1] Carrier No 1
19. SA7117-30280 [1] Carrier
20. SA7117-30290 [1] Sun gear
21. SA7117-30300 [1] Ring
22. SA7117-30340 [3] Planetary gear
23. SA7117-30320 [3] Needle bearing
24. SA7117-30310 [6] Thrust washer
25. SA7117-30360 [3] Pin
26. VOE951955 [3] Spring pin
27. SA7117-30260[1] Thrust ring
28. SA7117-30350[1] Cover
29. SA7117-15230[1] Pad
30. A7117-30370 [20] Hexagon screw
31. SA9023-11004 [2] Set screw
32. SA9415-43042 [3] Plug
33. SA7117-30330 [1] Sun gear
