Final Drive Travel Sun Gear Shaft 7009173 Fit Excavator Bobcat E35 E30 E26 E32 E32i E34 E35i E35z E37 E38

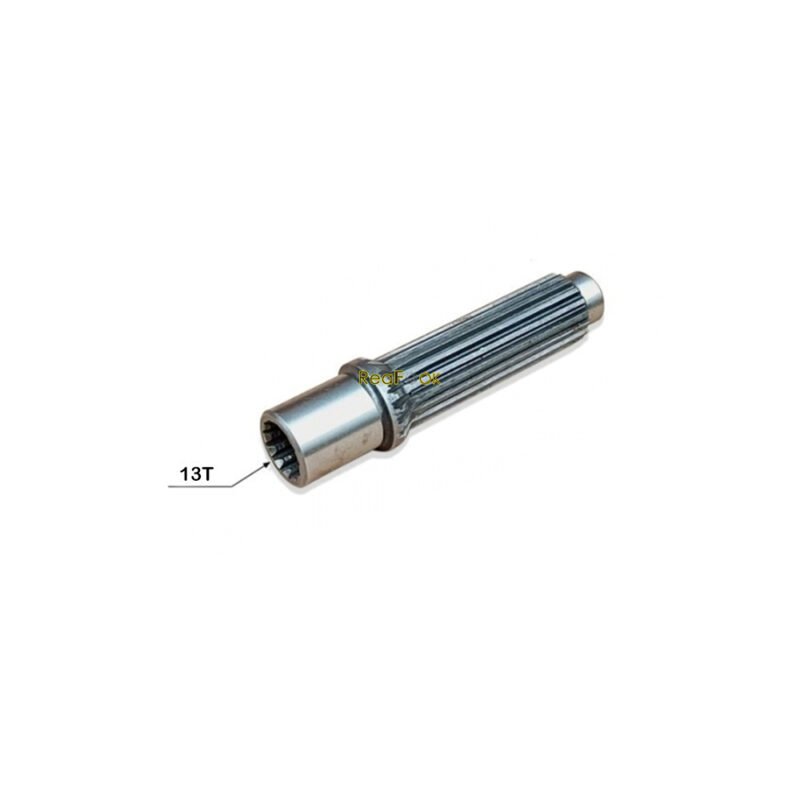

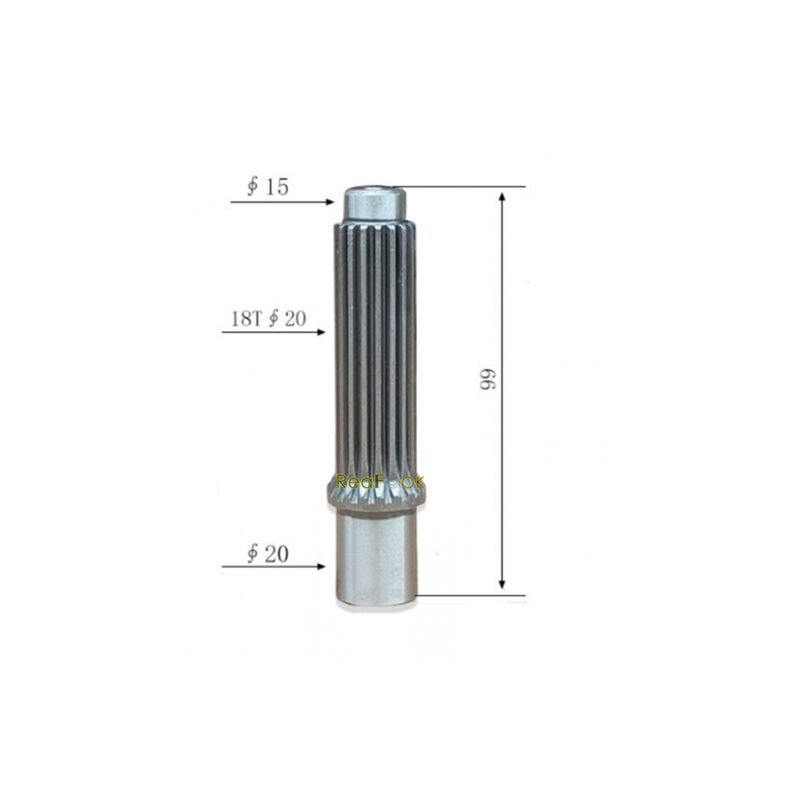

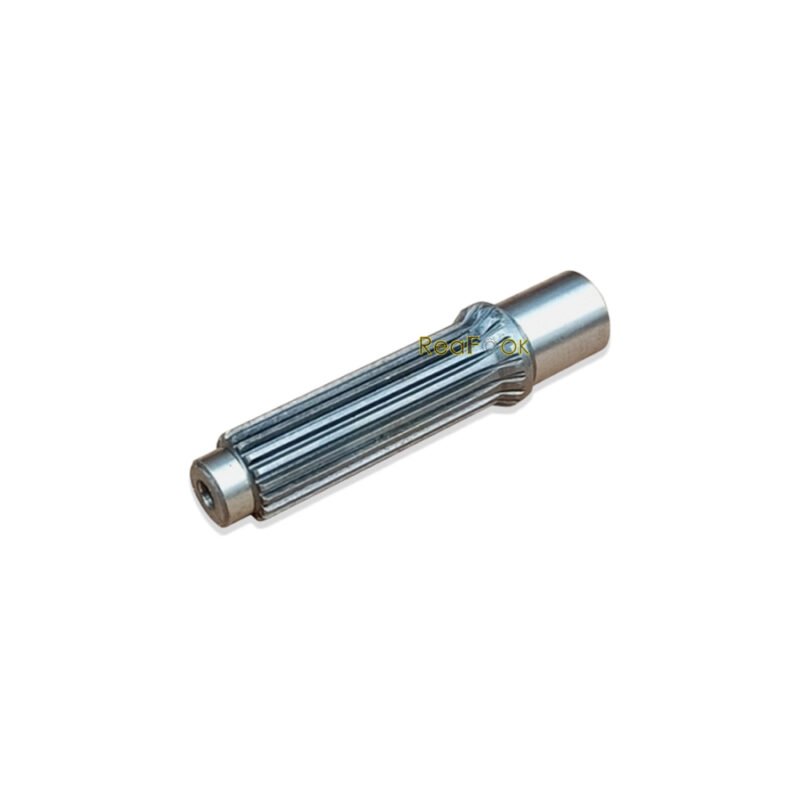

Product Name: Travel Motor Shaft, Drive Shaft
Reference Part Number: 7009181
Compatible Machine: Excavator Bobcat E35 E30 E26 E32 E32i E34 E35i E35Z E37 E38…

Description:
The Travel Motor Drive Shaft connects directly to the output shaft of the hydraulic motor, which is driven by the hydraulic fluid under pressure. As the motor rotates, it transfers torque to the drive shaft, which in turn transfers this torque to the wheels. This rotational motion is converted into linear motion, allowing the machine to move forward and backward.

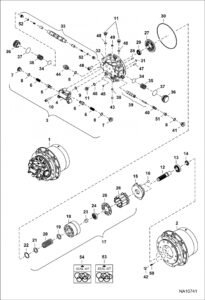

Ref # Part # Description Q-ty
10 7009205 BOLT 3
11 7009179 PLUG 4
12 7009181 SHAFT 1
13 7009182 BEARING BALL 1
14 – SEAL, OIL, NLA – Was 7009183 1
15 7009184 PLATE, SWASH 1
16 7009185 BALL STEEL 2
17 7009207 KIT BLOCK CYLINDER Includes Ref. 18-26 1
18 – BLOCK, CYLINDER, NLA – Order Ref. 17 1
19 – SEAT, SPRING, NLA – Order Ref. 17 1
20 – SPRING, NLA – Order Ref. 17 1
21 – WASHER, NLA – Order Ref. 17 1
22 – SNAP RING, NLA – Order Ref. 17 1
23 – PIN, NLA – Order Ref. 17 3
24 – HOLDER, RETAINER, NLA – Order Ref. 17 1
25 – PLATE, RETAINER, NLA – Order Ref. 17 1
26 – PISTON ASSY, NLA – Order Ref. 17 1
27 7009188 PLATE VALVE 1
28 – PIN, NLA – Was 6653018 1
29 – BEARING, BALL, NLA – Was 6653064 1
30 – O-RING, NLA – Order Ref. 53 – Was 7009189 1
