Final Drive Travel Hub Bearing 7009159 Fit Excavator Bobcat E35 E30 E26 E32 E32i E34 E35i E35z E37 E38

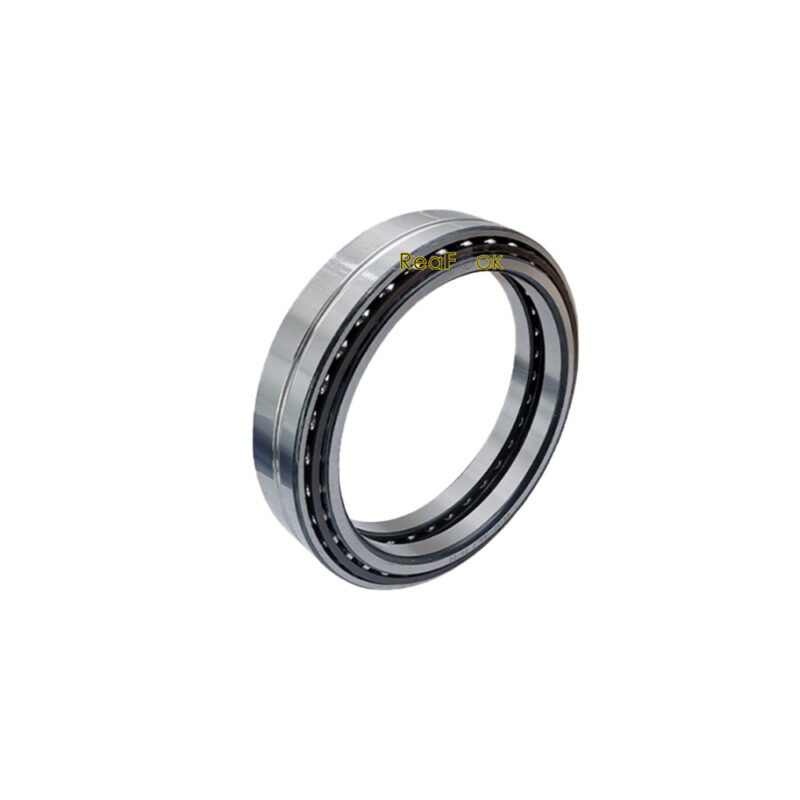

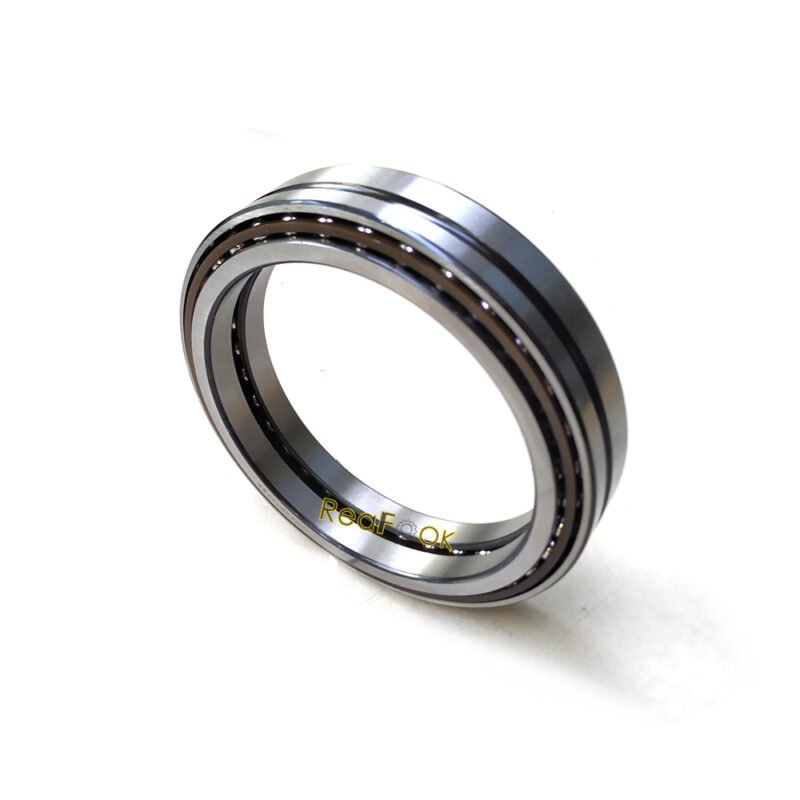

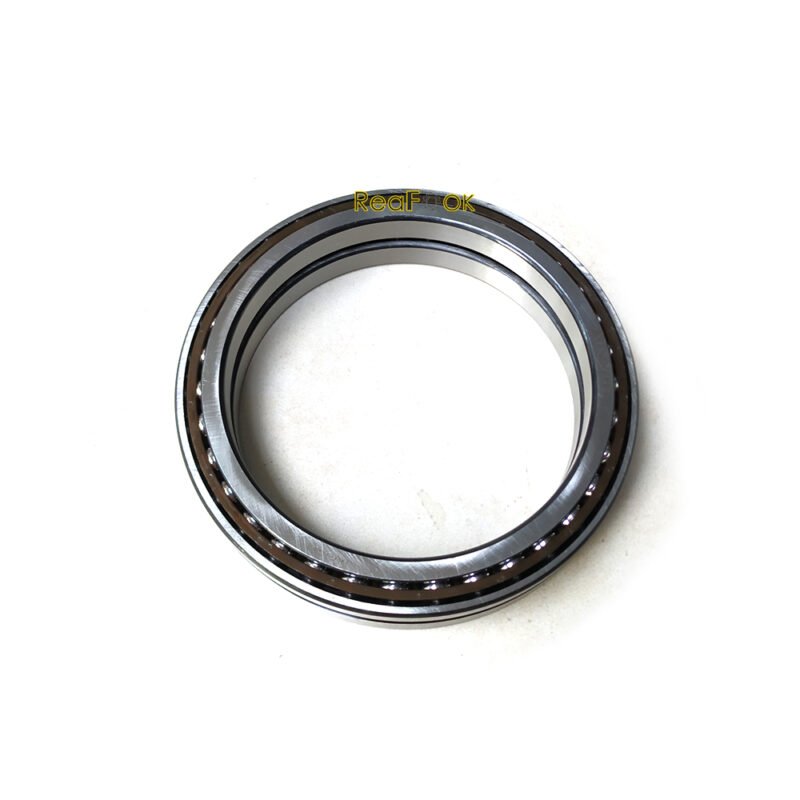

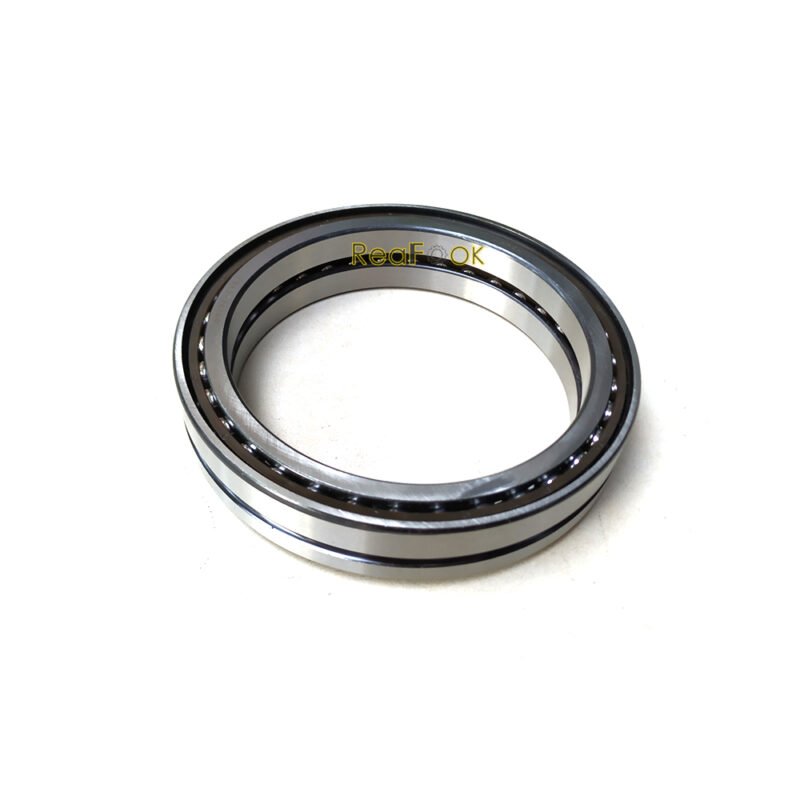

Product Name: Agular Ball Bearing
Reference Part Number: 7009159
Compatible Machine: Excavator Bobcat E35 E30 E26 E32 E32i E34 E35i E35Z E37 E38…

Description:
A Gearbox Ball Bearing allows the bearing to support the output transfer gearbox’s rotating component while facilitating smooth and controlled rotational movement during operation.

Ref # Part # Description Q-ty
1 7009157 GEAR BOX Includes Ref. 2-28 1
2 7009158 SEAL, FLOATING 2
3 7009159 BEARING ANGULAR 1
4 7009160 NUT RING 1
5 7009161 PLUG 2
6 – HOUSING, NLA – Order Ref. 1 1
7 7009162 BALL STEEL 132
8 7009163 PLUG 2
9 7009164 GEAR PLANETARY 4
10 7009165 BEARING NEEDLE 4
11 7009166 RACE, INNER 4
12 7009167 WASHER, THRUST 4
13 7009209 PLATE THRUST 1
14 7009210 SCREW 4
15 7009168 GEAR 1
16 6655364 SNAP RING 1
17 7009169 HOLDER 1
18 7009170 GEAR PLANETARY 3
19 7009171 BEARING NEEDLE 3
20 7009172 RACE, INNER 3
21 7009180 O-RING 3
22 7009173 GEAR DRIVE 1
23 7009174 PLATE, THRUST 1.8mm 1
23 7009175 PLATE THRUST 2.3mm 1
23 7009176 PLATE, THRUST 2.8mm 1
24 7009177 COVER 1
25 – O-RING, NLA – Order Ref. 28 – Was 7009178 1
26 6655376 WIRE lock 1
27 7009179 PLUG 3
28 – HOLDER FLANGE, NSS – Order Ref. 1 1
29 7009213 KIT SEAL
– Ref. 8, 9, 14, 30, 31, 37, 48 & 52 – Also includes Ref. 2, 21 & 25 on this page
