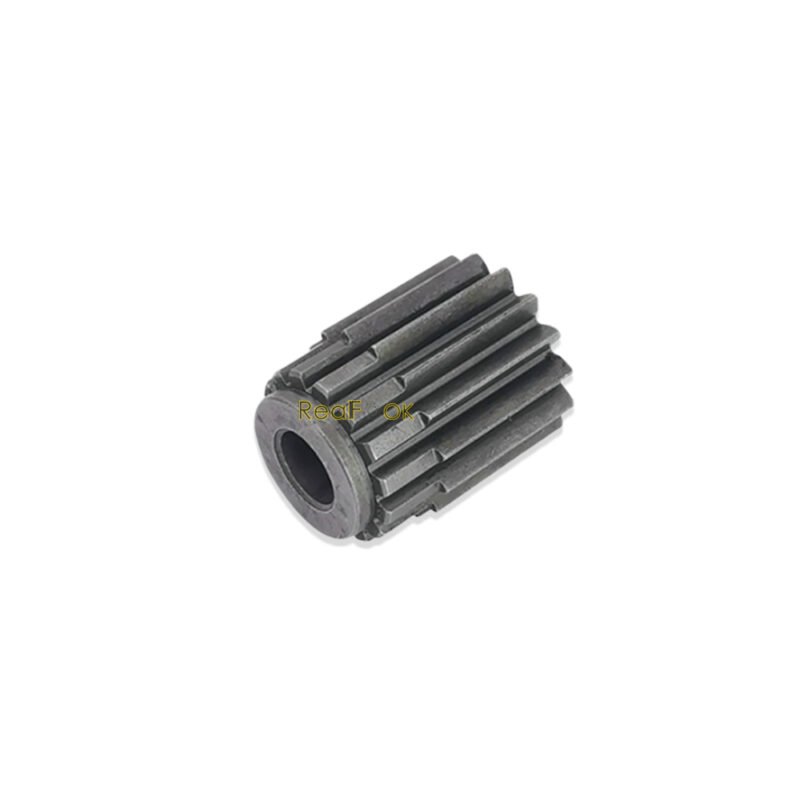

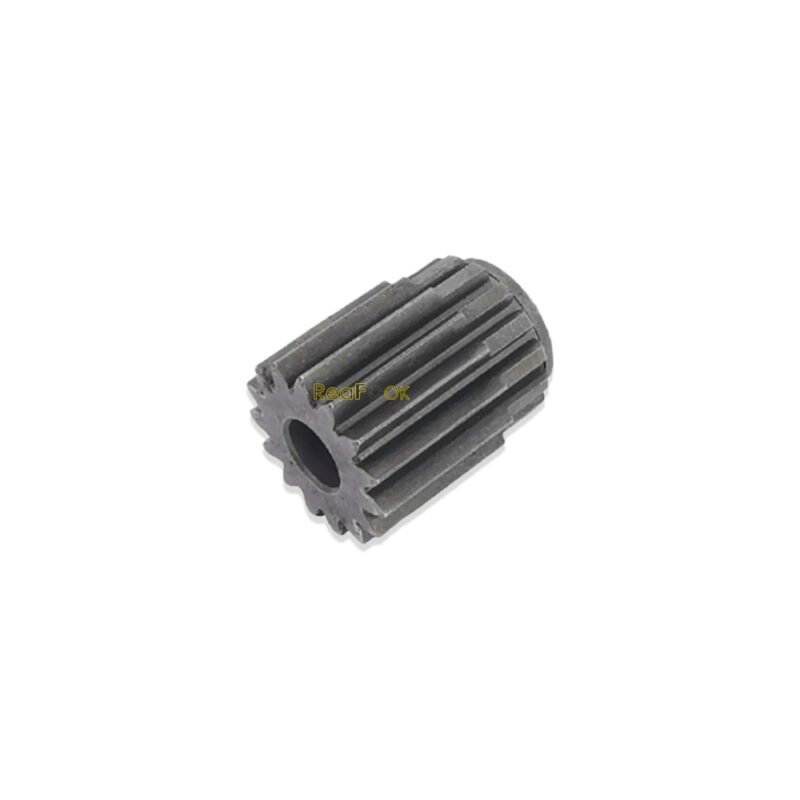

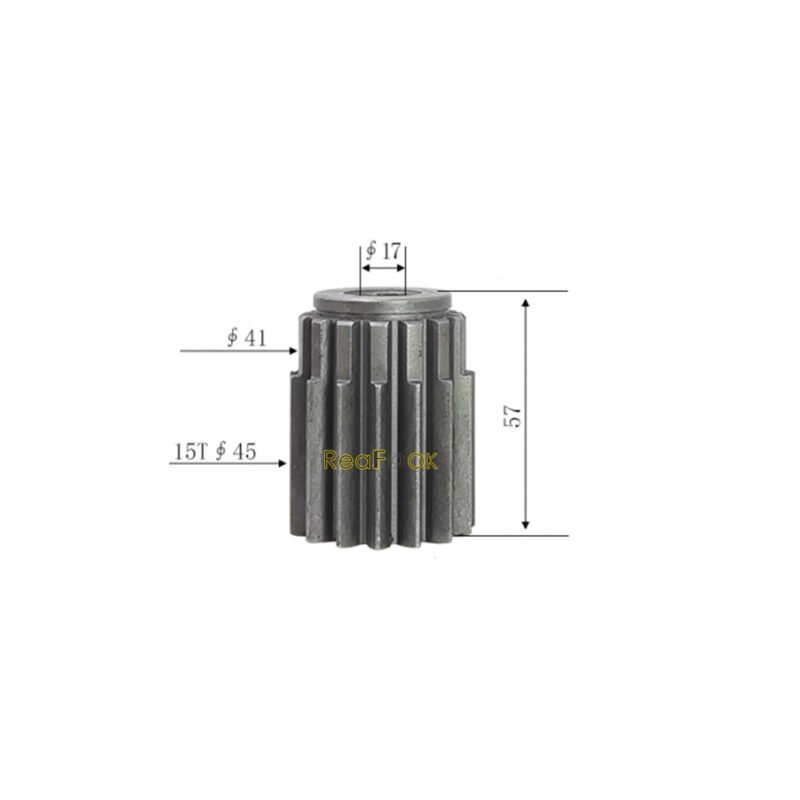

Final Drive Sun Gear Shaft 6671927 Fit Excavator Bobcat 335 341 430 435 E42 E45 E50 E55

Product Name: Sun Gear Shaft
Reference Part Number: 6671927
Compatible Machine: Fit Excavator Bobcat 335 341 430 435 E42 E45 E50 E55…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

Ref # Part # Description Q-ty
1. 6668730 MOTOR, DRIVE HYD-travel – Ref. 2-45, 47-60, & 62
1. 6668730REM MOTOR TRAVEL
2. 6671915 PLUG
3. 6671911 O-RING Incl. W/Ref. 61 2
4. – SPRING SPRING, NLA – Order Ref. 46 – Was 6670138 2
5. 6671917 WASHER 2
6. 6671918 SPOOL 2
7. 6671919 BOLT 6
8. 6671920 WASHER 6
9. 6671936 HOUSING 1
10. 6671913 PIN 2
11. 6671946 O-RING Incl. W/Ref. 61 1
12. 6671947 BEARING 1
13. 6688111 PIN Was 6667780 1
14. 6671944 PISTON, MOTOR TRAVEL 1
15. 6671942 SWASHPLATE Swash 1
16. 6670130 BALL 1
17. 6671941 SEAL Incl. W/Ref. 61 1
18. 6671924 HOUSING 1
19. 6671948 SHAFT, MOTOR DRIVE 1
20. 7022805 CIRCLIP Was 6669130 1
21. 6671940 BEARING 1
22. 6671951 SNAP RING 1
23. 6671937 BEARING MOTOR TRAVEL 2
24. – FLOATING SEAL, NSS – O-Ring & Flange – Order Ref. 62 2
25. 6671932 SNAP RING 2
26. 6671935 BOLT 3
27. 6671945 VALVE, PLATE 1
28. 6671939 KIT SHIM Includes a 0,2 mm & 0,3 mm thick shim 1
29. 6671931 NUT Bearing 1
30. 6671925 HOUSING 1
31. 6671926 GEAR W/Bearing 3
32. 6669102 SNAP RING 3
33. 6671927 GEAR SHAFT 1
34. 6671938 GEAR ASSEMBLY W/Ref. 35-40 1
35. – CARRIER, 1
36. 6669260 WASHER 3
37. – GEAR, NSS 3
38. – BEARING, NSS – Needle-(18) needed for each gear 54
39. – WASHER, NLA – Was 6661912 3
40. 6669117 SNAP RING 3
41. 6671930 SNAP RING 1
42. 6671928 SHAFT 1
43. 6667747 SPACER 1
44. – COVER, NLA – W/1/8” plug hole, order 6691633 & 6676162 – Was 6671923 1
44. 6691633 COVER W/ 9/16 plug hole 1
45. 6692824 O-RING Incl. W/Ref. 61 – Was 6671934 1
46. 7359258 KIT SPRING Ref. 4 & 55 x
47. 6667771 PLUG Use W/Ref. 47 aluminum washer 6675272 – washer not included with plug 2
47. 6676161 PLUG W/Rubber O-ring 2
47. 6676162 PLUG W/O-ring – for cover W/ 9/16″ hole 2
47. – O-RING, NSS – Order plug 1
47. 6675272 WASHER for cover W 1/8″ hole 2
48. 6671953 WASHER 2
49. 6670132 SPRING 2
50. 6669597 SHIM .0007 inch (0,2mm) thick x
50. 6669598 SHIM .012 inch (0,3mm) thick x
50. 6669599 SHIM .019 inch (0,5mm) thick x
51 6671952 PISTON 2
52. 6671943O-RING Incl. W/Ref. 61 2
53. 6671933 PLUG 1
54. 6671922 O-RING Incl. W/Ref. 61 2
55. – SPRING, NLA – Order Ref. 46 – Was 6686078 1
56. 6670704 SPOOL 1
57. 6670136 ADAPTER 1
58. 6671921 O-RING Incl. W/Ref. 61 – Was 6671954 2
59. 6670134 VALVE RELIEF Relief – Available as an assembly only 1
59. 6687755 KIT SEAL seal 1
59. 6679326 WASHER, SEALING sealing for plug 1
59. 58K016 O-RING 1
60. 6670135 BOLT 4
61. 6671950 KIT SEAL Ref. 3, 11, 17, 45, 52, 54 & 58 x
62. 6671949 KIT SEAL Ref. 24 & 61
