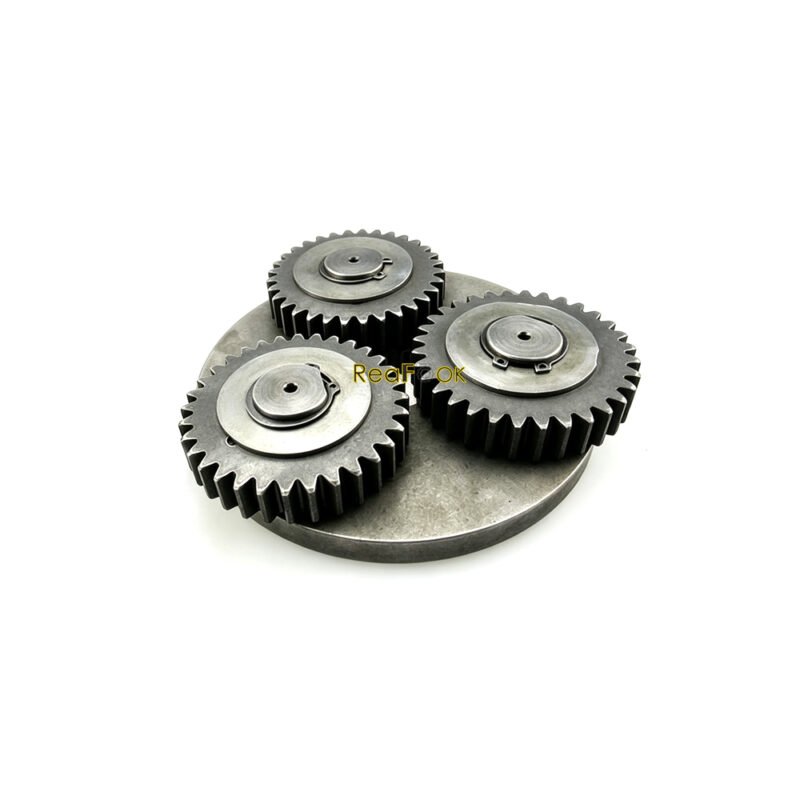

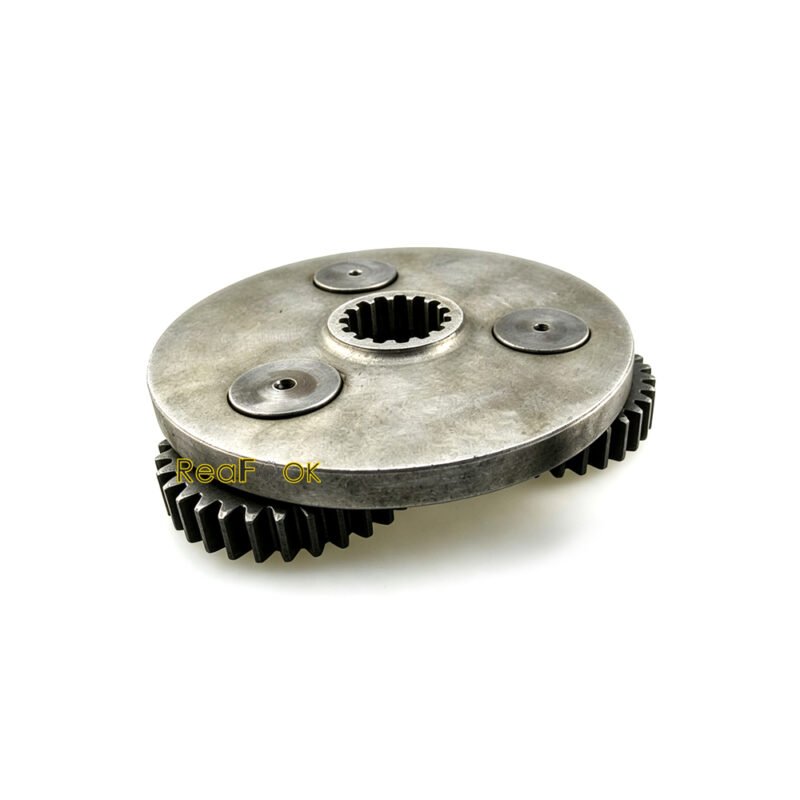

Final Drive Planet Gear Assembly 6671938 Carrier Assy Fit Excavator Bobcat 337 341 435 E50 E55

Product Name: Planet Carrier Assembly, Gear Assembly
Reference Part Number: 6671938
Compatible Machine: Fit Excavator Bobcat 337 341 435 E50 E55…

Description:
A Planetary Carrier helps maintain proper alignment and meshing of the gears within the planetary gear set. It ensures that the planet gears engage correctly with the sun gear and the ring gear, allowing for efficient power transmission and minimizing gear wear.

Ref # Part # Description Q-ty
1. 6668730 MOTOR, DRIVE HYD-travel – Ref. 2-45, 47-60, & 62
1. 6668730REM MOTOR TRAVEL
2. 6671915 PLUG
3. 6671911 O-RING Incl. W/Ref. 61 2
4. – SPRING SPRING, NLA – Order Ref. 46 – Was 6670138 2
5. 6671917 WASHER 2
6. 6671918 SPOOL 2
7. 6671919 BOLT 6
8. 6671920 WASHER 6
9. 6671936 HOUSING 1
10. 6671913 PIN 2
11. 6671946 O-RING Incl. W/Ref. 61 1
12. 6671947 BEARING 1
13. 6688111 PIN Was 6667780 1
14. 6671944 PISTON, MOTOR TRAVEL 1
15. 6671942 SWASHPLATE Swash 1
16. 6670130 BALL 1
17. 6671941 SEAL Incl. W/Ref. 61 1
18. 6671924 HOUSING 1
19. 6671948 SHAFT, MOTOR DRIVE 1
20. 7022805 CIRCLIP Was 6669130 1
21. 6671940 BEARING 1
22. 6671951 SNAP RING 1
23. 6671937 BEARING MOTOR TRAVEL 2
24. – FLOATING SEAL, NSS – O-Ring & Flange – Order Ref. 62 2
25. 6671932 SNAP RING 2
26. 6671935 BOLT 3
27. 6671945 VALVE, PLATE 1
28. 6671939 KIT SHIM Includes a 0,2 mm & 0,3 mm thick shim 1
29. 6671931 NUT Bearing 1
30. 6671925 HOUSING 1
31. 6671926 GEAR W/Bearing 3
32. 6669102 SNAP RING 3
33. 6671927 GEAR SHAFT 1
34. 6671938 GEAR ASSEMBLY W/Ref. 35-40 1
35. – CARRIER, 1
36. 6669260 WASHER 3
37. – GEAR, NSS 3
38. – BEARING, NSS – Needle-(18) needed for each gear 54
39. – WASHER, NLA – Was 6661912 3
40. 6669117 SNAP RING 3
41. 6671930 SNAP RING 1
42. 6671928 SHAFT 1
43. 6667747 SPACER 1
44. – COVER, NLA – W/1/8” plug hole, order 6691633 & 6676162 – Was 6671923 1
44. 6691633 COVER W/ 9/16 plug hole 1
45. 6692824 O-RING Incl. W/Ref. 61 – Was 6671934 1
46. 7359258 KIT SPRING Ref. 4 & 55 x
47. 6667771 PLUG Use W/Ref. 47 aluminum washer 6675272 – washer not included with plug 2
47. 6676161 PLUG W/Rubber O-ring 2
47. 6676162 PLUG W/O-ring – for cover W/ 9/16″ hole 2
47. – O-RING, NSS – Order plug 1
47. 6675272 WASHER for cover W 1/8″ hole 2
48. 6671953 WASHER 2
49. 6670132 SPRING 2
50. 6669597 SHIM .0007 inch (0,2mm) thick x
50. 6669598 SHIM .012 inch (0,3mm) thick x
50. 6669599 SHIM .019 inch (0,5mm) thick x
51 6671952 PISTON 2
52. 6671943O-RING Incl. W/Ref. 61 2
53. 6671933 PLUG 1
54. 6671922 O-RING Incl. W/Ref. 61 2
55. – SPRING, NLA – Order Ref. 46 – Was 6686078 1
56. 6670704 SPOOL 1
57. 6670136 ADAPTER 1
58. 6671921 O-RING Incl. W/Ref. 61 – Was 6671954 2
59. 6670134 VALVE RELIEF Relief – Available as an assembly only 1
59. 6687755 KIT SEAL seal 1
59. 6679326 WASHER, SEALING sealing for plug 1
59. 58K016 O-RING 1
60. 6670135 BOLT 4
61. 6671950 KIT SEAL Ref. 3, 11, 17, 45, 52, 54 & 58 x
62. 6671949 KIT SEAL Ref. 24 & 61
