Final Drive Floating Seal Set 172479-73460 Fit Excavator Yanmar ViO75 ViO75-A ViO75-B ViO75-C
US$123.00

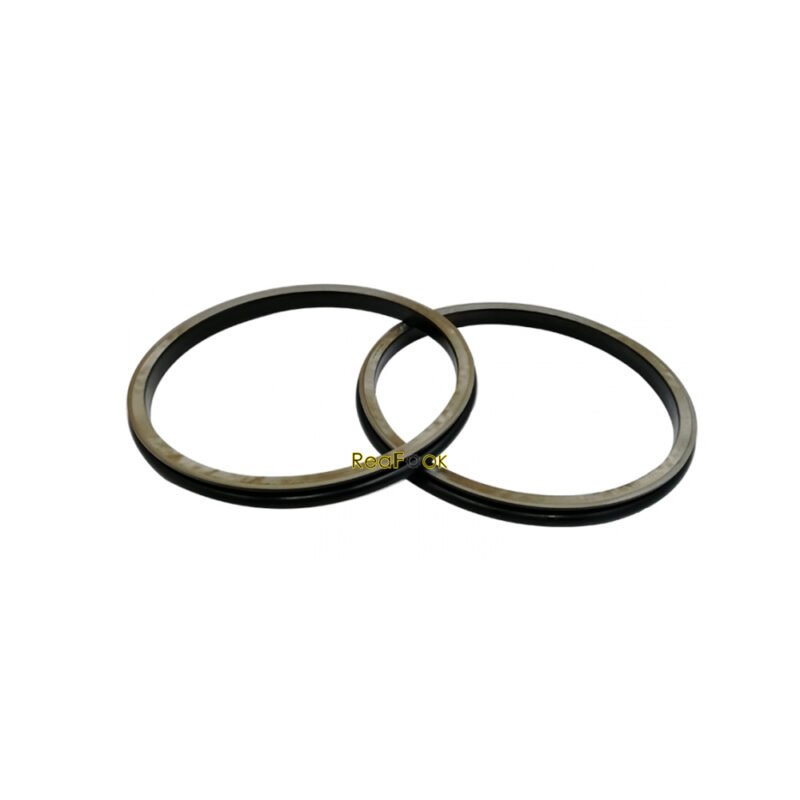

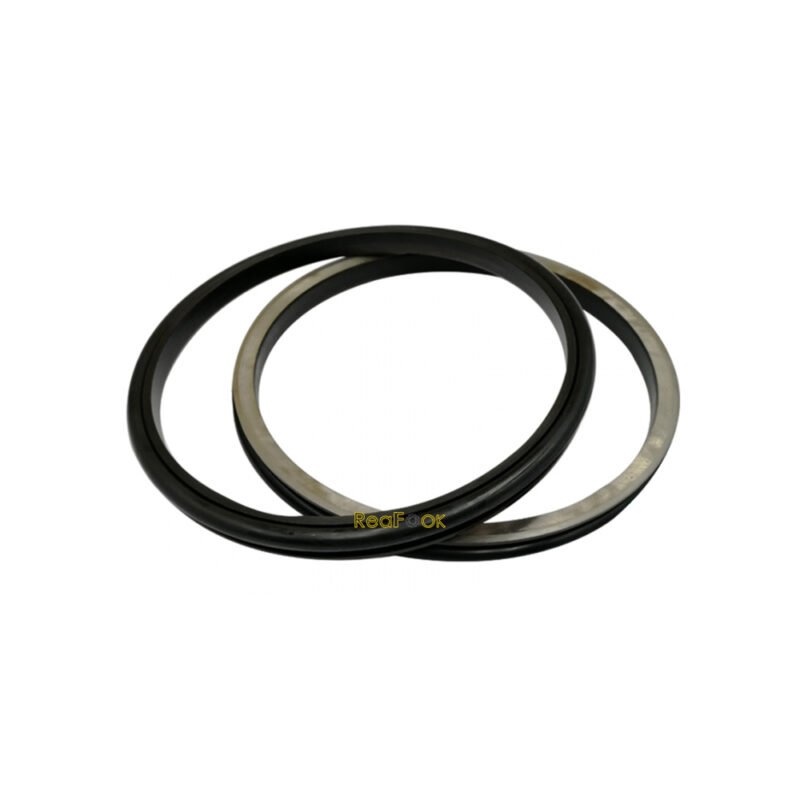

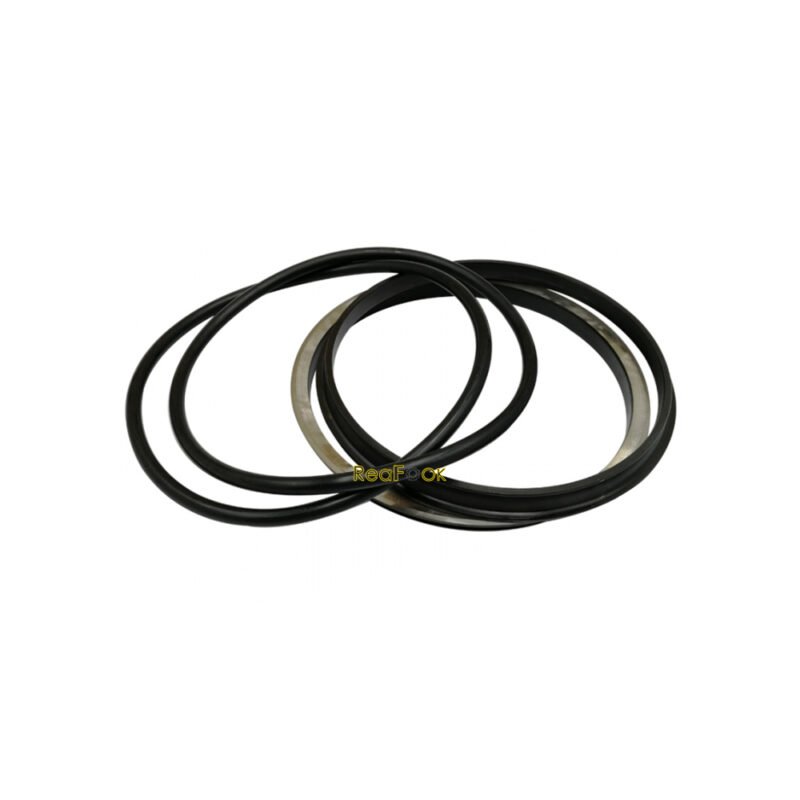

Floating Seal Set 172479-73460;
ID 205mm, OD 227/231mm, Overall Thickness 30mm;
It is used for Final Drive Travel Gearbox System;
Free Shipping and High Quality Standards!!
All dimensions are manually measured; minor errors are inevitable.
Product Name: Floating Seal Assy
Reference Part Number: 172479-73460
Compatible Machine: Fit Excavator Yanmar ViO75 ViO75-A ViO75-B ViO75-C…
Description:
Final Drive Floating Seal prevents dirt, debris, and moisture from entering the final drive system while retaining lubrication for smooth operation. The seals also retain lubrication, reducing friction and ensuring prolonged bearing life.
A = VIO75-A(US)，B = VIO75-A(AS)，C = VIO75-A(NZ)
| No. | Parts No. | Description | Qty | |||||
| A | B | C | D | E | F | |||
| 1 | 172479-73300 | MOTOR ASSY, DRIVE | 2 | 2 | 2 | |||
| 1-1 | 172479-73301 | MOTOR ASSY, TRAVEL | 2 | 2 | 2 | |||
| 2 | 172479-73010 | SEAL SET | 2 | 2 | 2 | |||
| 3 | 172479-73045 | O-RING | 2 | 2 | 2 | |||
| 4 | 172479-73460 | SEAL SET, FLOATING | 2 | 2 | 2 | |||
| 5 | 172479-73630 | SEAL, OIL | 2 | 2 | 2 | |||
| 6 | 172479-73640 | O-RING | 2 | 2 | 2 | |||
| 7 | 172479-73650 | O-RING | 2 | 2 | 2 | |||
| 8 | 172479-73910 | SEAL, PISTON | 4 | 4 | 4 | |||
| 9 | 172479-73920 | RING, BUCK UP | 8 | 8 | 8 | |||
| 10 | 172479-73930 | RING, BUCK UP | 8 | 8 | 8 | |||
| 11 | 24315-000080 | O-RING, 1BP8.0 | 4 | 4 | 4 | |||
| 12 | 24315-000090 | O-RING, 1BP10.0 | 4 | 4 | 4 | |||
| 13 | 24315-000120 | O-RING, 1BP12.0 | 4 | 4 | 4 | |||
| 14 | 24315-000140 | O-RING, 1BP14.0 | 4 | 4 | 4 | |||
| 15 | 24315-000180 | O-RING, 1BP18.0 | 6 | 8 | 6 | |||
| 16 | 24315-000190 | O-RING, 1BP18.0 | 12 | 12 | 12 | |||
| 17 | 24315-000260 | O-RING, 1BP26.0 | 4 | 4 | 4 | |||
| 18 | 24321-002300 | O-RING, 1AG230.0 | 2 | 2 | 2 | |||
| 19 | 172479-73310 | BODY, MOTOR | 2 | 2 | 2 | |||
| 20 | 172479-73320 | SPINDLE KIT | 2 | 2 | 2 | |||
| 20-1 | 172479-73321 | SPINDLE KIT | 2 | 2 | 2 | |||
| 21 | 172479-73330 | SPINDLE ASSY | 2 | 2 | 2 | |||
| 21-1 | 172479-73331 | SPINDLE ASSY | 2 | 2 | 2 | |||
| 22 | 172479-73340 | BOLT, REAMER | 6 | 6 | 6 | |||
| 23 | 172479-73350 | GEAR | 2 | 2 | 2 | |||
| 24 | 172479-73360 | GEAR KIT | 2 | 2 | 2 | |||
| 25 | 172479-73370 | GEAR, INPUT | 2 | 2 | 2 | |||
| 26 | 172479-73380 | GEAR KIT, SPAR | 2 | 2 | 2 | |||
| 27 | 172479-73390 | COVER | 2 | 2 | 2 | |||
| 28 | 172479-73400 | COUPLING | 2 | 2 | 2 | |||
| 29 | 172479-73410 | PIN | 56 | 56 | 56 | |||
| 30 | 172479-73420 | RING | 2 | 2 | 2 | |||
| 31 | 172479-73430 | RING, SNAP | 6 | 6 | 6 | |||
| 32 | 172479-73440 | BEARING, BALL | 4 | 4 | 4 | |||
| 33 | 172479-73470 | PLUG | 2 | 2 | 2 | |||
| 34 | 172479-73480 | PLUG | 4 | 4 | 4 | |||
| 35 | 172479-73490 | PIN, PARALLEL | 4 | 4 | 4 | |||
| 36 | 172479-73500 | SHAFT | 2 | 2 | 2 | |||
| 37 | 172479-73510 | PLATE, SWASH | 2 | 2 | 2 | |||
| 38 | 172479-73520 | BLOCK, CYLINDER | 2 | 2 | 2 | |||
| 39 | 172479-73530 | PISTON KIT | 2 | 2 | 2 | |||
| 40 | 172479-73540 | PLATE, RETAINER | 2 | 2 | 2 | |||
| 41 | 172479-73550 | BALL, THRUST | 2 | 2 | 2 | |||
| 42 | 172479-73560 | ROD, TIE2 | 2 | 2 | 2 | |||
| 43 | 172479-73570 | WASHER | 4 | 4 | 4 | |||
| 44 | 172479-73580 | SPRING | 2 | 2 | 2 | |||
| 45 | 172479-73590 | 16 | 16 | 16 | ||||
| 46 | 172479-73600 | SPRING | 2 | 2 | 2 | |||
| 47 | 172479-73610 | PLATE, FRICTION | 4 | 4 | 4 | |||
| 48 | 172479-73620 | PLATE | 2 | 2 | 2 | |||
| 49 | 172479-73660 | CLIP | 2 | 2 | 2 | |||
| 50 | 172479-73670 | BEARING | 2 | 2 | 2 | |||
| 51 | 172479-73680 | BEARING | 6 | 6 | 6 | |||
| 52 | 172479-73690 | PISTON ASSY | 2 | 2 | 2 | |||
| 53 | 172479-73700 | PIVOT | 4 | 4 | 4 | |||
| 54 | 172479-73710 | PIN, PARALLEL | 4 | 4 | 4 | |||
| 55 | 172479-73720 | SPRING | 2 | 2 | 2 | |||
| 56 | 172479-73730 | FLANGE ASSY | 2 | 2 | 2 | |||
| 57 | 172479-73740 | FLANGE KIT | 2 | 2 | 2 | |||
| 58 | 172479-73750 | PLUG | 2 | 2 | 2 | |||
| 59 | 172479-73760 | PLUG | 18 | 18 | 18 | |||
| 60 | 172479-73770 | SPOOL KIT | 2 | 2 | 2 | |||
| 61 | 172479-73780 | PLUG | 2 | 2 | 2 | |||
| 62 | 172479-73790 | PLUG | 4 | 4 | 4 | |||
| 63 | 172479-73800 | RETAINER, SPRING | 4 | 4 | 4 | |||
| 64 | 172479-73810 | VALVE | 4 | 4 | 4 | |||
| 65 | 172479-73820 | SPRING | 2 | 2 | 2 | |||
| 66 | 172479-73830 | SPRING | 2 | 2 | 2 | |||
| 67 | 172479-73840 | SPRING | 2 | 2 | 2 | |||
| 68 | 172479-73850 | PLUG | 8 | 8 | 8 | |||
| 69 | 172479-73860 | PLUG | 4 | 4 | 4 | |||
| 70 | 172479-73870 | VALVE | 4 | 4 | 4 | |||
| 71 | 172479-73880 | SLEEVE | 4 | 4 | 4 | |||
| 72 | 172479-73890 | PLUG | 4 | 4 | 4 | |||
| 73 | 172479-73900 | SPRING | 4 | 4 | 4 | |||
| 74 | 24190-100010 | BALL, STEEL 5/16 | 4 | 4 | 4 | |||
| 75 | 172479-73950 | ORIFICE | 4 | 4 | 4 | |||
| 76 | 22242-000190 | RING, 19 | 4 | 4 | 4 | |||
| 77 | 22242-000250 | RING, 25 | 2 | 2 | 2 | |||
| 78 | 24101-063014 | BEARING, BALL 6301 | 12 | 12 | 12 | |||
| 79 | 24190-120030 | BALL, STEEL 3/8 | 2 | 2 | 2 | |||
| 80 | 26450-102002 | BALL | 2 | 2 | 2 | |||
| 81 | 22217-160000 | BOLT, M12X30 | 12 | 12 | 12 | |||
| 82 | 22217-160000 | WASHER, SPRING 16 | 24 | 24 | 24 | |||
| 83 | 26116-160452 | BOLT, M16X 45 PLATED | 24 | 24 | 24 | |||
| Weight | 1.5 kg |
|---|
