Name: Final Drive Sun Gear Coupling 172479-73400 Fit Excavator Yanmar ViO75 ViO75-A ViO75-B ViO75-C
SKU: 172479-73400
Price: 96.00 USD
Availability: InStock

Final Drive Sun Gear Coupling 172479-73400 Fit Excavator Yanmar ViO75 ViO75-A ViO75-B ViO75-C

US$96.00

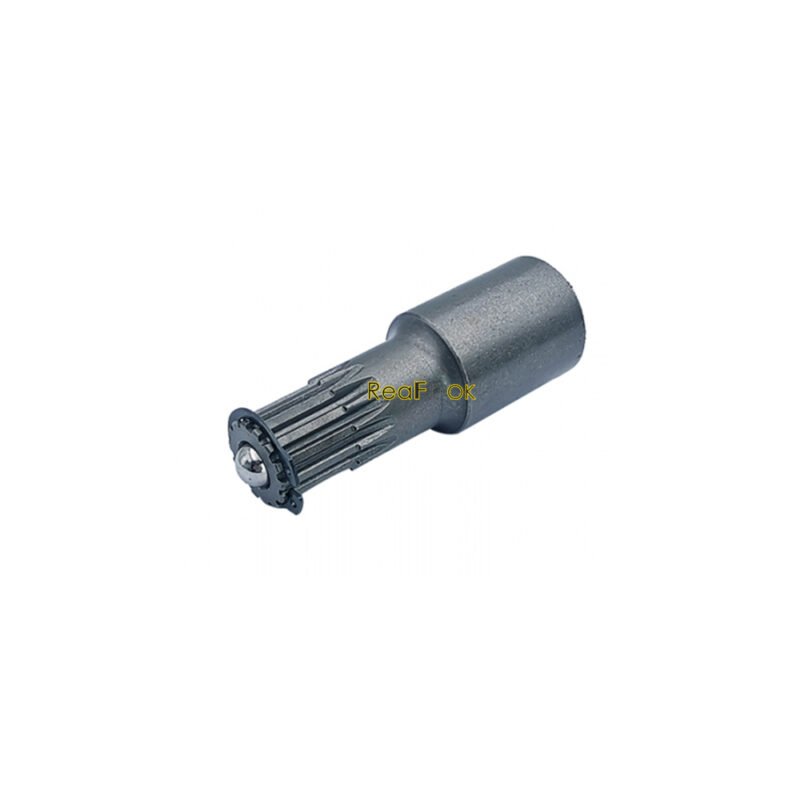

Sun Gear Coupling 172479-73400;

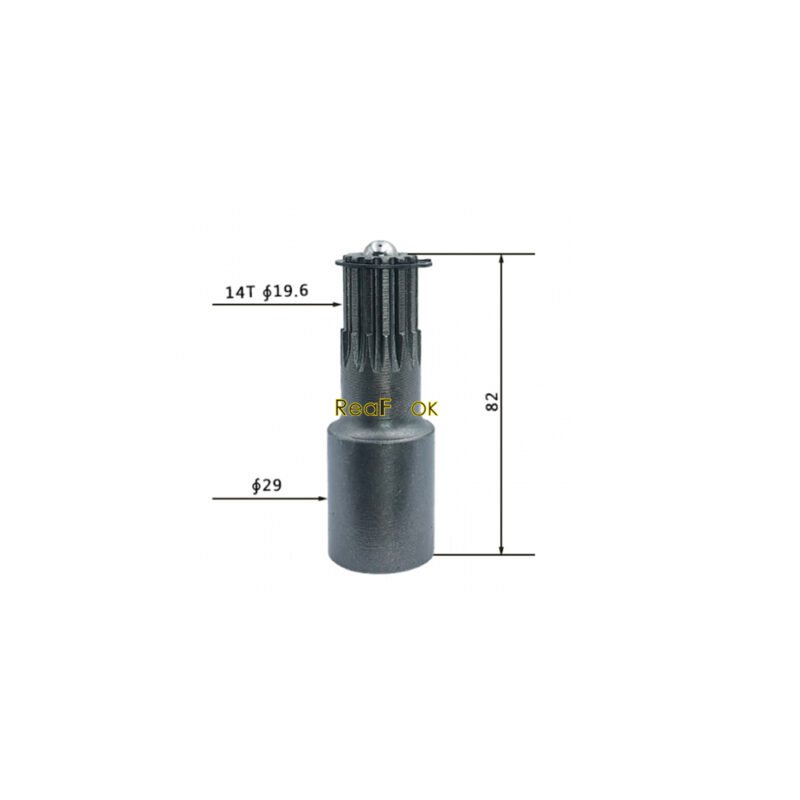

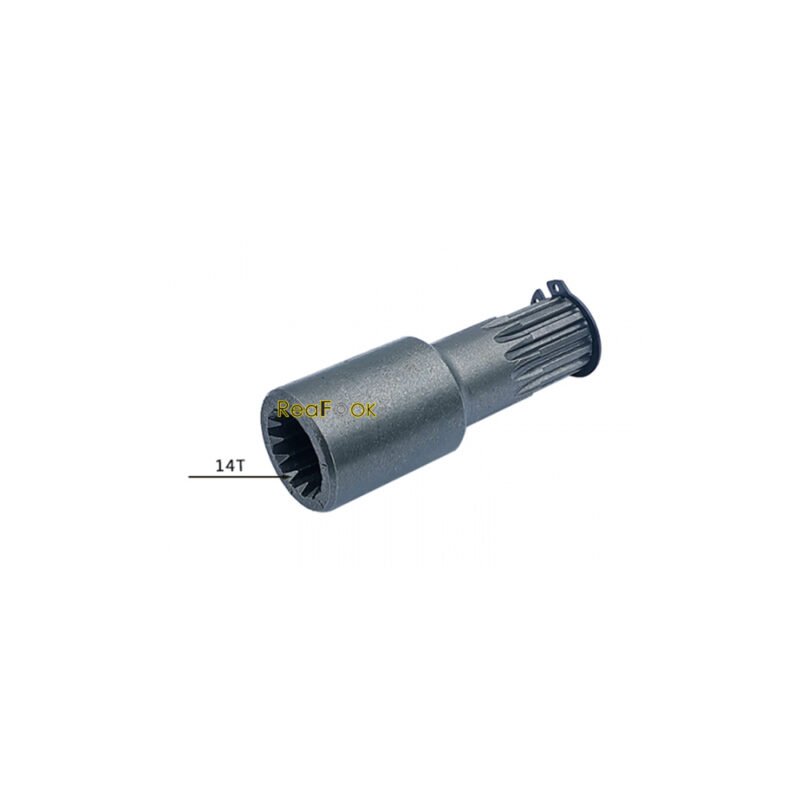

14 Splines * 14 Splines, Overall Length 82mm;
It is used for Final Drive Travel Gearbox System;
Free Shipping and High Quality Standards!!

All dimensions are manually measured; minor errors are inevitable.

Guaranteed Safe Checkout

Product Name: Coupling
Reference Part Number: 172479-73400
Compatible Machine: Fit Excavator Yanmar ViO75 ViO75-A ViO75-B ViO75-C…

Description:
A sun gear coupling transmits torque and rotary motion between two shafts. It compensates for angular, radial and axial misalignment, protects shafts and bearings from overload damage, and maintains stable power transmission under heavy load.

ViO75 172479 73350 RV Gear Diagram

A = VIO75-A(US)，B = VIO75-A(AS)，C = VIO75-A(NZ)

No.	Parts No.	Description	Qty
			A	B	C	D	E	F
1	172479-73300	MOTOR ASSY, DRIVE	2	2	2
1-1	172479-73301	MOTOR ASSY, TRAVEL	2	2	2
2	172479-73010	SEAL SET	2	2	2
3	172479-73045	O-RING	2	2	2
4	172479-73460	SEAL SET, FLOATING	2	2	2
5	172479-73630	SEAL, OIL	2	2	2
6	172479-73640	O-RING	2	2	2
7	172479-73650	O-RING	2	2	2
8	172479-73910	SEAL, PISTON	4	4	4
9	172479-73920	RING, BUCK UP	8	8	8
10	172479-73930	RING, BUCK UP	8	8	8
11	24315-000080	O-RING, 1BP8.0	4	4	4
12	24315-000090	O-RING, 1BP10.0	4	4	4
13	24315-000120	O-RING, 1BP12.0	4	4	4
14	24315-000140	O-RING, 1BP14.0	4	4	4
15	24315-000180	O-RING, 1BP18.0	6	8	6
16	24315-000190	O-RING, 1BP18.0	12	12	12
17	24315-000260	O-RING, 1BP26.0	4	4	4
18	24321-002300	O-RING, 1AG230.0	2	2	2
19	172479-73310	BODY, MOTOR	2	2	2
20	172479-73320	SPINDLE KIT	2	2	2
20-1	172479-73321	SPINDLE KIT	2	2	2
21	172479-73330	SPINDLE ASSY	2	2	2
21-1	172479-73331	SPINDLE ASSY	2	2	2
22	172479-73340	BOLT, REAMER	6	6	6
23	172479-73350	GEAR	2	2	2
24	172479-73360	GEAR KIT	2	2	2
25	172479-73370	GEAR, INPUT	2	2	2
26	172479-73380	GEAR KIT, SPAR	2	2	2
27	172479-73390	COVER	2	2	2
28	172479-73400	COUPLING	2	2	2
29	172479-73410	PIN	56	56	56
30	172479-73420	RING	2	2	2
31	172479-73430	RING, SNAP	6	6	6
32	172479-73440	BEARING, BALL	4	4	4
33	172479-73470	PLUG	2	2	2
34	172479-73480	PLUG	4	4	4
35	172479-73490	PIN, PARALLEL	4	4	4
36	172479-73500	SHAFT	2	2	2
37	172479-73510	PLATE, SWASH	2	2	2
38	172479-73520	BLOCK, CYLINDER	2	2	2
39	172479-73530	PISTON KIT	2	2	2
40	172479-73540	PLATE, RETAINER	2	2	2
41	172479-73550	BALL, THRUST	2	2	2
42	172479-73560	ROD, TIE2	2	2	2
43	172479-73570	WASHER	4	4	4
44	172479-73580	SPRING	2	2	2
45	172479-73590		16	16	16
46	172479-73600	SPRING	2	2	2
47	172479-73610	PLATE, FRICTION	4	4	4
48	172479-73620	PLATE	2	2	2
49	172479-73660	CLIP	2	2	2
50	172479-73670	BEARING	2	2	2
51	172479-73680	BEARING	6	6	6
52	172479-73690	PISTON ASSY	2	2	2
53	172479-73700	PIVOT	4	4	4
54	172479-73710	PIN, PARALLEL	4	4	4
55	172479-73720	SPRING	2	2	2
56	172479-73730	FLANGE ASSY	2	2	2
57	172479-73740	FLANGE KIT	2	2	2
58	172479-73750	PLUG	2	2	2
59	172479-73760	PLUG	18	18	18
60	172479-73770	SPOOL KIT	2	2	2
61	172479-73780	PLUG	2	2	2
62	172479-73790	PLUG	4	4	4
63	172479-73800	RETAINER, SPRING	4	4	4
64	172479-73810	VALVE	4	4	4
65	172479-73820	SPRING	2	2	2
66	172479-73830	SPRING	2	2	2
67	172479-73840	SPRING	2	2	2
68	172479-73850	PLUG	8	8	8
69	172479-73860	PLUG	4	4	4
70	172479-73870	VALVE	4	4	4
71	172479-73880	SLEEVE	4	4	4
72	172479-73890	PLUG	4	4	4
73	172479-73900	SPRING	4	4	4
74	24190-100010	BALL, STEEL 5/16	4	4	4
75	172479-73950	ORIFICE	4	4	4
76	22242-000190	RING, 19	4	4	4
77	22242-000250	RING, 25	2	2	2
78	24101-063014	BEARING, BALL 6301	12	12	12
79	24190-120030	BALL, STEEL 3/8	2	2	2
80	26450-102002	BALL	2	2	2
81	22217-160000	BOLT, M12X30	12	12	12
82	22217-160000	WASHER, SPRING 16	24	24	24
83	26116-160452	BOLT, M16X 45 PLATED	24	24	24
