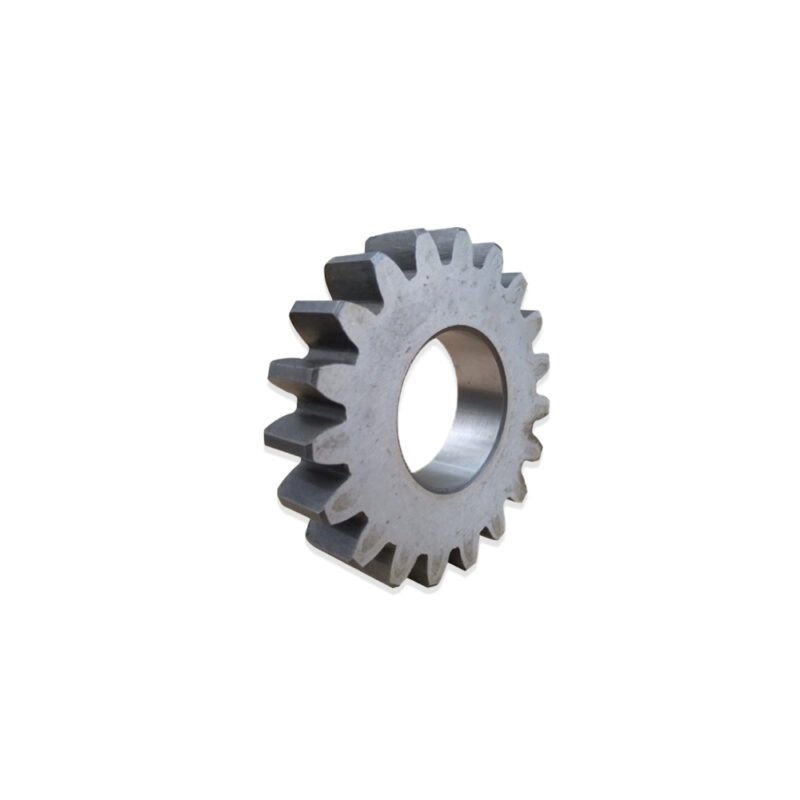

Travel Planetary Gear 3031946 Fit Hitachi Excavator EX200 EX220 EX200-1

Product Name: Planetary Gear
Reference Part Number: 3031946, T107741
Compatible Machine: Hitachi Excavator EX200 EX220 EX200-1, John Deere 690D 790D…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

Parts on group TRAVEL DEVICE:
Pos. Part No Qty Parts name Comments
00. 9065944 [1] MOTOR;OIL
00-51. 9066008 [2] TRAVEL DEVICE ASS’Y
00A. 9065943 [1] VALVE;BRAKE
02. 1009855 [1] HOUSING
03. 4514259 [1] SEAL;GROUP
04. 4115169 [2] BRG.;ROL
05. 1010010 [1] DRUM
06. 1010204 [1] SPROCKET
07. A590920 [16] WASHER;SPRING
08. J932055 [16] BOLT
10. 3032083 [1] NUT
11. 4178862 [1] PLATE;LOCK
12. J901020 [2] BOLT
14. 1009857 [1] CARRIER
15. 3034323 [3] GEAR;PLANETARY
16. 4183818 [6] BRG.;NEEDLE
17. 4135227 [6] PLATE;THRUST
18. 4139975 [3] PIN
19. 4139998 [3] PIN;SPRING
20. 3034324 [1] GEAR;SUN
23. 1010509 [1] GEAR;RING
24. A590916 [26] WASHER;SPRING
25. J931645 [24] BOLT
27. 2022210 [1] CARRIER
28. 4183819 [1] SPACER
29. 3034325 [3] GEAR;PLANETARY
30. 4126657 [3] BRG.;NEEDLE
31. 4192982 [6] PLATE;THRUST
32. 4144558 [3] PIN
33. 4169567 [3] PIN;SPRING
34. 3034326 [1] GEAR;SUN
36. 2020865 [1] CARRIER
37. 4172391 [1] SPACER
38. 3031946 [3] GEAR;PLANETARY
39. 4172392 [3] BRG.;NEEDLE
40. 4196488 [6] PLATE;THRUST
41. 4172398 [3] PIN
42. 4169566 [3] PIN;SPRING
43. 2020862 [1] SHAFT;PROP.
45. 2022683 [1] COVER
46. A590912 [12] WASHER;SPRING
47. M221228 [12] BOLT
48. 94-2013 [2] PLUG
50. 4174183 [1] O-RING
51. J931685 [2] BOLT
60. J932080 [28] BOLT
61. A590920 [28] WASHER;SPRING
