Final Drive Planetary Gear 1R-5842 Fit Caterpillar Excavator CAT 312 312B 313B E120B
US$108.00

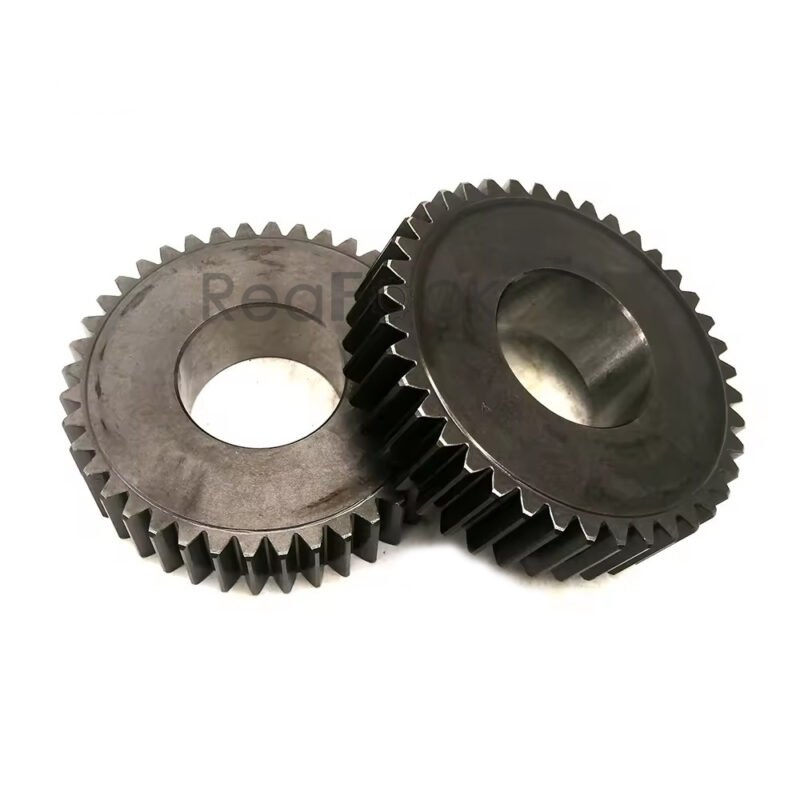

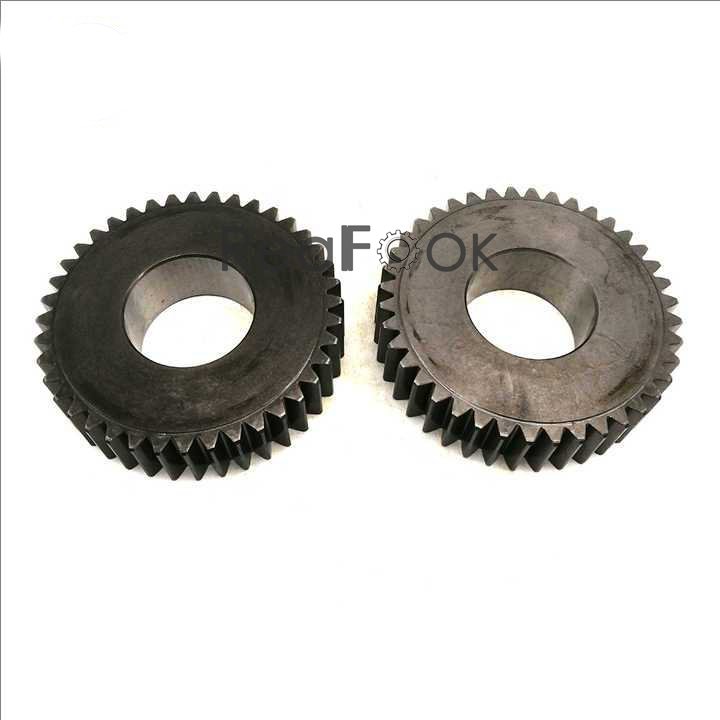

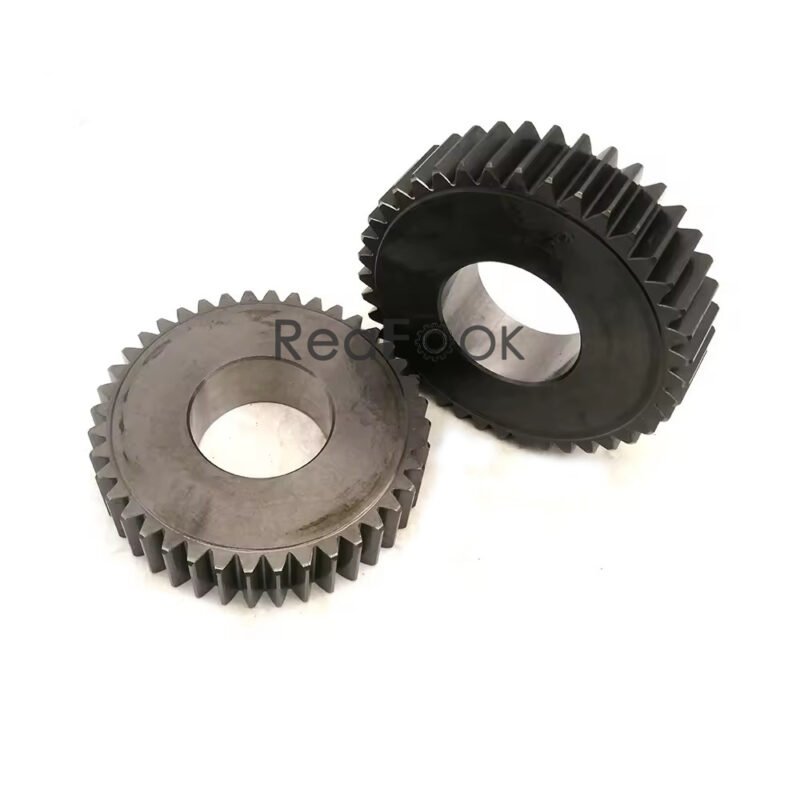

Planetary Gear 1R-5842
Gear 40 Teeth, OD 126.7mm, ID 53mm, Thickness 31mm;
Used for Travel Reduction Gearbox;
Free Shipping and High Quality Standards!!
All dimensions are manually measured; minor errors are inevitable.
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 - 5 | — | US$108.00 |
| 6 - 14 | 30.56% | US$75.00 |
| 15+ | 44.44% | US$60.00 |
Product Name: Planetary Gear
Reference Part Number: 1R-5842, 1R5842
Compatible Machine: Caterpillar Excavator CAT312…
Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

Pos. Part No Qty Parts name Comments
81- 105. 1R-7737 [1] TRAVEL GEAR ASSY.
81. 1R-7752 [1] BODY
82. 1R-5837 [1] FLOATING SEAL
83. 1R-5838 [2] BEARING
84. 1R-5839 [1] NUT
85. 1R-5853 [4] PLATE
86. 1R-5846 [4] GEAR
87. 1R-5847 [4] BUSHING
88. 1R-5848 [4] BEARING
89. 1R-5852 [1] PLATE
90. 1R-5854 [7] SCREW
91. 1R-5844 [1] CARRIER
92. 1R-5842 [3] GEAR
93. 1R-5843 [3] BEARING
94. 1R-5861 [2] PLUG
95. 1R-7753 [1] COVER
96. 1R-5851 [1] PLATE
97. 1R-5850 [1] PLATE
98. 1R-5860 [1] PLUG
99. 1R-5841 [1] GEAR
100. 1R-5845 [1] GEAR
101. 1R-5849 [1] RING
102. 1R-7754 [16] BOLT
103. 1R-7739 [16] WASHER, SPRING
104. 1R-7738 [1] GEAR
105. 1R-5856 [1] PIN
| Weight | 1.9 kg |
|---|
