Swing Shaft Roller Bearing 4397241 Fit Hitachi Excavator EX60-5 EX60BUN-5 EX70LCK-5 EX75UR-5 EX75US-5 EX80U
Original price was: US$99.00.US$88.00Current price is: US$88.00.

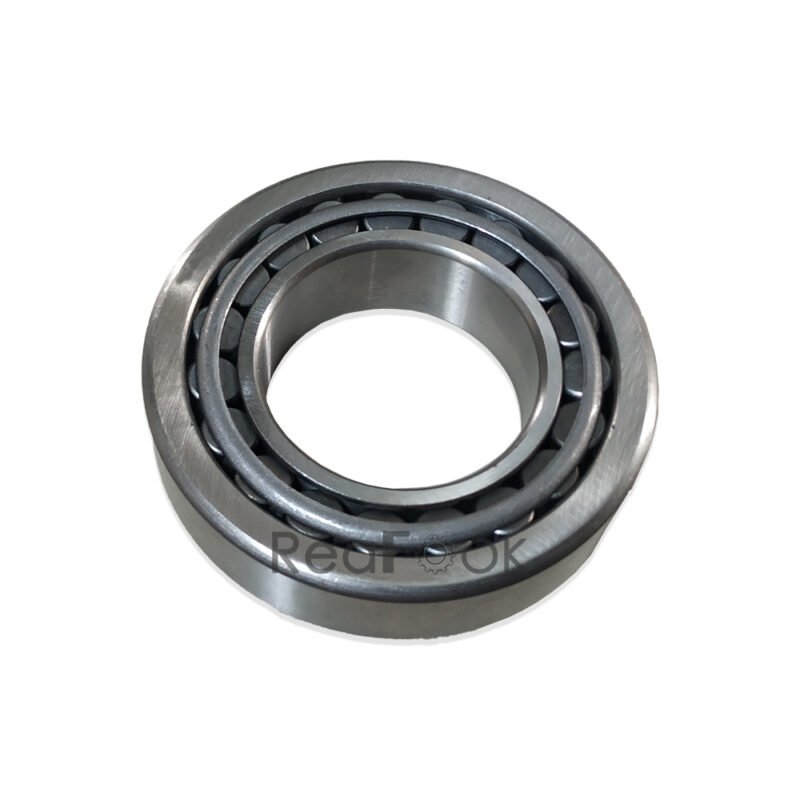

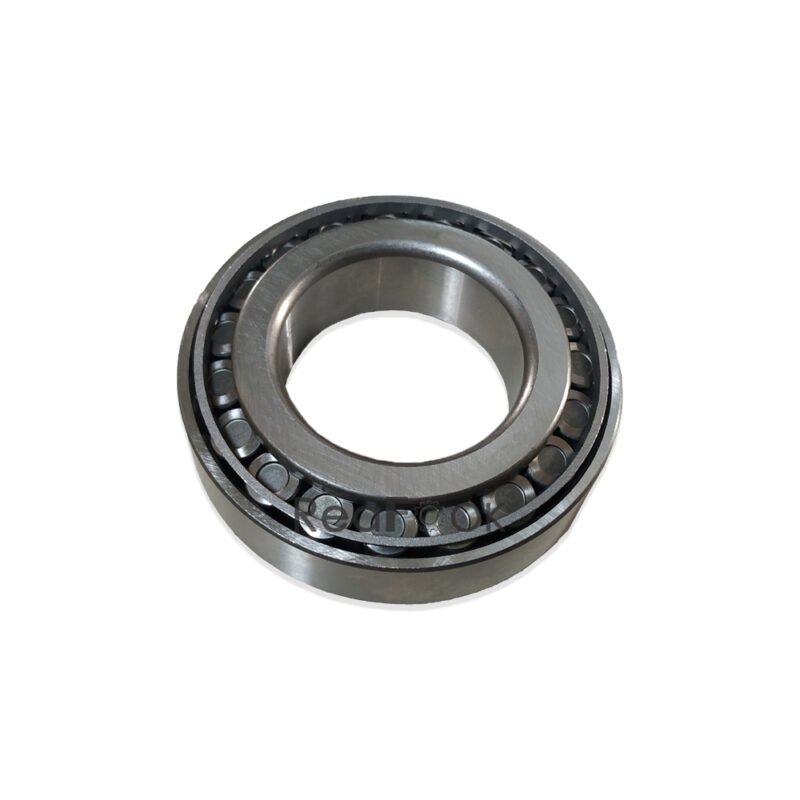

Tapered Roller Bearing 4397241
ID 60mm, OD110mm;
Used in Swing Reduction Gearbox;
Free Shipping and High Quality Standards!!
Product Name: Roller Bearing
Reference Part Number: 4397242
Compatible Machine: Hitachi Excavator EX60-5 EX60BUN-5 EX70LCK-5 EX75UR-5 EX75US-5EX80U…
Description:
Tapered Roller Bearings reduce friction and provide protection between mating parts. They are specifically designed to handle large radial and thrust loads.
Parts on group TRANSMISSION:
Pos. Part No Qty Parts name Comments
4398053 [1] T.MISSION 4398053
01. M341403 [8] BOLT;SOCKET
02. 4397235 [1] PLATE
03. 4397236 [1] GEAR;SUN
04. 4397246 [1] CARRIER
05. 4397237 [1] GEAR;SUN
06. 4397238 [1] PLATE;THRUST
07. 4397239 [1] CARRIER
09. 4397240 [1] NUT
10. 4397241 [1] BRG.;ROL.
11. 4395197 [1] SEAL;OIL
14. 4397242 [1] BRG.;ROL.
18. 4397244 [3] GEAR;PLANETARY
19. 4397245 [3] BRG.;NEEDLE
22. 4397247 [1] GEAR;RING
23. 4397248 [3] GEAR;PLANETARY
24. 4267081 [3] PLATE;THRUST
25. 4134502 [3] PIN;SPRING
26. 4397249 [3] PIN
27. 4397250 [1] PIPE;DRAIN
28. 94-2012 [1] PLUG
29. 94-2010 [2] PLUG
30. 4397251 [1] HOUSING
31. 4397252 [1] SEAL;DUST
32. 4397253 [1] GUIDE
33. 4397254 [1] SHAFT;PROP.
34. 942517 [3] RING;RETAINING
35. 4397255 [1] COVER
115. 4397243 [1] CAP
116. 4255227 [1] PIPE
300. 4397256 [1] SWING DEVICE(WITHOUT MOTER)
| Weight | 1.5 kg |
|---|
