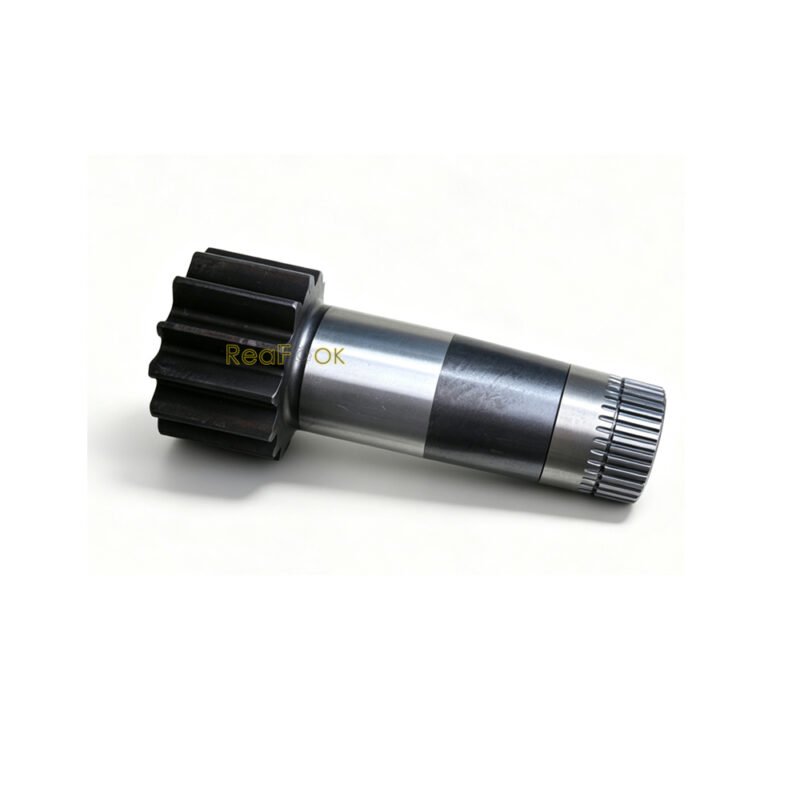

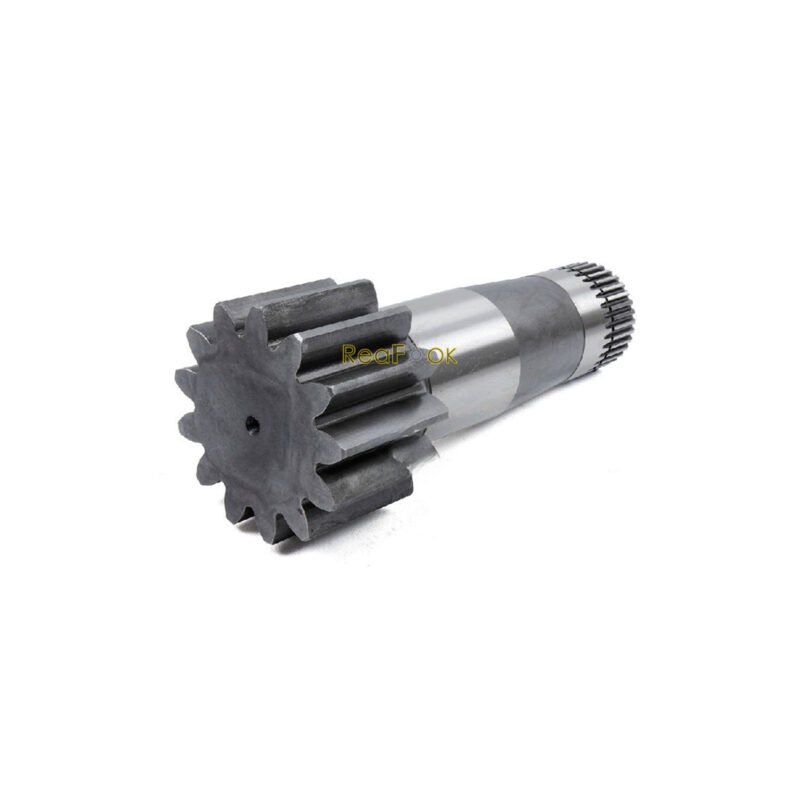

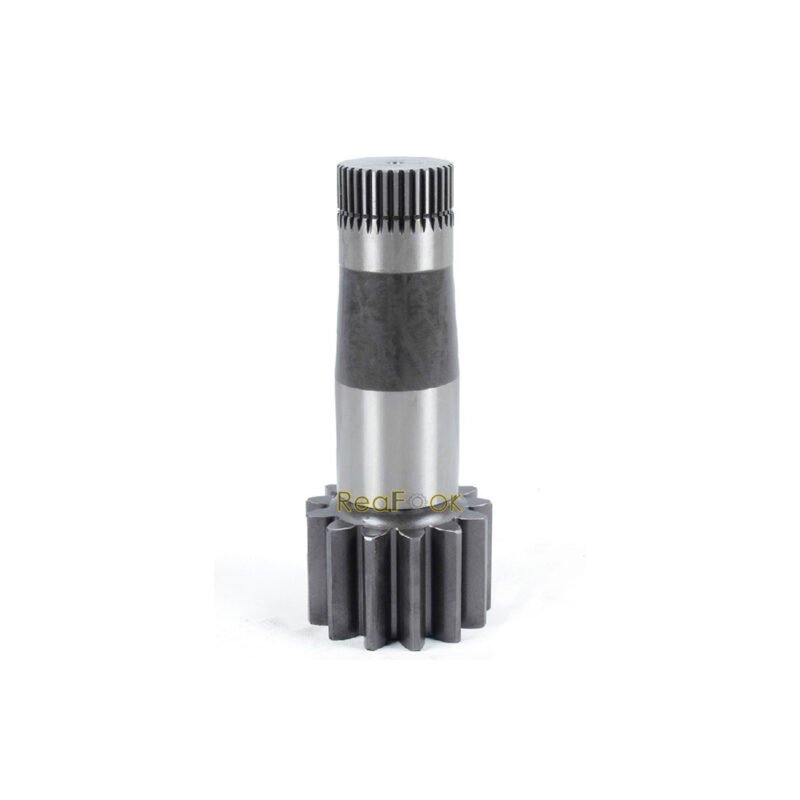

Swing Reduction Pinion Shaft YN32W01003P1 Fit Excavator Kobelco SK200 SK200LC-6 SK235SRLC SK200SRLC-1 SK210LC SK210LC-6E SK200-6 SK200-6ES

Product Name: Pinion Shaft, Swing Drive Shaft
Reference Part Number: YN32W01003P1
Compatible Machine: Excavator Kobelco SK200 SK200SR-1S SK200LC SK200LC-6 SK235SRLC SK200SRLC SK200SRLC-1S SK210LC SK210LC-6E SK200LC-6ES SK200SR SK160LC SK160LC-6E ED190LC ED190LC-6E SK235SR SK200-6 SK200-6ES…

Description:
The Swing Pinion Shaft for transmitting power from the swing motor to the swing gear which enables the rotation of the upper structure. It is used to rotate your equipment about the undercarriage by orbiting around the much larger bearing and ring gear.

Pos. Part No Qty Parts name Comments
. . YN32W00004F1 [1] MOTO-REDUCTION GEAR KOB SWING
. . YN32W00004F1R [1] REMAN-MOTO REDUCTION KOB SK200LC-6 – DYNAMIC ACERA, ASN YQ03501,
. . YN32W00004F1C [1] CORE-MOTO-REDUCTION UNIT KOB Return Number
1. YN32W01003P1 [1] PINION SHAFT KOB
2. YN32W01004P1 [1] SLEEVE KOB
4. ZE82T08000 [1] PLUG KOB 1/2″ PT
5. ZD11G10000 [1] O-RING,99.40mm ID x 105.60mm OD x 3.10mm
6. YN32W01034P1 [1] OIL SEAL KOB
7. YN32W01005P1 [1] RETAINER KOB
8. ZS23C08025 [12] SCREW,Hex Socket Head, M8 x 25mm KOB M08x1.25x25mm
9. YN32W01029P1 [1] SPHERICAL BEARING KOB Superseded by part number: R25P0047D9
10. YN32W01033P1 [1] HOUSING KOB HOUSING
11. YN32W01015P1 [1] SPACER KOB
12. YN32W01030P1 [1] SPHERICAL BEARING KOB Superseded by part number: 25Z804D18
13. ZR16X09000 [1] RING KOB Retaining — ID 84.50 x OD 108 x 3.0mm
14. YN32W01011P1 [1] SPIDER KOB
15. YN32W01006P1 [1] SUN GEAR KOB
16. YN32W01012P1 [1] RING GEAR KOB
17. YN32W01019F1 [1] SPIDER ASSY. KOB
18. ZS23C14130 [10] CAPSCREW,Hex Socket Head, M14 x 130mm KOB SCREW M14x2.0x130mm
19. YN32W01007P1 [1] SUN GEAR KOB
20. ZP26D08025 [4] PIN KOB Roll — OD 08 x 25mm Long
21. YN32W01001P1 [4] SHAFT KOB SHAFT
22. YN32W01027P1 [8] THRUST WASHER KOB
23. YN32W01008P1 [4] PINION KOB
24. YN32W01021P1 [4] BEARING KOB
25. YN32W01026P1 [3] THRUST WASHER KOB
26. YN32W01002P1 [3] PINION KOB
27. YN32W01022P1 [102] ROLLER KOB
28. YN32W01028P1 [3] THRUST WASHER KOB
29. 2418R2D25 [3] RING KOB RETAINING Superseded by part number: ZR16X04000
30. 2420T6698D2 [1] PIPE KOB
31. ZG31U12000 [1] ELBOW KOB
32. ZE82T12000 [2] PLUG KOB 3/4″ PT
33. 2418R2D22 [1] RING KOB RETAINING Superseded by part number: ZR16X03500
34. ZS83C20020 [2] SCREW KOB Set — M20x2.50x20mm
