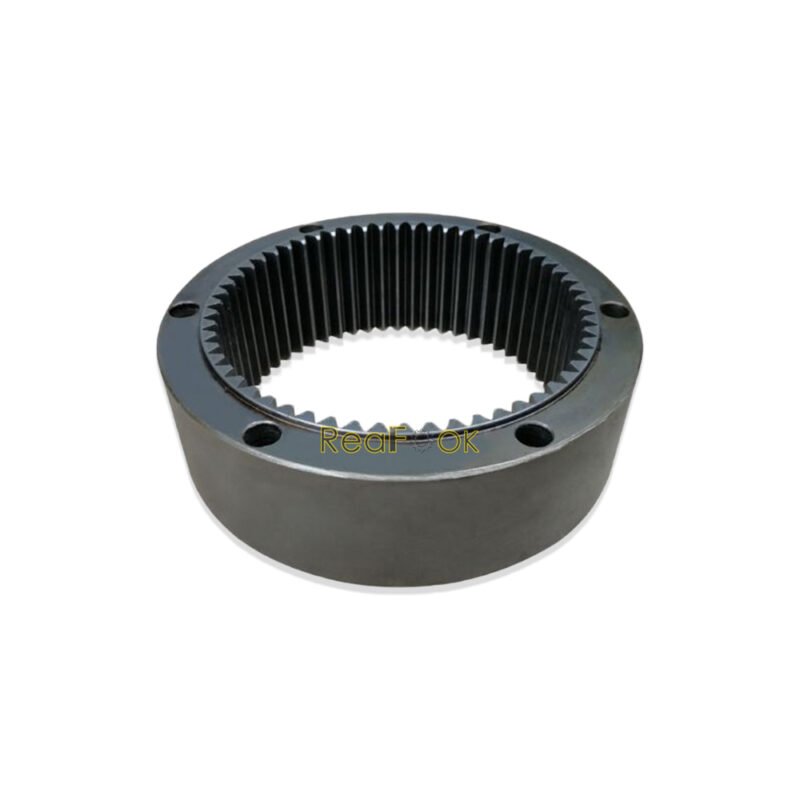

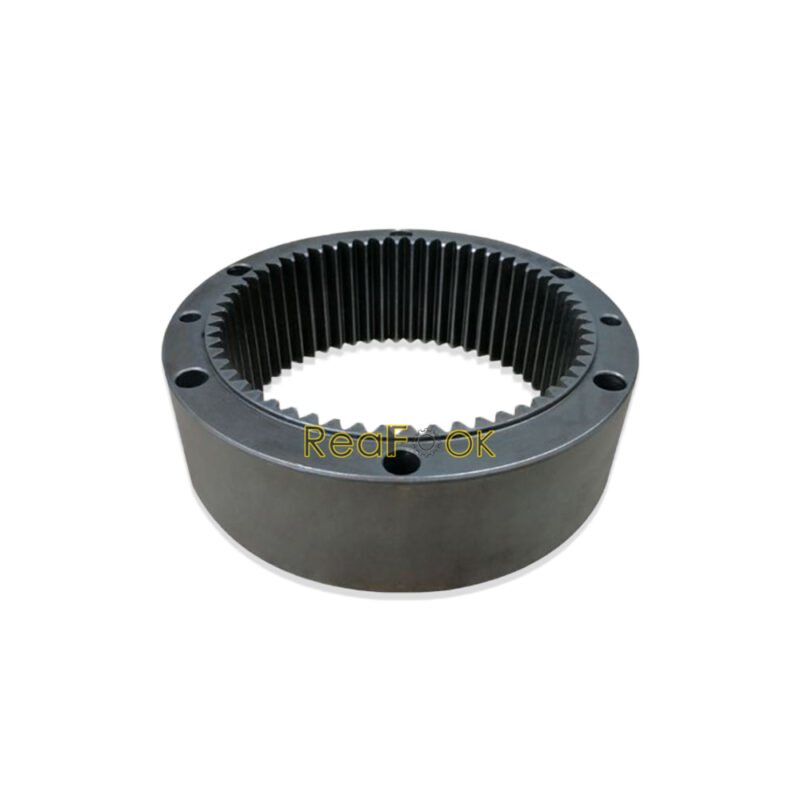

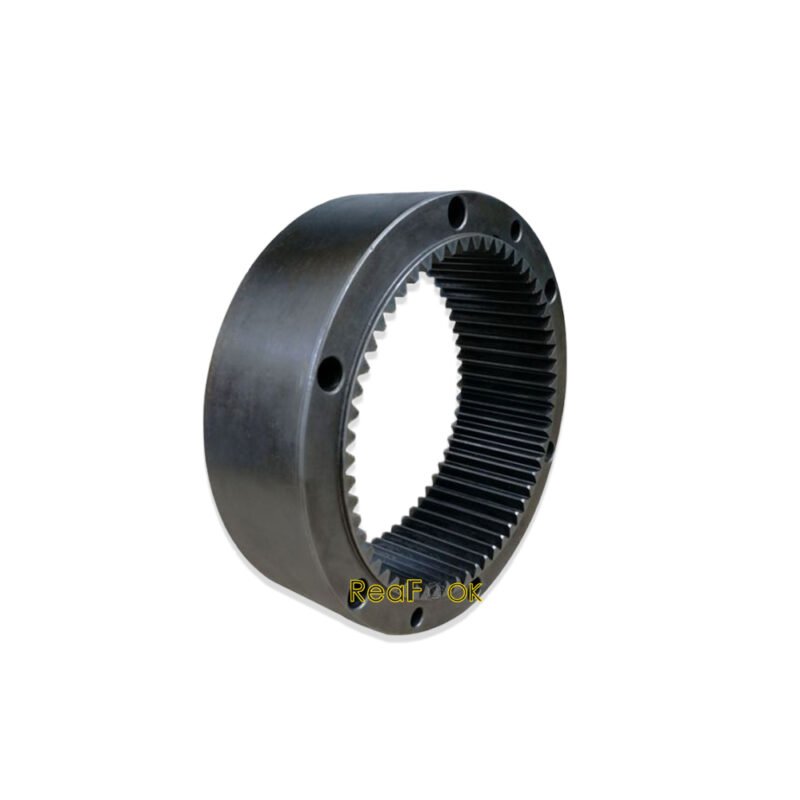

Swing Reduction Gear Ring YR32W00002S010 Fit Excavator Kobelco SK60-5 SK70SR SK75SR SK80CS SK80MSR-1E SK70SR-2

Product Name: Gear Ring
Reference Part Number: YR32W00002S010
Fits and Compatible Machines: Excavator Kobelco SK60-5 SK70SR SK75SR SK80CS SK80MSR-1E SK70SR-2…

Description:
Swing Drive Ring Gear facilitates rotational movement of the swing mechanism, enabling controlled rotation of the upper structure and boom assembly.

Pos. Part No Qty Parts name Comments
1. YR32W00002S001 [1] SHAFT KOB PINION
2. YR32W00002S002 [1] COLLAR KOB
3. YR32W00002S003 [1] PLATE KOB
4. YR32W00002S004 [1] BEARING KOB ROLLER
5. YR32W00002S005 [1] GEAR KOB CASE
6. YR32W00002S006 [2] PLUG
7. YR32W00002S007 [1] SEAL KOB OIL
8. YR32W00002S008 [1] BEARING KOB ROLLER
9. PY32W00001S019 [2] PIN KOB
10. YR32W00002S010 [1] GEAR KOB RING
11. YR32W00002S011 [1] GEAR KOB
12. YR32W00002S012 [1] GEAR KOB
13. YR32W00002S013 [1] HOLDER KOB ASSY
14. YR32W00002S014 [6] CAPSCREW KOB SCREW CAPSCREW
15. YR32W00002S015 [1] REPAIR KIT KOB HOLDER ASSY Superseded by part number: YT32W00002R100
16. YR32W00002S016 [2] COLLAR KOB
17. 2436R354S18 [1] PLUG
18. NSS [6] NOT SOLD SEPARAT CON BEARING, NEEDLE
19. NSS [3] NOT SOLD SEPARAT CON SHAFT
20. NSS [3] NOT SOLD SEPARAT CON GEAR
21. NSS [6] NOT SOLD SEPARAT CON PLATE,THRUST
22. NSS [3] NOT SOLD SEPARAT CON PIN. SPRING
23. NSS [1] NOT SOLD SEPARAT CON HOLDER
