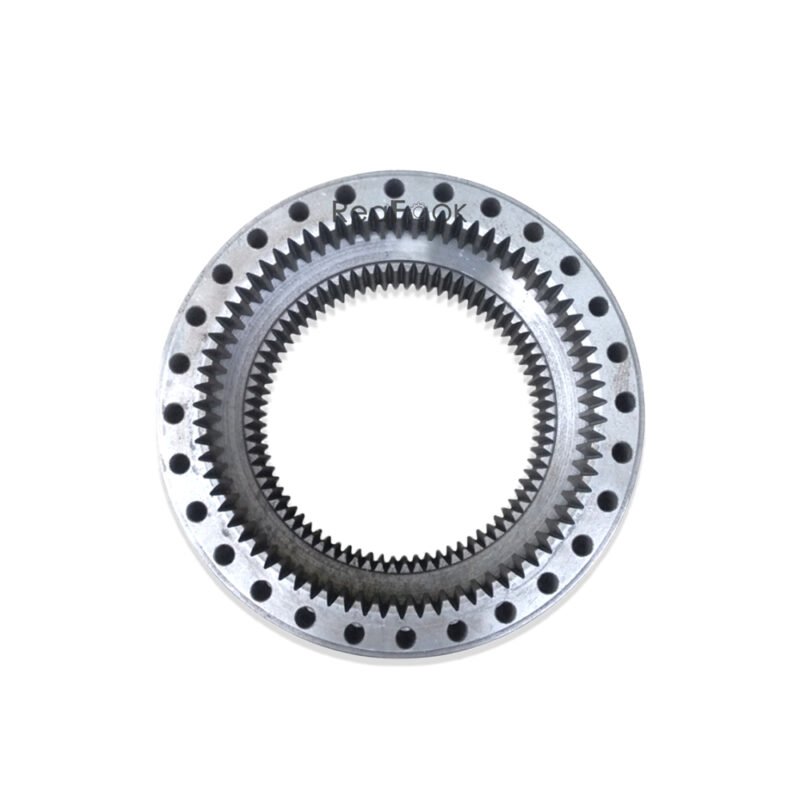

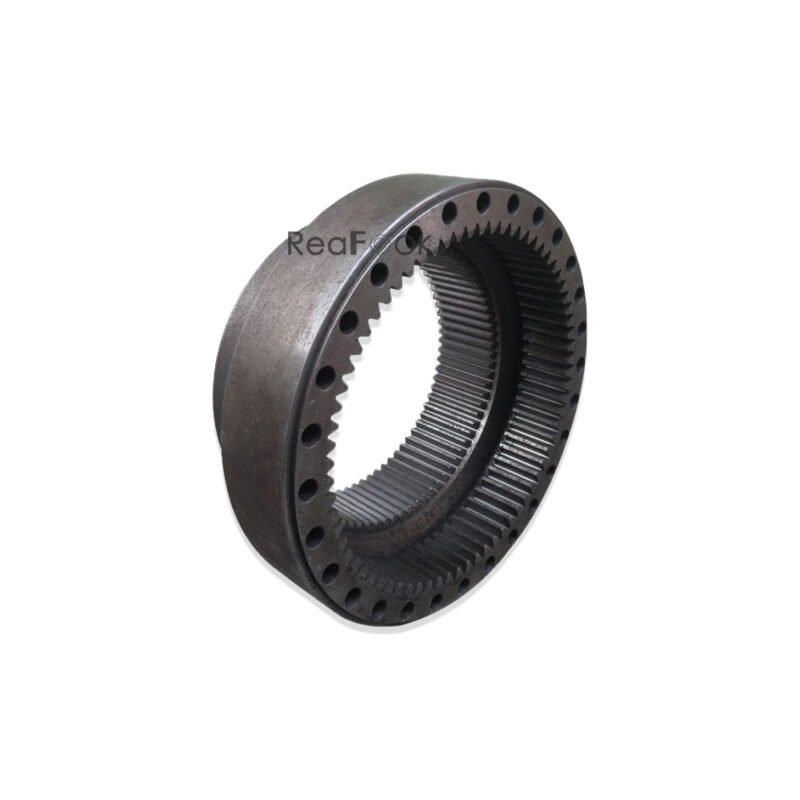

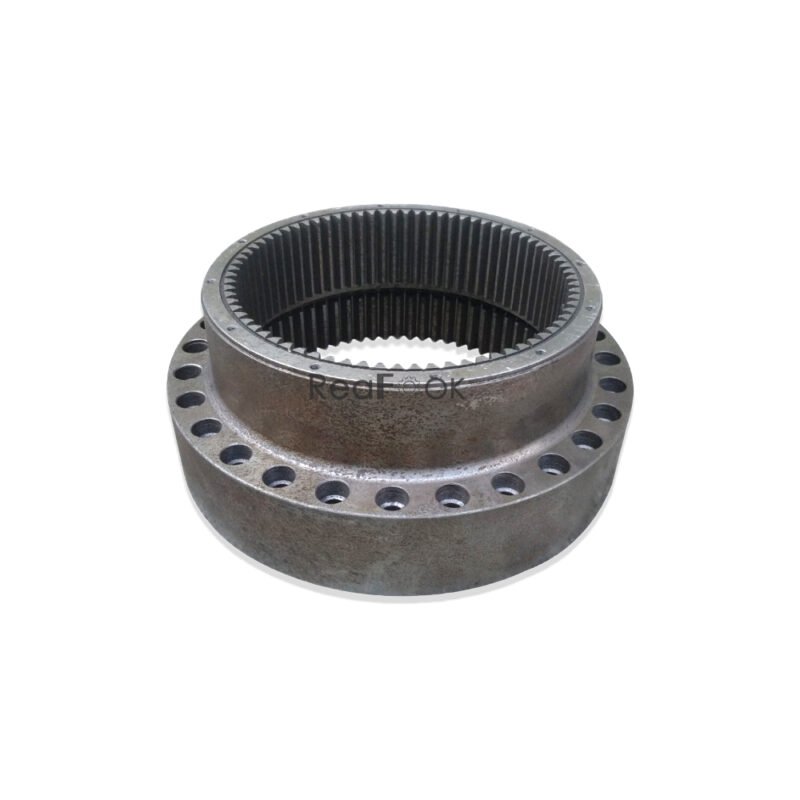

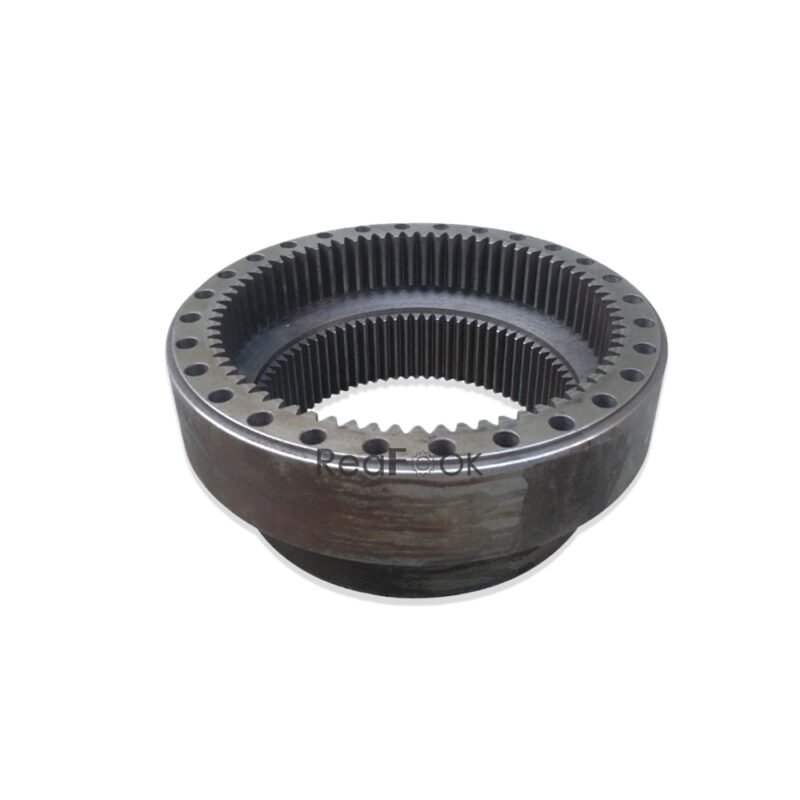

Final Drive Travel Reduction Gear Ring XKAH-00987 Fit Excavator Hyundai R360LC-7 R370LC-7 R375LC-7

Product Name: Gear Ring
Reference Part Number: XKAH-00987
Compatible Machine: Excavator Hyundai R360LC-7 R370LC-7 R375-7..

Description:
The Internal Steel Ring Gear serves to securely attach the final drive gear to the hub, ensuring efficient power transmission, which is commonly used in planetary gear sets of final drives.

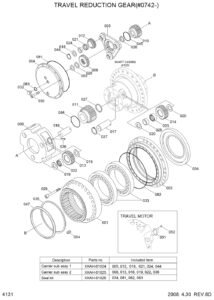

Pos. Part No Qty Parts name Comments
*-2. XKAH-01061 [1] T/REDUCTION GEAR
001. XKAH-00987 [1] GEAR-RING
002. XKAH-00988 [1] HOUSING
004. XKAH-00989 [1] COVER-SIDE
S005. XKAH-00990 [1] CARRIER NO.1
S006. XKAH-00991 [1] CARRIER NO.2,B
009. XKAH-00992
[1] SUN GEAR NO.1
010. XKAH-00993 [1] SUN GEAR NO.2
011. XKAH-00994 [1] SUN GEAR NO.3
S012. XKAH-00995 [3] GEAR 1- PLANETARY
S013. XKAH-00996 [3] GEAR 2- PLANETARY
S014. XKAH-00997 [4] GEAR 3- PLANETARY
S016. XKAH-00998 [3] PIN 2
S017. XKAH-00999 [4] PIN 3
S018. XKAH-01000 [3] PLATE E-SIDE
S019. XKAH-01001 [6] PLATE A-SIDE
S020. XKAH-01002 [8] PLATE F-SIDE
S021. XKAH-01003 [3] CAGE-NEEDLE
S022. XKAH-01004 [3] CAGE-NEEDLE
S023. XKAH-01005 [4] CAGE-NEEDLE
024. XKAH-01006 [3] RING-INNER
025. XKAH-01007 [4] BUSHING-FLOATING
026. XKAH-01008 [2] RING-THRUST 60
S027. XKAH-01009 [1] RING-THRUST
029. XKAH-01010 [28] BOLT-SOCKET
030. XKAH-00210 [12] BOLT-SOCKET
032. XKAH-00032 [3] PLUG-RO
033. XKAH-01011 [2] BEARING-ANGULAR
K034. XKAH-01012 [1] SEAL-FLOATING
035. XKAH-01013 [1] SHIM
S036. XKAH-01014 [3] PIN-SPRING
S037. XKAH-01015 [4] RING-SNAP
S044. XKAH-01016 [3] RING-SNAP
045. XKAH-01017 [1] CLIP
046. XKAH-01018 [1] CLIP-W
047. XKAH-01019 [1] RING-NUT
N051. XKAH-00985 [1] NAME PLATE
N052. XKAH-00986 [2] SCREW-RIVET
K081. XKAH-01020 [1] O-RING
K082. XKAH-01021[1] O-RING
K083. XKAH-00035 [3] O-RING
053. XKAH-01022 [1] WASHER
054. XKAH-01023[6] SCREW-SET
011. XKAH-01024 [1] SUB ASSY 1-CARRIER
012. XKAH-01025 [1] SUB ASSY 2- CARRIER
013. XKAH-01026 [1] SUB ASSY SEAL KIT
