Name: Swing Reduction 172A64‑73610 Drive Shaft Fit Excavator Yanmar VIO17
SKU: 172A64‑73610
Price: 106.00 USD
Availability: InStock

Swing Reduction 172A64‑73610 Drive Shaft Fit Excavator Yanmar VIO17

US$106.00

Sold: 2

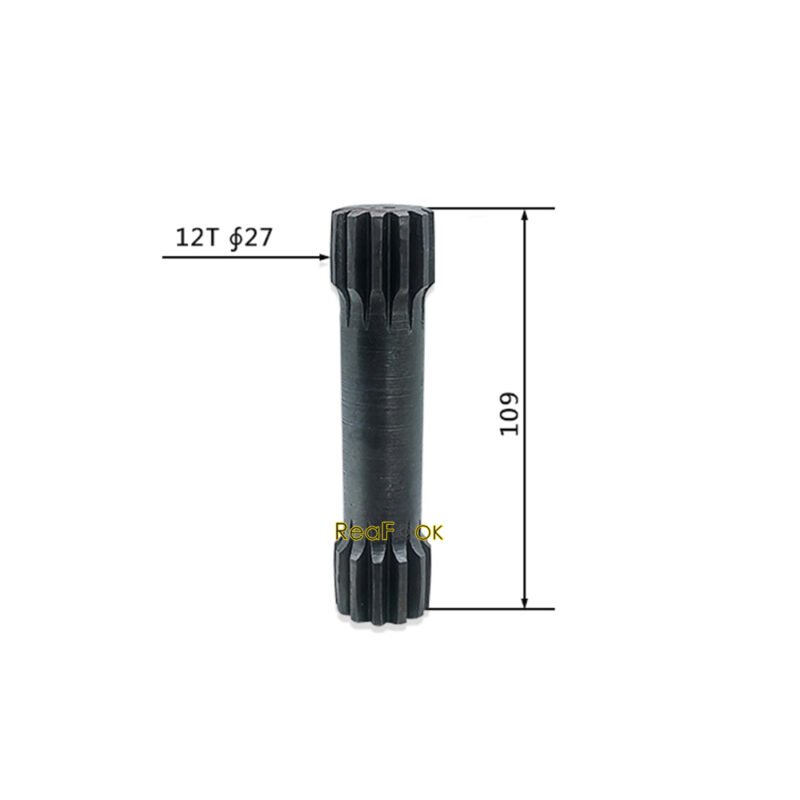

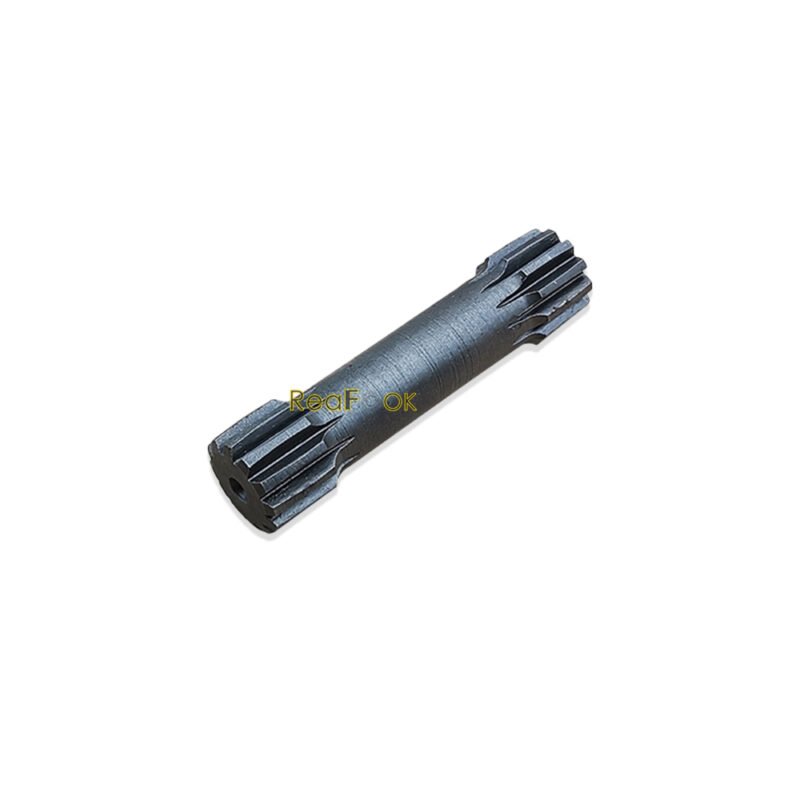

172A64‑73610 Drive Shaft;
12T/12T, OD27mm;
Overall Length 109mm;
It is used for Swing Motor System;
Free Shipping and High Quality Standards!!

All dimensions are manually measured; minor errors are inevitable.

Quantity	Discount (%)	Price
1	—	US$106.00
2+	6.6 %	US$99.00

Guaranteed Safe Checkout

Product Name: Drive Shaft
Reference Part Number: 172A64‑73610
Compatible Machine: Excavator Yanmar VIO17…

Description:
It is used for the hydraulic swing motor.

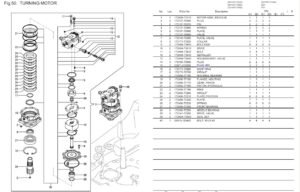

VIO17 Swing Motor Assy Diagram

No. Lev. Parts No. Description
1 1 172A64‑73310 MOTOR ASSY, REVOLVE
2 2 172137‑70490 PLUG
4 2 172137‑70580 SPRING
5 2 172137‑70590 PLATE
6 2 172137‑70600 VALVE
7 2 172148‑73350 PLATE, VALVE
8 2 172173‑73520 COLLAR
9 2 172A64‑73600 BOLT,8X20
10 2 172A64‑73610 DRIVE
11 2 172A64‑73620 BOLT
12 2 172A64‑73630 GEROLLER
13 2 172A64‑73640 HOUSING ASSY, VALVE
14 3 172168‑73590 PLUG
15 3 23871‑010000 PLUG, R01
16 2 172173‑73690 SNAP RING
17 2 172173‑73700 CIRCLIP
18 2 172456‑77150 HOUSING, BEARING
19 2 172456‑77160 FLANGE, MOUTING
20 2 172456‑77170 GEAR, PINION
21 2 172456‑77180 PISTON, HYDRAULIC
22 2 172456‑77190 RING
23 2 172456‑77200 CIRCLIP
24 2 172456‑77210 PLATE,FRICTION
25 2 172456‑77220 PLATE
26 2 172456‑77230 SPRING
27 2 172456‑77240 FRONT BEARING
28 2 172456‑77250 NEEDLE BEARING
29 2 172141‑77260 DRIVE, VALVE
30 2 172A64‑73660 SEAL SET
45 1 26013‑120402 BOLT, M12X 40
