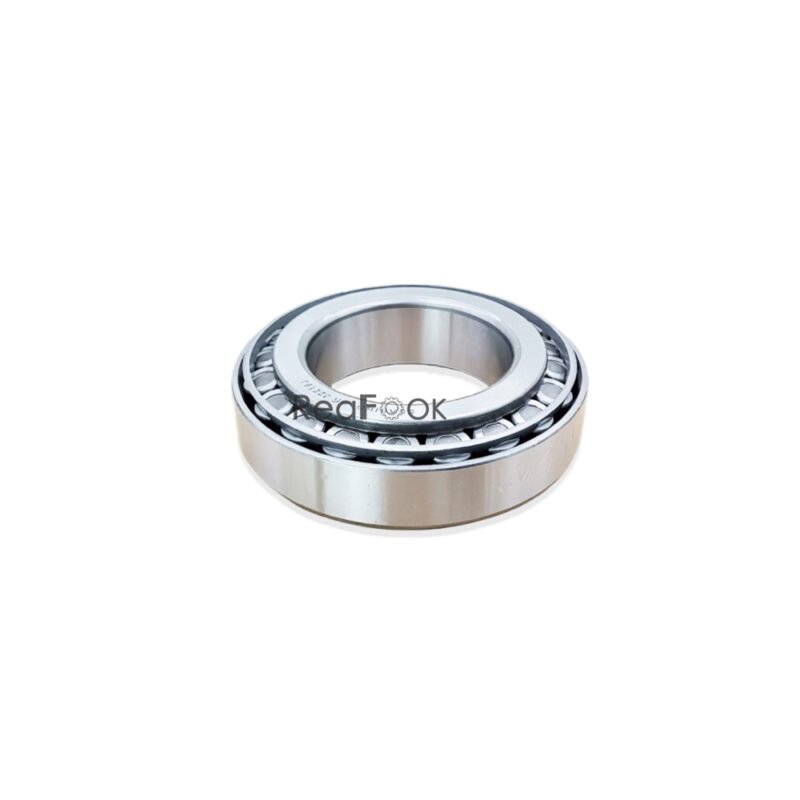

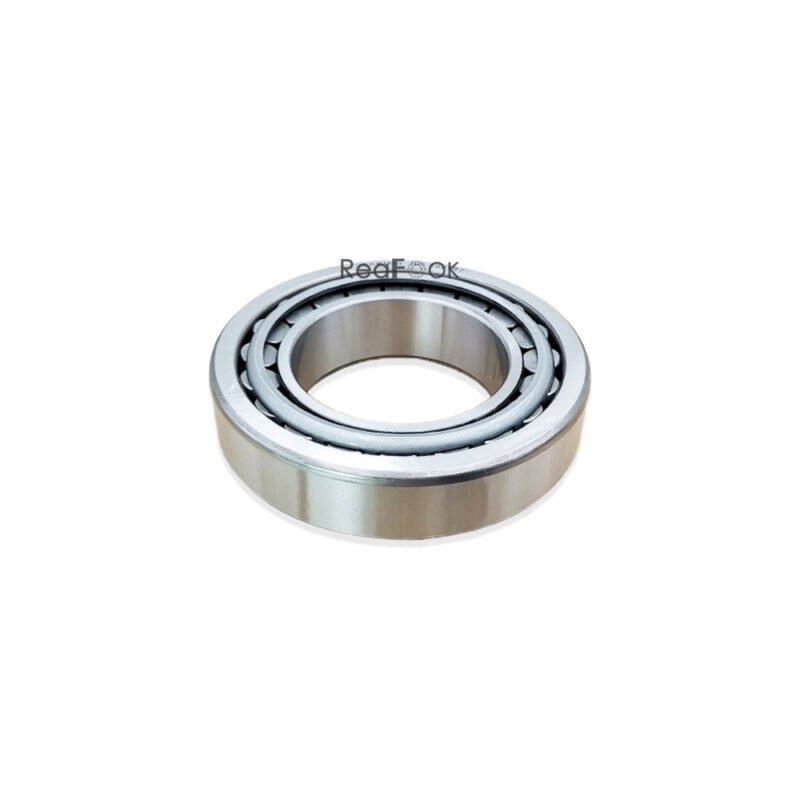

Swing Reduction Roller Bearing 4408119 Fit Excavator Hitachi ZX110 ZX110-3 ZX120 ZX120-3 ZX130-3 ZX135US

Product Name: Roller Bearing
Reference Part Number: 4408119
Compatible Machine: Excavator Hitachi ZX110 ZX110-3 ZX110M-3 ZX120 ZX120-3 ZX125US ZX130-3 ZX135US ZX135US-3 ZX140W-3…

Description:

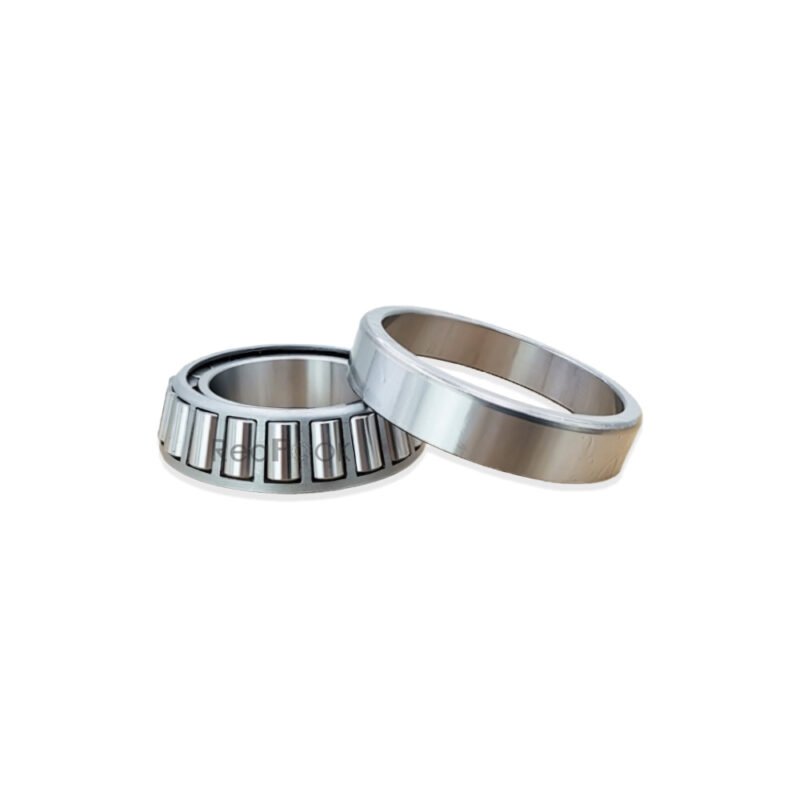

A Tapered Roller Bearing takes both axial loads sideways or thrust forces, as well as radial loads downward force. It consists of both tapered raceways (inner and outer rings), and tapered rollers. The construction is intended for combination loads, such as dual-acting axial and radial loads.

Attributes:
• Reduces the heat that can cause bearing structures to fail
• Provides line contact has a high load-carrying capacity
• Manufactured to precise specifications and are built for durability and reliability

Applications:
A Tapered Roller Bearing is used in the swing drive to provide frictionless support to the shaft.

Pos. Part No Qty Parts name Comments
00. 2044629 [1] SHAFT;PROP.
01. 3083710 [1] SLEEVE
02. A811095 [1] O-RING
03. 4430041 [1] BRG.;ROL.
04. 4411143 [1] SEAL;OIL
05. 1027901 [1] HOUSING
06. 4408119 [1] BRG.;ROL.
07. 3083674 [1] NUT
08. 4407745 [1] PLATE;LOCK
10. J901020 [2] BOLT
11. 2042965 [1] CARRIER
12. 4176070 [1] PLATE;THRUST
13. 4408102 [3] PIN
14. 4414855 [3] BRG.;NEEDLE
15. 3084940 [3] GEAR;PLANETARY
16. 4414833 [6] PLATE;THRUST
17. 4116308 [6] PIN;SPRING
19. 3092035 [1] GEAR;SUN
20. 2045146 [1] GEAR;RING
21. M341440 [12] BOLT;SOCKET
23. 2042964 [1] CARRIER
24. 4244904 [1] PLATE;THRUST
25. 4408122 [3] PIN
26. 4430040 [3] BRG.;NEEDLE
27. 3083741 [3] GEAR;PLANETARY
28. 4408002 [3] PLATE;THRUST
29. 3083740 [1] GEAR;SUN
31. 3087949 [1] PIPE
33. 94-2012 [1] PLUG
101. 9182929 [1] MOTOR;OIL I 9196962 assembly of machine)
101. 9196962 [1] MOTOR;OIL r transportation)
102. 927488 [1] RING;RETAINING
106. 4298608 [1] CAP
107. M341025 [7] BOLT;SOCKET
108. 3053093 [1] NAME-PLATE
109. M492564 [2] SCREW;DRIVE
114. 4449144 [1] PIPE
115. 3090862 [1] GAUGE;LEVEL
116. 4449182 [1] PIPE
117. 4436535 [1] SENSOR;PRES.
