Travel Reduction Sun Gear Prop Shaft 2050692 Fit Excavator Hitachi ZX200-3G ZX200-5G ZX210H-3 ZX225US-3 ZX240-3

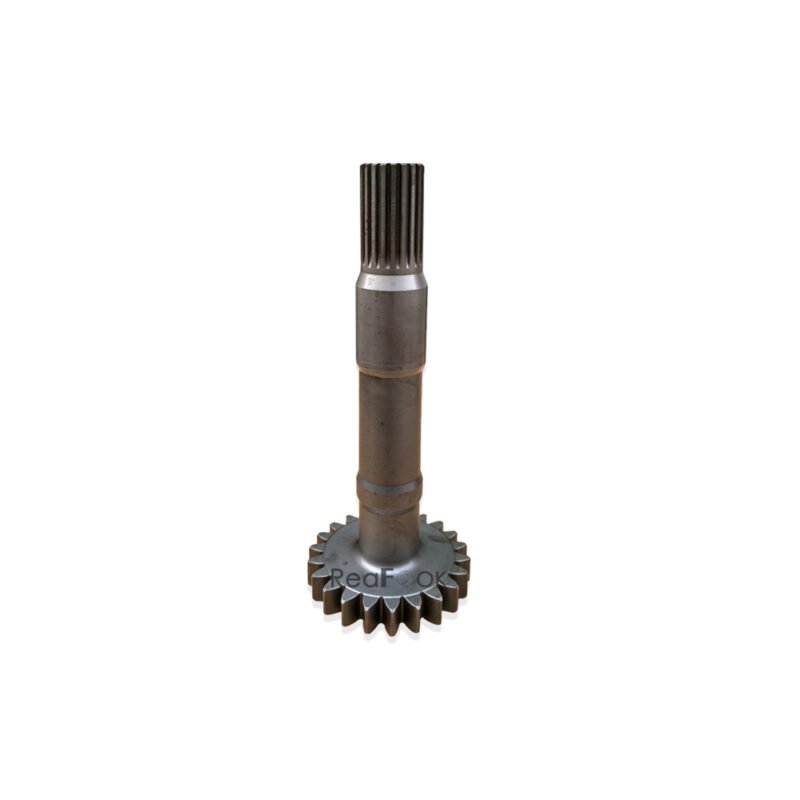

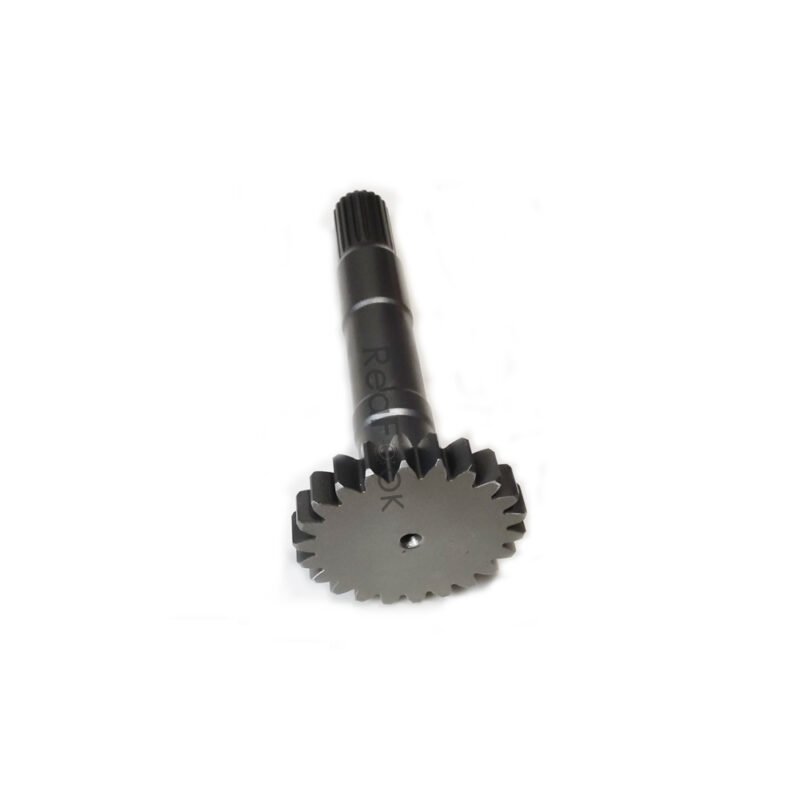

Product Name: Sun Gear Prop Shaft
Reference Part Number: 2050692
Compatible Machine: Excavator Hitachi ZX200-3 ZX200-3G ZX200-5G ZX210-3 ZX210H-3 ZX210H-3G ZX210K-3 ZX210LC-3G ZX210N-3 ZX225US-3 ZX225USR-3 ZX240-3…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

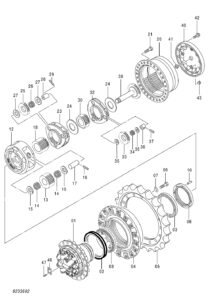

Pos. Part No Qty Parts name Comments
9233692 [1] TRAVEL DEVICE I 9261222 <for assembly of machine>
9261222 [1] TRAVEL DEVICE <for transportation>
01. 9257254 [1] MOTOR;OIL I 9258325 <for assembly of machine>
01. 9258325 [1] MOTOR;OIL <for transportation>
02. 4634693 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1033090 [1] DRUM
05. 1033091 [1] SPROCKET
06. J932055 [18] BOLT
07. A590920 [18] WASHER;SPRING
08. 3086531 [1] NUT
10. 4436242 [1] PIN;KNOCK
12. 1025875 [1] CARRIER
13. 3084353 [3] GEAR;PLANETARY
14. 4438593 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4116309 [3] PIN;SPRING
17. 4315838 [3] PIN
18. 3082156 [1] GEAR;SUN
20. 1025787 [1] GEAR;RING
21. J931640 [24] BOLT
23. 2042432 [1] CARRIER
24. 4401293 [2] SPACER
Pos. Part No Qty Parts name Comments
25. 3082155 [3] GEAR;PLANETARY
26. 4438592 [3] BRG.;NEEDLE
27. 4192982 [6] PLATE;THRUST
28. 4402086 [3] PIN
29. 4192020 [3] PIN;SPRING
30. 3082149 [1] GEAR;SUN
32. 2050691 [1] CARRIER
33. 3100544 [3] GEAR;PLANETARY
34. 4406589 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2050692 [1] SHAFT;PROP.
40. 2034833 [1] COVER
41. 4478346 [1] PIN;STOPPER
42. 4699148 [12] BOLT;SEMS
43. 4245797 [3] PLUG
46. +++++++ [1] NAME-PLATE
47. M492564 [2] SCREW;DRIVE
