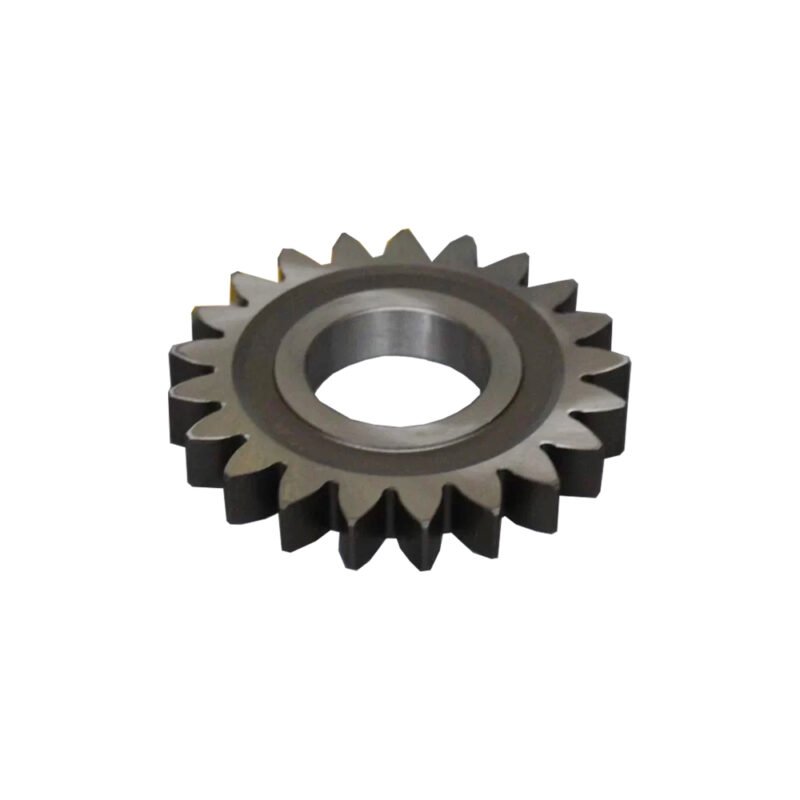

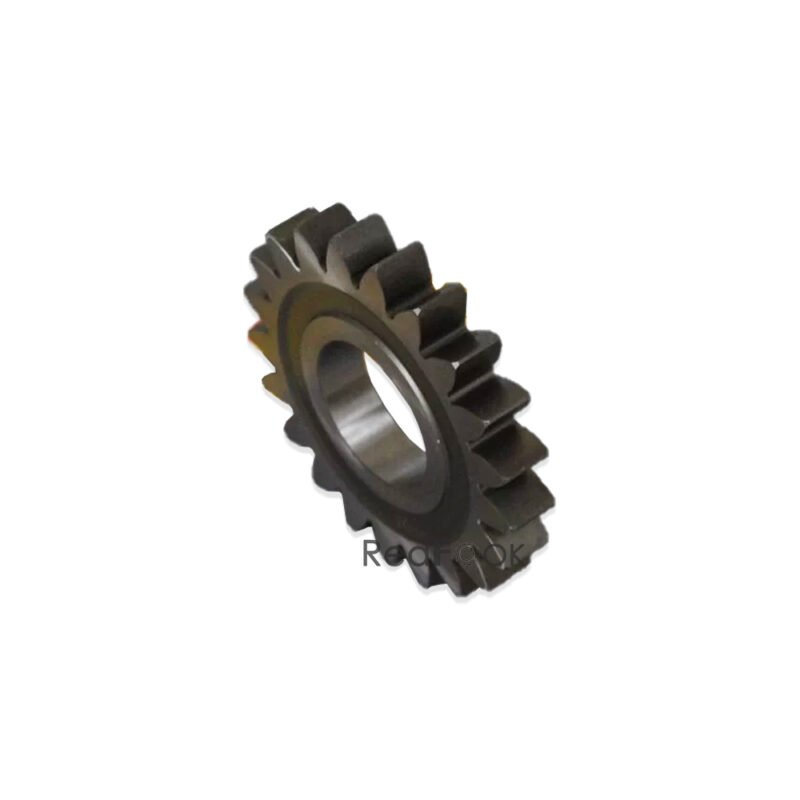

Final Drive Planetary Gear VOE14599948 Fit Volvo Excavator EC250D EC250E EC300D EC300E

Product Name: Planetary Gear
Reference Part Number: VOE14599948
Compatible Machine: Volvo Excavator EC240C EC290B EC290C…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

Pos. Part No Qty Parts name Comments
VOE14599921 [1] Travel gearbox
1. VOE14599922 [1] Housing
2. VOE14599932 [1] Gear
3. SA14599923 [2] Bearing
4. VOE14599927 [1] Shim THICK = 0,6 MM
4. VOE14599928 [1] Shim THICK = 0,8 MM
4. VOE14599929 [1] Shim THICK =1,0 MM
4. VOE14599930 [1] Shim THICK = 0,7 MM
4. VOE14599931 [1] Shim THICK = 0,9 MM
4. VOE14607977 [1] Shim THICK = 1,1 MM
5. VOE14599926 [1] Retainer
6. VOE14599933 [1] Planet carrier
7. 14599934 [1] Carrier
8. VOE14566415 [4] Pin
9. VOE14599935 [4] Planetary Gear
10. VOE14566414 [8] Washer
11. SA9325-06012 [4] Spring pin
12. SA1036-00300 [1] Ring
13. VOE14566412 [4] Needle bearing
14. VOE983919 [16] Hex. socket screw
15. VOE14599938 [1] Gear
16. VOE14599939 [1] Planet carrier
17. VOE14599944 [3] Pin
18. 14599940 [1] Carrier
19. VOE14599941 [3] Planetary Gear
20. VOE14599943 [6] Washer
21. SA9325-06012 [3] Spring pin
22. VOE14599942 [3] Needle Bearing
23. VOE14566433 [1] Thrust washer
24. VOE14599945 [1] Gear
25. VOE14599946 [1] Planet carrier
26. 14599947 [1] Carrier
27. VOE14599948 [3] Planetary Gear
28. VOE14599950 [6] Washer
29. VOE14599951 [3] Pin
30. VOE951955 [3] Spring pin
31. VOE14599949 [3] Needle Bearing
32. VOE14569232 [1] Ring
33. VOE14566417 [1] Ring
34. VOE14599952 [1] Gear
35. VOE9541-01038 [1] Snap Ring
36. VOE14599953 [1] Cover
37. VOE982211 [18] Hexagon screw
38. SA9213-20000 [18] Spring washer
39. VOE14883847 [2] Plug
40. VOE990557 [2] O-ring
41. VOE9324-21617 [4] Pin
42. VOE14599925
