Travel Planetary Gear 3082155 3PCS Fit Excavator Hitachi ZX180LC ZX200 ZX200-3 ZX200-5G ZX210H-3 ZX210 ZX225US-3 ZX230 ZX240
US$150.00

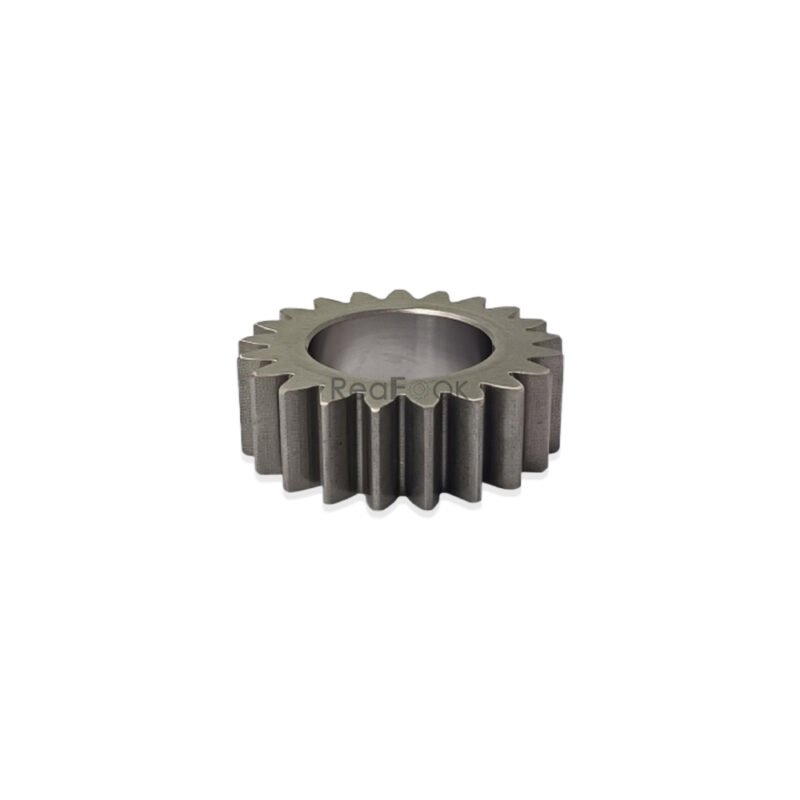

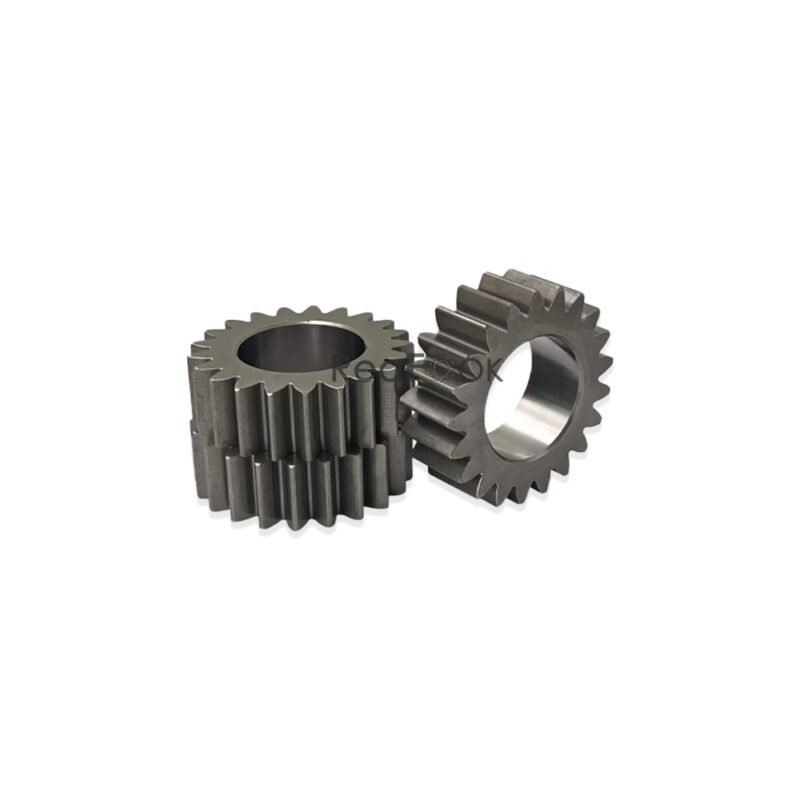

Planetary Gear 3082155 (3PCS);
21 Teeth, OD 93mm, Height 30mm;
Used in Final Drive Reduction Gearbox Assy;
Free Shipping and High Quality Standards!!
The price include 3 pieces of gears.
Product Name: Planetary Gear (3PCS)
Reference Part Number: 3082155
Compatible Machine: Excavator Hitachi ZX180LC ZX180LC-3 ZX200 ZX200-3 ZX200-3G ZX200-5G ZX210 ZX210-3 ZX210H-3 ZX210H-3G ZX210K-3 ZX210LC-3G ZX210N-3 ZX225US-3 ZX225USR-3 ZX240 ZX240-3 ZX240N-3…
Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.
Pos. Part No Qty Parts name Comments
9170996 [2] TRAVEL DEVICE I 9195447
9233687 [2] TRAVEL DEVICE I 9233688 (for assembly of machine)
9195447 [2] TRAVEL DEVICE
9233688 [2] TRAVEL DEVICE (for transportation)
00. 9168003 [1] MOTOR;OIL I 9195451
00. 9234034 [1] MOTOR;OIL I 9237802 (for assembly of machine)
00. 9195451 [1] MOTOR;OIL
00. 9237802 [1] MOTOR;OIL (for transportation)
02. 4114753 [1] SEAL;GROUP I 4634693
02. 4634693 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1025833 [1] DRUM
05. 1018740 [1] SPROCKET
06. J932055 [16] BOLT
07. A590920 [16] WASHER;SPRING
08. 3086531 [1] NUT
10. 4436242 [1] PIN;KNOCK
12. 1025875 [1] CARRIER
14. 4438593 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4315838 [3] PIN
17. 4116309 [3] PIN;SPRING
18. 3082156 [1] GEAR;SUN
19. 3084353 [3] GEAR;PLANETARY
20. 1025787 [1] GEAR;RING
21. J931640 [24] BOLT
23. 2042432 [1] CARRIER
24. 4401293 [2] SPACER
25. 3082155 [3] GEAR;PLANETARY
26. 4438592 [3] BRG.;NEEDLE
27. 4192982 [6] PLATE;THRUST
28. 4402086 [3] PIN
29. 4192020 [3] PIN;SPRING
30. 3082149 [1] GEAR;SUN
32. 1025826 [1] CARRIER
33. 3082148 [3] GEAR;PLANETARY
34. 4387383 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2042351 [1] SHAFT;PROP.
38. 2049585 [1] SHAFT;PROP.
40. 2034833 [1] COVER
41. 4285323 [1] PIN;STOPPER Y 4478346
41. 4478346 [1] PIN;STOPPER
42. J011230 [12] BOLT;SEMS I 4609016
42. 4609016 [12] BOLT;SEMS
43. 4245797 [3] PLUG
46. 3053559 [1] NAME-PLATE
47. M492564 [2] SCREW;DRIVE
