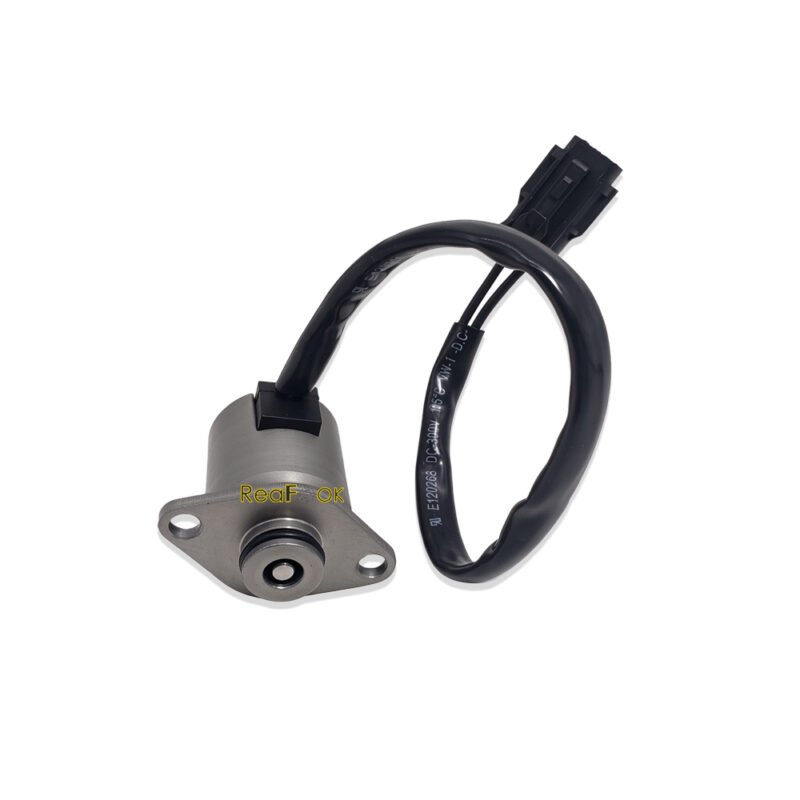

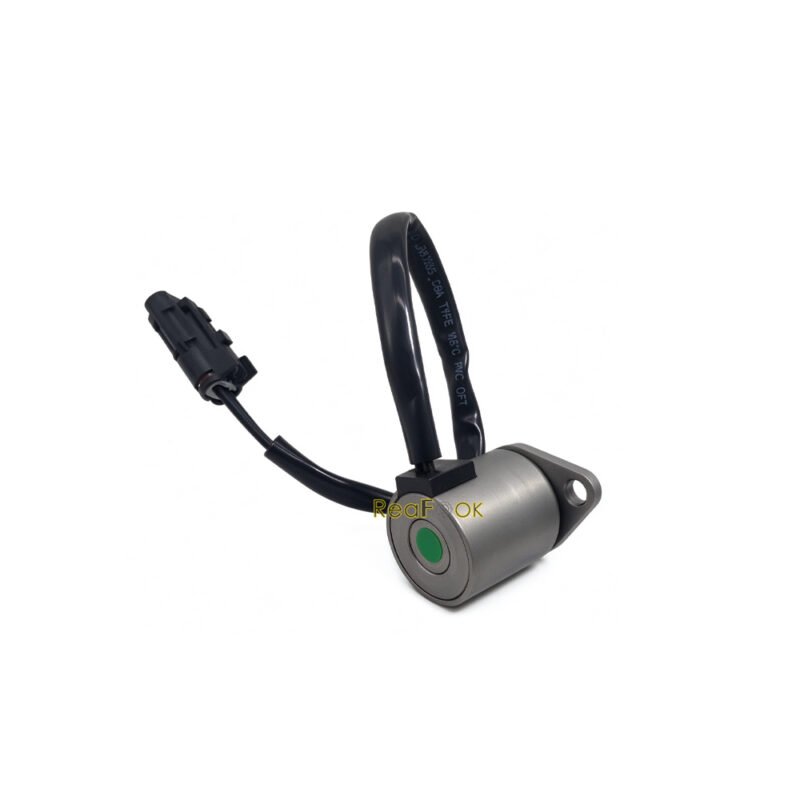

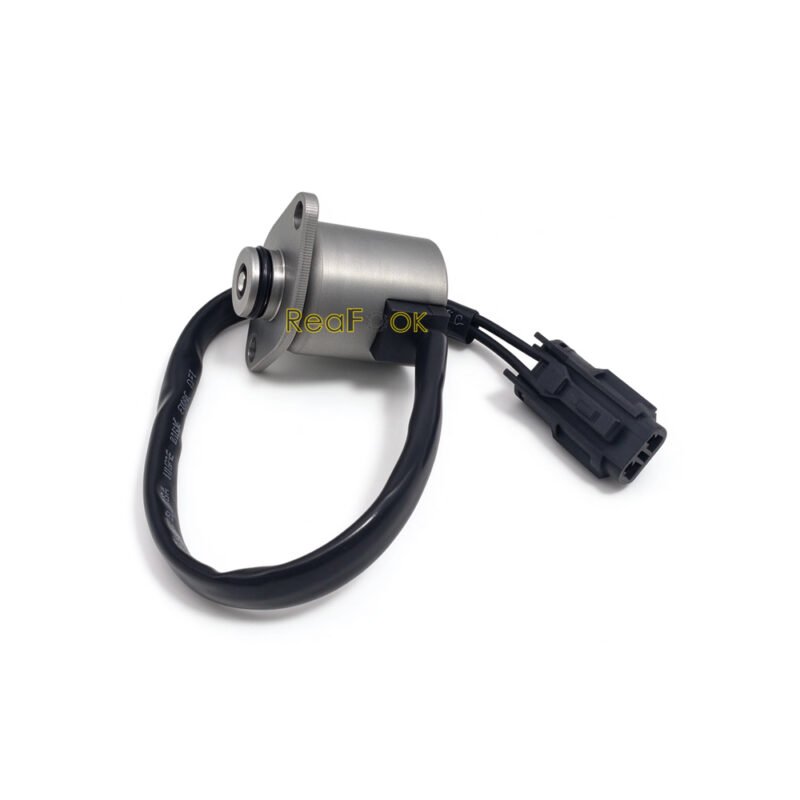

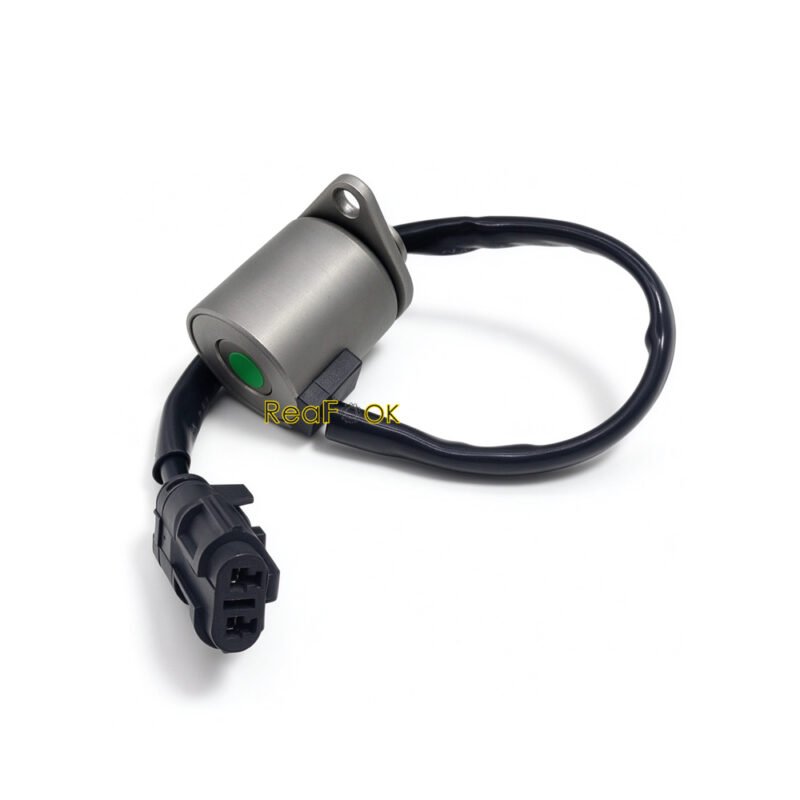

Main Hydraulic Pump Solenoid Valve 172460-73900 Fit Excavator Yanmar ViO35-5 ViO35-6A ViO50-6A ViO55-5B
US$89.00
Solenoid Valve 172460-73900;
Voltage: 12V DC;
It is used for Hydraulic Pump Electronic System;
Free Shipping and High Quality Standards!!
Product Name: Solenoid Valve, Hydraulic Pump
Reference Part Number: 172460-73900
Compatible Machine: Fit Excavator Yanmar ViO35-5 ViO35-6A ViO50-6A ViO 55-5B…
Description:
The Proportional Solenoid is a type of electromagnetic device that can control the flow or pressure of a fluid in a piston pump. It is commonly used in hydraulic systems to achieve precise and variable control over the pump’s operation. The Assembly consists of parts like Seal-O-Ring-Stor, Solenoid Coil, and Solenoid Ring.
| No. | Lev. | Parts No. | Description | (A) | (B) | (C) | (D) | (E) | (F) | Qty |
|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1 | 172A46-73100 | PUMP ASSY | 1 | 1 | 1 | 1 | 1 | 1 | |
| 2 | 2 | 172148-70301 | PLUG | 1 | 1 | 1 | 1 | 1 | 1 | |
| 3 | 2 | 172122-70350 | BALL, STEEL | 1 | 1 | 1 | 1 | 1 | 1 | |
| 4 | 2 | 172460-73117 | SEAL SET | 1 | 1 | 1 | 1 | 1 | 1 | |
| 5 | 3 | 172460-73110 | GASKET | 1 | 1 | 1 | 1 | 1 | 1 | |
| 6 | 3 | 172460-73190 | SEAL, OIL | 1 | 1 | 1 | 1 | 1 | 1 | |
| 7 | 3 | 172460-73400 | O-RING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 8 | 3 | 172461-73110 | SPRING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 9 | 2 | 172A46-73110 | SPRING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 10 | 2 | 172460-73121 | BLOCK KIT, CYLINDER | 1 | 1 | 1 | 1 | 1 | 1 | |
| 11 | 2 | 172A46-73120 | PLATE, SWASH | 1 | 1 | 1 | 1 | 1 | 1 | |
| 12 | 3 | 172312-74790 | ORIFICE | 1 | 1 | 1 | 1 | 1 | 1 | |
| 13 | 2 | 172460-73150 | RETAINER KIT | 1 | 1 | 1 | 1 | 1 | 1 | |
| 14 | 2 | 172460-73150 | SHAFT | 1 | 1 | 1 | 1 | 1 | 1 | |
| 15 | 2 | 172460-73160 | WASHER, THRUST | 1 | 1 | 1 | 1 | 1 | 1 | |
| 16 | 2 | 172460-73180 | RING, SNAP | 1 | 1 | 1 | 1 | 1 | 1 | |
| 17 | 2 | 172460-73200 | BEARING, NEEDLE | 1 | 1 | 1 | 1 | 1 | 1 | |
| 18 | 2 | 172460-73210 | BUSH | 2 | 2 | 2 | 2 | 2 | 2 | |
| 19 | 2 | 172460-73231 | PLATE, VALVE | 1 | 1 | 1 | 1 | 1 | 1 | |
| 20 | 2 | 172460-73240 | HOLDER | 1 | 1 | 1 | 1 | 1 | 1 | |
| 21 | 2 | 172460-73270 | SEAT, SPRING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 22 | 2 | 172460-73280 | SEAT, SPRING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 23 | 2 | 172176-73290 | SEAT, SPRING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 24 | 2 | 172460-73290 | PIN | 1 | 1 | 1 | 1 | 1 | 1 | |
| 25 | 2 | 172460-73330 | BEARING, NEEDLE | 1 | 1 | 1 | 1 | 1 | 1 | |
| 26 | 2 | 172460-73340 | STOPPER | 1 | 1 | 1 | 1 | 1 | 1 | |
| 27 | 2 | 172460-73350 | SPRING, DISK | 3 | 3 | 3 | 3 | 3 | 3 | |
| 28 | 2 | 172460-73360 | WASHER | 1 | 1 | 1 | 1 | 1 | 1 | |
| 29 | 2 | 172460-73370 | PLUG | 1 | 1 | 1 | 1 | 1 | 1 | |
| 30 | 2 | 172460-73380 | BUSH | 1 | 1 | 1 | 1 | 1 | 1 | |
| 31 | 2 | 172460-73390 | PLATE | 1 | 1 | 1 | 1 | 1 | 1 | |
| 32 | 2 | 172460-73410 | PUMP, GEAR | 1 | 1 | 1 | 1 | 1 | 1 | |
| 32-1 | 2 | 172A46-73200 | REPAIR KIT,GEAR PUMP | N | ||||||
| (A=FROM 1ST) (B=FROM 1ST) | ||||||||||
| 33 | 2 | 172460-73420 | PIN | 1 | 1 | 1 | 1 | 1 | 1 | |
| 34 | 2 | 172960-73400 | VALVE | 1 | 1 | 1 | 1 | 1 | 1 | |
| 35 | 2 | 172460-73900 | VALVE, SOLENOID | 1 | 1 | 1 | 1 | 1 | 1 | |
| 36 | 3 | 172460-73910 | VALVE, SOLENOID | 2 | 2 | 2 | 2 | 2 | 2 | |
| 37 | 3 | 172460-73920 | VALVE, SOLENOID | 1 | 1 | 1 | 1 | 1 | 1 | |
| 38 | 3 | 24352-190110 | O-RING, 219011 | 3 | 3 | 3 | 3 | 3 | 3 | |
| 39 | 2 | 172122-73480 | PIN | 1 | 1 | 1 | 1 | 1 | 1 | |
| 40 | 2 | 172122-73480 | PIN | 2 | 2 | 2 | 2 | 2 | 2 | |
| 41 | 2 | 172452-73480 | PLUG | 6 | 6 | 6 | 6 | 6 | 6 | |
| 42 | 2 | 172176-73560 | SPRING | 1 | 1 | 1 | 1 | 1 | 1 | |
| 43 | 2 | 172176-73580 | SHIM | 2 | 2 | 2 | 2 | 2 | 2 | |
| 44 | 2 | 172176-73600 | PLUG | 1 | 1 | 1 | 1 | 1 | 1 | |
| 45 | 2 | 172176-73690 | BREEDER, AIR | 1 | 1 | 1 | 1 | 1 | 1 | |
| 46 | 2 | 172176-73800 | PUMP ASSY, TROCHOID | 1 | 1 | 1 | 1 | 1 | 1 | |
| 47 | 2 | 172176-73910 | WASHER, THRUST | 1 | 1 | 1 | 1 | 1 | 1 | |
| 48 | 2 | 172176-73930 | PIN | 2 | 2 | 2 | 2 | 2 | 2 | |
| 49 | 2 | 172176-73940 | POPPET | 1 | 1 | 1 | 1 | 1 | 1 |
| Weight | 0.5 kg |
|---|
