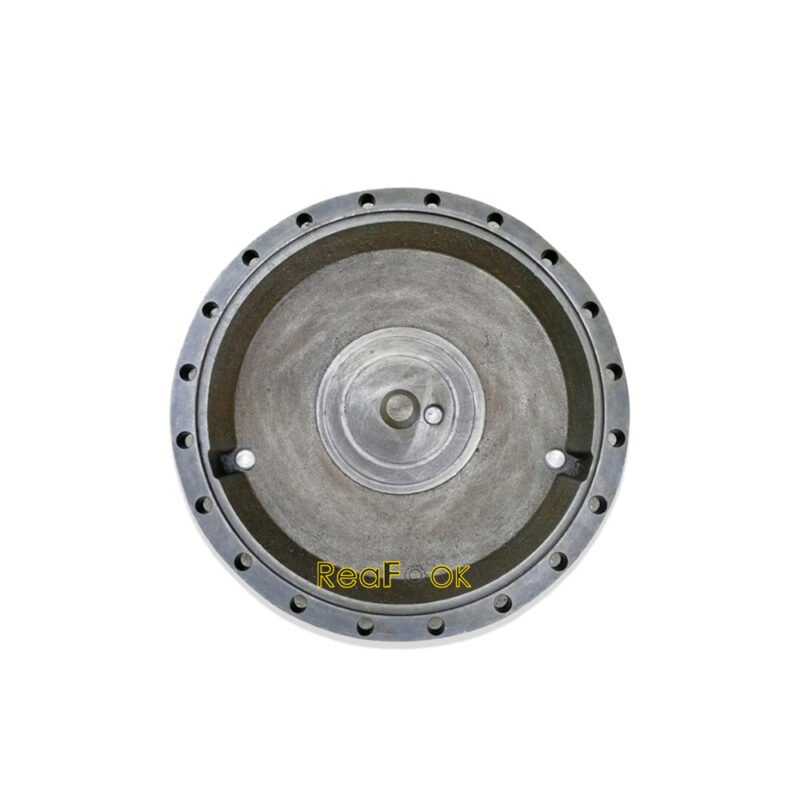

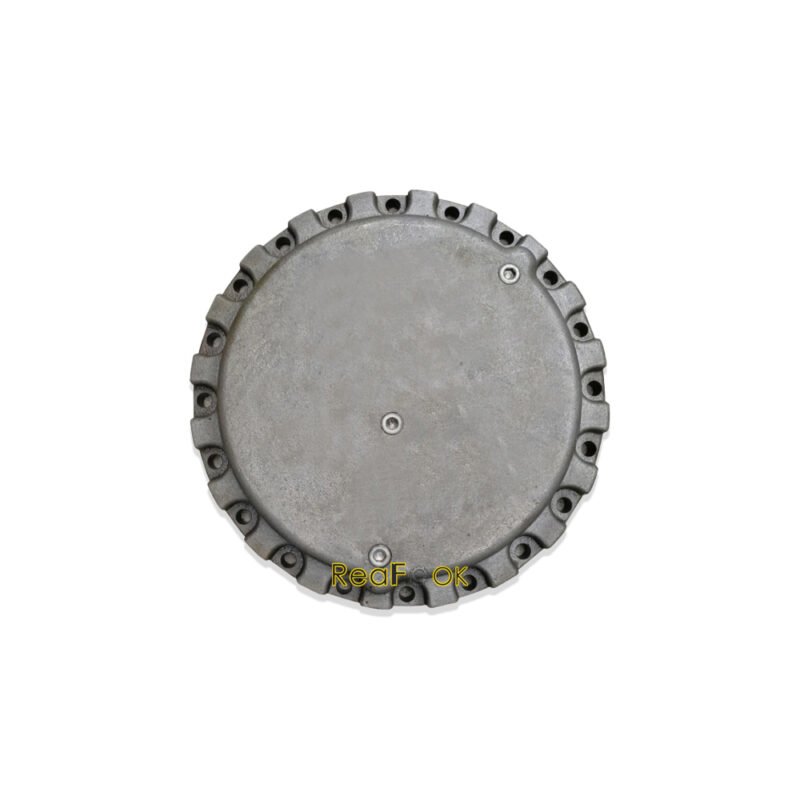

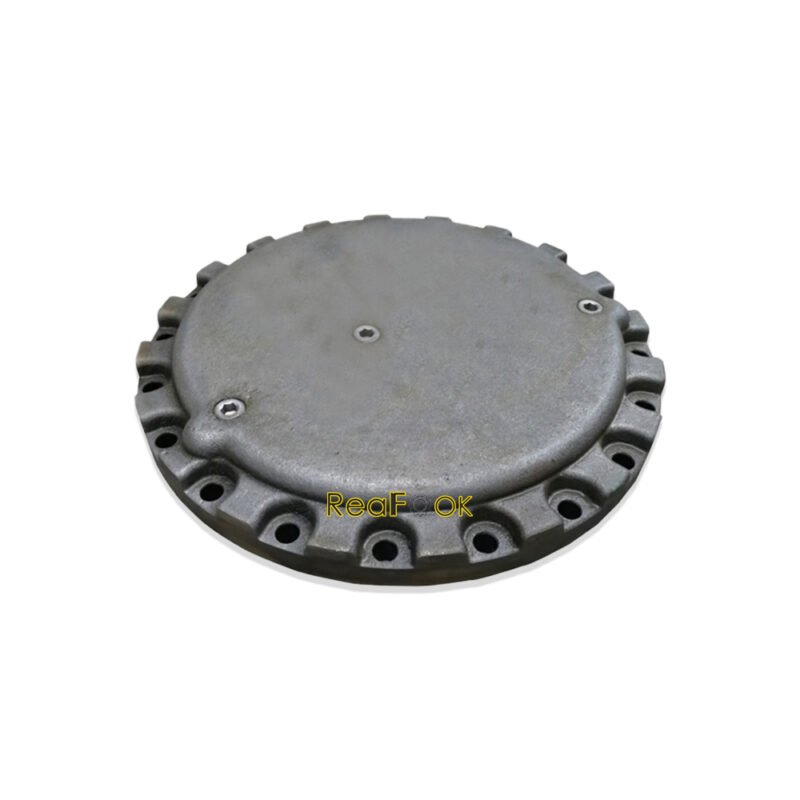

Final Drive Travel Reducer Cover XKAH-01034 XKAH-01674 Fit Excavator Hyundai R210LC-7 R210LC-7A R210LC-7H RC215C-7 RC215C-7H

Product Name: Cover Assy
Reference Part Number: XKAH-01034, XKAH-01674
Compatible Machine: Excavator Hyundai R210LC-7 R210LC-7A R210LC-7H RC215C-7 RC215C-7H…

Description:
The travel reduction covers prevent the intrusion of dirt, debris and other contaminants into the final drive with a large diameter cutout to avoid contact with other components.

Pos. Part No Qty Parts name Comments
*-4. XKAH-00901 [1] REDUCTION GEAR ASSY
*-4. XKAH-01627 [1] REDUCTION GEAR ASSY
*-41. XKAH-00902 [1] HUB ASSY
*-41. XKAH-01670 [1] HUB ASSY
N1. XKAH-00451 [1] HUB
N1. XKAH-01671 [1] HUB
4. XKAH-00904 [1] RING GEAR(A)
4. XKAH-01672 [1] RING GEAR(A)
27. XKAH-00431 [10] PIN-PARALLEL
*-42. XKAH-00905 [1] SPINDLE ASSY
N2. XKAH-01033 [1] SPINDLE
8. XKAH-00907 [1] COUPLING GEAR
35. XKAH-00428 [10] BOLT-SOCKET
17. XKAH-00437 [10] PIN
*-43. XKAH-00908 [1] CARRIER ASSY
3. XKAH-00909 [1] CARRIER
6. XKAH-00910 [3] CLUSTER GEAR
6. XKAH-01673 [3] CLUSTER GEAR
9. XKAH-00911 [3] SHAFT
14. XKAH-00912 [6] COLLAR-THRUST
25. XKAH-00913 [6] BEARING-NEEDLE
5. XKAH-00914 [1] RING GEAR(B)
7. XKAH-00445 [1] GEAR-SUN
12. XKAH-00442 [1] PIECE-DISTENCE
13. XKAH-01034 [1] COVER
13. XKAH-01674 [1] COVER
15. XKAH-00439 [1] RING
19. XKAH-00022 [1] COUPLING
20. XKAH-00436 [2] PLATE-THRUST
23. XKAH-00435 [1] SEAL-RING
24. XKAH-00434 [2] BEARING-BALL
26. XKAH-00916 [2] SEAL-FLOATING
26. XKAH-01675 [2] SEAL-FLOATING
29. XKAH-00028 [1] O-RING
30. XKAH-00338 [3] PLUG-PT
30. XKAH-00032 [3] PLUG-PF
32. XKAH-00430 [20] BOLT-HEX
32. XKAH-01676 [20] SOKET BOLT
33. XKAH-00336 [20] WASHER-SPRING
34. XKAH-00429 [3] PIN-PARALLEL
36. XKAH-00033 [1] BALL-STEEL
38. XKAH-00035 [3] O-RING
39. XKAH-00194 [2] O-RING
40. XKAH-00427 [1] O-RING
K. XKAH-01054 [1] SEAL KIT SEE ILLUST
