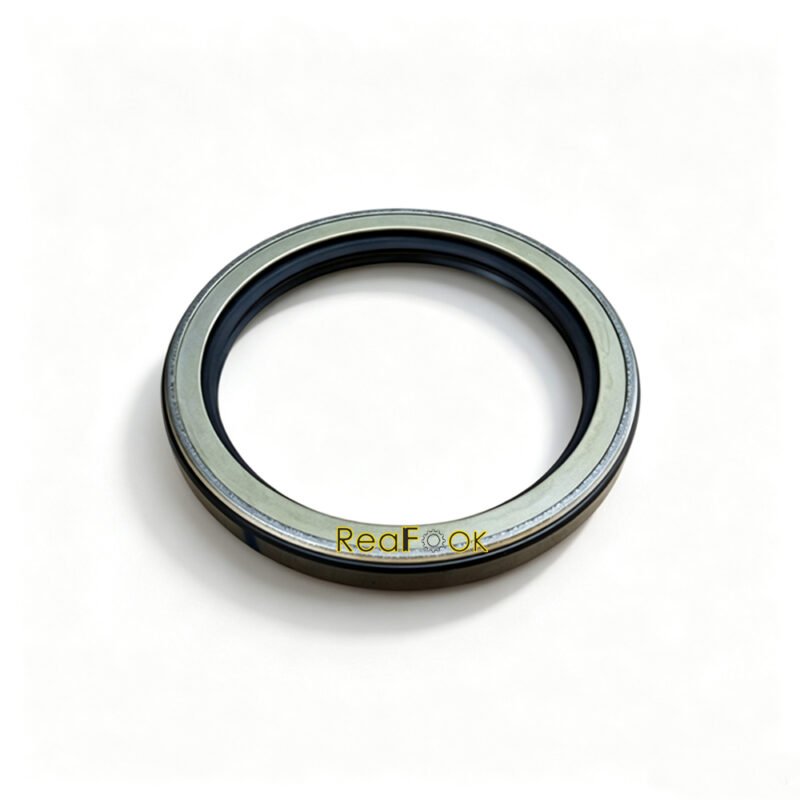

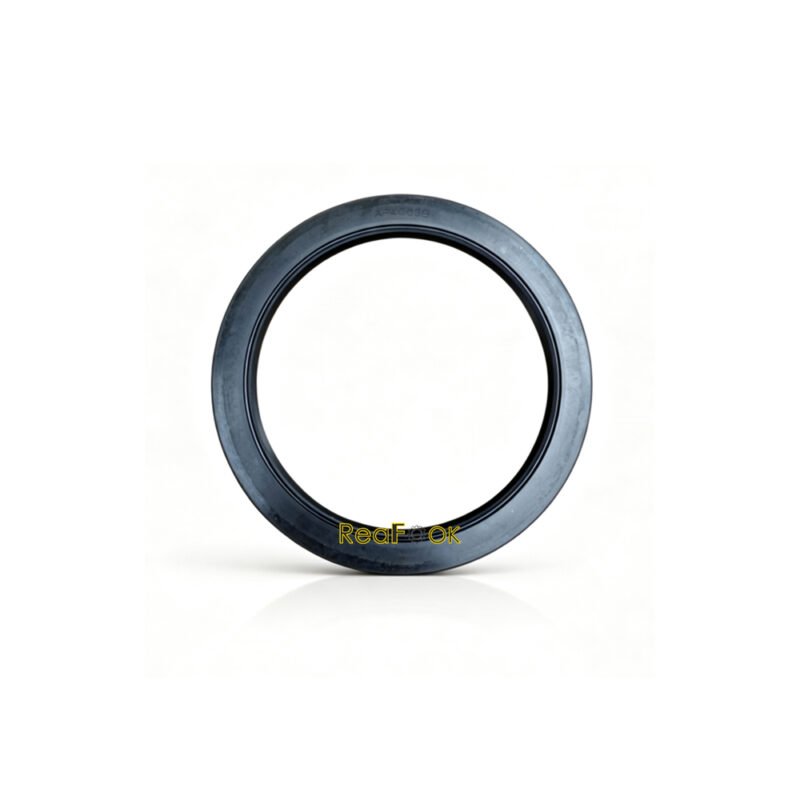

Swing Reduction Oil Seal XKAQ-0032 Fit Excavator Hyundai R210LC-7 R215LC-7 R210D-7 R210LC-9 R235LC-9A R210W-9
US$90.00
AP4063B Oil Seal XKAQ-00033 XKAQ-00138;
ID 100mm, OD 125mm, Thickness 13mm;
It is used for Swing Motor Reduction System;
Free Shipping and High Quality Standards!!
All dimensions are manually measured; minor errors are inevitable.
Product Name: Oil Seal
Reference Part Number: XKAQ-0032
Compatible Machine: Excavator Hyundai:
7 Series Wheel Excavator: R170W-7 R200W-7 R200W-7A;
7 Series Crawler Excavator: R160LC-7 R180LC-7 R210LC-7 R210LC-7H R210NLC-7 R215LC-7 R450LC-7 R450LC-7A R500LC-7 R215C-7 RD210-7 RD210-7V RD220-7 RD510LC-7;
9 Series Excavator R160LC-9 R160LC-9A R160LC-9S R180LC-9 R180LC-9A R210LC-9 R220LC-9A R220NLC-9A R235LCR-9 R235LCR-9A R480C-9MH R480LC-9 R480LC-9A R520LC-9 RD220LC-9 R160W-9A R170W-9 R180W-9A R210W-9…
Pos. Part No Qty Parts name Comments
*. @ [1] SWING MOTOR ASSY
*-2. 31N6-10180 [1] SWING REDUCTION GEAR
*-2. 31N6-10181 [1] SWING REDUCTION GEAR
1. XKAQ-00771 [1] CASING
1. XKAQ-00962 [1] CASING
2. XKAQ-00331 [1] SHAFT-DRIVE
2. XKAQ-00780 [1] SHAFT-DRIVE
3. XKAQ-00018 [1] SPACER
5. XKAQ-00026 [1] BEARING -ROLLER
6. XKAQ-00032 [1] SEAL-OIL
7. XKAQ-00029 [1] BEARING -ROLLER
7. XKAQ-00647 [1] BEARING -ROLLER
7. XKAQ-00961 [1] BEARING -ROLLER
8. XKAQ-00076 [1] PLATE -THRUST
9. XKAQ-00075 [1] CARRIER 2
10. XKAQ-00074 [1] RING-STOP
11. XKAQ-00284 [1] GEAR-RING
11. XKAQ-00779 [1] GEAR-RING
12. XKAQ-00072 [4] PIN-KNOCK
13. XKAQ-00976 [1] GEAR-PINION
14. XKAQ-00071 [6] WASHER -THRUST
15. XKAQ-00023 [3] GEAR-PLANET 2
16. XKAQ-00070 [3] PIN INCL 23
17. XKAQ-00048 [6] PIN-SPRING
18. XKAQ-00011 [1] GEAR-SUN 2
19. XKAQ-00015 [1] CARRIER 1
20. XKAQ-00057 [3] PLATE-SIDE 1
21. XKAQ-00019 [3] PIN 1
22. XKAQ-00030 [3] CAGE-NEEDLE
N23. @ [3] BUSHING 2
24. XKAQ-00025 [3] GEAR-PLANET 1
25. XKAQ-00292 [1] WASHER -LOCK
26. XKAQ-00068 [1] PLATE-SIDE 3
27. XKAQ-00010 [1] GEAR-SUN 1
29. XKAQ-00049 [1] PLUG
30. XKAQ-00066 [2] PLUG
31. XKAQ-00065 [12] BOLT-SOCKET
34. XKAQ-00031 [1] PLATE-COVER
35. XKAQ-00064 [8] BOLT-HEX
36. XKAQ-00043 [1] PLATE-LOCK
37. XKAQ-00042 [2] BOLT-HEX
38. XKAQ-00041 [3] RING-STOP
39. XKAQ-00040 [3] PLATE-SIDE 2
*-1. @ [1] SWING MOTOR UNIT
| Weight | 0.6 kg |
|---|
