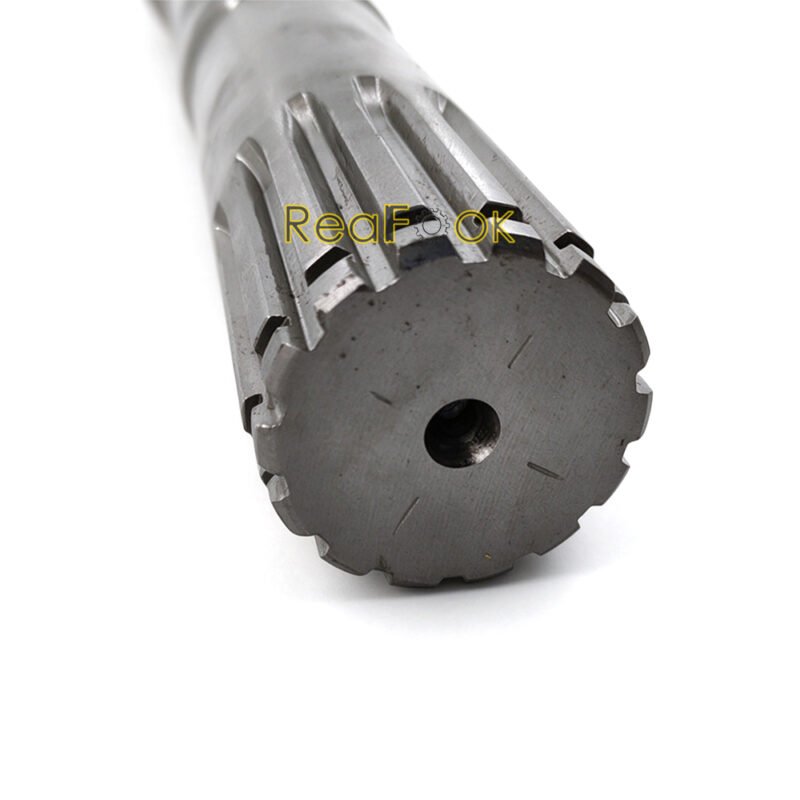

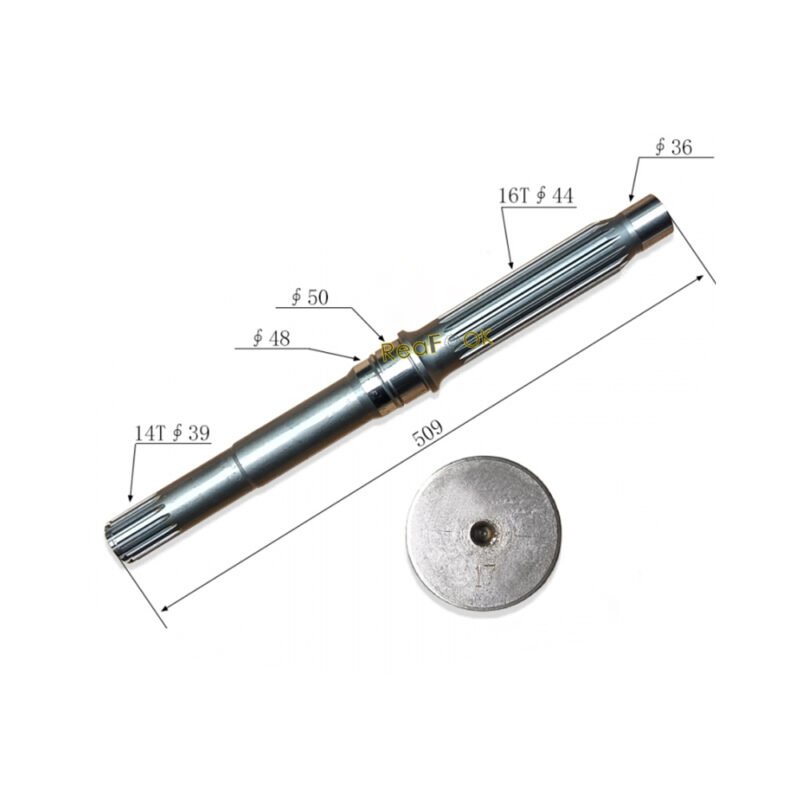

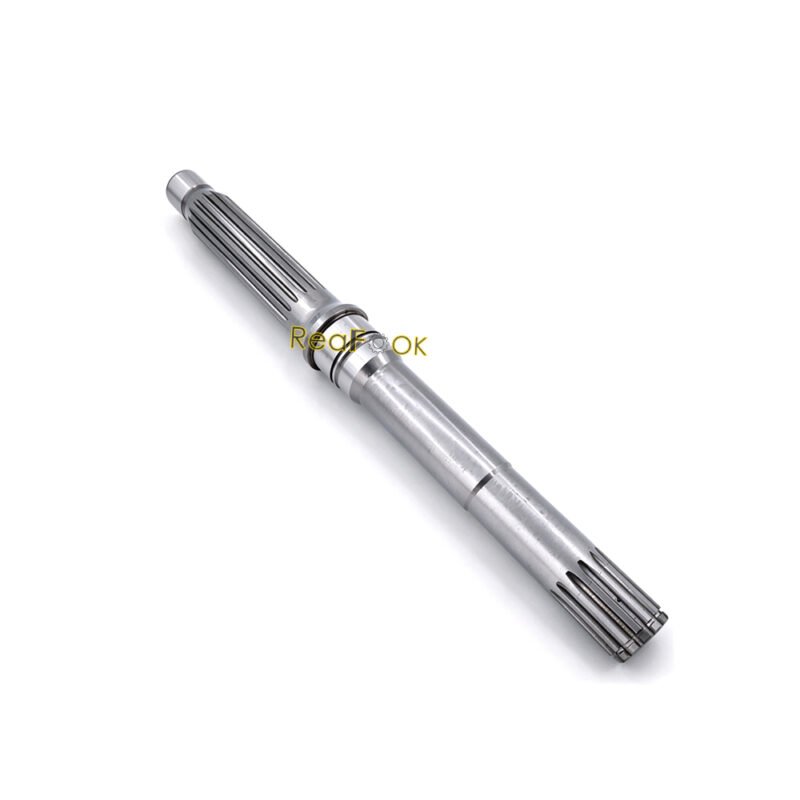

Final Drive Travel Motor Shaft VOE 14565331 Fit Excavator Volvo EC240C EC290B EC290C EC300D EC300E EC330B EC330C EC340D EC350D EC350E EC360C EC360CHR EC380D EC380DHR EC380E EC305C

Product Name: Travel Motor Shaft, Drive Shaft
Reference Part Number: VOE 14565331
Compatible Machine: Fit Excavator Volvo EC240C, EC290B, EC290C, EC300D, EC300E, EC330B, EC330C, EC340D, EC350D, EC350E, EC360B, EC360C, EC360CHR, EC380D, EC380DHR, EC380E, EC380EHR, ECR305C…

Description:
The Travel Motor Drive Shaft connects directly to the output shaft of the hydraulic motor, which is driven by the hydraulic fluid under pressure. As the motor rotates, it transfers torque to the drive shaft, which in turn transfers this torque to the wheels. This rotational motion is converted into linear motion, allowing the machine to move forward and backward.

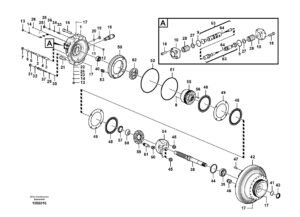

Pos. Part No Qty Parts name Comments
VOE 14606699 1 Travel motor Moteur de translation Fahrmotor Körmotor
1 1 NS •Casing •Boitier •Gehäuse •Cubierta •Kåpa
2 VOE 14565337 1 •Rod •Monture •Fühler •Varilla •Spröt
3 VOE 14565336 1 •Pin •Goupille •Stift •Pasador •Pinne
4 VOE 983507 1 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
5 VOE 983501 1 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
6 VOE 14528296 1 •Screw •Vis •Schraube •Tornillo •Skruv
7 VOE 979021 1 •Hexagon nut •Écrou hexagonal •Sechskantmutter •Tuerca hexagonal •Sexkantsmutter
8 VOE 14551525 1 •Pin •Fiche •Stift •Clavija •Stift
9 VOE 990585 2 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
10 SA 7242-10540 2 •Cover •Capot •Abdeckung •Capó •Kåpa
11 SA 7242-10750 1 •Screw •Vis •Schraube •Tornillo •Skruv
12 VOE 983497 1 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
13 SA 9415-31021 7 •Plug •Bouchon •Stopfen •Tapon •Plugg
14 VOE 993320 7 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
15 VOE 14568912 (VOE 932039) 2 •Relief valve •Valve décharge •Entlastungsventil •Válvula de descarga •Avlastningsventil
16 SA 9016-22019 2 •Hex. socket screw •Vis à six pans creux •Innensechskantschrau be •Tornillo de hexágono embutido •Insexskruv
17 VOE 14560637 9 •Plug •Tampon •Stopfen •Tapón •Plugg
18 SA 9016-11209 8 •Hex. socket screw •Vis à six pans creux •Innensechskantschrau be •Tornillo de hexágono embutido •Insexskruv
19 2 NS •Plug •Bouchon •Stopfen •Tapon •Plugg
20 VOE 993322 (VOE 932041) 2 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
21 VOE 984229 4 •Hex. socket screw •Vis à six pans creux •Innensechskantschrau be •Tornillo de hexágono embutido •Insexskruv
22 SA 7242-10710 2 •Clamping plate •Plaque serrage •Klemmplatte •Placa de apriete •Klämplatta
23 SA 7242-10720 2 •Guard •Protection •Schutz •Proteccion •Skydd
24 VOE 14880998 2 •Ball •Bille •Kugel •Bola •Kula
25 VOE 14880006 1 OP •Name plate •Plaque d’identification •Namensschild •Letrero •Namnskylt
26 SA 1010-11360 2 •Screw •Vis •Schraube •Tornillo •Skruv
27 SA 7242-10520 2 •Washer •Rondelle •Scheibe •Arandela •Bricka
28 SA 7242-10530 2 •Spring •Ressort •Feder •Muelle •Fjäder
29 SA 7242-11560 1 •Spring •Ressort •Feder •Muelle •Fjäder
30 VOE 14507000 1 •Spacer •Entretoise •Abstandkörper •Distanciador •Distans
31 SA 7242-11290 1 •Plug •Bouchon •Stopfen •Tapon •Plugg
32 VOE 983509 1 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
33 VOE 14509997 1 •Spool •Bobine •Schieber •Bobina •Slid
34 VOE 14506994 1 •Spring •Ressort •Feder •Muelle •Fjäder
35 VOE 14506995 1 •Plug •Bouchon •Stopfen •Tapon •Plugg
36 VOE 983505 1 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
37 VOE 14579610 1 •Control plunger •Piston de contrôle •Stößel •Pasador de accionamiento •Manöverpinne
38 VOE 14565331 1 •Shaft •Arbre •Welle •Eje •Axel
39 VOE 14640025 1 •Roller bearing •Roulement à rouleaux •Rollenlager •Cojínete rodillo •Rullager
40 VOE 14506955 1 •Bearing •Palier •Lager •Cojinete •Lager
41 VOE 914472 1 •Snap ring •Circlip •Nutring •Circlip •Spårring
42 1 NS •Casing •Boitier •Gehäuse •Cubierta •Kåpa
43 SA 7242-10590 1 •Seal •Étanchéité •dichtung •Junta •Tätning
44 SA 8320-01810 1 •Retaining ring •Bague retenue •Haltering •Anillo retén •Hållarring
45 VOE 14506958 2 •Pivot •Pivot •Drehzapfen •Pivote •Pivot
46 VOE 14506959 1 •Piston •Piston •Kolben •Piston •Kolv
47 VOE 14551526 5 •Pin •Goupille •Zapfen •Pasador •Tapp
48 VOE 14506982 3 •Plate •Tôle •Blech •Chapa •Plåt
49 VOE 14506984 2 •Plate •Tôle •Blech •Chapa •Plåt
50 VOE 14565332 1 •Piston •Piston •Kolben •Pistón •Kolv
51 VOE 960262 1 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
52 VOE 990849 2 •O-ring •Joint torique •O-Ring •Anillo tórico •O-ring
53 VOE 14568004 10 •Spring •Ressort •Feder •Resorte •Fjäder
54 VOE 14604842 1 •Plate •Tôle •Blech •Chapa •Plåt
55 1 NS •Cylinder Block •Bloc-cylindres •Zylinderblock •Bloque Cilindro •Cylinderblock
56 VOE 14506967 9 •Spring •Ressort •Feder •Muelle •Fjäder
57 VOE 14506968 1 •Spacer •Entretoise •Abstandstueck •Casquillo distanciad •Distans
58 VOE 14506970 1 •Guide •Rail •Führung •Guia •Gejd
59 VOE 14506972 1 •Plate •Plaque •Platte •Placa •Platta
60 9 NS •Pad •Patin •Belag •Pastilla •Pad
61 VOE 14551797 9 •Piston •Piston •Kolben •Pistón •Kolv
62 VOE 14506978 1 •Plate •Tôle •Blech •Chapa •Plåt
63 VOE 14506950 1 •Spool •Bobine •Schieber •Bobina •Slid
64 VOE 14880996 2 ••Ball ••Bille ••Kugel ••Bola ••Kula
100 VOE 14596398 1 Seal Étanchéité dichtung Junta Tätnin
