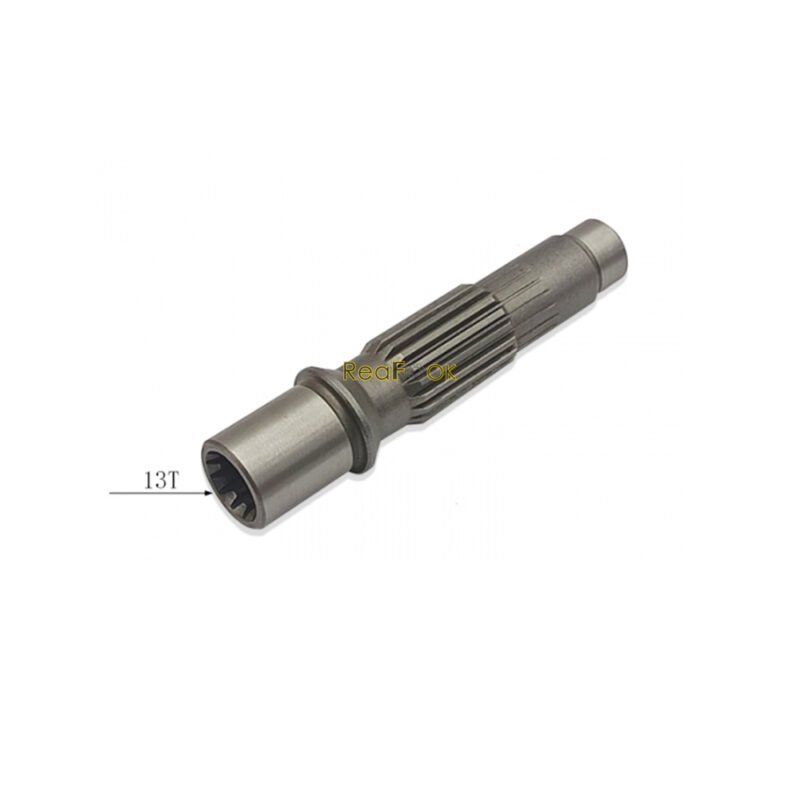

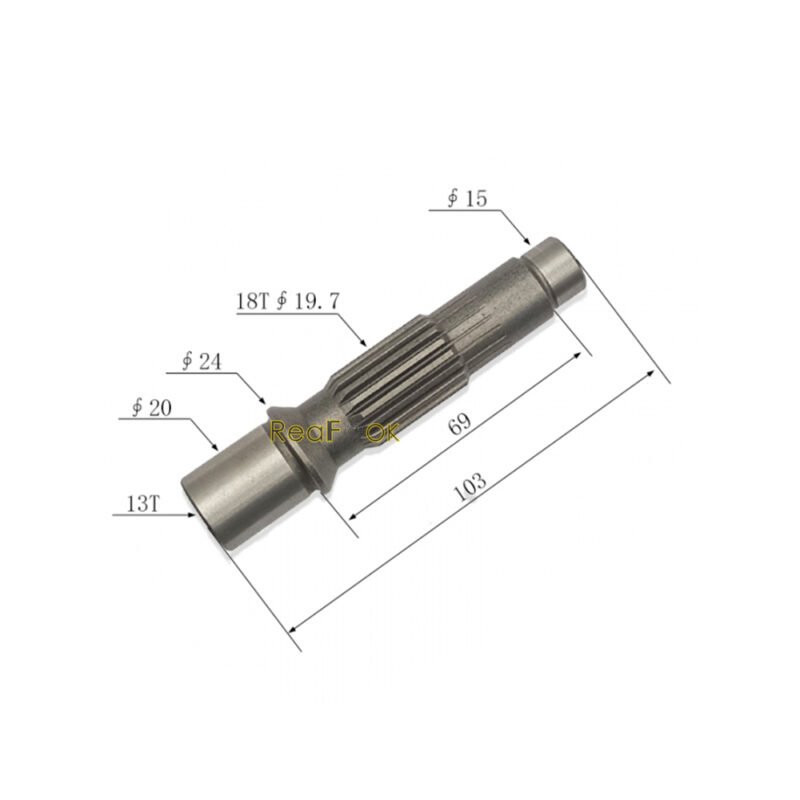

Final Drive Travel Motor Shaft RC411-73612 Fit Excavator Kubota U35S U35-3 U35-3S KX71-3 KX91-3 KX91-3S

Product Name: Travel Motor Shaft
Reference Part Number: RC411-73612
Fits and Compatible Machines: Excavator Kubota U35S U35-3 U35-3S KX71-3 KX91-3 KX91-3S…

Description:
The Travel Motor Drive Shaft connects directly to the output shaft of the hydraulic motor, which is driven by the hydraulic fluid under pressure. As the motor rotates, it transfers torque to the drive shaft, which in turn transfers this torque to the wheels. This rotational motion is converted into linear motion, allowing the machine to move forward and backward.

Pos. Part No Qty Parts name Comments
010. RC417-14430 [2] SPROCKET,DRIVE
020. 01128-61230 [18] BOLT
030. RC441-61600 [2] ASSY MOTOR WHEEL
040. 66363-39560 [2] SEAL,OIL
050. RC411-73620 [2] BEARING,BALL
060. RC411-73612 [2] SHAFT
070. RC348-73820 [2] SPRING,PISTON B
080. RC441-73640 [2] SWASH PLATE
090. 07715-03221 [4] BALL
100. RC348-73780 [2] WASHER,SPRING
110. RC348-73760 [2] SPRING
120. RC411-73770 [2] WASHER,SPRING
130. 04611-00280 [2] CIRCLIP,INTERNAL
140. RC411-73710 [6] PIN
150. 32721-35180 [2] PLATE,RETAINER
160. RC348-73720 [2] HOLDER,RETAINER
170. 04811-51250 [2] O – RING
175. RC441-73900 [2] ASSY GEAR CASE
180. RC411-13630 [2] PLUG
190. RC101-13320 [2] SEAL
200. RC411-13330 [2] BEARING
210. 68311-13340 [2] NUT,RING
220. RC411-13350 [4] PLUG
225. RC348-13360 [2] CASE,GEAR
230. 07715-03205 [264] BALL 5/32
240. 15521-96020 [2] PLUG
250. RC411-13440 [6] PLATE,THRUST B
260. RC348-13420 [6] COLLAR
270. 3A152-31190 [6] BEARING,NEEDLE
280. RC348-13390 [6] GEAR
290. RC348-13430 [2] PLATE,THRUST B
300. 31351-21930 [6] CIRCLIP,EXTERNAL
310. RC348-13460 [2] GEAR
320. 04612-00350 [2] CIRCLIP,EXTERNAL
330. RC441-13480 [2] HOLDER
340. RC411-13520 [6] COLLAR
350. RC411-13510 [6] BEARING,NEEDLE
360. RC411-13490 [6] GEAR
380. RC441-13540 [2] GEAR DRIVE
390. RC348-13550 [2] PLATE 1.80mm
390. RC348-13560 [2] PLATE 2.30mm
390. RC348-13570 [2] PLATE 2.90mm
400. RC348-13580 [2] COVER
410. 68311-13590 [2] O RING
420. RC411-72630 [6] PLUG
430. 04817-00140 [6] O RING
460. 05411-00414 [8] PIN,SPRING
470. RC411-72660 [2] PLUG
480. 04817-00110 [2] O RING
490. 01128-61230 [18] BOLT
490. 01128-51230 [18] BOLT
500. RC348-73940 [2] ASSY BLOCK,CYLINDER
510. RC348-73910 [2] ASSY HOLDER,FLANGE
