Name: Final Drive 4PCS Needle Bearing with Inner Race 172450-73360 172450-73370 Fit Excavator Yanmar Vio35-2 ViO35-3 ViO35-5 ViO35-6A
SKU: 172450-73360
Price: 135.00 USD
Availability: InStock

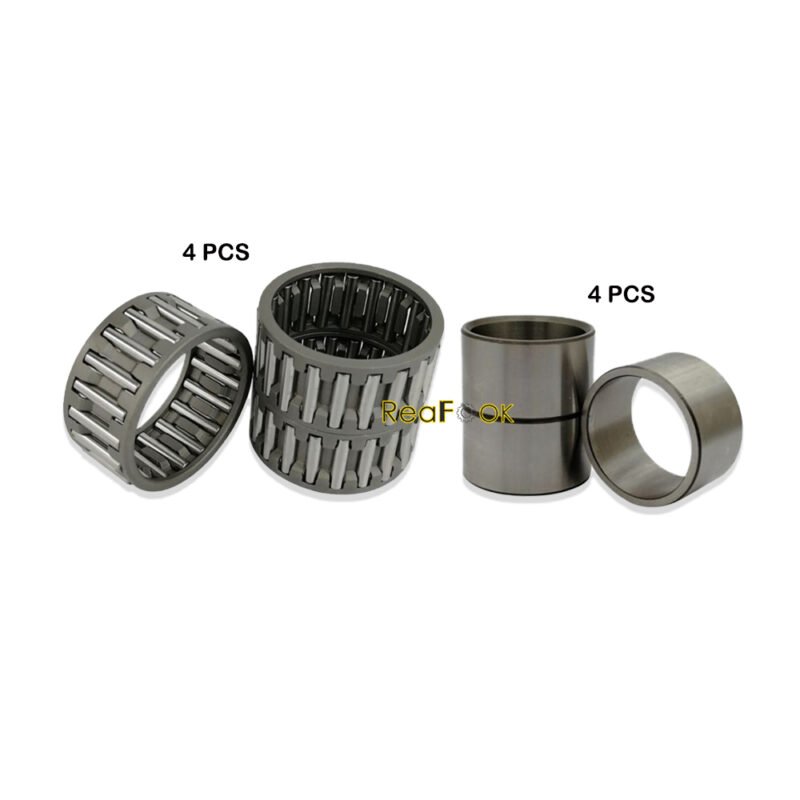

Final Drive Needle Bearing with Inner Race 172450-73360 172450-73370 Fit Excavator Yanmar Vio35-2 ViO35-3 ViO35-5 ViO35-6A

US$135.00

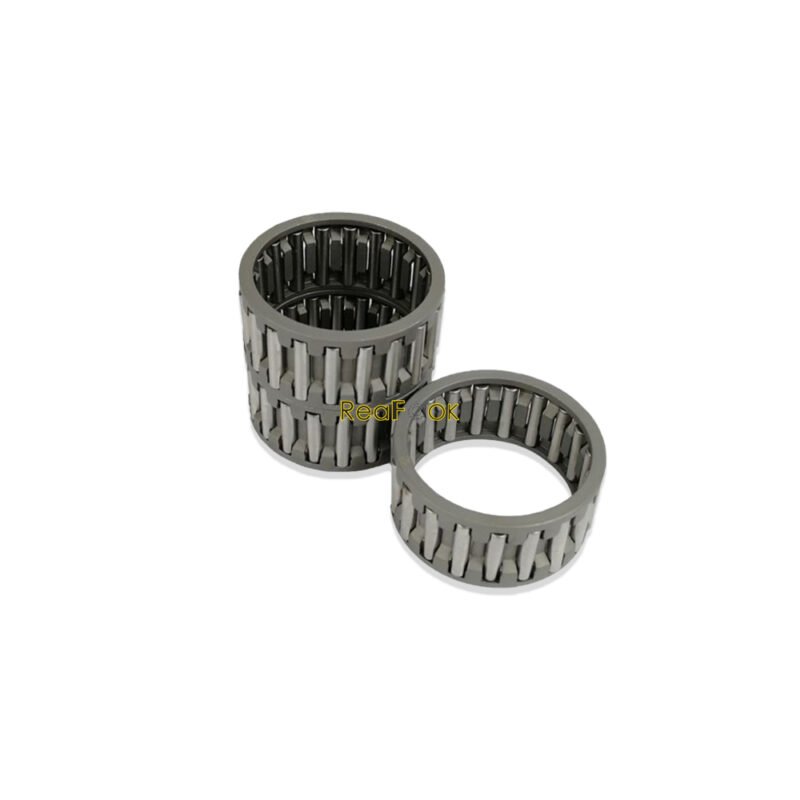

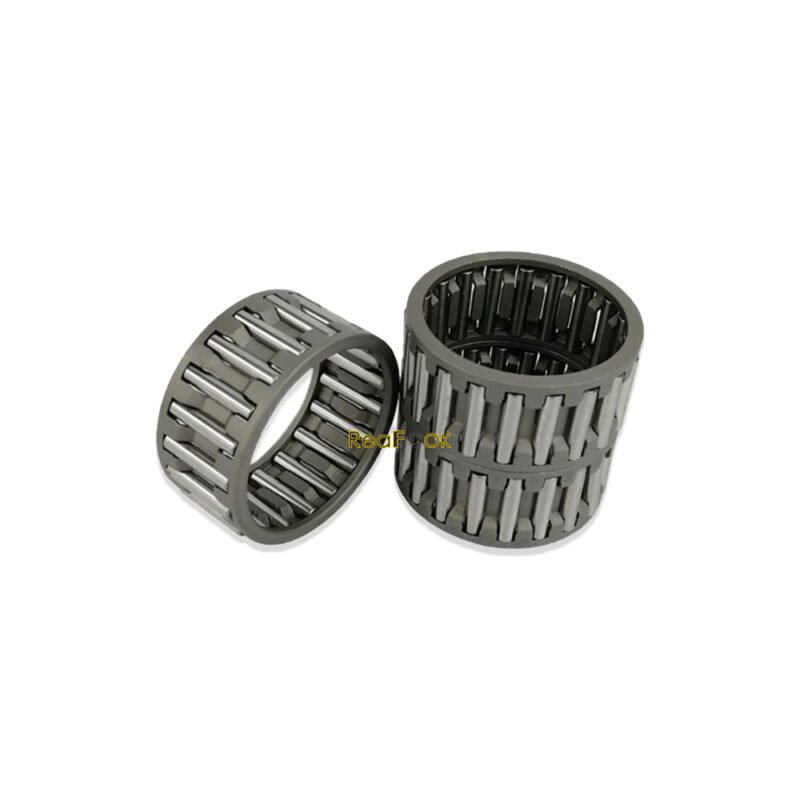

Needle Bearing 172450-73360: ID 35mm, OD 42mm, H 20mm;

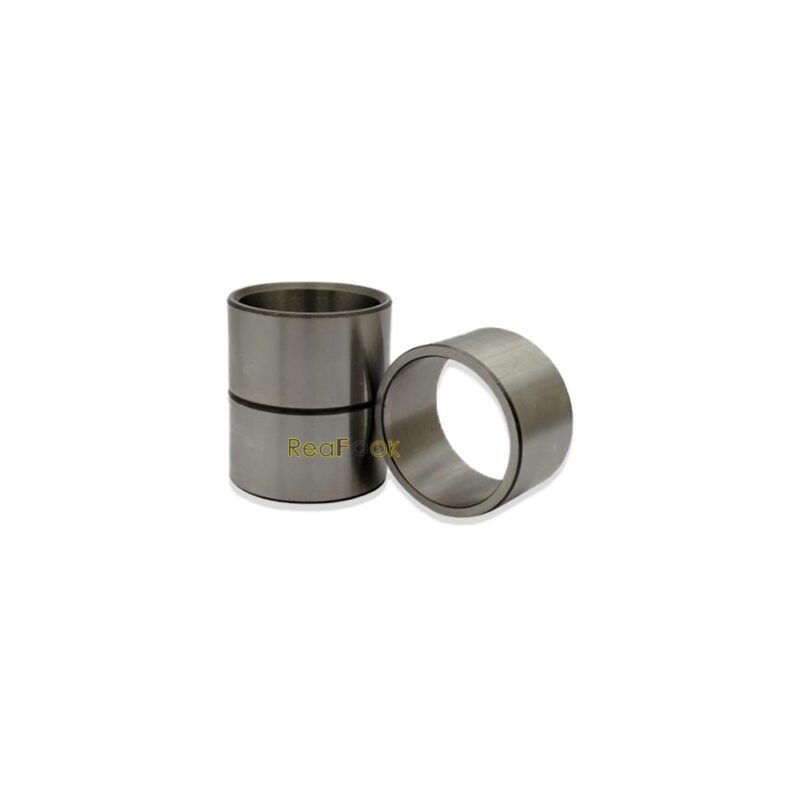

Inner Race 172450-73370: ID 30mm, OD 35mm, H20mm;
It is used for Final Drive Travel Reduction System;
Free Shipping and High Quality Standards!!

The unit price covers the needle bearings and inner race each 4 pieces.

All dimensions are manually measured; minor errors are inevitable.

Guaranteed Safe Checkout

Product Name: Needle Roller Bearing and Inner Race, 2nd Stage
Reference Part Number: 1172450-73360, 172450-73370
Compatible Machine: Fit Excavator Yanmar Vio35-2 ViO35-3 ViO35-5 ViO35-6A…

Description:
The radial needle roller and cage assemblies are self-contained, ready to mount bearings designed to be used where the housing bore and shaft can act as raceways. They are designed to carry large loads and function smoothly and dependably through high rotational speeds. The typical applications for radial needle roller and cage assemblies are planetary gears, constant-mesh gears, idler gears and connecting rods.

Vio35-2 ViO35-3 ViO35-5 ViO35-6A Final Drive Diagram

(A)=VIO35-3C (JP)
(B)=VIO35-3P (JP)
(C)=VIO35-3C (JP)
(D)=VIO35F-3P (JP)
(E)=VIO35-3C (EX)
(F)=VIO35F-3P (EX)

No.	Lev.	Parts No.	Description	A	B	C	D	E	F
1	1	172458-73700	MOTOR ASSY, TRAVEL	2	2	2	2	2	2
2	2	1A6240-37360	PLUG	4	4	4	4	4	4
3	2	172147-70220	PLUG	2	2	2	2	2	2
4	2	172148-70340	ORIFICE	8	8	8	8	8	8
5	2	172122-70410	PIN	4	4	4	4	4	4
6	2	172122-70460	SEAT, SPRING	4	4	4	4	4	4
7	2	172147-70500	PLUG	2	2	2	2	2	2
8	2	172122-70540	BOLT, SOCKET	12	12	12	12	12	12
9	2	172162-70780	PLUG	2	2	2	2	2	2
10	2	172168-71950	SPRING	4	4	4	4	4	4
11	2	172450-73320	GEAR, REDUCTION	4	4	4	4	4	4
12	3	172141-70020-Z	SEAL, FLOATING	2	2	2	2	2	2
13	3	172141-70030	BEARING, ANGULAR	2	2	2	2	2	2
14	3	172141-70040	NUT, RING	2	2	2	2	2	2
15	3	172141-70100	PLATE, THRUST	2	2	2	2	2	2
16	3	172141-70110	SCREW	8	8	8	8	8	8
17	3	172141-70230	WIRE	2	2	2	2	2	2
18	2	172148-70301	PLUG	4	4	4	4	4	4
19	3	172122-70350	BALL, STEEL	132	132	132	132	132	132
20	3	172122-70350	BALL, STEEL	132	132	132	132	132	132
21	3	172450-73330	PLUG	4	4	4	4	4	4
22	3	172450-73350	GEAR, PLANETARY	8	8	8	8	8	8
23	3	172450-73360	BEARING, NEEDLE	8	8	8	8	8	8
24	3	172450-73370	RACE, INNER	8	8	8	8	8	8
25	3	172450-73380	WASHER, THRUST	8	8	8	8	8	8
26	3	172450-73390	GEAR, SUN	2	2	2	2	2	2
27	3	172450-73400	HOLDER	2	2	2	2	2	2
28	3	172450-73410	GEAR, PLANETARY	6	6	6	6	6	6
29	3	172450-73420	BEARING, NEEDLE	6	6	6	6	6	6
30	3	172122-73430	PLUG	4	4	4	4	4	4
31	3	172450-73430	RACE, INNER	6	6	6	6	6	6
32	3	172450-73440	GEAR, DRIVE	2	2	2	2	2	2
33	3	172450-73450	PLATE, THRUST	2	2	2	2	2	2
34	3	172450-73460	PLATE, THRUST	2	2	2	2	2	2
35	3	172450-73470	PLATE, THRUST	2	2	2	2	2	2
36	3	172450-73480	COVER	2	2	2	2	2	2
37	3	22242-000350	RING, 35	2	2	2	2	2	2
38	3	24315-000110	O-RING, 1BP11.0	2	2	2	2	2	2
39	3	24325-001550	O-RING, 1BG155.0	4	4	4	4	4	4
40	2	172638-73330	PLATE, VALVE	2	2	2	2	2	2
41	2	172422-73360	SPRING	2	2	2	2	2	2
42	2	172122-73470	PIN	2	2	2	2	2	2
43	2	172452-73480	PLUG	4	4	4	4	4	4
44	2	172450-73490	SEAL, OIL	2	2	2	2	2	2
45	2	172450-73500	PLATE, SWASH	2	2	2	2	2	2
46	2	172450-73510	BALL, STEEL	4	4	4	4	4	4
47	2	172450-73550	PISTON ASSY	4	4	4	4	4	4
48	2	172460-73580	VALVE ASSY	2	2	2	2	2	2
49-1	3	172A47-73320	BOLT, SOCKET HEAD	6	6	6	6	6	6
50	3	24315-000140	O-RING, 1BP14.0	4	4	4	4	4	4
51	3	24315-000120	O-RING, 1BP12.0	6	6	6	6	6	6
52	2	172183-73670	SHAFT	2	2	2	2	2	2
53	2	172183-73770	PLUG	4	4	4	4	4	4
54	2	172458-73770	SPRING	4	4	4	4	4	4
55	2	172458-73780	CAP	4	4	4	4	4	4
56	2	172458-73830	PLUG	2	2	2	2	2	2
57	2	172312-74790	ORIFICE	8	8	8	8	8	8
58	2	24101-060024	BEARING, BALL 6002	2	2	2	2	2	2
59	2	24101-060044	BEARING, BALL 6004	2	2	2	2	2	2
60	2	24315-000070	O-RING, 1BP7.0	6	6	6	6	6	6
61	2	24315-000080	O-RING, 1BP8.0	4	4	4	4	4	4
62	2	24315-000110	O-RING, 1BP11.0	4	4	4	4	4	4
63	2	24315-000140	O-RING, 1BP14.0	4	4	4	4	4	4
64	2	24315-000290	O-RING, 1BP29.0	4	4	4	4	4	4
65	2	24321-001200	O-RING, 1AG120.0	2	2	2	2	2	2
66	2	172450-73620	BLOCK KIT, CYLINDER	2	2	2	2	2	2
76	2	172458-73730	PLATE ASSY, BASE	2	2	2	2	2	2
84	4	24315-000100	O-RING, 1BP10.0	4	4	4	4	4	4
85	1	26013-120302	BOLT, M12X 30	18	18	18	18	18	18
86	1	172458-73720	SEAL SET	2	2	2	2	2	2

Weight	1.2 kg
