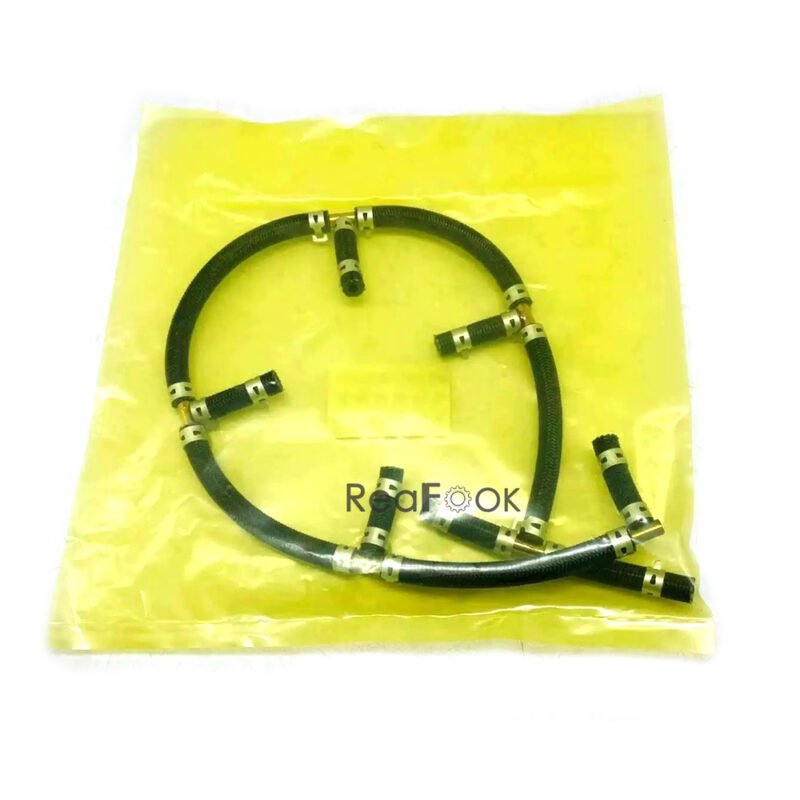

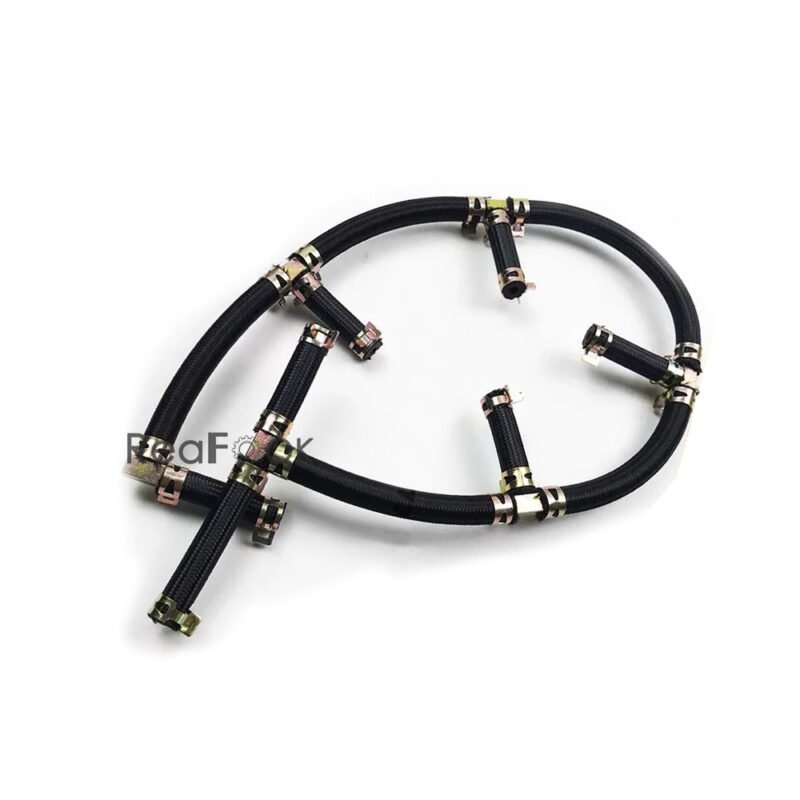

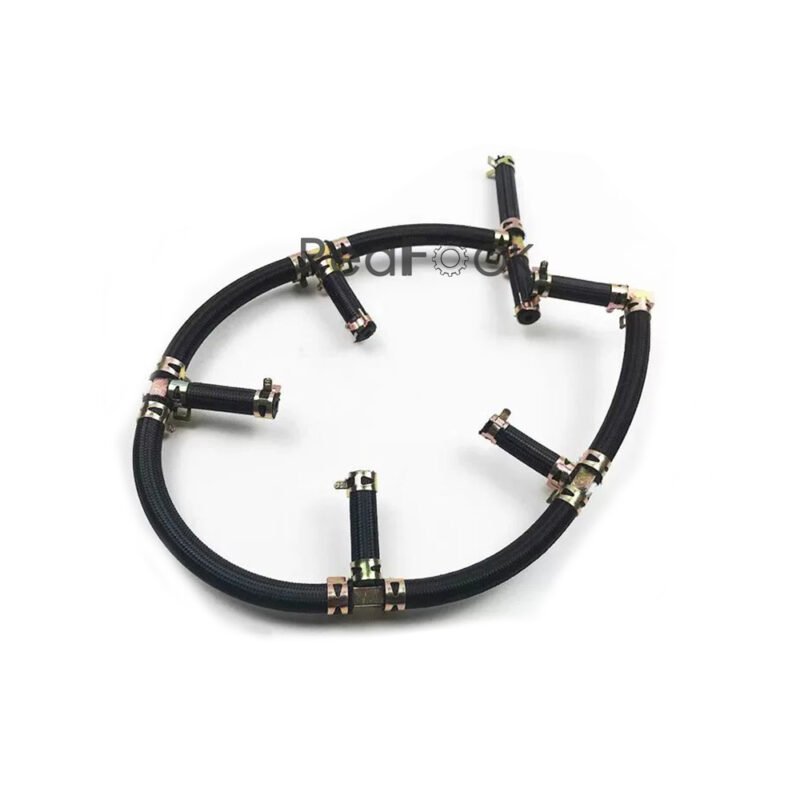

Engine S6K Fuel Return Hose Assembly 212-8606 Fit Caterpillar Excavator CAT 320C 320CL 320D 321C 323DL 323D
US$80.00
Fuel Injection Nozzle Hose 212-8606, Fuel Return Pipe;
Fuel Return Hose Fit S6K Engine;
It is used for Engine Fuel System;
Free Shipping and High Quality Standards!!
| Quantity | Discount (%) | Price |
|---|---|---|
| 1 | — | US$80.00 |
| 2+ | 25 % | US$60.00 |
Product Name: Fuel Injection Nozzle Return Hose
Reference Part Number: 212-8606, 2128606
Compatible Machine: Caterpillar Excavator CAT 320C 320CL 320D 321C 323DL 323D…
Description:
A Fuel Return Lines Hose Assembly is used to provide a pathway for returning excess fuel from the engine back to the fuel tank. In a fuel injection system, some fuel is unused by the engine and needs to be recirculated to maintain proper fuel pressure and prevent vapor lock.

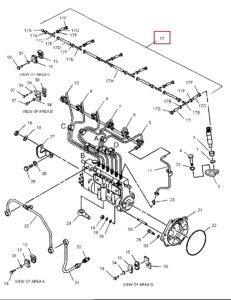

Pos. Part No Qty Parts name Comments
1. 1R-6573 [6] GASKET
2. 113-0363 [6] SUPPORT
3. 154-0489 [6] SEAL-RUBBER
4. 8T-4189M [6] BOLT (M8X1.25X20-MM)
5. 212-8599 [1] PIPE
6. 212-8600 [1] PIPE
7. 212-8601 [1] PIPE
8. 212-8602 [1] PIPE
9. 212-8603 [1] PIPE
10. 212-8604 [1] PIPE
11. 212-8605 [1] PIPE
12. 094-9596 [2] CLAMP
13. 094-9597 [2] CLAMP
14. 5C-9553M[2] BOLT (M6X1X16-MM)
15. 094-9581 [8] CLAMP
16. 6V-7357 M[4] BOLT (M6X1X25-MM)
17. 212-8606 [1] HOSE AS
17A. 094-7235 [1] CAP
17B. 096-0174 [3] CLIP-HOSE
17C. 195-8366 [2] FITTING
17D. 212-8497 [4] HOSE
17E. 195-8369 [4] FITTING
17F. 195-8372 [22] CLIP
17G. 195-8368 [6] HOSE
17H. 212-8607 [1] HOSE
17I. 217-5474 [1] HOSE
18. 7X-0796 [5] LOCKWASHER
19. 6V-8231M [5] NUT (M10X1.25-THD)
20. 193-2702 [1] PIPE
21. 5I-7576 [1] FLANGE
22. 096-9529 [1] SEAL-O-RING
23. 5I-7743 [1] FITTING
24. 125-2983 [1] FITTING
25. 8T-4121 [4] WASHERHARD (11X21X2.5-MM THK)
26. 5I-5108M [2] BOLT (M8X1.25X18-MM)
27. 212-8509 [1] BRACKET
28. 8T-4179M [1] BOLT (M12X1.75X20-MM)
29. 096-2501 [1] LOCKWASHER
30. 212-8499 [4] STUD
31. 5I-8070 [1] PIPE
32. 5I-8058 [1] CONNECTOR
33. 3B-4505 [8] LOCKWASHER
34. 096-2500 [6] LOCKWASHER
35. 239-6605 [1] PLATE
36. 239-6524 [1] CLAMP
37. 8T-4138M [2] BOLT(M6X1X20-MM)
39. 233-1283 [1] CLAMP
M METRIC PART
| Weight | 0.9 kg |
|---|
