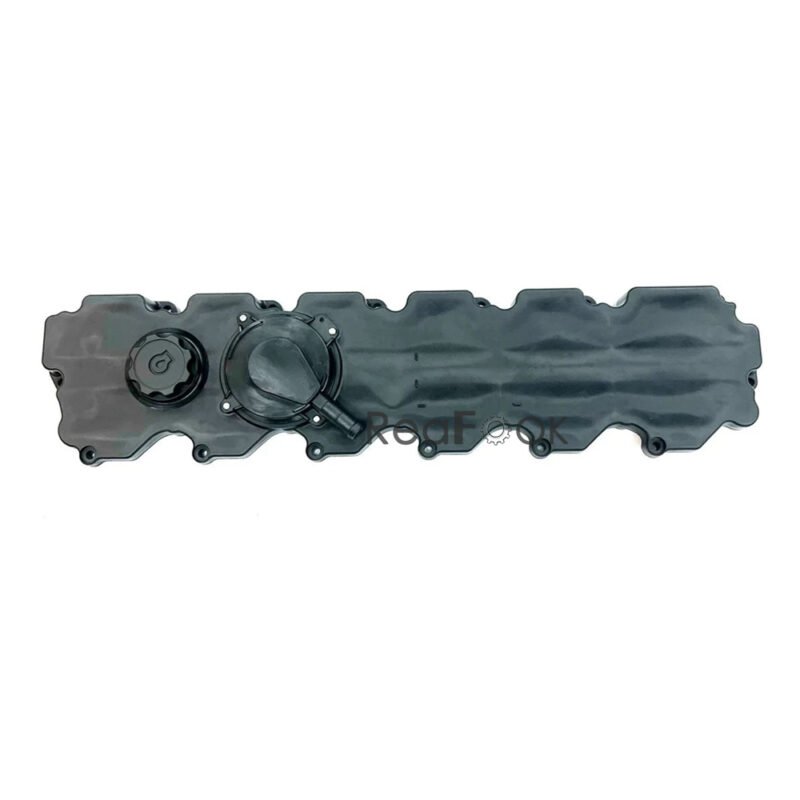

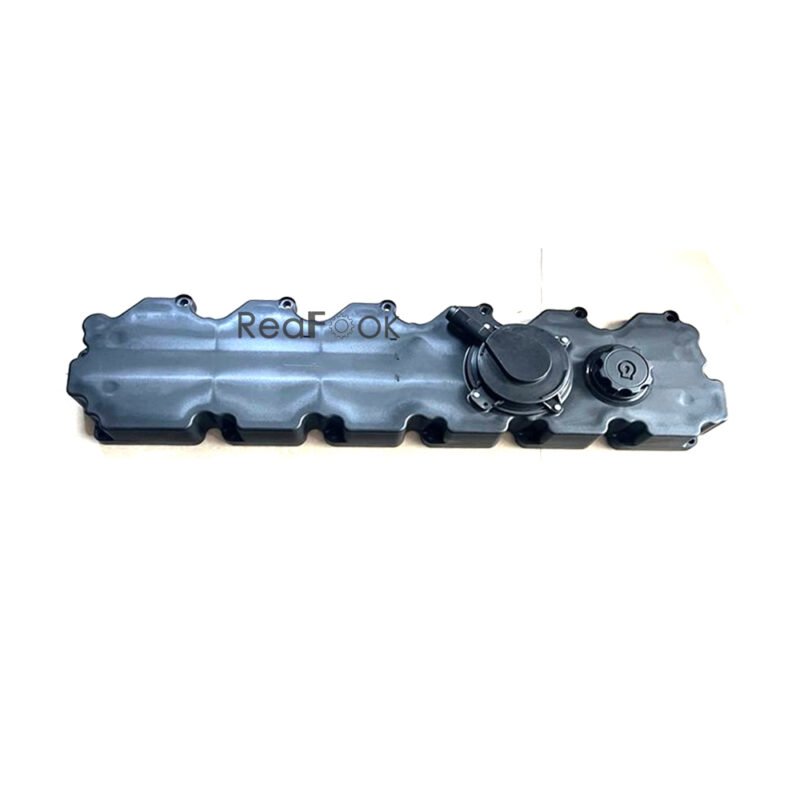

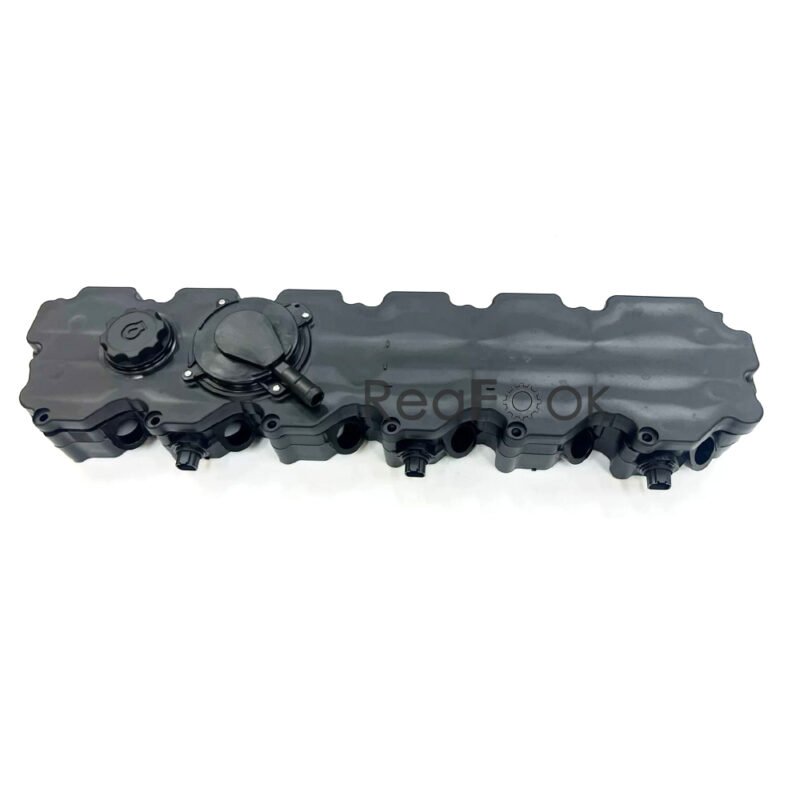

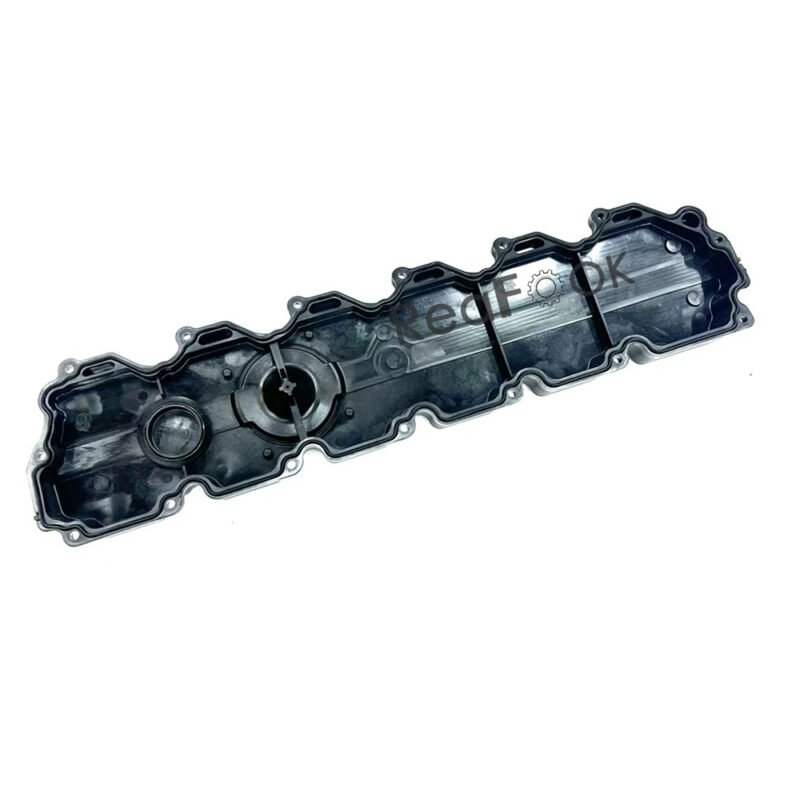

Cylinder Head Cover 318-8037 Fit Caterpillar Excavator CAT 320D GC 320DL 323D
US$179.00
Cylinder Head Cover 318-8037;
Assembly Consists of Filler Cap, Breather cap, etc.;
Fit Engine C6.6;
It’s used for Engine Cylinder System;
Free Shipping and High Quality Standards!!
Product Name: Cylinder Head Cover Assembly
Reference Part Number: 318-8037, 3188037
Compatible Machine: Caterpillar Excavator CAT 320D GC 320DL 323D L, Asphalt Paver AP-600D AP-655D AP-1000E BG600D BG655D AP-1055E…
Description:
The cover assemblies protect the inner mechanisms from damage and impurities.

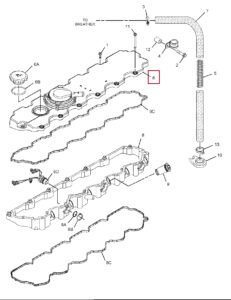

Pos. Part No Qty Parts name Comments
1. 277-5031 [9] BOLT-SPECIAL
2. 6I-1090M [1] BOLT (M8X1.25X40-MM)
3. 032-9020 [2] CLIP
4. 127-8281 [1] CLIP
5. 162-1565 [1] SPRING (CRANKCASE BREATHER HOSE)
6. 318-8037 [1] COVER GP CYLINDER HEAD
6A. 136-3608 [1] CAP AS (ENGINE OIL FILLER)
6B. 124-0506 [1] SEAL
6C. 317-3064 [1] GASKET-COVER
7. 198-8645 [1] HOSE (CRANKCASE BREATHER)
8. 317-2717 [1] BASE GP-VALVE COVER; INJ HARN
8A. 277-5064 [3] SEAL-O-RING
8B. 277-5065 [3] CLIP
8C. 309-6664 [1] GASKET-COVER
8D. 285-1975 [3] HARNESS ASWIRING (INJECTOR)
(EACH INCLUDES)
3E-3377 [1] WEDGE-RECEPTACLE LOCK (4-PIN)
113-4630 [1] RECEPTACLE AS CONNECTOR (4-PIN)
9X-3401 [4] PINCONNECTOR (16-GA TO 18-GA)
-OR-
126-1767 [4] PINCONNECTOR (14-GA TO 16-GA)
316-9351 [1] MOUNTINGCABLE TIE
9. 277-5067 [6] SLEEVE
10. 7C-1281 [1] BRACKET
11. 298-4550 [6] BOLT-SPECIAL
12. 201-1029 [1] SPACER
13. 217-9039 [1] STRAP-CABLE
160-4826F [2] CLAMP-HOSE
F NOT SHOWN
M METRIC PART
| Weight | 3 kg |
|---|
