Swing Reduction Bearing 201-26-62320 201-26-71210 Fit Excavator Komatsu PC60-7 PC70-7 PC75UD-2 PC75UU-2 PC75UU-3 PC78US-5

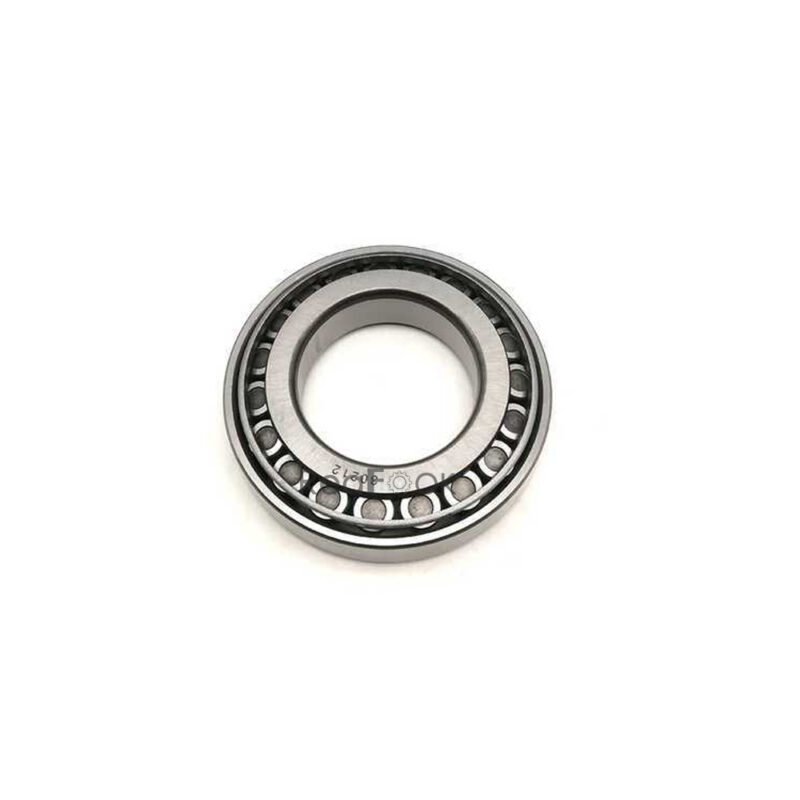

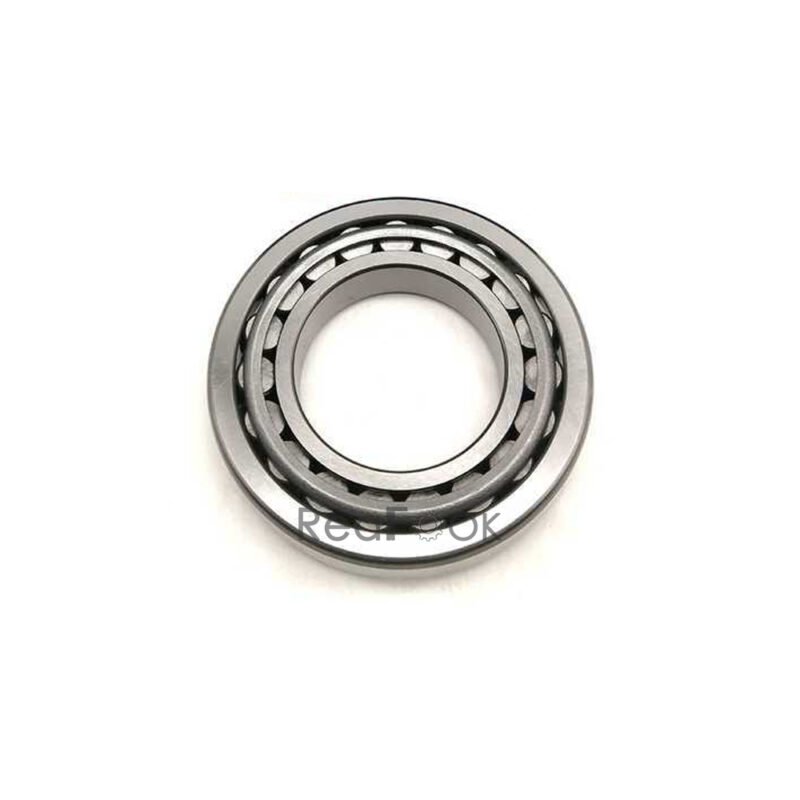

Product Name: Swing Bearing, for Swing Drive Shaft
Reference Part Number: 201-26-62320, 201-26-71210
Compatible Machine: Excavator Komatsu PC60-7 PC70-7 PC75R-2 PC75UD-2 PC75UU-2 PC75UU-3 PC78US-5 PW75R-2…

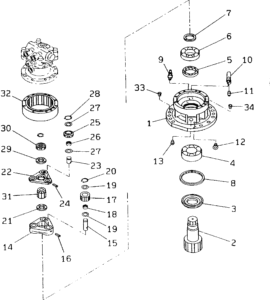

Pos. Part No Qty Parts name Comments
21W-26-00021 [1] SWING MACHINERY A.
1. 201-26-71111 [1] CASE
2. 201-26-71140 [1] SHAFT 6.18 kg.
3. 201-26-71260 [1] PLATE analogs: [“2012671261”]
4. 201-26-71210 [1] BEARING
5. 07012-00065 [1] SEAL,OIL
6. 201-26-62320 [1] BEARING
7. 201-26-71250 [1] SPACER analogs: [“890001449”]
8. 07145-00125 [1] SEAL,OIL
9. 07020-00900 [1] FITTING,GREASE analogs: [“0700000900”, “M012443000109”, “R0702000900”]
10. 201-26-62420 [1] PIPE
11. 07042-30312 [1] PLUG analogs: “890001453”, “0704220312”]
12. 07029-00000 [1] VALVE
13. 07042-00415 [1] PLUG
14. 201-26-71130 [1] CARRIER 1.61 kg.
15. 201-26-71230 [3] SHAFT
16. 20S-26-71250 [3] PIN
17. 201-26-71180 [3] GEAR 0.54 kg.
18. 201-26-71290 [3] BEARING 0.1 kg.
19. 201-26-71270 [6] WASHER,THRUST
20. 04064-02512 [3] RING,SNAP
21. 201-26-71240 [1] WASHER,THRUST
22. 201-26-71120 [1] CARRIER
23. 201-26-71220 [3] SHAFT 0.12 kg. [“SN: 7928-UP”]
25. 201-26-71160 [3] GEAR 0.15 kg. [“SN: 7928-UP”]
26. 424-15-12580 [3] BEARING analogs: [“890001468”]
30. 201-26-71150 [1] GEAR 0.19 kg.
31. 201-26-71170 [1] GEAR 0.45 kg. analogs: [“2012671171”]
32. 201-26-71190 [1] GEAR,RING
33. 07049-01620 [2] PLUG 0.002 kg.
34. 07049-02025 [2] PLUG
