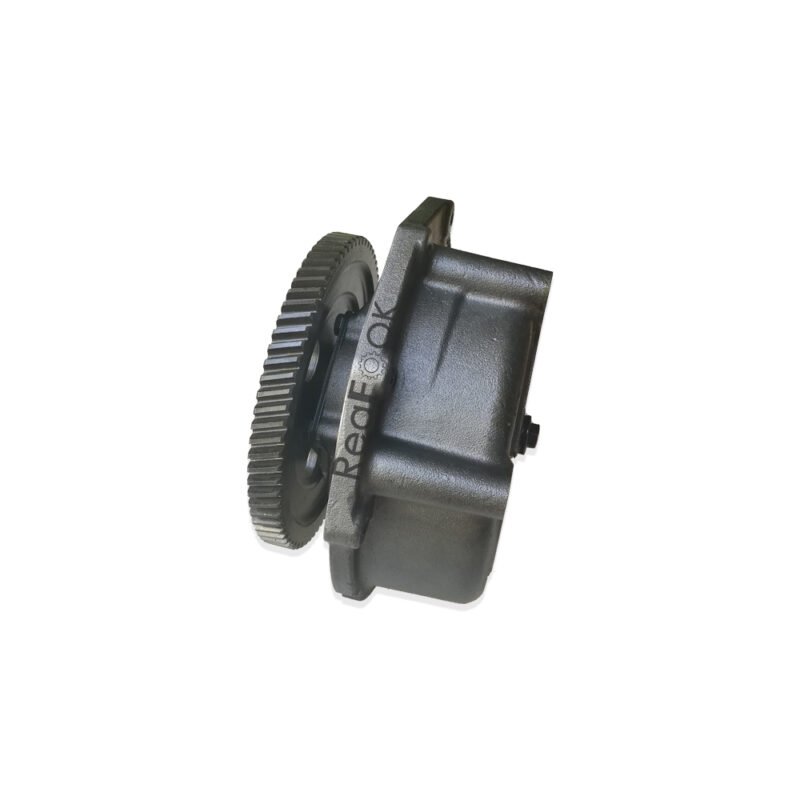

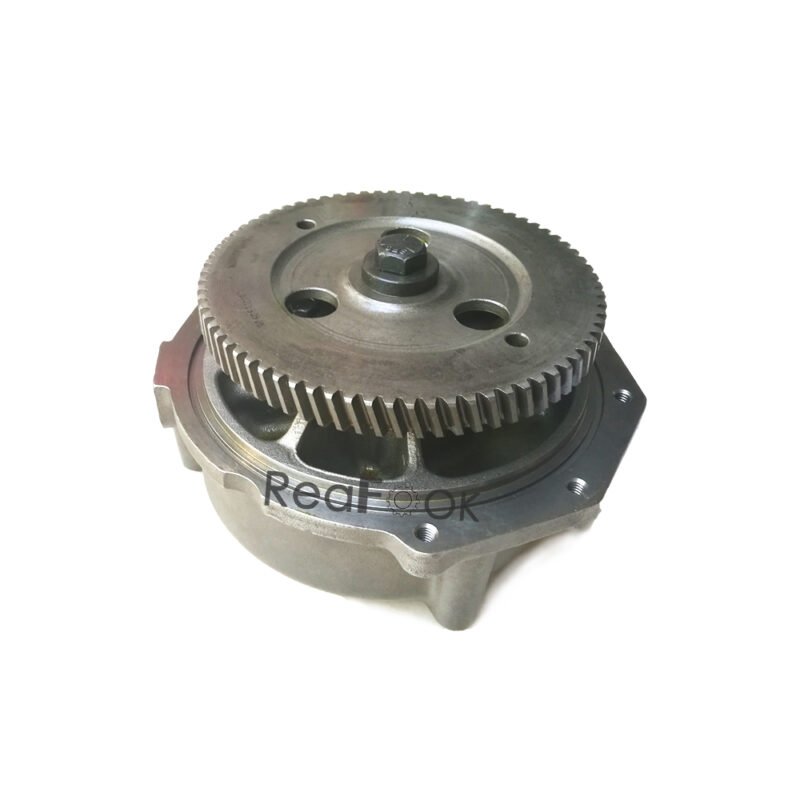

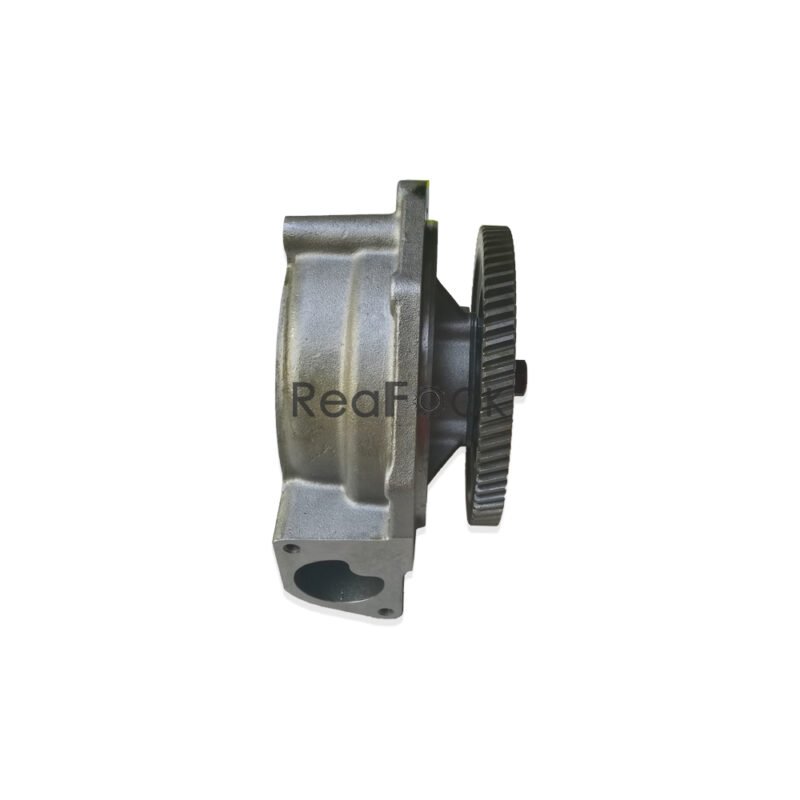

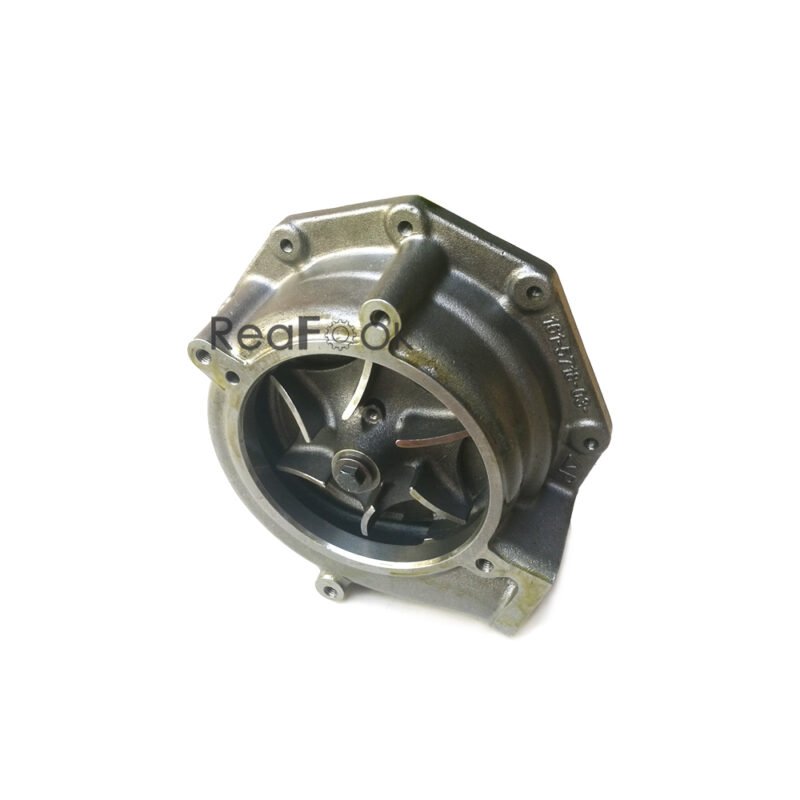

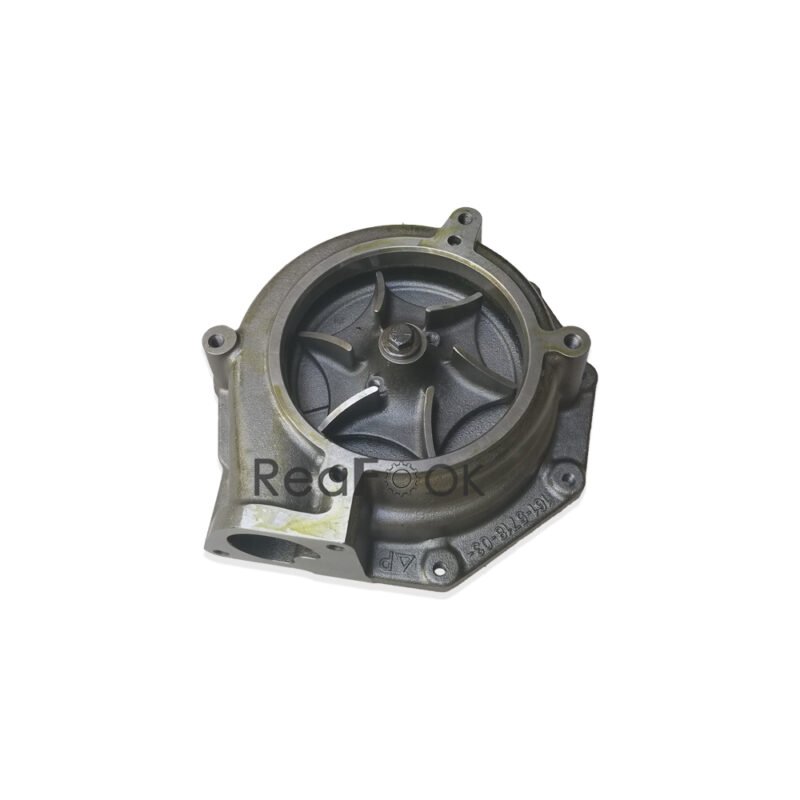

Water Pump 135-4926 Fit Excavator Caterpillar 375-A 375L, Wheel Loader 980C 980F 980G

Product Name: Water Pump
Reference Part Number: 135-4926
Compatible Machine: Excavator Caterpillar 375-A 375L, Wheel Loader 980C 980F 980G…

Description:
The water pump assemblies are simple centrifugal pumps, often belt driven from the crankshaft to circulate coolant fluid whenever the engine is running, used to propel water through the engine jacket cooling systems and to transfer water from external sources into the water tank to prevent overheating.

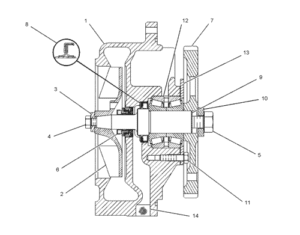

Pos. Part No Qty Parts name Comments
1. 136-1106 [1] HOUSING-WATER PUMP
2. 129-9907 [1] IMPELLER-PUMP
3. 9M-6527 J [1] WASHER-HARD (10.2X25.5X5-MM THK)
4. 0S-1591 [1] BOLT (3/8-16X1.5-IN)
5. 1A-1135 [1] BOLT (5/8-11X2-IN)
6. 128-0317 J [1] SEAL GP (WATER PUMP)
7. 4N-0350 [1] GEAR-WATER PUMP DRIVE (74-TEETH)
8. 153-1256 J [1] SEAL-LIP TYPE
9. 135-4928 J [1] SHAFT-WATER PUMP
10. 5S-0581 J [1] WASHER-HARD (17X38X8-MM THK)
11. 1B-7182 [4] BOLT (5/16-18X1.25-IN)
12. 108-7930 J [1] BEARING AS-ROLLER #SEBP16330145
13. 136-1107 J [1] RETAINER
14. 136-3742 J [1] FILTER

AVAILABLE REPAIR KIT(S):
377-7037 J [1] KIT-WATER PUMP
128-2922 [1] KIT-GASKET (WATER PUMP)
(INCLUDES SEALS-O-RING & GASKETS)
J KIT MARKED J INCLUDES PART(S) MARKED J
