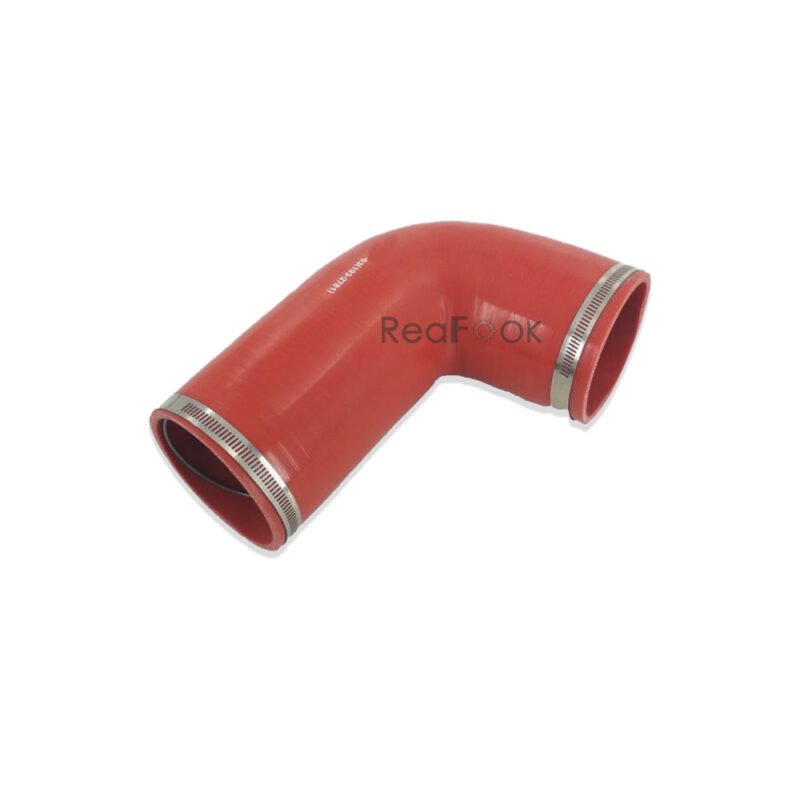

Turbo Air Hose 193-2781 Elbow Fit Caterpillar Excavator CAT 330C

Product Name: Air Lines Elbow
Reference Part Number: 193-2781, 1932781
Compatible Machine: Caterpillar Excavator CAT 330C…

Description:
Air Lines Elbow mounts onto the turbocharger and directs airflow from the air cleaner lines, ensuring efficient air delivery to the turbo unit.

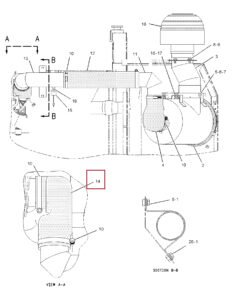

Pos. Part No Qty Parts name Comments
1. 8T-4223 [2] WASHER-HARD (13.5X25.5X3-MM THK)
2. 205-6641Y [1] AIR CLEANER GP
3. 205-6798 [1] PIPE AS
4. 205-6799 [1] ELBOW
5. 7Y-1838 [1] CLAMP
6. 8T-4133M [1] NUT (M10X1.5-THD)
7. 8T-4185M [1] BOLT (M10X1.5X50-MM)
8. 8T-4192 M [5] BOLT (M12X1.75X25-MM)
9. 5P-1076 [4] WASHER-HARD (13.5X30X4-MM THK)
10. 8T-4986 [6] CLAMP-HOSE
11. 193-2869 [1] PIPE AS
12. 193-2780 [1] HOSE-AIR
13. 193-2792 [1] PIPE AS
14. 193-2781 [1] ELBOW
15. 154-0498 [1] INDICATOR AS AIR FILTER CHANGE (AIR ESTRICTION)
16. 8T-4121 [4] WASHER-HARD (11X21X2.5-MM THK)
17. 8T-6466M [4] BOLT (M10X1.5X60-MM)
18. 130-3280 [1] PRECLEANER AS 174-5415 [1] CLAMP
19. 5L-3233 [1] FITTINGCONNECTOR
20. 8T-4179M [1] BOLT (M12X1.75X20-MM)
M METRIC PART
Y SEPARATE ILLUSTRATION
