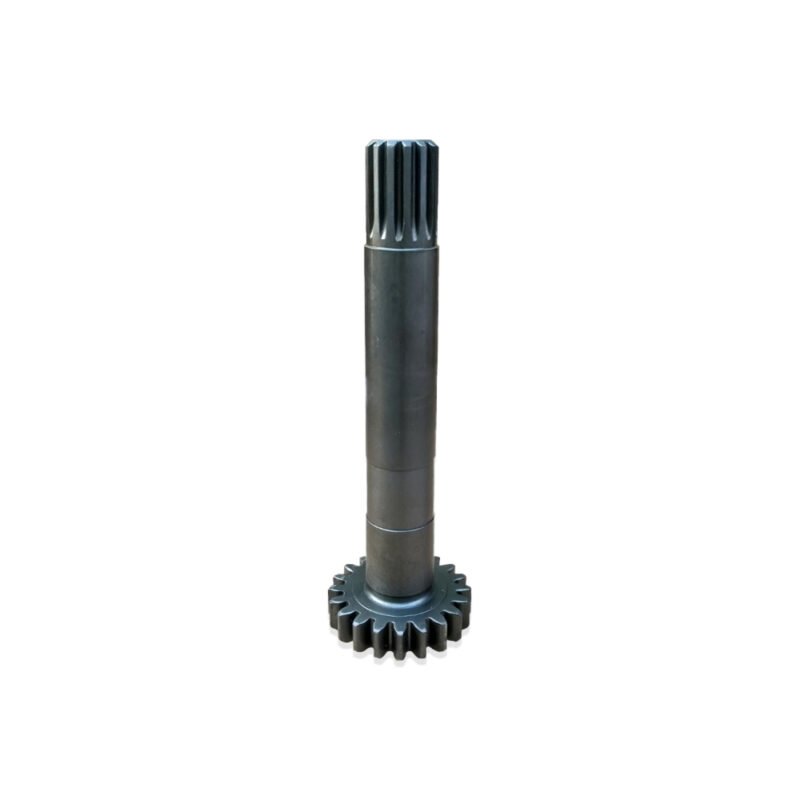

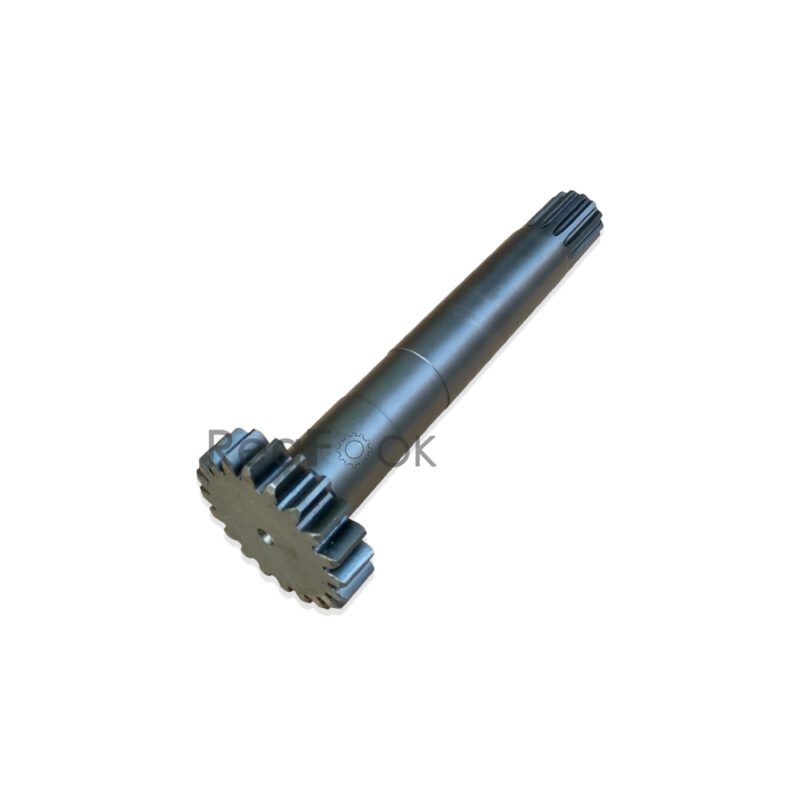

Travel Sun Gear Prop Shaft 2020862 Fit Hitachi Excavator EX200 EX220 EX200-1

Product Name: Sun Gear Prop Shaft
Reference Part Number: 2020862
Compatible Machine: Hitachi Excavator EX200 EX220 EX200-1…

Description:
A Sun Gear acts as a central Gear that meshes with the planetary Gears to transfer power and control the speed and torque output.

Parts on group TRAVEL DEVICE:
Pos. Part No Qty Parts name Comments
00. 9065944 [1] MOTOR;OIL
00-51. 9066008 [2] TRAVEL DEVICE ASS’Y
00A. 9065943 [1] VALVE;BRAKE
02. 1009855 [1] HOUSING
03. 4514259 [1] SEAL;GROUP
04. 4115169 [2] BRG.;ROL
05. 1010010 [1] DRUM
06. 1010204 [1] SPROCKET
07. A590920 [16] WASHER;SPRING
08. J932055 [16] BOLT
10. 3032083 [1] NUT
11. 4178862 [1] PLATE;LOCK
12. J901020 [2] BOLT
14. 1009857 [1] CARRIER
15. 3034323 [3] GEAR;PLANETARY
16. 4183818 [6] BRG.;NEEDLE
17. 4135227 [6] PLATE;THRUST
18. 4139975 [3] PIN
19. 4139998 [3] PIN;SPRING
20. 3034324 [1] GEAR;SUN
23. 1010509 [1] GEAR;RING
24. A590916 [26] WASHER;SPRING
25. J931645 [24] BOLT
27. 2022210 [1] CARRIER
28. 4183819 [1] SPACER
29. 3034325 [3] GEAR;PLANETARY
30. 4126657 [3] BRG.;NEEDLE
31. 4192982 [6] PLATE;THRUST
32. 4144558 [3] PIN
33. 4169567 [3] PIN;SPRING
34. 3034326 [1] GEAR;SUN
36. 2020865 [1] CARRIER
37. 4172391 [1] SPACER
38. 3031946 [3] GEAR;PLANETARY
39. 4172392 [3] BRG.;NEEDLE
40. 4196488 [6] PLATE;THRUST
41. 4172398 [3] PIN
42. 4169566 [3] PIN;SPRING
43. 2020862 [1] SHAFT;PROP.
45. 2022683 [1] COVER
46. A590912 [12] WASHER;SPRING
47. M221228 [12] BOLT
48. 94-2013 [2] PLUG
50. 4174183 [1] O-RING
51. J931685 [2] BOLT
60. J932080 [28] BOLT
61. A590920 [28] WASHER;SPRING
