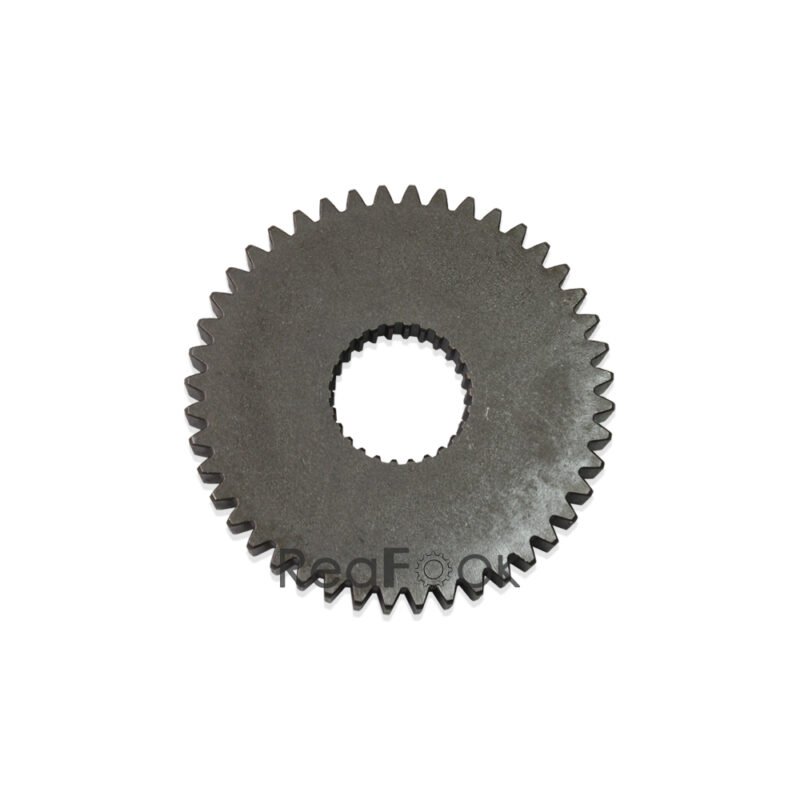

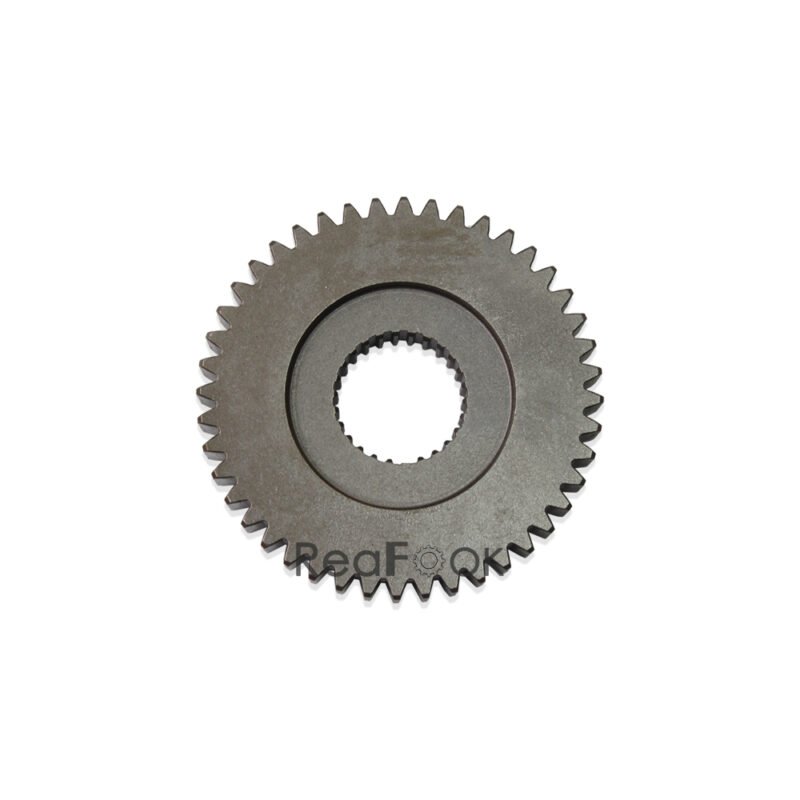

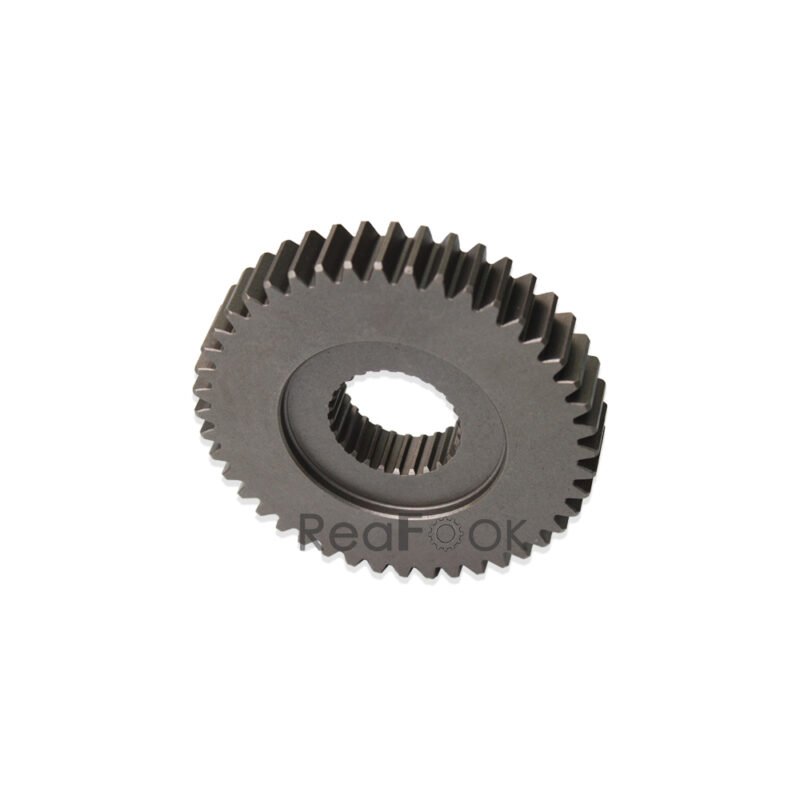

Travel Spur Gear Kit TZ264B1107-00 ( 3 PCS) Fit Excavator Komatsu PC100-6 PC120-6 PC130-6 PC130-7

Product Name: Planet Gear, Spur Gear Kit (3 PCS of Gears)
Reference Part Number: TZ264B1107-00
Compatible Machine: Excavator Komatsu PC100-6 PC100-6E PC100-6S PC120-6 PC120-6Z PC120-6E PC120-6H PC130-6 PC130-7 PC130-6K PC130-7K…

Description:
Gear for use in planetary gear sets of final drives. Final Drive Planetary Gear transfers power from the drive motor to the wheels while regulating torque and rotational speed for smooth movement.

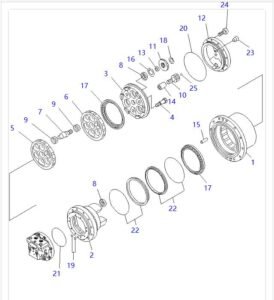

Pos. Part No Qty Parts name Comments
1. TZ266B1001-00 [1] HUB,MOTOR TZ263B1102-01 [1] SPINDLE KIT 49.5 kg.
TZ263B1132-05 [1] SPINDLE ASS’Y 49.5 kg.
4. TZ200B1019-03 [3] BOLT 0.344 kg. analogs: [“TZ200B101902”]
TZ263B1104-00 [1] RV GEAR ASS’Y19 kg.
TZ263B1204-00 [1] RV GEAR KIT 10 kg.
7. TZ200B1009-01 [3] SHAFT 1.397 kg.
8. TZ200B1022-00 [6] BEARING 0.56 kg.
9. TZ200B1023-00 [6] BEARING 0.26 kg.
10. TZ270B1006-00 [1] GEAR 0.381 kg.
TZ264B1107-00 [1] SPUR GEAR KIT
12. TZ266B1008-00 [1] COVER 9.16 kg.
13. TZ200B1014-01 [3] PIECE 0.04 kg.
14. TZ269B1015-00 [1] COUPLING 0.25 kg.
15. TZ225B1017-00 [24] PIN 0.141 kg.
16. TZ150A1020-00 [3] SNAP RING KIT 0.925 kg.
17. TZ200B1021-01 [2] BEARING 3.41 kg. analogs: [“TZ200B102100”]
18. 04064-03515 [3] RING,BACK-UP
19. 07000-11007 [2] O-RING
20. TZARP568-378-7 [1] O-RING
21. TZJW1516-G37-7 [1] O-RING
22. TZES100-250-A [2] SEAL (K1)
23. TZGM1-2 [2] PLUG
24. TZJB1176M12-32 [10] BOLT
25. 04260-00952 [1] BALL
K1. TZ276B9000-00 [1] SERVICE
TZ15Z-25-42-10 [1] SEAL
TZ266B2035-00 [1] O-RING
TZJB2401-P26-9 [2] O-RING
07000-12016 [4] O-RING
07000-12018 [3] O-RING
TZ266B2039-00 [1] O-RING
07000-12010 [2] O-RING
07002-02034 [1] O-RING
07000-12011 [4] O-RING
07000-12014 [2] O-RING
07000-12020 [4] O-RING
TZJB2407T2-P14 [4] RING
TZJB2407T3-P20 [4] RING
