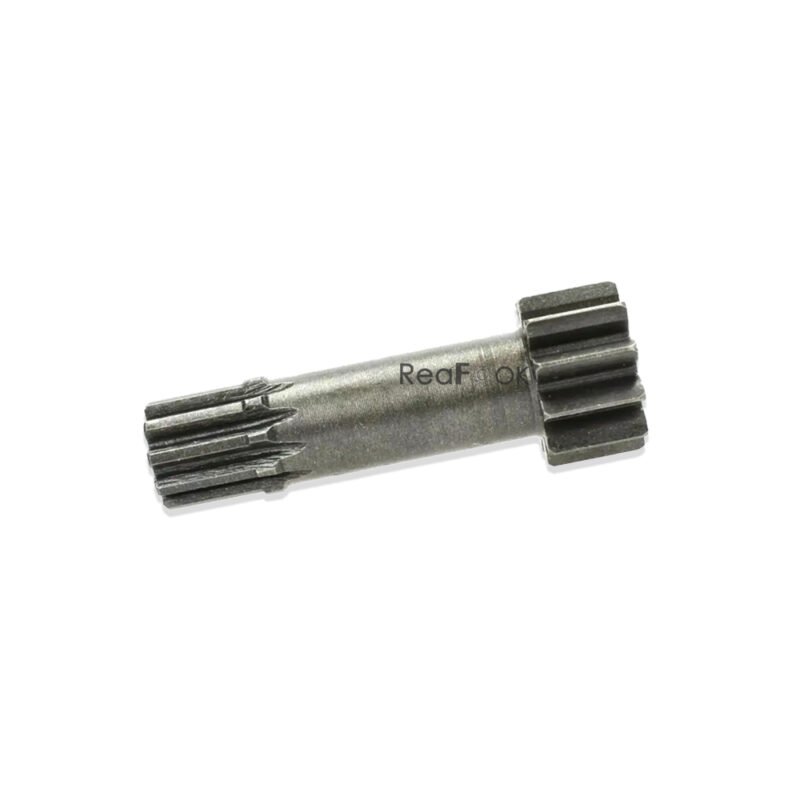

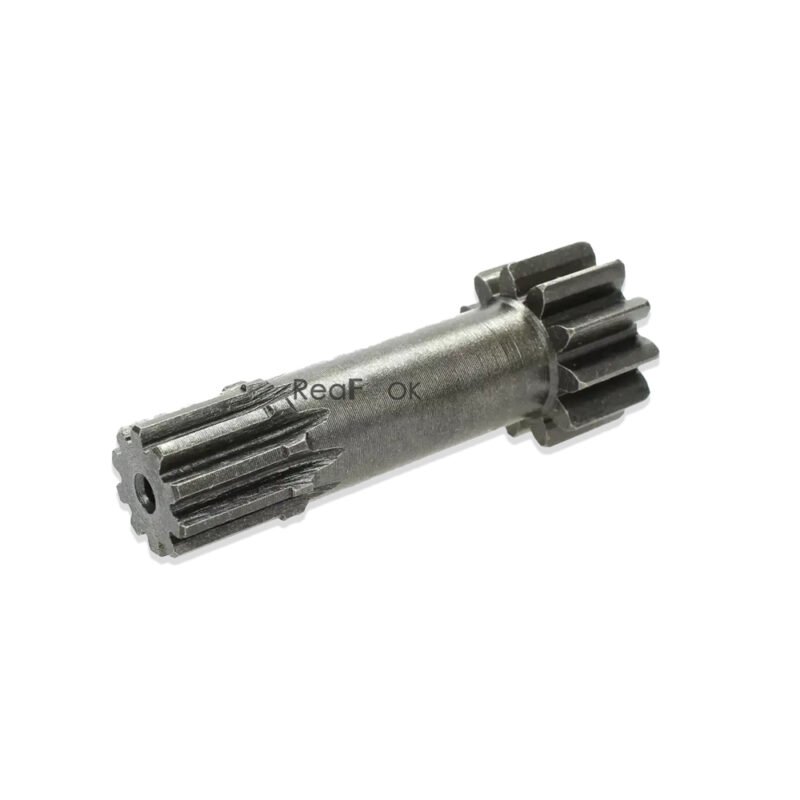

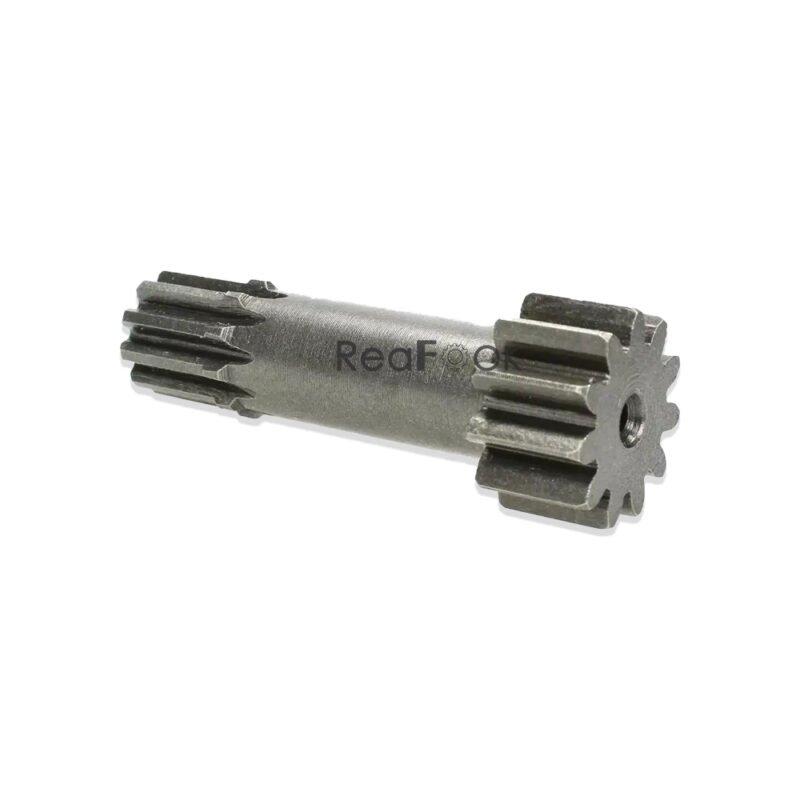

Travel Reduction Sun Gear Shaft FUFZD8718-1-09 Fit Excavator Komatsu PC27MR-2 PC27MR-3 PC30MR-1 PC30MR-2 PC30MR-3 PC30UU-3 PC35MR-2 PC35MR-3 PC38UU-3

Product Name: Sun Gear Shaft 1st Stage
Reference Part Number: FUFZD8718-1-09
Compatible Machine: Excavator Komatsu PC27MR-2 PC27MR-3 PC30MR-1 PC30MR-2 PC30MR-3 PC30UU-3 PC35MR-2 PC35MR-3 PC38UU-3….

Description:
A Sun Gear is designed to transfer torque from the input shaft to the planetary Gears, which in turn transmit power to the output shaft.

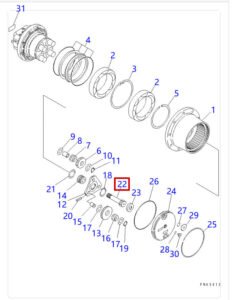

Pos. Part No Qty Parts name Comments
21U-60-31101 [2] TRAVEL MOTOR ASS’Y,TRAVEL 37.08 kg.
FUGHB-25018388 [1] BODY SUB ASS’Y
4. FUES100-148 [2] FLOATING SEAL ASS’Y 0.882 kg.
5. FUFRP-614-25-X [1] RING,SNAP
6. FUFZD8718-1-06 [4] GEAR
7. FUFZD8388-1-20 [92] NEEDLE
8. FUFZD8388-1-10 [4] RING
9. FUFZD8388-1-40 [4] WASHER,THRUST
10. FUFZD8388-1-41 [4] WASHER,THRUST
11. 04064-02815 [4] RING,SNAP analogs: [“YM22242000280”]
FUGHC-29028718 [1] CARRIER ASS’Y 1.84 kg.
18. 04064-03015 [1] RING,SNAP 0.01 kg.
19. 04064-02512 [3] RING,SNAP 0.002 kg.
20. 21U-60-16260 [3] PIN,SPRING
21. FUFZD8388-1-15 [1] COLLAR,THRUST
22. FUFZD8718-1-09 [1] GEAR Komatsu 0.16 kg.
23. FUFZD8603-1-16 [1] RING,SLIDE
24. FUFZD8388-1-02 [1] COVER
25. 20N-60-42220 [1] RING,SNAP
26. 20N-60-72130 [1] O-RING (KIT) analogs: [“FUROA26170”, “20N6042240”]
27. 07000-12014 [2] O-RING (KIT) 0.01 kg. analogs: [“0700002014”]
28. 07000-11008 [1] O-RING (KIT) 0.01 kg.] analogs: [“0700001008”, “2016018950”]
29. FUFZD8144-1-34 [2] PLUG
30. FUGPF-1/8 [1] PLUG
31. FUNV65 [1] NAME PLATE
KIT. FUGHS-25018388 [1] SEAL KIT,REDUCTION GEAR
