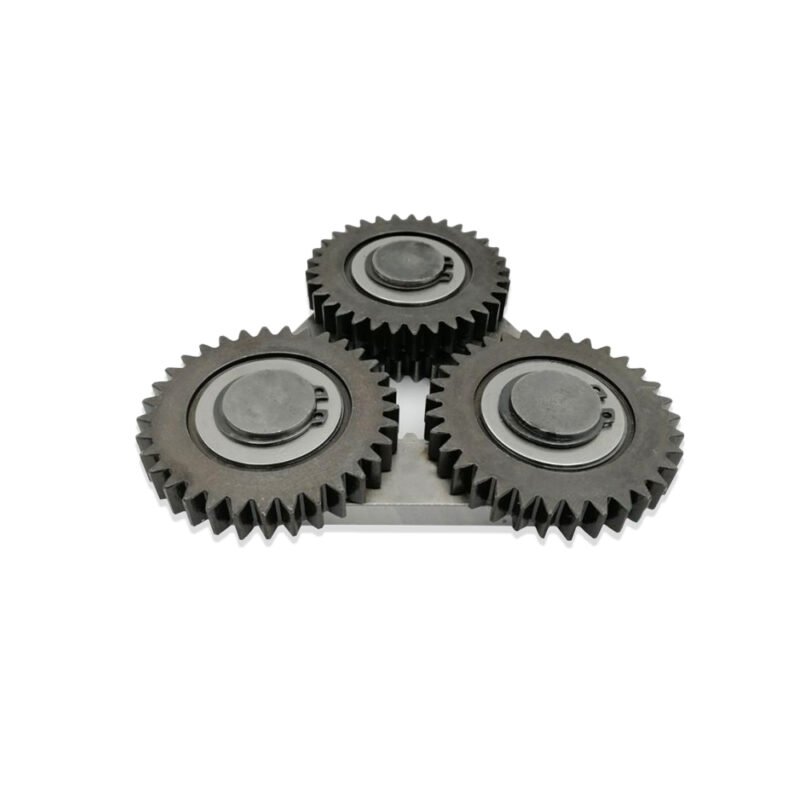

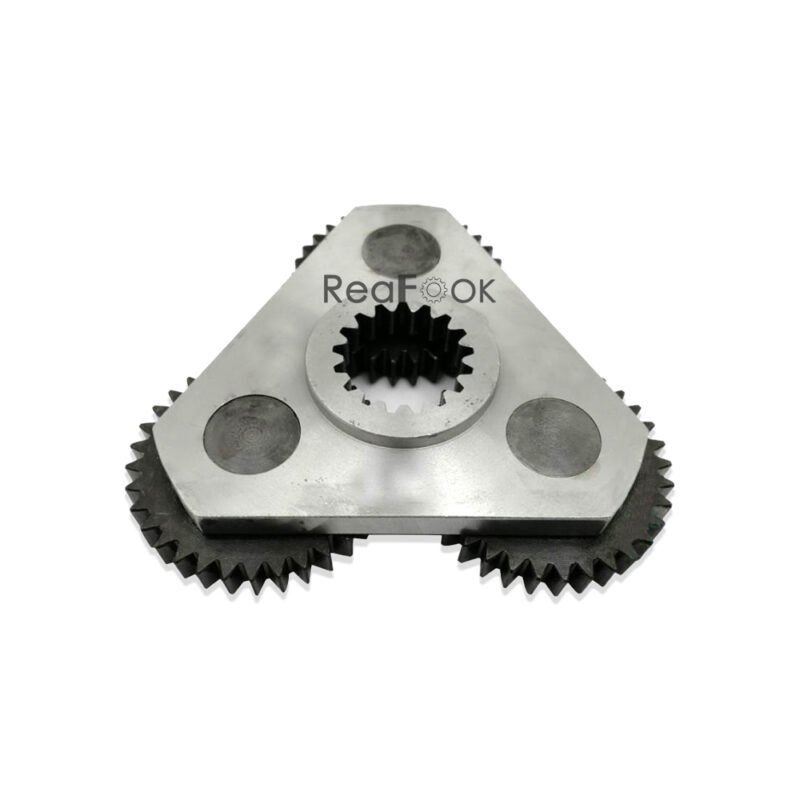

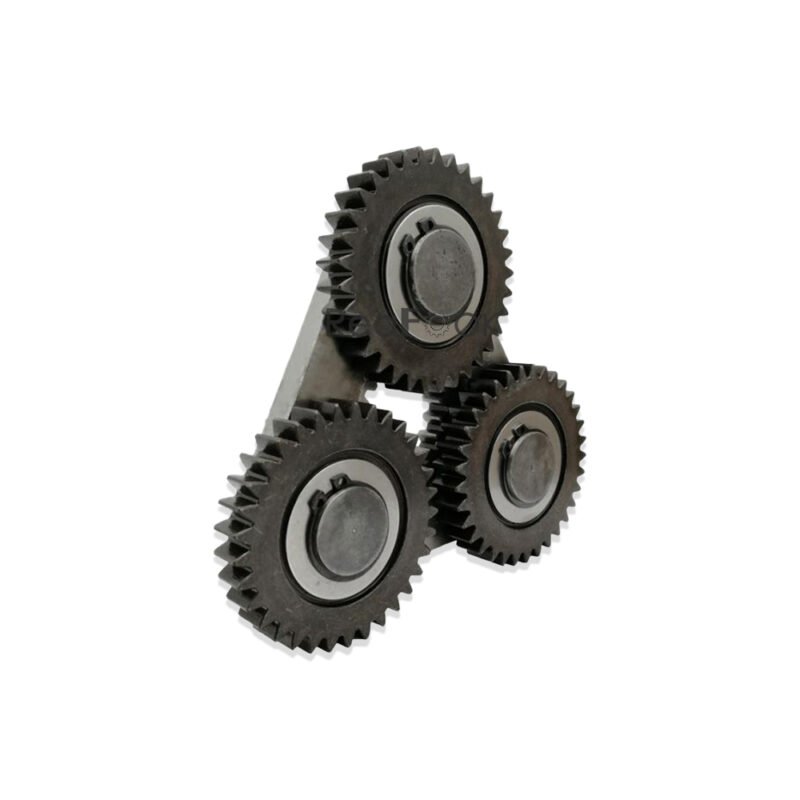

Travel Reduction Planetary Carrier Assy FUGHC-29028718 Fit Excavator Komatsu PC27MR-2 PC27MR-3 PC30MR-1 PC30MR-2 PC30MR-3 PC30UU-3 PC35MR-2 PC35MR-3 PC38UU-3

Product Name: Planetary Carrier Assy 1st Stage
Reference Part Number: FUGHC-29028718
Compatible Machine: Excavator Komatsu PC27MR-2 PC27MR-3 PC30MR-1 PC30MR-2 PC30MR-3 PC30UU-3 PC35MR-2 PC35MR-3 PC38UU-3…

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

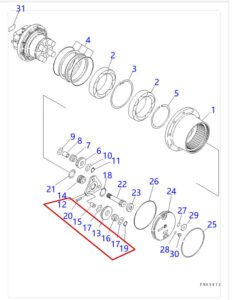

Pos. Part No Qty Parts name Comments
21U-60-31101 [2] TRAVEL MOTOR ASS’Y,TRAVEL 37.08 kg.
FUGHB-25018388 [1] BODY SUB ASS’Y
4. FUES100-148 [2] FLOATING SEAL ASS’Y 0.882 kg.
5. FUFRP-614-25-X [1] RING,SNAP
6. FUFZD8718-1-06 [4] GEAR
7. FUFZD8388-1-20 [92] NEEDLE
8. FUFZD8388-1-10 [4] RING
9. FUFZD8388-1-40 [4] WASHER,THRUST
10. FUFZD8388-1-41 [4] WASHER,THRUST
11. 04064-02815 [4] RING,SNAP analogs: [“YM22242000280”]
FUGHC-29028718 [1] CARRIER ASS’Y 1.84 kg.
18. 04064-03015 [1] RING,SNAP 0.01 kg.
19. 04064-02512 [3] RING,SNAP 0.002 kg.
20. 21U-60-16260 [3] PIN,SPRING
21. FUFZD8388-1-15 [1] COLLAR,THRUST
22. FUFZD8718-1-09 [1] GEAR Komatsu 0.16 kg.
23. FUFZD8603-1-16 [1] RING,SLIDE
24. FUFZD8388-1-02 [1] COVER
25. 20N-60-42220 [1] RING,SNAP
26. 20N-60-72130 [1] O-RING (KIT) analogs: [“FUROA26170”, “20N6042240”]
27. 07000-12014 [2] O-RING (KIT) 0.01 kg. analogs: [“0700002014”]
28. 07000-11008 [1] O-RING (KIT) 0.01 kg.] analogs: [“0700001008”, “2016018950”]
29. FUFZD8144-1-34 [2] PLUG
30. FUGPF-1/8 [1] PLUG
31. FUNV65 [1] NAME PLATE
KIT. FUGHS-25018388 [1] SEAL KIT,REDUCTION GEAR
