Travel Planetary Carrier Assembly 1026779 Fit Excavator Hitachi ZX225US ZX230 ZX240 ZX250

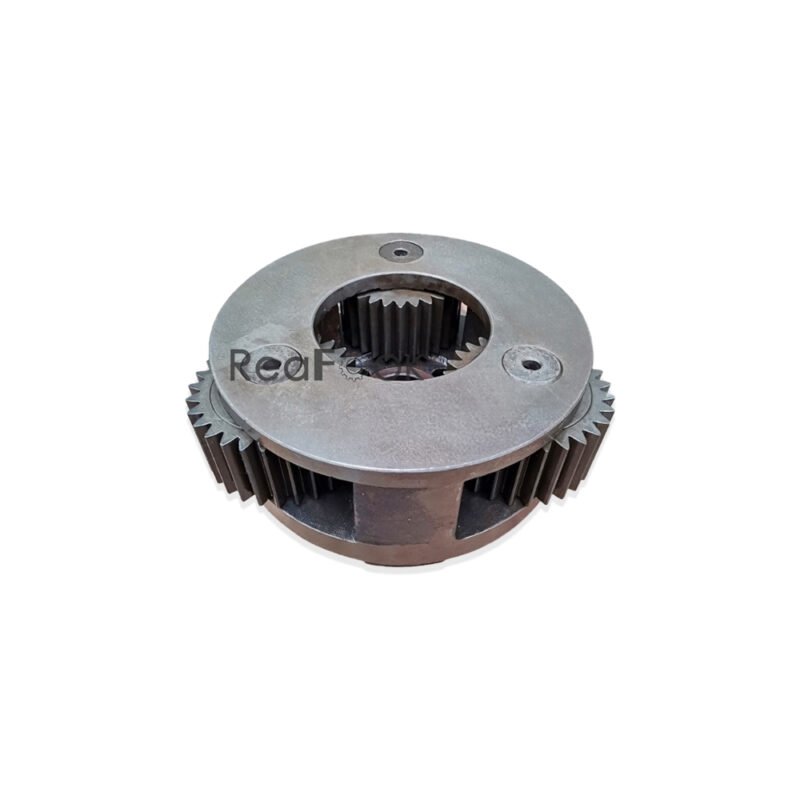

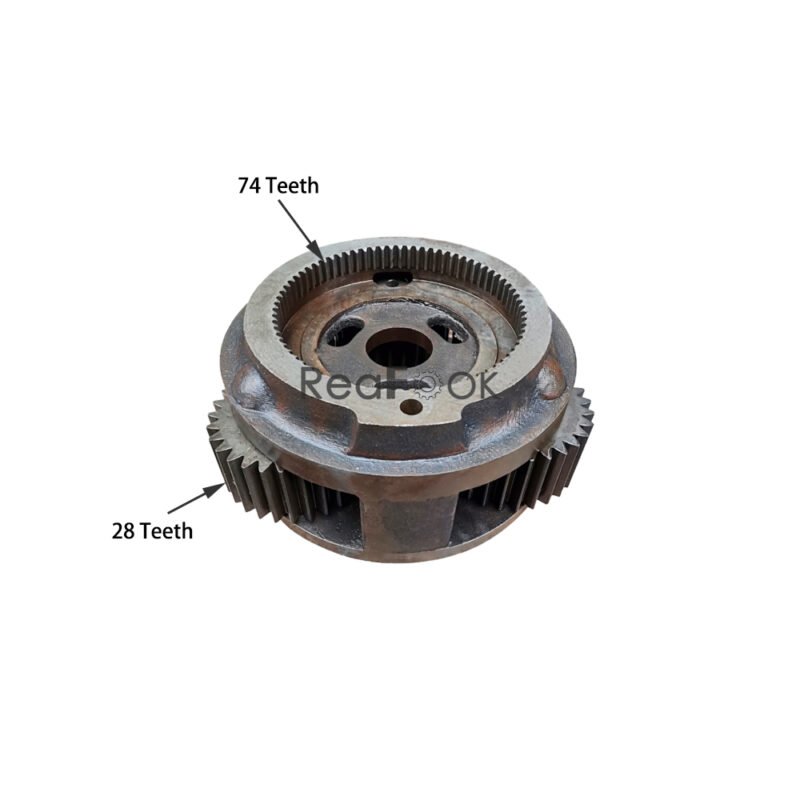

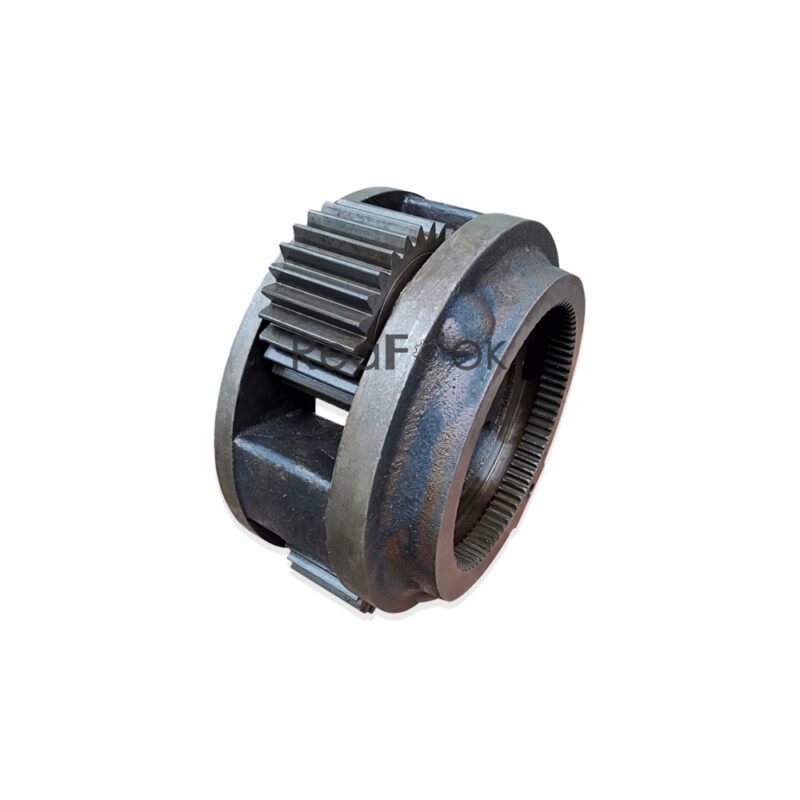

Product Name: Planet Carrier Assy No.3
Reference Part Number: 1026779
Compatible Machine: Excavator Hitachi ZX200 ZX 225US ZX225USR ZX230 ZX 240H ZX240K ZX250-HCME, John Deere 200CLC, 225CLC, 2054, 2554, 230CLC…

Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.

Attributes:
• Reduces speed and increases torque
• Provides a mounting point for the ring gear and supports the planetary gears

Applications:
The Planetary Carrier is used to transmit torque to the output shaft of the final drive through a series of gears.

Pos. Part No Qty Parts name Comments
9181678 [2] TRAVEL DEVICE I 9233689 (for assembly of machine)
9195448 [2] TRAVEL DEVICE (for transportation)
9233689 [2] TRAVEL DEVICE I 9233690 (for assembly of machine)
9233690 [2] TRAVEL DEVICE (for transportation)
00. 9190294 [1] MOTOR;OIL I 9196318 (for assembly of machine)
00. 9196318 [1] MOTOR;OIL (for transportation)
00. 9234159 [1] MOTOR;OIL I 9237803 (for assembly of machine)
00. 9237803 [1] MOTOR;OIL (for transportation)
02. 4114753 [1] SEAL;GROUP
03. 4246793 [2] BRG.;ROL.
04. 1027152 [1] DRUM
05. 1010203 [1] SPROCKET
06. J932055 [16] BOLT
07. A590920 [16] WASHER;SPRING
08. 3086531 [1] NUT
11. 4436242 [1] PIN;KNOCK
12. 1026779 [1] CARRIER
13. 3085966 [3] GEAR;PLANETARY
14. 4445531 [6] BRG.;NEEDLE
15. 4284521 [6] PLATE;THRUST
16. 4139975 [3] PIN
17. 4116309 [3] PIN;SPRING
18. 3085927 [1] GEAR;SUN
Pos. Part No Qty Parts name Comments
20. 1027158 [1] GEAR;RING
21. J931640 [28] BOLT
23. 1027161 [1] CARRIER
24. 4401293 [2] SPACER
25. 3085985 [3] GEAR;PLANETARY
26. 4445529 [3] BRG.;NEEDLE
27. 4210851 [6] PLATE;THRUST
28. 4309995 [3] PIN
29. 4246358 [3] PIN;SPRING
30. 3085941 [1] GEAR;SUN
32. 1027160 [1] CARRIER
33. 3086006 [3] GEAR;PLANETARY
34. 4406589 [3] BRG.;NEEDLE
35. 4192910 [6] PLATE;THRUST
36. 4210853 [3] PIN
37. 4173093 [3] PIN;SPRING
38. 2043851 [1] SHAFT;PROP.
40. 2043868 [1] COVER
41. 4285323 [1] PIN;STOPPER
42. J011230 [12] BOLT;SEMS
42. J271230 [12] BOLT;SEMS T J901230
J222012
43. 4245797 [3] PLUG
46. +++++++ [1] NAME-PLATE
47. M492564 [2] SCREW;DRIVE
