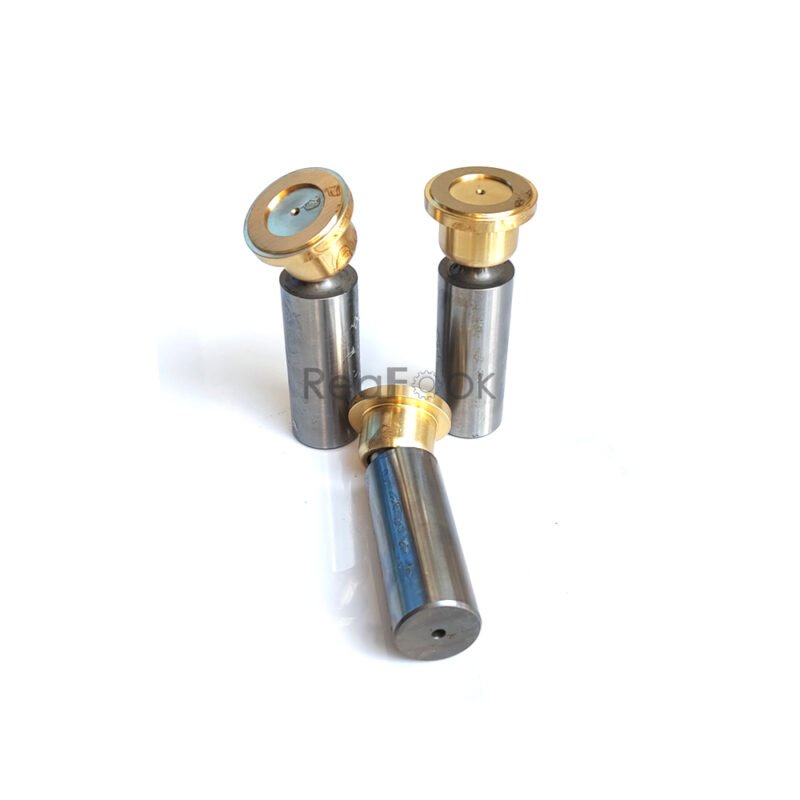

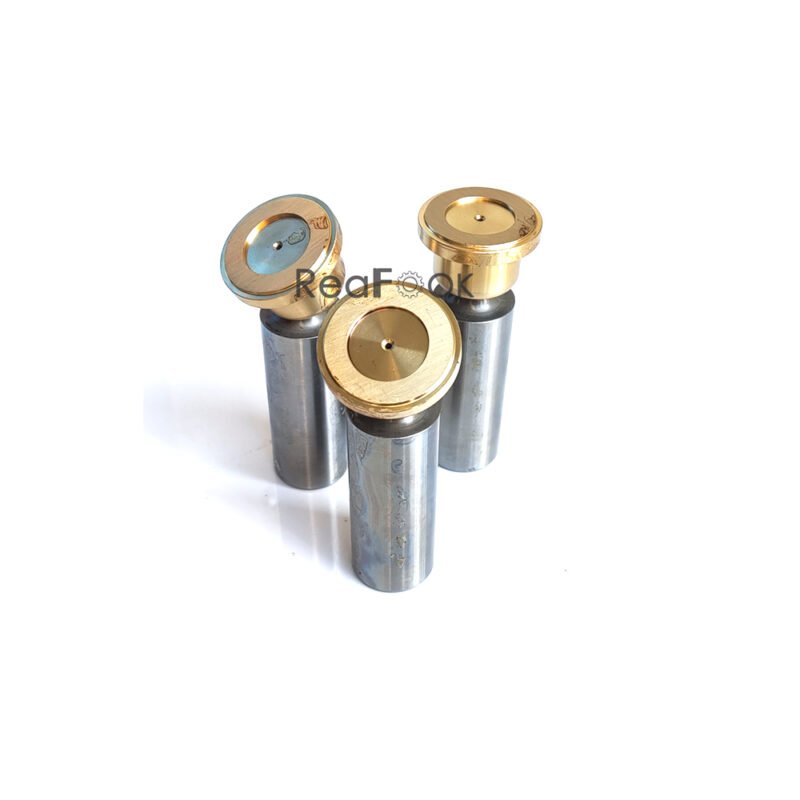

Travel Motor Piston Shoe Assy 096-4383 9PCS Fit Caterpillar Excavator E120B E200B
US$230.00
Piston Shoe Assy 096-4383 (9PCS);
• Overall Length: 87 mm;
• Pin Diameter: 23.5 mm;
It is used for Final Drive Travel Motor System;
Free Shipping and High Quality Standards!!
The price include 9 pieces of Piston Shoes, as 1 set. (1 set = 9 pieces; 2 sets = 18 Pieces…)
Description:
The Travel Motor Piston is responsible for translating hydraulic energy into rotational motion. As hydraulic fluid enters the piston chamber, it pushes against the piston head, generating force that drives the motor’s output shaft. This rotational energy powers the equipment’s movement, necessary for navigating equipment environments.
Pos. Part No Qty Parts name
1-66. 096-5909 [1] TRAVEL MOTOR ASSY.
1R-5477 [1] TRAVEL MOTOR ASSY.
1R-8842 [1] TRAVEL MOTOR ASSY.
099-4740 [1] REPAIR KIT
1. 095-1700 [2] O-RING
2. 096-1519 [1] SEAT
3. 095-7381 [1] POPPET
4. 095-7380 [1] SPRING
5. 095-7382 [1] RETAINER
6. 095-1585 [3] O-RING
7. 096-5910 [1] COVER
8. 094-1882 [10] PLUG
9. 096-3977 [1] JOINT
10. 096-5912 [1] SPOOL
1R-8843 [1] SPOOL
11. 096-3978 [1] SPRING
12. 095-1575 [3] O-RING
13. 096-4377 [2] O-RING
14. 096-1521 C SHIM
096-3785 C SHIM
096-3786 C SHIM
096-3787 C SHIM
096-3788 C SHIM
096-1522 C SHIM
15. 095-7378 [1] SPRING
16. 096-4378 [1] RING
17. 096-4375 [1] PISTON
18. 095-7383 [1] O-RING
19. 095-7386 [1] RING
20. 094-1402 [3] PLATE
21. 7Y-4214 [1] PLATE
24. 096-4844 [2] STEEL BALL
25. 096-3976 [2] PISTON
26. 096-3975 [2] SPRING
27. 095-1586 [2] O-RING
28. 7Y-4223 [2] SCREW
29. 096-4391 [2] NUT
30. 095-1685 [1] O-RING
31. 096-4368 [1] BODY
5I-6721 [1] BODY
1R-5478 [1] BODY
32. 096-3974 [2] KEY
33. 096-4376 [1] SEAL
34. 094-1399 [2] RING
35. 095-0978 [1] BEARING
36. 096-4372 [1] SHAFT
37. 099-0221 [1] PLATE
41-43. 096-4381 [1] PISTON SHOE RETAINER ASSY.
5I-4575 [1] PISTON SHOE RETAINER ASSY.
41-42. 096-4383 [9] PISTON SHOE ASSY.
46. 096-4387 [1] RETAINER
47. 096-4388 [1] SPACER
48. 096-4389 [9] SPRING
51-52. 096-9970 [1] BARREL PLATE ASSY.
56. 094-1875 [1] ROLLER
57. 096-4003 [1] BEARING
58. 094-1815 [1] PLUG
59. 8T-4944 [9] BOLT
61. 096-5915 [2] RETAINER
62. 096-5919 [2] RING
63. 095-1572 [2] O-RING
64. 096-2360 [2] STEEL BALL
65. 5I-6722 [2] SEAT
096-5916 [2] SEAT
66. 7Y-4217 [2] RING
N NOT SUPPLIED
INDIVIDUALLY
C INDICATES CHANGE
Weight
3.0 kg
