Description:

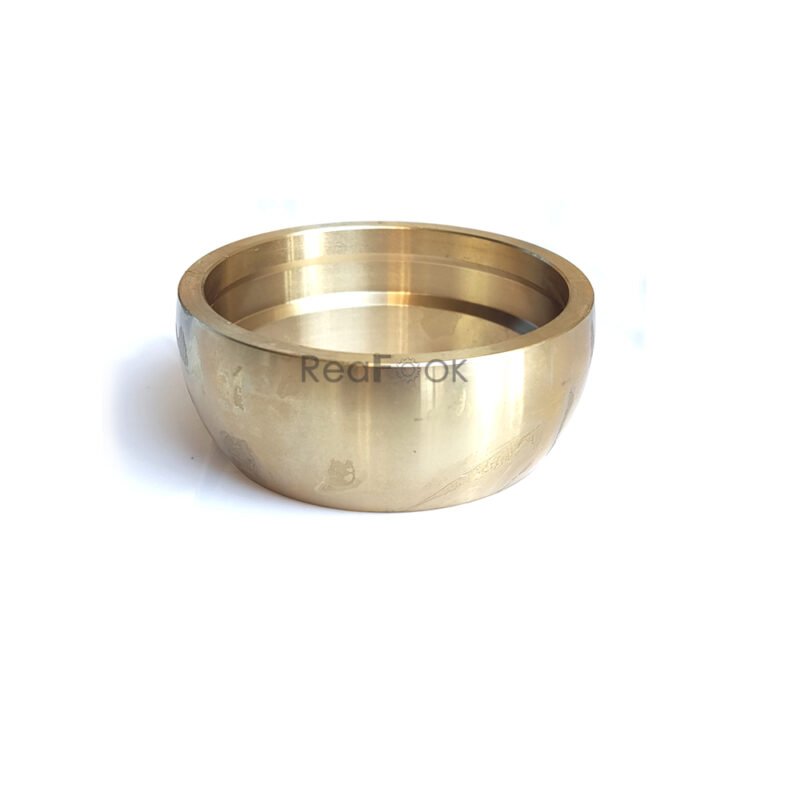

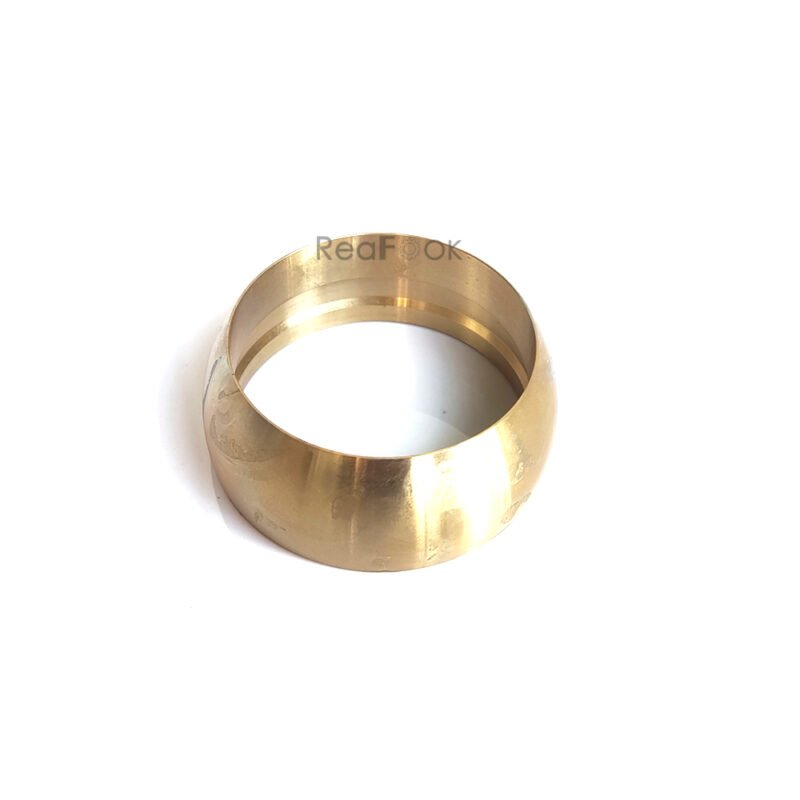

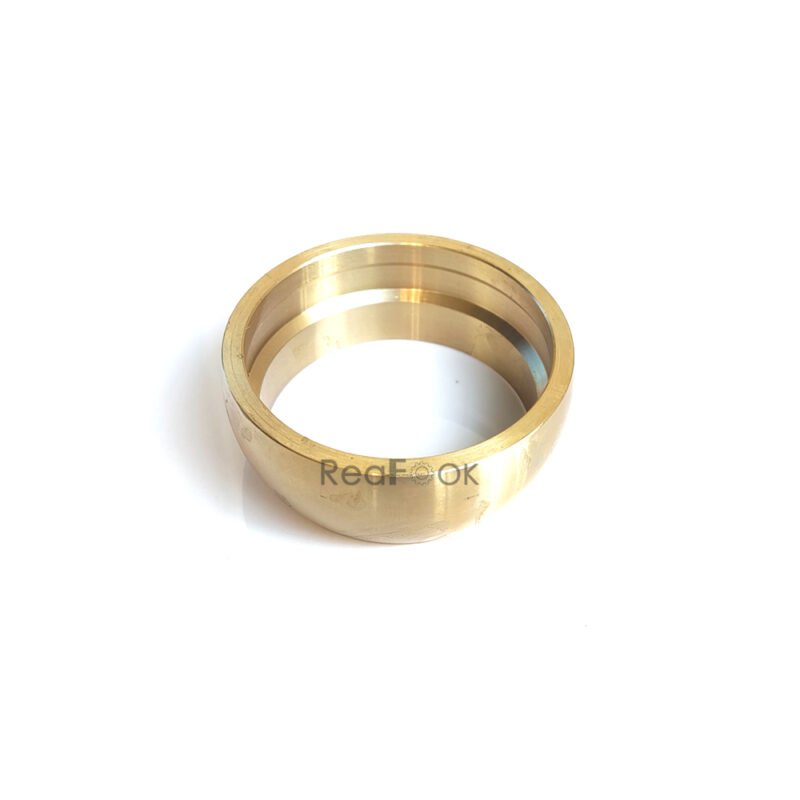

Travel Motor Ball Guide directs and supports ball bearings within the travel motor, ensuring smooth rotation and efficient power transfer.
Pos. Part No Qty Parts name
1-66. 096-5909 [1] TRAVEL MOTOR ASSY.
1R-5477 [1] TRAVEL MOTOR ASSY.
1R-8842 [1] TRAVEL MOTOR ASSY.
099-4740 [1] REPAIR KIT
1. 095-1700 [2] O-RING
2. 096-1519 [1] SEAT
3. 095-7381 [1] POPPET
4. 095-7380 [1] SPRING
5. 095-7382 [1] RETAINER
6. 095-1585 [3] O-RING
7. 096-5910 [1] COVER
8. 094-1882 [10] PLUG
9. 096-3977 [1] JOINT
10. 096-5912 [1] SPOOL
1R-8843 [1] SPOOL
11. 096-3978 [1] SPRING
12. 095-1575 [3] O-RING
13. 096-4377 [2] O-RING
14. 096-1521 C SHIM
096-3785 C SHIM
096-3786 C SHIM
096-3787 C SHIM
096-3788 C SHIM
096-1522 C SHIM
15. 095-7378 [1] SPRING
16. 096-4378 [1] RING
17. 096-4375 [1] PISTON
18. 095-7383 [1] O-RING
19. 095-7386 [1] RING
20. 094-1402 [3] PLATE
21. 7Y-4214 [1] PLATE
24. 096-4844 [2] STEEL BALL
25. 096-3976 [2] PISTON
26. 096-3975 [2] SPRING
27. 095-1586 [2] O-RING
28. 7Y-4223 [2] SCREW
29. 096-4391 [2] NUT
30. 095-1685 [1] O-RING
31. 096-4368 [1] BODY
5I-6721 [1] BODY
1R-5478 [1] BODY
32. 096-3974 [2] KEY
33. 096-4376 [1] SEAL
34. 094-1399 [2] RING
35. 095-0978 [1] BEARING
36. 096-4372 [1] SHAFT
37. 099-0221 [1] PLATE
41-43. 096-4381 [1] PISTON SHOE RETAINER ASSY.
5I-4575 [1] PISTON SHOE RETAINER ASSY.
41-42. 096-4383 [9] PISTON SHOE ASSY.
46. 096-4387 [1] RETAINER
47. 096-4388 [1] SPACER
48. 096-4389 [9] SPRING
51-52. 096-9970 [1] BARREL PLATE ASSY.
56. 094-1875 [1] ROLLER
57. 096-4003 [1] BEARING
58. 094-1815 [1] PLUG
59. 8T-4944 [9] BOLT
61. 096-5915 [2] RETAINER
62. 096-5919 [2] RING
63. 095-1572 [2] O-RING
64. 096-2360 [2] STEEL BALL
65. 5I-6722 [2] SEAT
096-5916 [2] SEAT
66. 7Y-4217 [2] RING
N NOT SUPPLIED
INDIVIDUALLY
C INDICATES CHANGE
Weight
0.2 kg
