Transmission Harness 199-3324 Fit Wheel Loader Caterpillar CAT 972G II 966G II

Name: Transmission Harness 199-3324 Fit Wheel Loader Caterpillar CAT 972G II 966G II
SKU: 199-3324
Price: 305.00 USD
Availability: InStock

US$305.00

Transmission Harness 199-3324;
Fit Engine 3176C 3196;
It is used for Engine System;
Free Shipping and High Quality Standards!!

SKU: 199-3324 Category: Harness Tags: 199-3324, Harness, Transmission Harness, Wheel Loader

Guaranteed Safe Checkout

Product Name: Transmission Harness Assy
Reference Part Number: 199-3324, 1993324
Compatible Machine: Wheel Loader Caterpillar CAT 972G II 966G II…

Description:
It is a transmission wiring harness connected to the modulation valve.

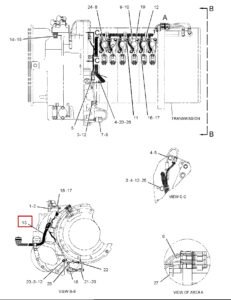

199 3324 Transmission Harness Diagram

Pos. Part No Qty Parts name Comments
1. 223-4434 CY [1] VALVE GPRELIEF
2. 4F-4097 [1] SEAL-O-RING
3. 4P-8134 [2] CLIP (LADDER)
4. 6V-6317 M [3] BOLT (M10X1.5X20-MM)
5. 130-5300 [2] CLIP
6. 186-2458 [1] CLIP AS
7. 118-7226 Y [1] SENSOR GPTEMPERATURE (TRANSMISSION OIL)
8. 3J-1907 [2] SEAL-O-RING
9. 244-3114 CY [6] VALVE GPMODULATING (24-VOLT) (TRANSMISSION CLUTCH)
10. 8S-0768 [6] SEAL-O-RING
11. 174-9603 [3] PLATE
12. 3S-2093 [11] STRAP-CABLE
13. 199-3324 [1] HARNESS ASTRANSMISSION
3S-2093 [1] STRAP-CABLE
7X-6222 [1] PLUG ASCONNECTOR (24-PIN)
3E-4367 [1] RINGRETAINING
3E-8558 M [1] BOLT (M5X0.8X39.37-MM)
9X-3265 [2] SEALCONNECTOR (24-PIN)
155-2270 [9] KITCONNECTINGPLUG (2-PIN)
155-260 [1] KIT-CONNECTING PLUG (3-PIN)
