Torque Hub Planet Carrier Assembly with Sun Gear 59728741 58806183 59367581 Fit Ingersoll Rand Roller DD110 DD110HF
US$950.00

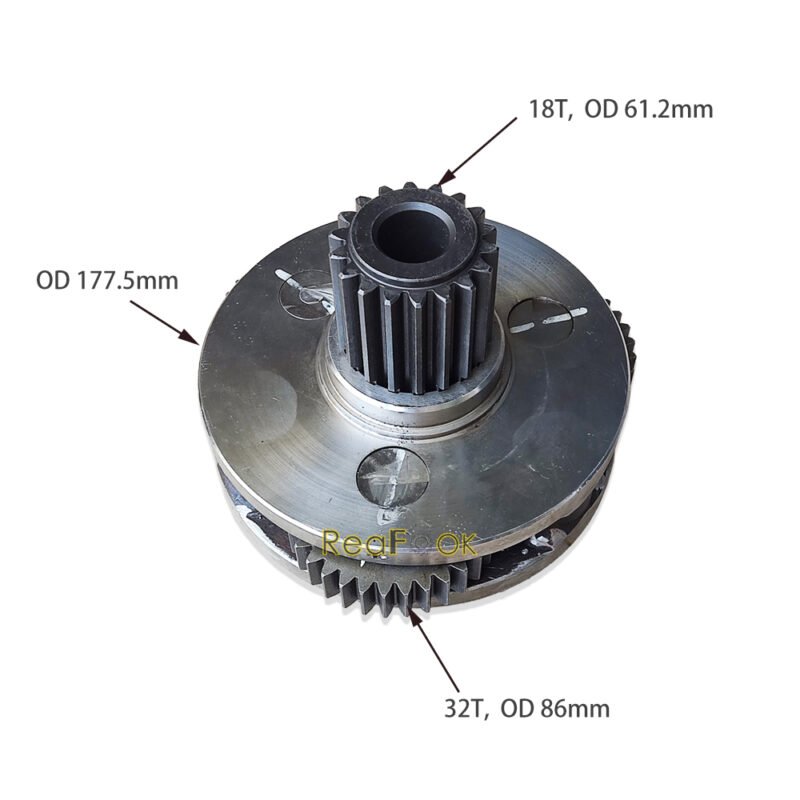

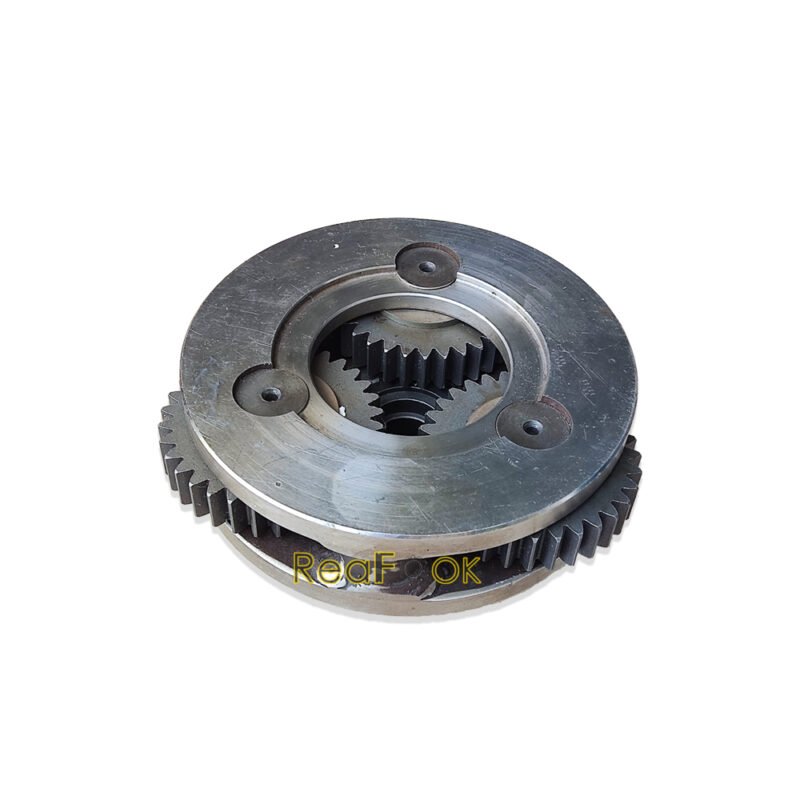

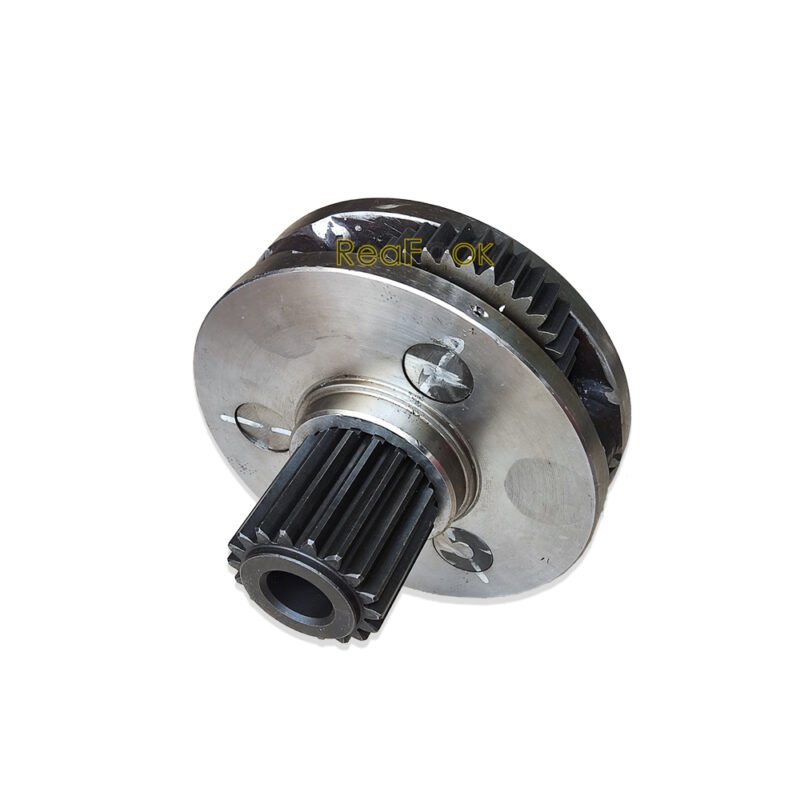

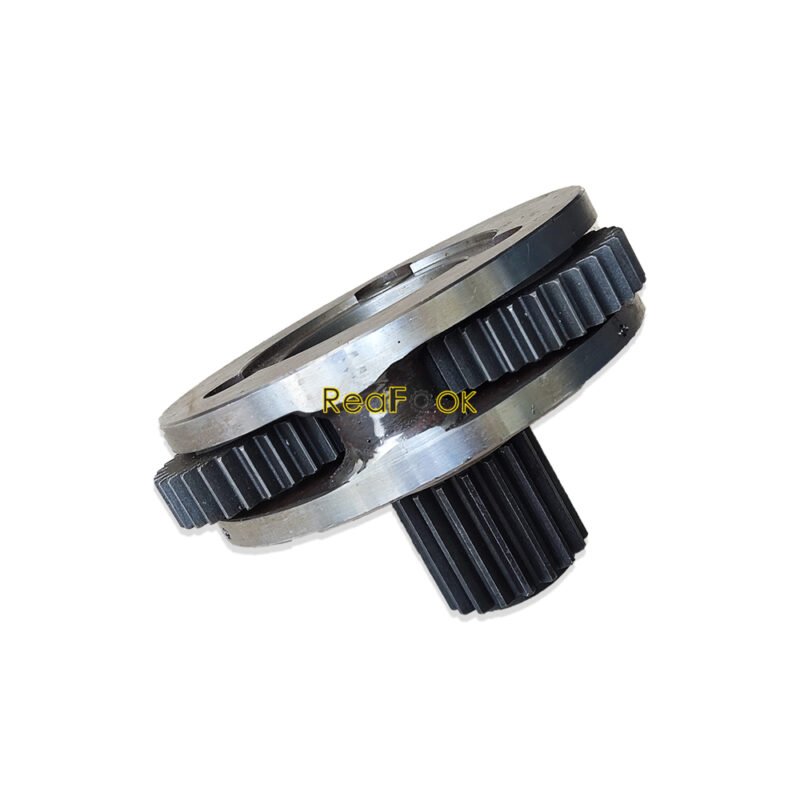

Planet Carrier 59728741: 18 Splines, OD 177.5mm;

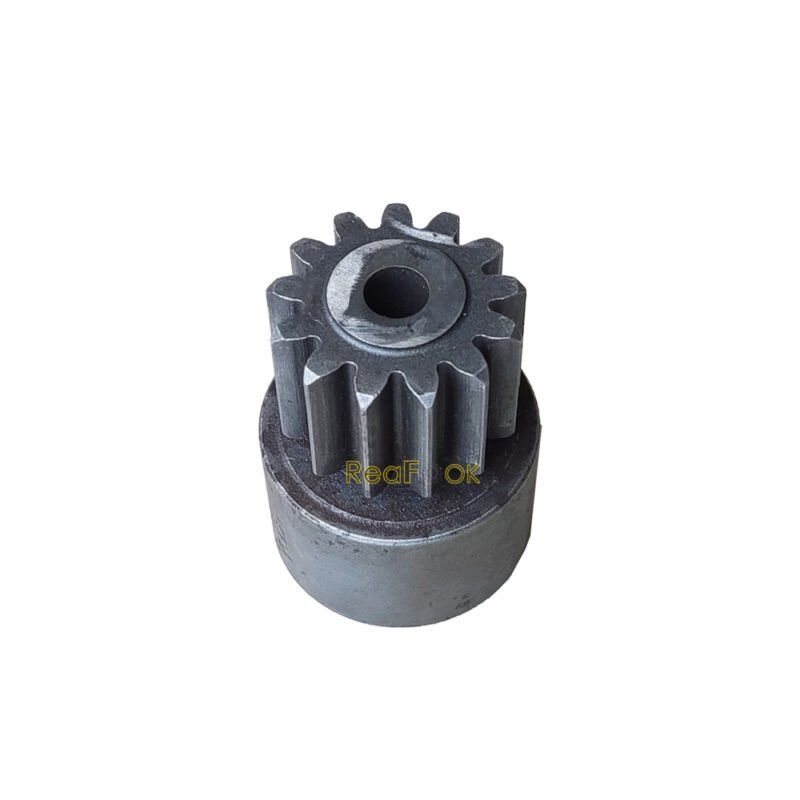

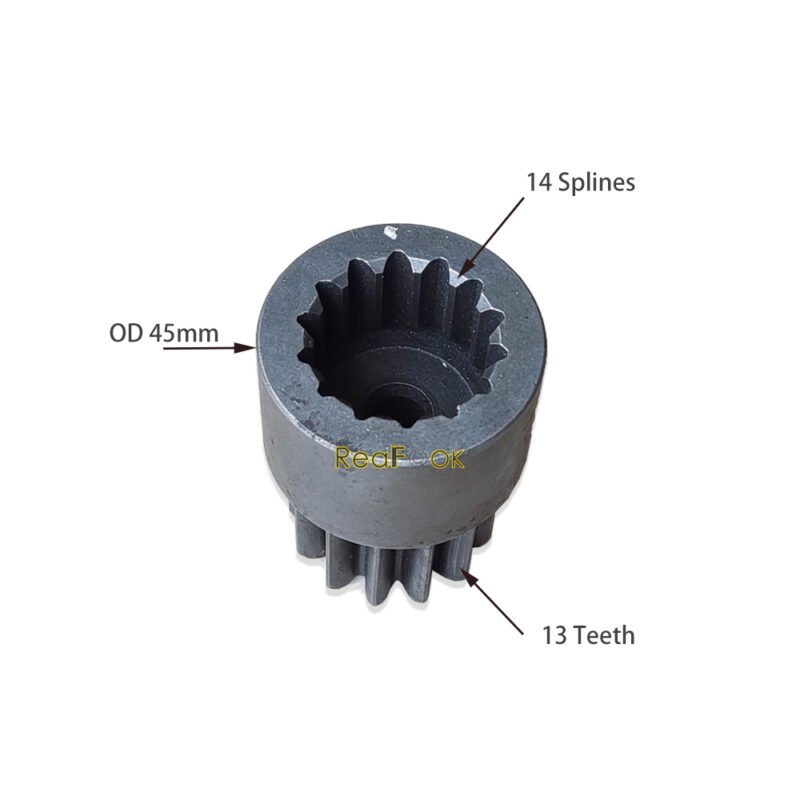

Sun Gear 58806183: 13T, 14S, Height 62.5mm;
Sun Gear 59367581: 18T, Height 84mm;
It is used for Transimission Reducer System;
Free Shipping and High Quality Standards!!
All dimensions are manually measured; minor errors are inevitable.
The price contains the planet carrier assembly and the 2 sun gears!
Product Name: Planetary Carrier Assy with Sun Gears
Reference Part Number: 59728741, 58806183, 59367581
Compatible Machine: Ingersoll Rand Roller DD110 DD110HF…
Description:
The Planetary Carrier is responsible for holding the planet gear in place and allowing it to rotate around the sun gear. It is made of ductile iron and withstands the high torque and impact loads that are generated in the final drive. It is bolted to the final drive housing and has a splined bore that allows it to be driven by the sun gear.
Weight
10 kg
