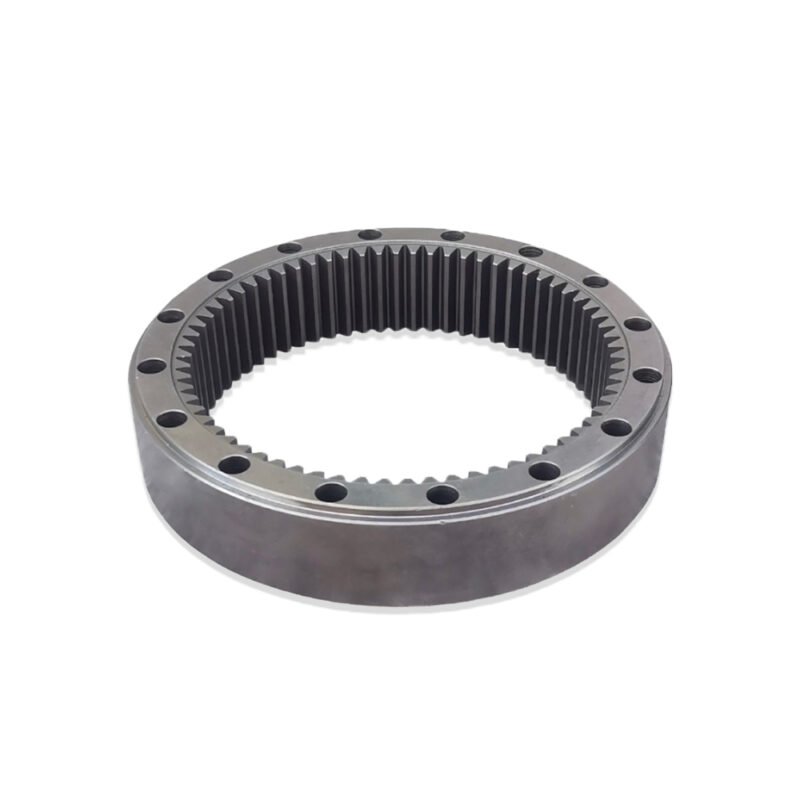

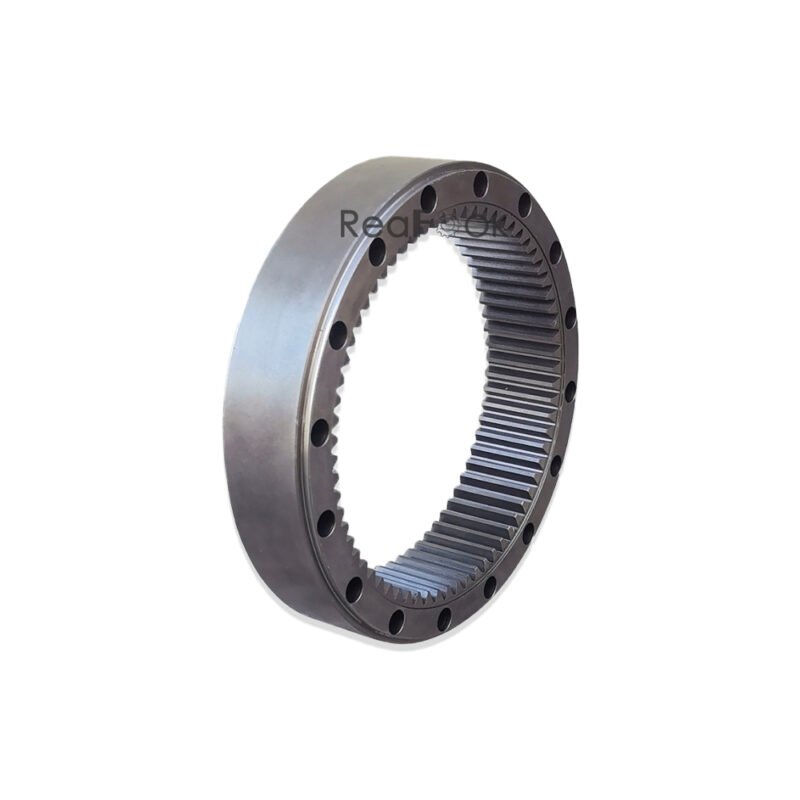

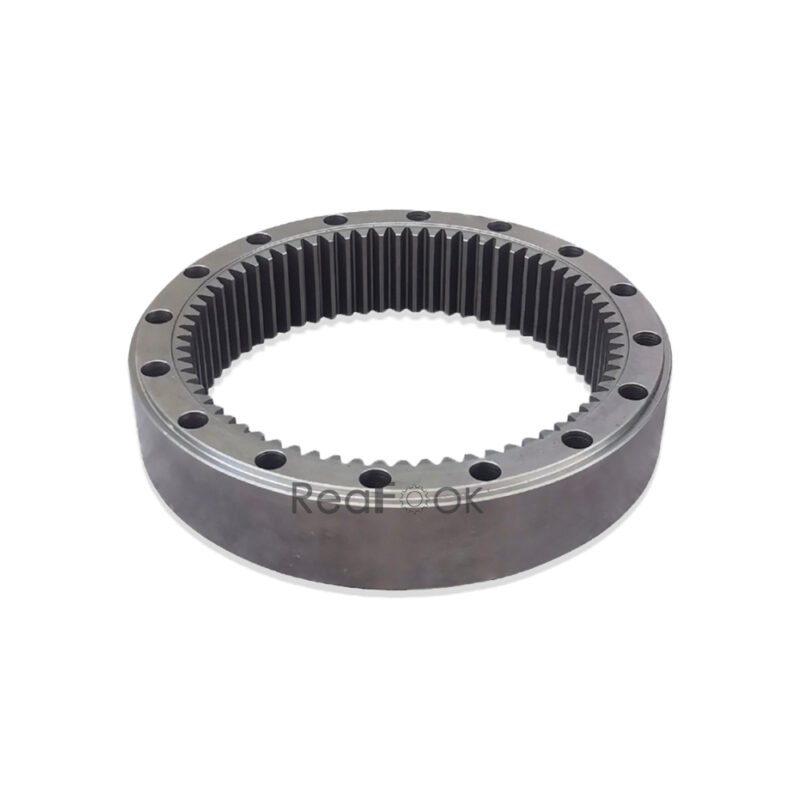

Toothed Gear Ring 05/903862 Fit Excavator JCB JS200 JS200W JS205 JS210 JS220 JS235 JZ235 JS255

Product Name: Gear Ring Toothed
Reference Part Number: 05/903862
Compatible Machine: Excavator JCB JS200 JS200W JS205 JS210 JS220 JS235 JZ235 JS255…

Description:
Swing Drive Ring Gear facilitates rotational movement of the swing mechanism, enabling controlled rotation of the upper structure and boom assembly.

Pos. Part No Qty Parts name Comments
A. JRC0007 [1] Gearbox swing
1. 05/903860 [1] Gear reduction assembly
2. 05/902010 [2] O Ring
3. 05/903862 [1] Ring Toothed
4. 05/903863 [1] Gear Sun
5. 05/903864 [1] Cover
5A. 05/903865 [1] RingToothed
6. 05/903866 [1] Gear Reduction Assembly
7. 05/903867 [1] Gear Sun
8. 05/903868 [16] Screw M16 x 120mm
10. 05/903873 [1] Gear output assembly
10-1. 05/903869 [1] Shaft pinion 14 teeth
10-2. 05/903870 [1] Spacer
10-3. 05/903871 [1] Ring
10-4. 05/903872 [1] Bearing
10-6. 05/903874 [1] Nut
10-7. 05/903875 [1] Bearing
10-8. 05/903876 [1] Seal ring 100 x 130 x12mm
10-8. 333/C7880 [1] Seal 100x140x13 LARGER SIZE
10-9. 05/903877 [1] Housing
11. See Remark’ Gauge,oil level see page E2-7-3,Swing motor
