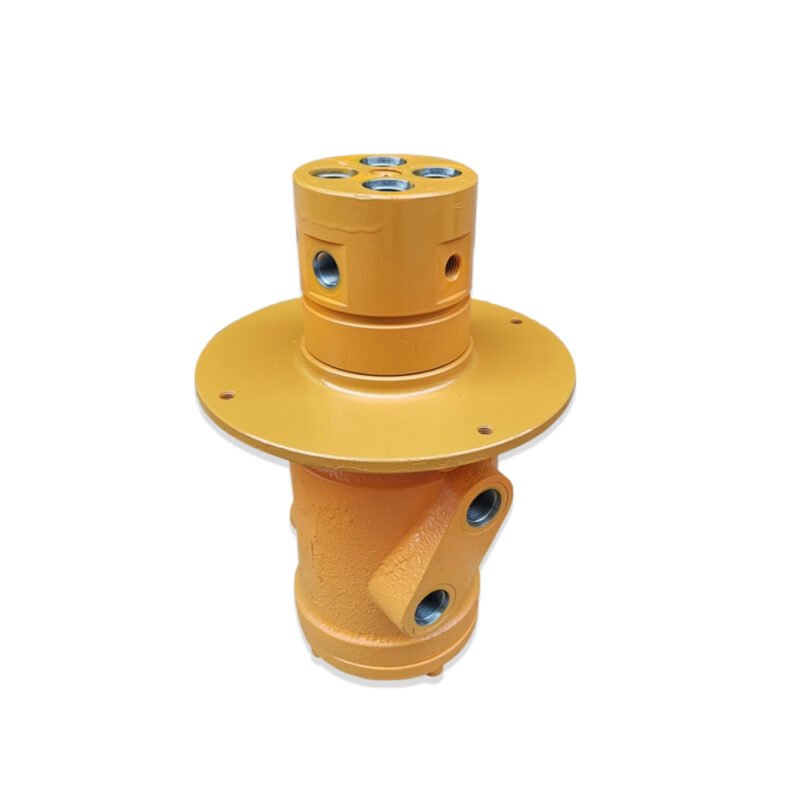

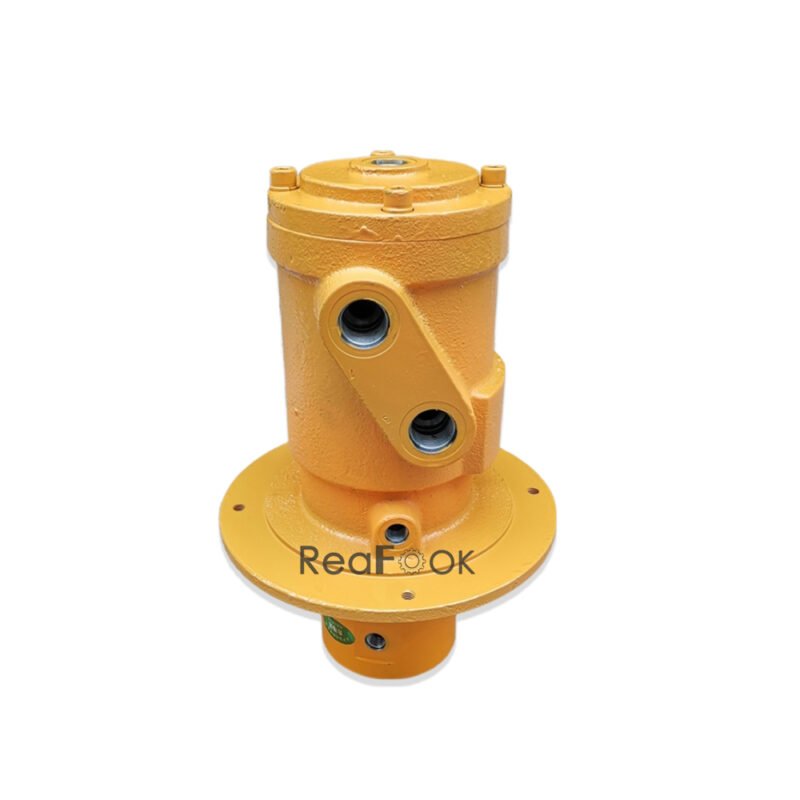

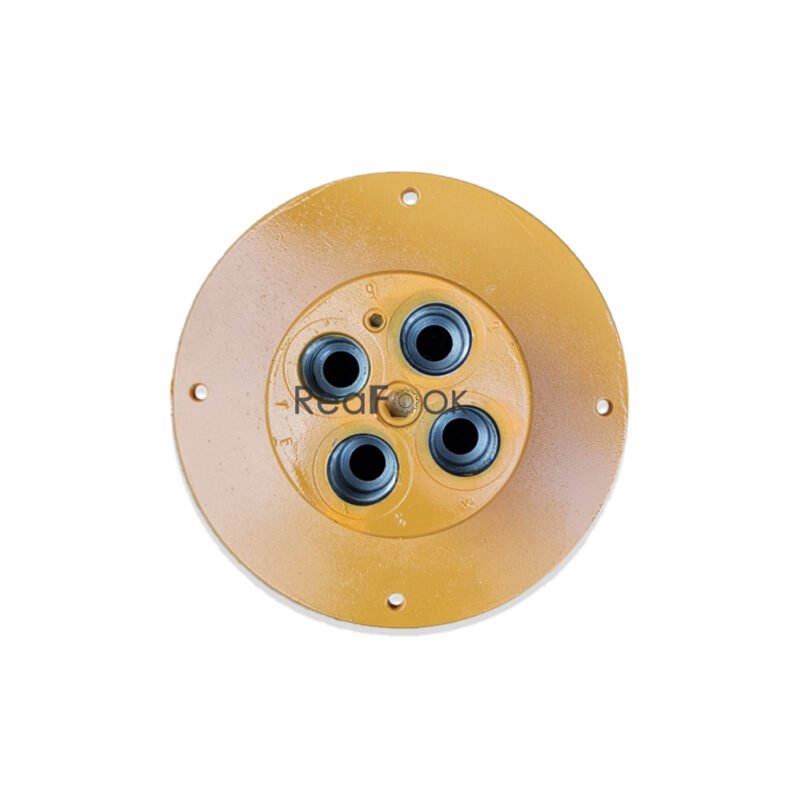

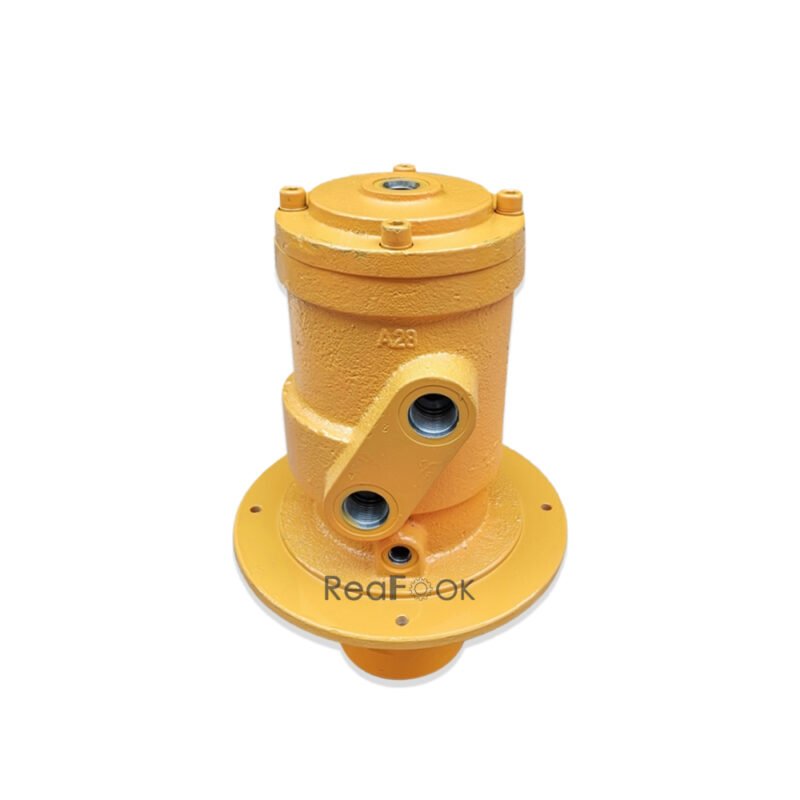

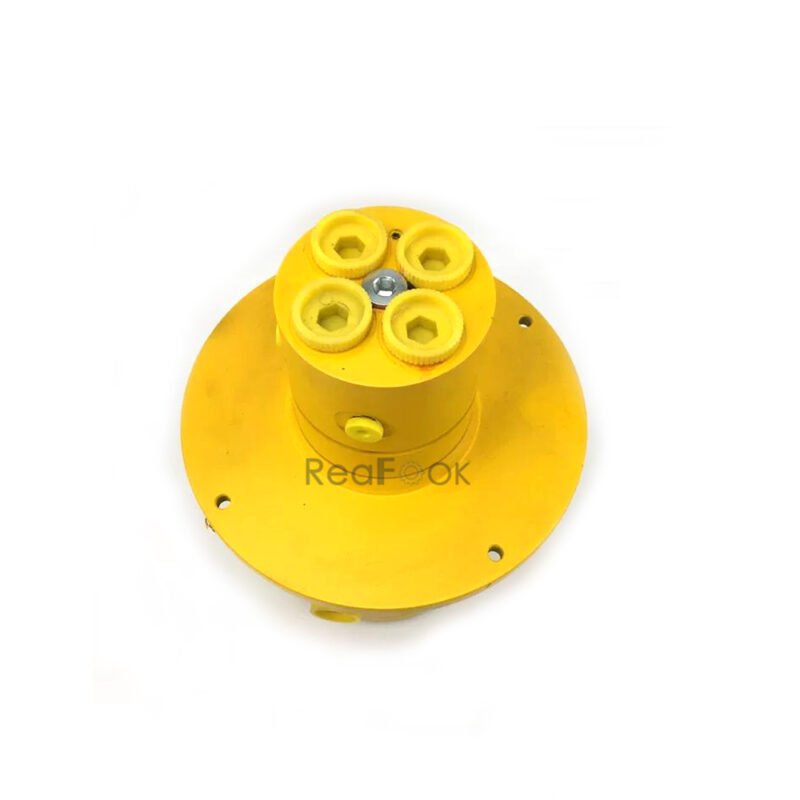

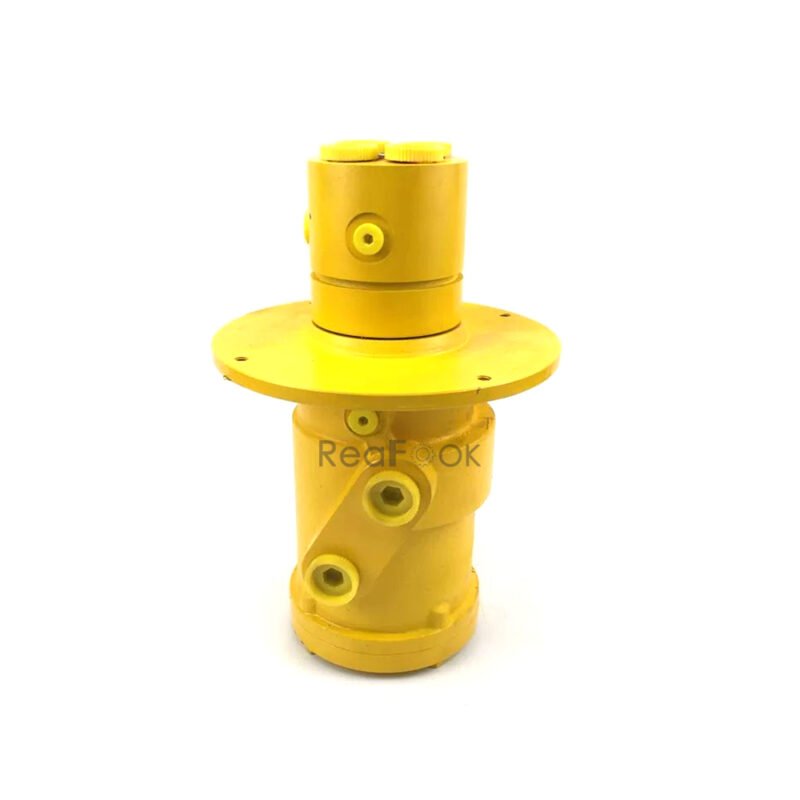

Swivel 162-4696 Swing Center Joint Fit Caterpillar Excavator CAT311B 311C 311D 312B 312C 312D 313B 313D 315B 315C 318B 319D

Product Name: Swivel Joint GP
Reference Part Number: 162-4696, 1624696
Compatible Machine: Caterpillar Excavator CAT311B 311C 311D 312B 312C 312D 312D2 312E 313B 313D 313D2 314C 314D 314E 315B 315C 315D 316E 317B 318B 318D 318D2 318E 319D…

Description:
A Swivel Boot is a protective covering designed to enclose and shield a swivel joint or rotating connection. It is made of flexible and durable materials. The swivel boot serves the purpose of preventing contaminants, such as dust, dirt, water, or debris, from entering the swivel joint and causing damage or impeding its smooth operation.

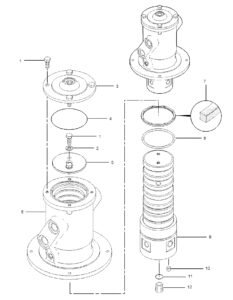

Pos. Part No Qty Parts name Comments
1. 8T-4136M [6] BOLT (M10X1.5X25-MM)
2. 8T-4121 [2] WASHER-HARD (11X21X2.5-MM THK)
3. 5I-4363 [1] COVER
4. 095-1716 [1] SEAL-O-RING
5. 7I-7321 [1] RETAINER
6. 4I-7604 [1] HOUSING
7. 159-7782 [5] SEAL
8. 095-1625 [3] SEAL-O-RING
9. 4I-7605 [1] ROTOR
10. 8T-6759 [1] PLUG-PIPE
11. 3K-0360 [1] SEAL-O-RING
12. 9S-8005 [1] PLUG (3/4-16-THD)
