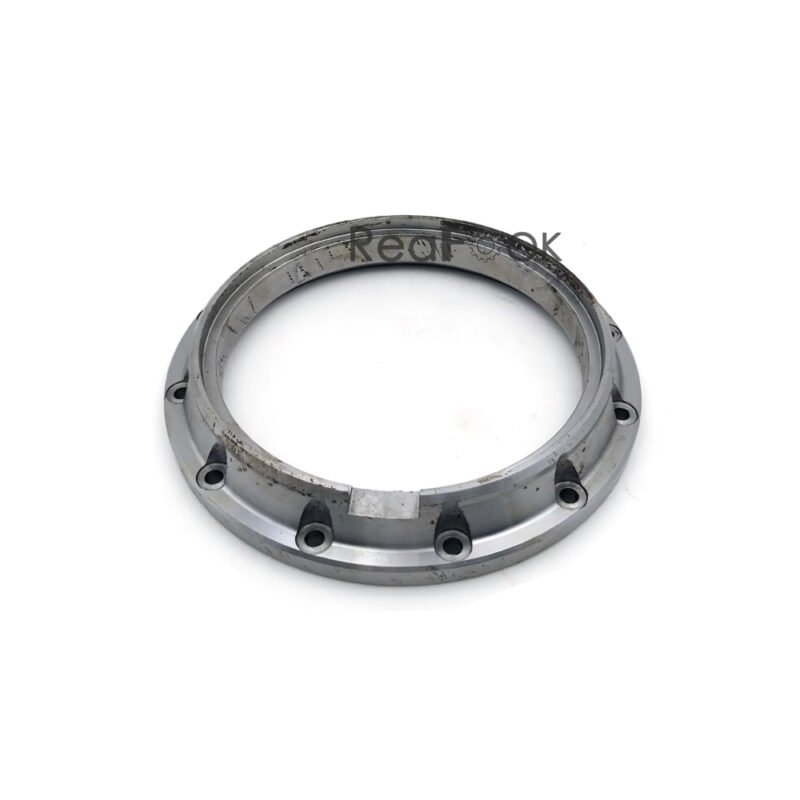

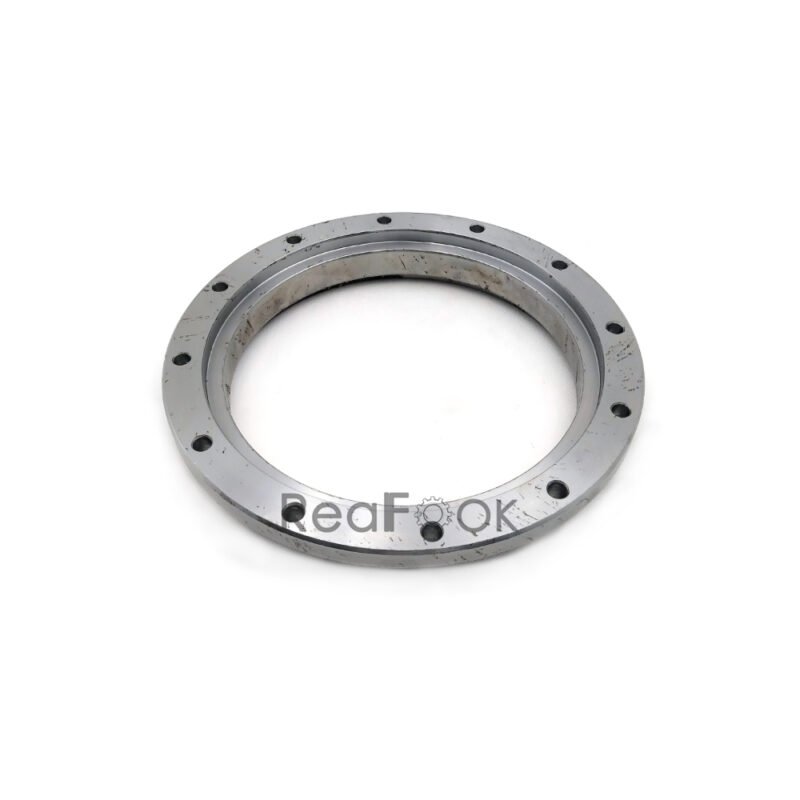

Swing Shaft Oil Seal Retainer 2418P22799 Fit Excavator Kobelco SK200LC-3 SK200LC Mark III Mark IV

Product Name: Oil Seal Retainer
Reference Part Number: 2418P22799
Compatible Machine: Excavator Kobelco SK200-3 SK200LC-3 SK200 Mark III Mark IV

Description:
An Oil Seal is used to provide a leakproof seal for the pinion of the swing drive. It is made from an elastic material such as rubber, which is used to prevent leakage of fluids, contaminants, or lubricants and maintain proper operation and performance and used to reduce the friction and heat generation between the pinion during operation and maintain constant contact with the rotating shaft, forming a dynamic seal that adapts to the shaft’s movement.

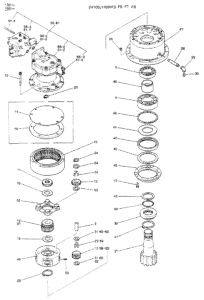

Pos. Part No Qty Parts name Comments
5. R25P0047D8 [1] BEARING KOB ROLLER
6. 25Z494D11 [1] BEARING KOB ROLLER
9. 2410T340 [4] ROLLER SHAFT KOB
10. 2401N468 [1] RING GEAR KOB
11. 2401P1276 [1] SUN GEAR KOB
12. 2401P1277 [4] PINION KOB
13. 2401P1279 [4] KIT KOB , Serial Range: YQ01701–YQ01840 Superseded by part number: 24001T71F2
15. ZS23C08030 [12] SCREW,Hex Socket Head, M8 x 30mm KOB M08x1.25x30mm Superseded by part number: ZS28C08030
18. 2418P20198D3 [2] SPACER KOB (4)
19. 2401P1278 [1] SUN GEAR KOB , Serial Range: YQ01701–YQ01840 Superseded by part number: 2401P1434
20. ZR16X04500 [1] RING KOB Retaining — ID 45 x OD 58 x Th 1.8mm
23. 2425T383 [76] PLUG WRENCH NEEDLE,ROLLER, Serial Range: YQ01701–YQ01840 PLUG WRENCH NEEDLE,ROLLER,24. 2425T384 [140] NEEDLE BEARING KOB ROLLER
25. ZR16X08500 [1] LOCKING RING KOB SNAP
26. ZS83C20020 [2] SCREW KOB Set — M20x2.50x20mm
28. 2420T6698D3 [1] RIGID TUBE KOB
29. ZG31U12000 [1] ELBOW KOB 90°
30. ZE82T12000 [1] PLUG KOB 3/4″ PT
33. ZS23C14140 [10] SCREW,Hex Socket Head, M14 x 140mm KOB M14x2.0x140mm
34. ZR16X04000 [4] RING KOB Retaining — ID 37 x OD 40 x Th 1.8mm
37. 2410N519 [1] FINGER ASSY. KOB
38. 2418P23538 [1] HOSE KOB
39. ZD11P09500 [1] O-RING KOB ID 94.6 ± 0.81 x OD 105mm
40. 2418R259 [1] OIL SEAL KOB
41. 2418R2D60 [1] SNAP RING KOB SNAP
42. 2418T21667 [1] PLATE KOB
43. 2418T20987 [1] PLATE KOB
44. 2418T20986 [1] PLATE KOB
45. 2418P22799 [1] RETAINER KOB
46. 2418T20988 [1] SPACER KOB (4)
47. 2414J2298 [1] HOUSING KOB
48. 2418T20989 [1] SPACER KOB
49. 2413J381 [1] DIFF. SPIDER KOB SPIDER
50. ZP26D08025 [4] PIN KOB Roll — OD 08 x 25mm Long
51. 2418T20963 [8] THRUST WASHER KOB , Serial Range: YQ01701–YQ01840 Superseded by part number: 2418T25314
52. 2413N462F1 [1] SPIDER KOB
53. 2418T20962 [4] THRUST WASHER KOB
54. 2418T19775D3 [4] THRUST WASHER KOB
56. 2441U819F2 [1] HYDRAULIC MOTOR KOB MOTOR. SWING, Serial Range: YQ01841–YQ01868 Superseded by part number: 2441U819F3
56-2. 2441U804F1 [1] HYDRAULIC MOTOR KOB MOTOR SEE(C P M)
56-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB REDUCTION SEE(C. P. M)
56-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
56-6. 2436U1431F4 [1] CONTROL VALVE KOB VALVE. CONTROL SEE(C .P. M) Superseded by part number: 2436U1431F6
57. 2401P1434 [1] SUN GEAR KOB , Start Serial: YQ01841-
58. 2401P1438 [4] PINION KOB , Serial Range: YQ01841–YQ01848 Superseded by part number: 2401P1440
59. 2425R332 [4] NEEDLE BEARING KOB , Start Serial: YQ01841-
60. 2418T24791 [8] RING KOB THRUST WASHER, Serial Range: YQ01841–YQ01848
61. 2441U819F3 [1] HYDRAULIC MOTOR KOB MOTOR. SWING, Start Serial: YQ01867-
61-2. 2441U804F1 [1] HYDRAULIC MOTOR KOB MOTOR SEE(C. P. M)
61-3. 2436U1283F1 [1] VALVE PRESSURE RELIE KOB VALVE SEE(C P M)
61-4. ZS23C12135 [6] SCREW,Hex Socket Head, M12 x 135mm KOB M12x1.75x135mm
61-5. ZD12G03500 [2] O-RING,34.40mm ID x 40.60mm OD x 3.10mm KOB ID 34.40 ± 0.33 x OD 40mm
61-7. 2436U1431F6 [1] CONTROL VALVE KOB VALVE. CONTROL SEE(C P M)
62. 2418T25314 [8] THRUST WASHER KOB , Start Serial: YQ01848
63. 2401P1440 [4] PINION KOB , Start Serial: YQ01848
70. 2418T23087 [1] SPACER
71. 2418T5028 [1] PLATE COVER PLATE COVER
